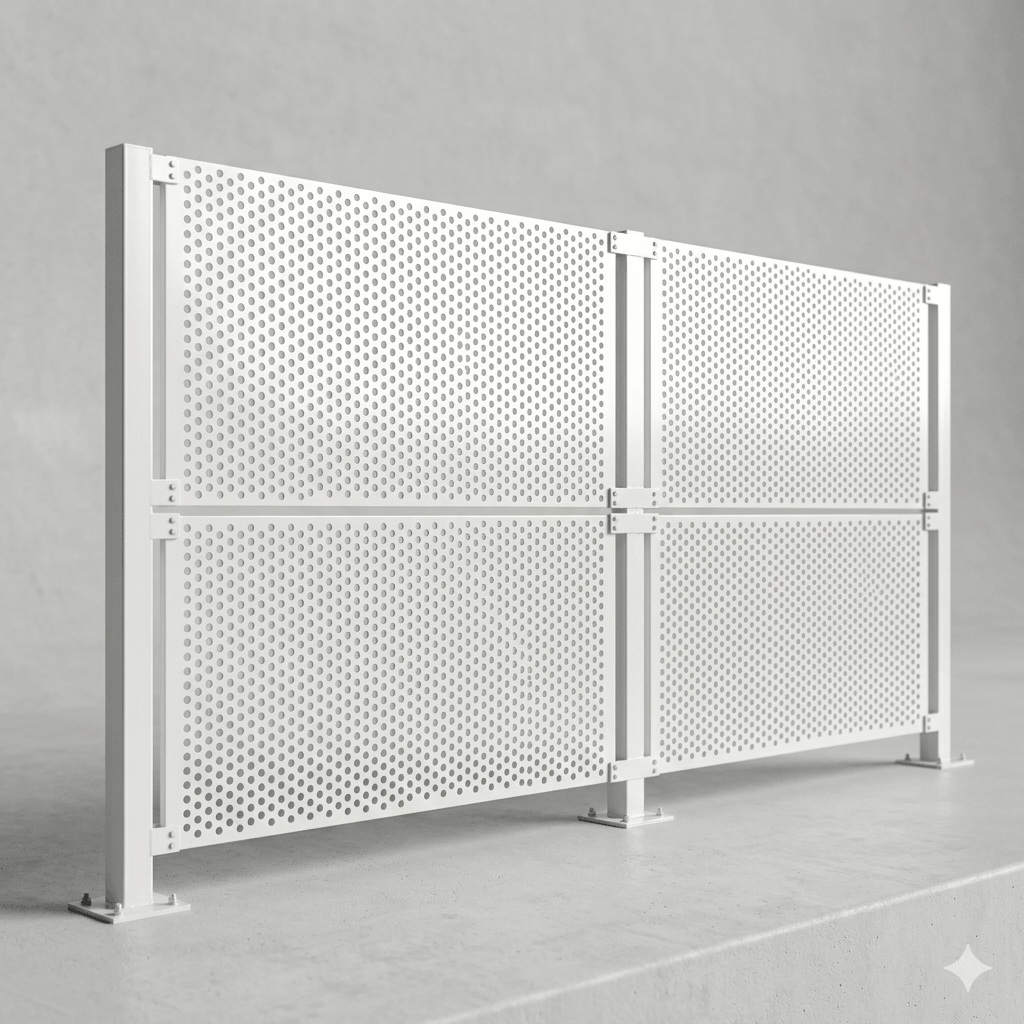

Heavy-Duty Perforated Metal Fencing for Commercial Security & Modern Architectural Boundary Walls
In high-end modern perimeter security and civil infrastructure planning, standard chain-link fences or solid block walls fail to satisfy the dual requirements of visual refinement and aerodynamic resilience. Our structural-grade Perforated Metal Fencing panels deliver an unyielding, high-strength solution designed to excel in both urban developments and harsh coastal environments. Formed from top-tier structural aluminum sheets or hot-dip zinc-plated steel plates, these advanced panels offer architects and civil general contractors a beautiful boundary shield that effectively secures facilities while permitting gentle micro-ventilation and fluid lighting integration.
As an internationally certified first-tier direct-factory manufacturer, we control every parameter of the fence perforation layout with computer-guided multi-pin presses. This enables us to maintain micro-level edge precision and perfect pitch regularity across massive manufacturing runs. Every metal panel passes through automated heavy hydraulic rollers to eradicate internal metal stress and guarantee complete surface flatness. Whether you are outfitting high-traffic perimeter walkways, screening open-air electrical utility sub-stations, or completing luxury residential estate gates, our perforated fence frames supply unmatched structural longevity and elite aesthetic impact.
Engineered Performance Advantages of Our Perforated Fence Panels
1. Aerodynamic Wind Relief & Reduced Post Stress
Solid wall partitions act like sails in high wind conditions, transferring massive bending stresses into structural posts and concrete footings. Our precisely calculated perforation matrices provide open ventilation areas from 15% to 50%, allowing extreme gale currents to pass through smoothly. This significantly reduces total wind load forces and minimizes structural failure risks during hurricanes.
2. Tailored Privacy Protection & Micro-Light Diffusing
By adjusting the hole diameter ratios and pitch spacing patterns, our privacy screens successfully distort exterior sightlines, blocking intrusive views from passersby. Concurrently, the mesh allows natural, diffuse ambient sunlight and fresh breezes to enter, avoiding the claustrophobic, completely dark spaces caused by traditional sheet-metal cladding barriers.
3. Solid Unperforated Margins & Pre-Drilled Cassette Flanging
We eliminate exposed, razor-sharp partial apertures at the pane boundaries. Every panel features clean, solid unperforated edge margins along all four sides. Furthermore, we can fold the vertical margins into 25mm to 40mm rigid returns with factory-punched bolt holes, creating ready-to-hang cassettes that clamp cleanly onto structural fence posts and drastically shorten field installation times.
Technical Specifications & Standard Manufacturing Dimensions
| Product Code SKU | Material Alloy & Grade | Panel Thickness (mm) | Hole Pattern Geometry | Calculated Open Area % | Popular Finish Coating |
|---|---|---|---|---|---|
| PMF-AL-20R | Aluminum 6063-T5 | 2.0 mm | Round Staggered (Ø 6mm) | 22.6% | Tiger Powder Coated (Matt Black) |
| PMF-AL-30H | Aluminum 5052-H32 | 3.0 mm | Hex Honeycomb (15mm) | 45.0% | AkzoNobel PVDF (Charcoal Gray) |
| PMF-GI-20S | Galvanized Steel (GI) | 2.0 mm | Square Linear Alignment | 35.4% | Heavy Powder (Dark Bronze) |
| PMF-GI-30L | Galvanized Steel (GI) | 3.0 mm | Slotted Louvre Profiles | 18.5% | Hot-Dip Galvanized & Painted |
| PMF-CS-CORTEN | Corten Weathering Steel | 3.0 mm | Laser-Cut Geometric Lattice | 28.0% | Pre-Rusted Natural Finish |
Primary Architectural Engineering & Security Deployments
Our heavy-gauge perforated boundary components are integrated within premium fencing frameworks across global industries:
-
- Commercial & Corporate Enclosures: Surrounding corporate headquarter buildings and retail campuses to form crisp, modern borders that integrate with security access sensors.
- Residential Boundary & Pool Guards: Installed as decorative privacy fence infills over concrete base structures, providing safety containment without blocking cooling garden breezes.
- Machinery & Electrical Substation Screens: Forming high-security anti-climb utility parameter panels to hide dangerous transformers or HVAC clusters while ensuring adequate air ventilation.
- Public Parks & Balustrade Infills: Mounted along civil pedestrian bridges, public park margins, and school sports arenas to provide secure impact containment screens.
Professional Mechanical Assembly & Post-Fixing Steps
To eliminate fence rattling and completely withstand high wind velocity stresses, ensure field crews adhere to these fixing steps:
- Post Span Laser Checking: Verify that the pre-installed steel or aluminum fence posts are vertically plumb and spaced precisely to match your panel width specifications before bolting.
- Antivibration Gasket Insertion: Fit durable, weather-resistant EPDM rubber washers between the panel’s mounting flanges and the main metal fence posts. This dampens wind-induced vibrational rattling and isolates dissimilar metals.
- Fastener Tightening Calibration: Lock the panels down using matching high-grade M8 stainless steel self-tapping bolts through the factory pre-drilled slotted margins, leaving a minor clearance gap to smoothly accommodate seasonal thermal tracking.
- Ground Clearance Setting: Maintain a standard horizontal clearance margin of 50mm to 100mm between the bottom frame edge of the metal fence panel and the concrete base footing to prevent ground water or debris build-up.
Heavy Volume Packing, Strict Quality Auditing & Seaworthy Anti-Scratch Logistics
Fulfilling large-scale international contract tenders for municipal developments, residential fencing networks, and large commercial distributors demands strict, military-grade logistics preparation. At our fully automated manufacturing complex, every run of perforated boundary infill panels passes through computerized multi-point spectrophotometer color checking, digital coating thickness calibration, and strict laser flatness check screens before moving to the packaging bay.
To ensure flawless, scratch-free delivery to your job site, a tough, UV-stabilized protective film is applied directly to the finished face of every panel. The components are interleaved with non-abrasive expanded polyethylene (EPE) foam pads, nested together horizontally inside fully enclosed heavy-duty export plywood crates or extra-strength steel skid bases, and secured firmly with high-tensile steel strapping bands. This premium packaging approach eliminates internal shifting or friction inside shipping containers during turbulent sea transits, arriving at your port site ready for immediate installation.
Frequently Asked Questions (FAQ)
Q1: How do your structural engineers determine the correct fence post thickness and post spacing to handle extreme regional wind speeds?
A1: Ultimate structural stability under severe gale loads depends on panel material gauge, the chosen hole open area ratio, and the absolute vertical post span height. For standard 1.8-meter-tall outdoor installations, our engineering team balances the panel layouts with open ventilation values around 25-35%. This accommodates typical wind velocities perfectly and lowers backpressure forces, matching perfectly with standard 50mm square steel posts spaced up to 2.4 meters apart. Full localized engineering wind calculation tracking records can be provided for municipal bidding evaluations.
Q2: What is the estimated color and coating lifespan of your powder-coated perforated panels in harsh outdoor environments?
A2: We exclusively apply premium architectural-grade Interpon, AkzoNobel, or Tiger polyester thermosetting powder coatings. Under intense daily UV radiation and standard weather conditions, these high-performance polymers easily avoid chalking, checking, or severe fading for over 15 to 20 years. For marine-adjacent locations with constant salt-fog exposure, we can apply an advanced multi-stage chromate-free zirconium pre-treatment wash or apply 3-coat PVDF liquid finishes to maximize long-term adhesion and prevent bubbling.
Q3: Can your CNC production lines execute complex geometric pattern arrays or decorative corporate logo cutouts directly on the fence sheets?
A3: Yes, absolutely. Combining high-speed CNC punching arrays with advanced precision fiber laser cutting allows us to render sophisticated parametric gradients, leafy organic patterns, modern slatted structures, or crisp branding emblems. Simply provide standard vector AutoCAD drawings (.dwg, .dxf) or high-resolution architectural layout drafts, and our CAD/CAM engineers will generate a fully optimized tooling simulation layout within 48 hours.
Q4: What is your standard factory minimum order quantity (MOQ) for custom-engineered or custom-colored fence runs?
A4: Because setting up automated multi-axis punching machinery and initiating electrostatic paint line color-change loops requires extensive cleaning and precise calibration, our custom manufacturing run MOQ usually starts at 150 square meters (or approx. 50 individual standard fence panels). For common stock RAL options (such as industrial black or deep architectural charcoal grey panels) matching our current processing queue, we gladly support flexible project MOQs down to 50 square meters to help satisfy specialized contract applications.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Perforated Metal Fencing procurement costs? Partner with us to enjoy premium bright, smooth-finish, and perfectly flat quality compliant with international security standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, dimensional flatness, and custom perforation pattern/pitch testing samples available for your local security fencing, perimeter protection project, or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated high-speed CNC punching lines and precise panel flattening/forming machinery ensure prompt manufacturing and on-time shipment of your perforated metal fencing.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage, surface scratching, and panel bending.
