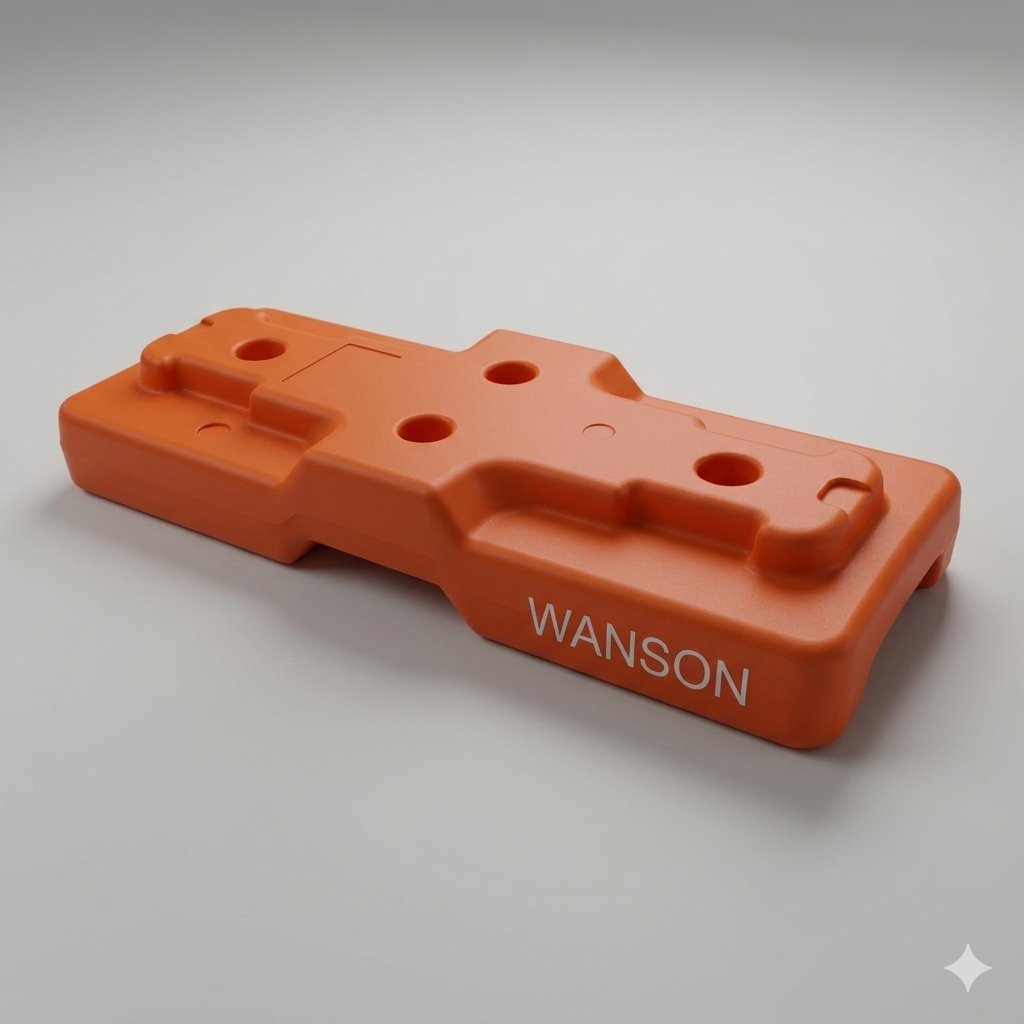

Heavy-Duty Concrete Filled Plastic Feet for Mobile Fencing Systems
As a specialized structural polymer and building material manufacturer exporting worldwide, we offer industrial-grade Concrete Filled Plastic Feet engineered specifically for heavy-duty commercial deployment. Often considered the foundation of temporary site management, fence blocks must possess exceptional impact resistance and precise geometric tolerancing. Our high-visibility orange counterweights replace traditional brittle concrete blocks or easily rusted steel plates, delivering an ergonomic, reliable, and aesthetically neat base layout that ensures site boundaries comply directly with modern environmental and civic work safety codes.
Why Procurement Managers Rely On Our HDPE Concrete Fencing Blocks
1. Advanced UV8 Stabilization & Virgin Polymers: Budget blow-molded shells constructed with recycled scrap plastics turn brittle and burst open within months of solar heat exposure. We formulate our polymer material matrix exclusively with premium virgin HDPE compound infused with premium anti-UV stabilizers, guaranteeing the outer casing maintains high tensile strength and color vibrancy across years of rough site operations.
2. High-Density Solid Concrete Core: Our facility implements mechanized vibrating molding tables during the concrete injection phase. This process eliminates internal air bubbles and voids, ensuring the concrete slurry dries into a completely solid, shatter-resistant internal core that provides maximum anchoring weight per cubic centimeter.
3. Ergonomic Interlocking Geometry: Featuring a highly engineered multi-point interlocking layout, our blocks seat securely atop one another during heavy stacking. This limits lateral slippage when stacked high on cargo pallets, while the molded handles allow warehouse crews and site technicians to easily lift and deploy units without hand injury.
Technical Specifications & Blueprint Configuration Matrix
| Engineering Parameter | Standard Export Value | B2B Customizable Range |
|---|---|---|
| Shell Molding Process | Heavy-Duty Blow Molding | Injection molding options for solid plastic parts |
| Casing Outer Material | 100% Virgin HDPE + UV8 Inhibitors | Flame-retardant or high-impact modified formulations |
| Physical Dimension | 600 mm (L) x 220 mm (W) x 150 mm (H) | Custom heavy configurations up to 620 mm length |
| Standard Dead Weight | 28 kg / 32 kg (Tolerance ± 0.5kg) | 16 kg to 36 kg adjustable weight scale |
| Molded Hole Diameter | 32 mm / 38 mm / 42 mm Round Holes | Square insertion sockets or 48 mm heavy-pipe size |
| Hole Pitch (Center to Center) | 90 mm / 100 mm Industrial Standard | Custom pitch spacing matching local rental specs |
| Visibility / Color Scheme | Safety Orange (Anti-fade) | Caution Yellow, Green, Blue, Corporate branding colors |
| Internal Concrete Density | ≥ 2,400 kg/m³ Vibrated Compaction | Reinforced microfiber concrete mixes available |
High-Density Freight Stacking & Maximum Container Capacity Optimization
Because our Concrete Filled Plastic Feet carry high dead-weight density relative to volume, global ocean shipping optimization is governed strictly by container weight capacity limits rather than volumetric space constraints. Our shipping logistics team excels in configuring maximum-tonnage loads without risking cargo shift. Utilizing our engineered nesting design, the plastic blocks interlock tightly with each other on reinforced export-grade pallets. Every stack is tightly wrapped in multi-layer industrial cling shrink wrap, reinforced with steel corner corner caps, and secured with heavy-duty PET strapping bands. This professional packaging guarantees that container load balances stay optimal during maritime transit, prevents structural shifts during severe sea pitching, and ensures local logistics crews can perform fast container destuffing operations using standard material handling equipment.
Frequently Asked Questions (FAQ)
Q1: How do you perform quality assurance tests regarding shell impact strength and concrete cracking during extreme site drops?
A1: Our internal quality management team subjects random product samples from every manufacturing batch to a rigorous free-fall drop test. Fully cured blocks are dropped from a height of 1.5 meters directly onto solid asphalt surfaces at varying temperature configurations. Because we strictly integrate 100% virgin high-viscosity HDPE polymers with a premium internal vibratory compacted concrete slurry, our casings exhibit superb structural flexibility that avoids shell rupture or internal concrete fragmentation under typical impact forces.
Q2: What is the expected exterior operational lifecycle of the plastic shell when used in high UV desert regions like Arizona or the Middle East?
A2: Standard plastics degrade under intense solar radiation due to polymer chain breakage. To counter this, our compounding formula integrates a highly specialized UV stabilizer additive package (rated at UV8 grade). This chemical shielding allows our safety orange plastic feet to withstand up to 8,000 hours of continuous accelerated xenon-arc lamp weathering testing, translating to over 5 to 7 years of open-field desert solar exposures before any structural discoloration or physical micro-cracking occurs.
Q3: How are the insertion holes sealed or treated to prevent moisture ingress from corroding internal elements?
A3: The insertion sleeves are molded directly as continuous, seamless inner tubes integrated during the outer shell blow-molding phase. This continuous polymer sleeve provides a completely waterproof barrier that separates the heavy concrete fill from external elements, completely preventing rainwater, chemical site runoff, or coastal salt fog from making contact with the inner concrete core, thereby stopping structural cracking caused by internal moisture cycle expansion.
Q4: What is your standard factory minimum order volume (MOQ) for custom hole diameters or embossed company logos?
A4: For our standard safety orange 28kg blocks with 32mm/38mm double round holes, our factory MOQ is 500 units, which perfectly fills out cost-effective initial shipping distributions. If your commercial team requires customized hole pitches, special square sockets, customized brand color matching, or an embossed corporate brand logo molded permanently into the shell face, the MOQ is 1,000 units to justify the secondary mold engineering tooling setup.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Concrete Filled Plastic Feet procurement costs? Partner with us to enjoy premium high-density, UV-resistant, and high-stability quality compliant with international temporary fencing, construction site safety, and crowd control standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, blow-molding outer shell thickness, concrete weight accuracy, and anti-aging property testing samples available for your local temporary fencing, construction hoarding, or event security project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated high-speed blow molding, automatic concrete infilling, and robotized sealing lines ensure prompt manufacturing and on-time shipment of your Concrete Filled Plastic Feet.
- Customized Packaging: Heavy-duty reinforced stacking or marine-grade rust-proof dual packing with heavy-duty pallets to prevent transit damage, outer shell cracking, and shifting during container shipping and site deployment.
