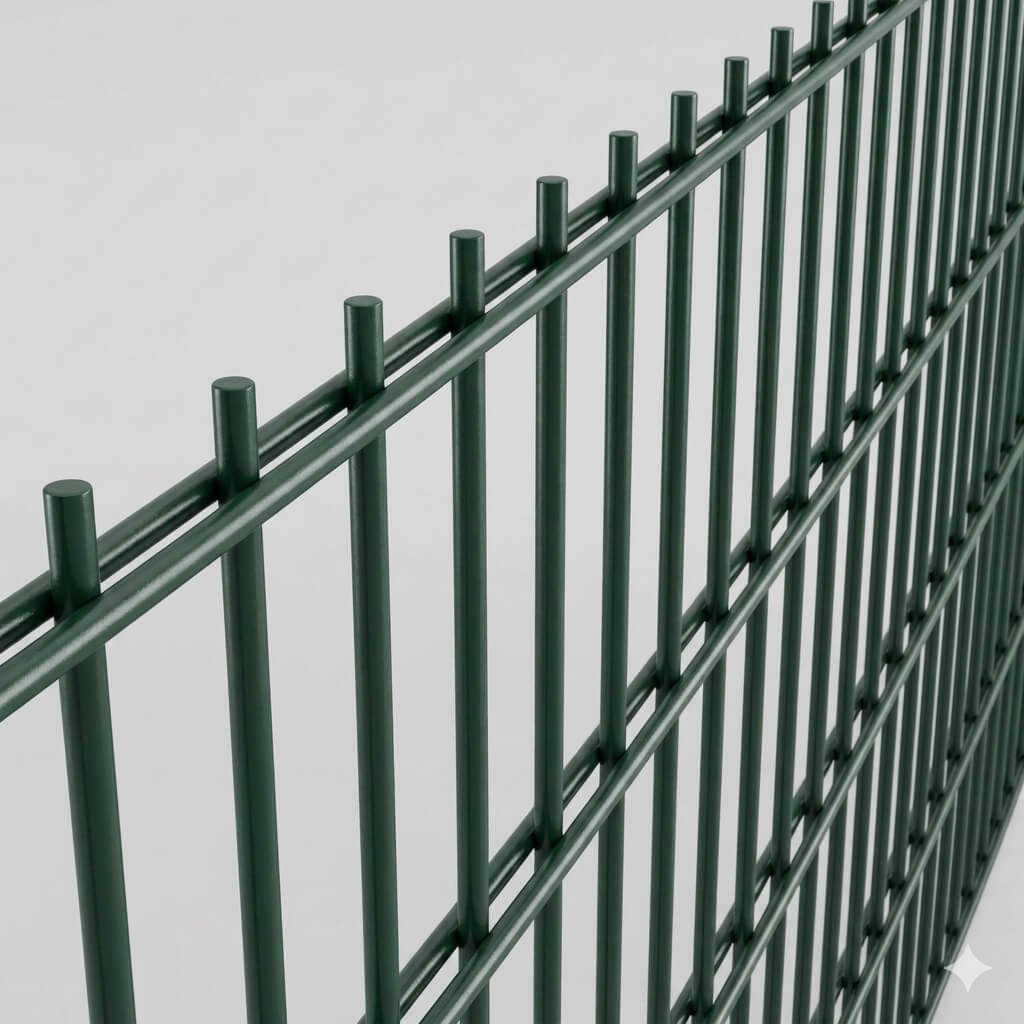

Premium 868 Double Wire Fence: The Ultimate Heavy-Duty Security Solution
When it comes to securing high-risk environments, standard wire fences often fall short. The 868 Double Wire Fence (also known as twin wire mesh fencing) stands as the gold standard in premium rigid perimeter control. Featuring twin 8mm horizontal steel wires sandwiching a 6mm vertical wire, this robust system creates a formidable barrier that is structurally superior to conventional single-wire alternatives. It is specifically engineered to withstand deliberate vandalism, heavy kinetic impacts, and the harshest environmental conditions without deformation.
Our heavy-duty twin wire fence panels are widely specified by architects and civil engineers for projects demanding both maximum deterrence and an aesthetically clean profile. Whether you are safeguarding an industrial complex, a public school infrastructure, or a high-traffic sports stadium, our factory-direct 8/6/8 fencing panels deliver the ultimate peace of mind. We utilize premier grade low-carbon steel wire drawn to precise tolerances, followed by automated multi-point welding to guarantee flawless joint integrity across every grid.
Why Global Project Contractors Choose Our 8/6/8 Twin Wire Panels
Engineered for High-Performance Perimeter Defense
Unlike standard chain link or single welded mesh, the double horizontal wire layout creates a highly rigid grid structure. This effectively eliminates flexing, makes cutting with standard hand tools exceptionally difficult, and provides a sleek, modern visual asset to any architectural landscape.
The core commercial advantage of our 868 double wire fence lies in its advanced surface treatment engineering. To survive coastal humidity and extreme climate shifts, each fence panel undergoes a rigorous anti-corrosion workflow. We offer both heavy hot-dipped galvanization (zinc coating up to 275 g/m²) and thermosetting architectural-grade AkzoNobel powder coating. This dual-layer passivation prevents moisture infiltration at the welded intersections, completely eradicating the risk of premature rust bleeding and eliminating ongoing maintenance costs for the end-user.
Comprehensive Technical Specifications & Product Parameters
| Specification Item | Standard Dimensions / Technical Data |
|---|---|
| Wire Diameter (Horizontal / Vertical) | 8mm Double Horizontal Wire + 6mm Single Vertical Wire (8/6/8 Style) |
| Mesh Aperture Size | 50mm x 200mm (Standard); 50mm x 100mm (Custom Anti-Climb) |
| Available Panel Heights | 630mm, 1030mm, 1230mm, 1630mm, 1830mm, 2030mm, 2230mm, 2430mm |
| Standard Panel Width | 2500 mm / 3000 mm (Reduces installation time and post counts) |
| Anti-Corrosion Coatings | Electro-galvanized + PVC, Hot-Dipped Galvanized (ISO 1461), Powder Coating |
| Popular RAL Colors | RAL 6005 Green, RAL 7016 Anthracite Grey, RAL 9005 Jet Black |
| Post Profile Options | 60x60mm, 60x40mm, 80x60mm SHS (Square/Rectangular Hollow Section) |
| Fixing System Accessories | Full-length Flat Steel Bars, Metal Spider Clips, Anti-Vandal Bolts |
Export Logistics Optimization & Global Supply Capabilities
As a leading export-oriented manufacturing plant, we understand that product quality is only half the battle; secure international transit and cost-effective bulk logistics are equally vital. Because 868 welded fence panels are significantly heavier than traditional single wire systems, our factory employs a specialized mechanized palletizing protocol. Panels are stacked tightly on reinforced steel or wooden pallets, separated by heavy-duty cardboard buffer sheets, and wrapped tightly with multi-layer UV-stabilized stretch film. This ensures zero metal-on-metal friction during long-distance ocean freight.
Furthermore, our loading engineers calculate container capacity meticulously based on your specific mix of panel sizes and post heights. We maximize the volumetric density inside 20GP and 40HQ containers, protecting post-flanges and clip accessories from shifting transit damage. We provide comprehensive export documentation including Bill of Lading, Certificate of Origin, Mill Test Certificates (MTC), and detailed loading inspection videos before the vessel departs, ensuring a frictionless customs clearance process at your destination port.
Frequently Asked Questions (FAQ)
Q1: What exactly does “868” stand for in twin wire fencing?
A1: “868” represents the precise millimeter diameter configuration of the heavy steel wires used in welding the mesh grid. It indicates that the panel utilizes two horizontal wires of 8mm thickness sandwiching a single vertical wire of 6mm thickness. This heavy combination delivers supreme stiffness that prevents structural sag.
Q2: How does the 868 fence compare to the lighter 656 fence model?
A2: The 656 profile utilizes 6mm horizontal wires and a 5mm vertical wire. While the 656 model is suitable for lightweight commercial boundaries or residential properties, the 868 profile offers significantly higher mechanical resistance, superior anti-cut security, and is the absolute requirement for heavy public infrastructure and stadium borders.
Q3: What is the expected service lifespan of your hot-dipped galvanized 868 panels?
A3: When treated with our ISO 1461 compliant hot-dipped galvanization process, the heavy zinc coat provides active cathodic protection. Under standard inland, municipal, or sub-tropical outdoor environments, our 868 fencing panels maintain full structural integrity without rust degradation for more than 15 to 20 years.
Q4: Do you supply the custom installation components and posts together with the mesh?
A4: Yes, we provide complete, integrated security fencing solutions. We manufacture matching heavy-gauge square and rectangular posts, specialized flat bar covers, secure M8 anti-vandal security bolts, and heavy-duty steel spider clips. We can also pre-weld base plates onto the posts if your project requires surface-bolt mounting on concrete.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your 868 Double Wire Fence procurement costs? Partner with us to enjoy premium heavy-duty, smooth-finish, and high-rigidity quality compliant with international high-security and boundary fencing standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, wire gauge accuracy (8mm/6mm/8mm), welding strength, and coating thickness testing samples available for your local commercial, industrial, or sports stadium project and distribution verification.
- Guaranteed Fast Lead Time:Advanced automated heavy-duty mesh welding and premium powder coating/galvanizing lines ensure prompt manufacturing and on-time shipment of your 868 double wire fence.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage, panel distortion, and wire bending.
