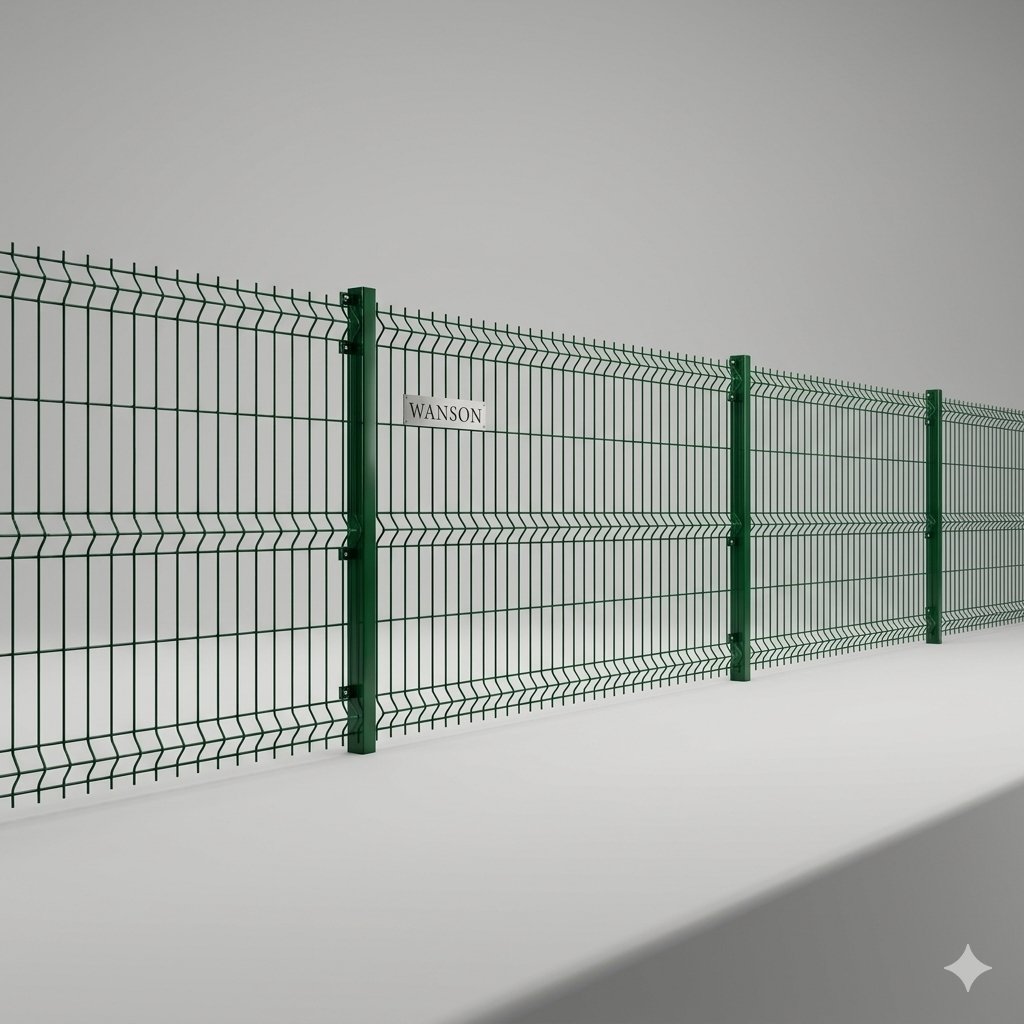

Industrial-Grade 3D Welded Wire Fence Panels for Architectural Security
As a premier structural steel wire manufacturer supplying global B2B supply chains, we produce commercial-grade 3D Welded Wire Fence panels that seamlessly integrate industrial strength with contemporary architectural lines. Frequently specified for boundary demarcations in commercial complexes, residential communities, railway buffers, public parks, and agricultural zones, these fencing networks outperform traditional chain link fences in both visual appeal and structural stability. The core design incorporates precision-engineered triangular folds along the vertical profile, ensuring the network acts as a deterrent to intruders while providing optimal visibility for site surveillance systems.
Key Competitive Edge of Our V-Mesh Security Fencing
1. Strategic 3D V-Folds for Ultimate Rigid Resistance: Flat welded wire mesh panels can suffer from mid-span flexing over prolonged open-field deployments. Our advanced automatic press brakes introduce localized triangular horizontal folds across the panel. These V-shaped curves drastically improve the panel’s moment of inertia, preventing bowing or structural sag under strong localized winds or physical pressure.
2. Multi-Layer Polymer Coating (AkzoNobel & Dupont Feedstocks): Rust defense requires more than basic paint application. Our panels undergo a meticulous 7-stage chemical pretreatment, including acidic cleaning, rinsing, phosphating, and a protective nano-ceramic coating base. We then electrostatically apply premium AkzoNobel thermosetting polyester powder, baked to perfection to form a continuous glass-hard shield that resists cracking, peeling, and chalking under severe UV exposure.
3. High-Security Clip-less Installation Options: Beyond standard square posts with plastic bracket clips, we specialize in exporting high-security Peach Posts. The post features aerodynamic inner recess folds that allow the mesh panel edges to snap directly into the pillar cavity without external fasteners. This creates a secure, anti-tamper structure that intruders cannot disassemble from the exterior side.
Technical Specifications & Structural Blueprint Parameters
| Engineering Metric | Standard Wholesale Specifications | B2B Customizable Range |
|---|---|---|
| Wire Diameter (Core/Finished) | 4.0 mm / 5.0 mm (Tolerance ± 0.05mm) | 3.0 mm up to 6.5 mm heavy security gauge |
| Mesh Grid Aperture | 50 mm x 200 mm / 50 mm x 100 mm | 75 mm x 200 mm / Custom tight high-security grids |
| Available Panel Heights | 1030mm, 1230mm, 1530mm, 2030mm | 600 mm up to 3000 mm single-panel layout |
| Standard Panel Width | 2500 mm / 3000 mm | 2000 mm to 3100 mm custom spans |
| Number of V-Curves | 2 folds (low height) / 3 or 4 folds (high format) | Engineered structurally based on panel heights |
| Zinc Layer Base Density | Electro-galvanized (min 20g/m²) / HDG (min 60g/m²) | Super heavy marine-grade HDG up to 275g/m² |
| Structural Post Selection | Peach Post (70x100mm), Square Post (60x60mm) | Round Post (48mm/60mm), Rectangular configurations |
| Standard Colors (RAL) | Moss Green (6005), Anthracite (7016), Black (9005) | Full RAL spectrum palette availability |
Palletized Logistics, High Packing Density & Damage Prevention
Managing the transit of volume-heavy powder-coated architectural components requires robust protection against friction damage. Our logistics division employs an advanced packing system for every 3D Welded Wire Fence shipment. Mesh panels are stacked in alternating directions on heavy-duty, customized steel transport pallets, allowing the V-curves to interlock cleanly. This minimizes dead space and restricts movement during heavy ocean waves. We apply dense foam padding between painted surfaces, shield panel corners with multi-layer corrugated edge boards, and wrap the entire pallet in heavy waterproof stretch film. Similarly, fence posts are bundled separately with protective plastic sleeves separating individual units. This specialized packing methodology dramatically increases your 40ft High Cube container payload density, optimizing sea freight outlays and ensuring product finishes arrive at destination warehouses scratch-free.
Frequently Asked Questions (FAQ)
Q1: What makes your powder coating layer more resistant to cracking and peeling compared to cheaper local alternatives?
A1: Cheaper fence alternatives often skip the chemical pretreatment stage or use recycled PVC/low-grade powder, resulting in poor adhesion and under-film corrosion. We utilize an automated 7-stage chemical wash line that forms an advanced conversion layer on the steel. Our electrostatic spray process with genuine AkzoNobel virgin polyester powder creates tight polymer cross-linking during cross-baking. This keeps the coating pliable enough to accommodate structural flexing without micro-fracturing or peeling away.
Q2: What is the technical lifecycle difference between ‘Galvanized Wire + Powder Coated’ and ‘Black Wire + Powder Coated’ panels?
A2: ‘Black wire + coated’ panels use raw ungalvanized steel core wires; if the outer polymer layer gets scratched by installation tools or flying stones, moisture immediately attacks the core, leading to rapid rust spreading under the coating. Our panels utilize high-grade zinc pre-galvanized wire as feedstock. Even if the outer paint is physically breached, the underlying sacrificial zinc layer continues to provide cathodic protection, preventing widespread corrosion and expanding outdoor service life to over 10 to 15 years.
Q3: How does the Peach Post system provide anti-tamper security without requiring visible external installation hardware?
A3: Our specialized Peach Post profile features pre-punched inward-curved mounting hooks inside the post’s lateral seams. During installation, the vertical wire boundary of the 3D panel is inserted into the recess and snapped over these internal hooks. Once the post is set into concrete or bolted onto a base plate, the grid panel cannot be extracted from the outside without structurally destroying the heavy steel mesh itself, providing an excellent anti-vandalism barrier.
Q4: What is the Minimum Order Quantity (MOQ) for custom color matching (non-standard RAL) or bespoke wire gauges?
A4: For our standard stocking inventory colors like Moss Green (RAL 6005) or Anthracite Grey (RAL 7016) in standard 4.0mm wire gauge, our MOQ is 300 individual panels. For custom wire mesh adjustments, non-standard heights, or tailored commercial corporate color matching requests, the factory line setup requires an MOQ of 500 panels or a full 20ft container load (FCL) to maintain optimized B2B price efficiencies.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your 3D Welded Wire Fence procurement costs? Partner with us to enjoy premium heavy-duty, high-rigidity, and aesthetic V-fold quality compliant with international security, boundary, and perimeter protection standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, wire gauge accuracy, V-beam bending strength, and PVC/powder coating thickness testing samples available for your local residential, commercial, or public park fencing project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated precision mesh welding, CNC V-bending, and premium thermoplastic coating/galvanizing lines ensure prompt manufacturing and on-time shipment of your 3D Welded Wire Fence.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets and protective corner pads to prevent transit damage, panel distortion, and coating scratches.
