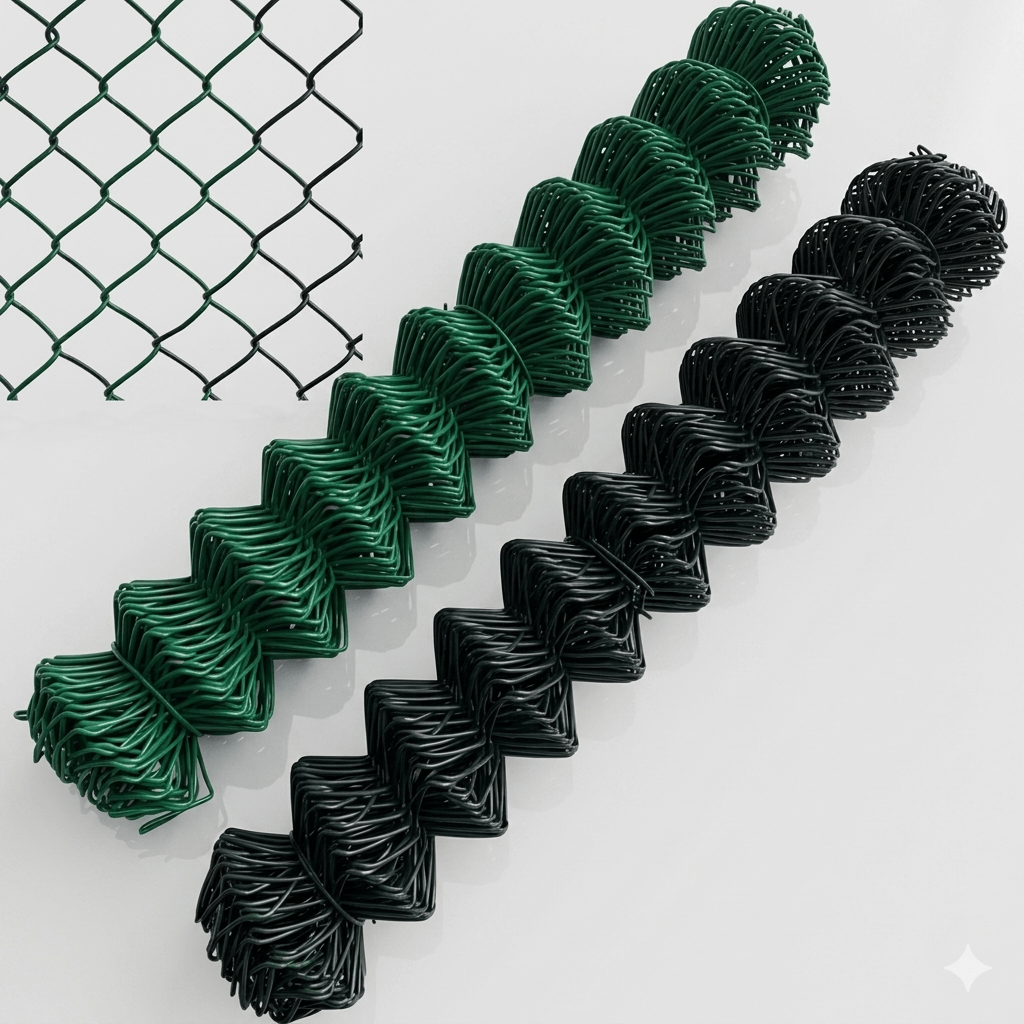

Heavy-Duty PVC Coated Chain Link Mesh for High-End Commercial & Sports Fencing
As an internationally certified commercial wire fencing factory, we proudly present our high-durability PVC Coated Chain Link Mesh. This advanced boundary solution combines the rigid mechanical stability of localized low-carbon structural steel with the ultimate environmental isolation provided by specialized vinyl formulations. Often classified as plastic-coated cyclone wire or vinyl diamond mesh, this system is an upgrade from standard galvanized barriers, heavily favored by modern architects and commercial project procurement managers worldwide.
The manufacturing architecture involves drawing the high-tensile core wire, performing thermal zinc galvanization, and applying an intensive cohesive polymer coating layer via state-of-the-art extrusion lines. This results in a heavy-duty exterior shield that completely eliminates structural exposure to oxygen, atmospheric acids, and moisture. Its seamless, smooth finish is not only visually striking but also eliminates sharp steel burrs, preventing accidental physical injuries on public sports fields and recreational arenas.
Advanced Product Benefits of Vinyl Coated Diamond Fencing
1. Ultimate Dual-Layer Rust Mitigation System
Normal wire fences degrade swiftly in harsh tropical or coastal environments. Our PVC coated wire utilizes an advanced interlocking protection scheme: the inner steel is hot-dipped in zinc, and the outer layer is chemically sealed with premium thermo-plastic vinyl, delivering outstanding resistance against salt fog, chemical vapors, and heavy rain.
2. Advanced Anti-Fading and UV-Stabilized Coatings
Inferior plastic-coated meshes often peel, dry out, crack, or yellow within short outdoor exposure. We incorporate specialized UV inhibitors and localized thermal stabilizers directly into our raw virgin PVC resin materials. This ensures our standard deep forest green, jet black, and charcoal grey tones resist fading under intense desert sun or sub-zero arctic temperatures.
3. Outstanding Impact Flexibility and Energy Absorption
The automated diamond weave structure functions as an integrated kinetic mesh. When struck by high-velocity athletic balls or manual physical impacts, the interlocking spirals flex dynamically to distribute the energy across the neighboring grid columns, quickly recovering its baseline straightness without permanent metal kinking.
Technical Specifications & Structural Dimensions Matrix
| Engineering Metric | Core Wire Range (Inner) | Finished Wire Range (Outer) | Aperture / Mesh Size |
|---|---|---|---|
| Light Commercial Grade | 14 Ga. / 2.0 mm | 11 Ga. / 3.0 mm | 1.5″ (38mm) / 2″ (50mm) |
| Standard Industrial Grade | 11 Ga. / 3.0 mm | 8 Ga. / 4.0 mm | 2″ (50mm) / 2.25″ (57mm) |
| Heavy Duty Stadium Grade | 9 Ga. / 3.76 mm | 6 Ga. / 5.0 mm | 1.75″ (45mm) / 2″ (50mm) |
| Standard Roll Heights | 3 feet up to 15 feet (0.9 meters to 4.5 meters continuous) | ASTM F668 Class 2b Compliant | |
| Standard Colors (RAL) | RAL 6005 (Moss Green), RAL 9005 (Jet Black), RAL 7016 (Anthracite) | Custom Color Matching Allowed | |
| Selvage Lock Forms | Knuckle – Knuckle (K-K) or Knuckle – Twist Barbed (K-B) | Optimized Anti-Unravel System | |
Targeted Multi-Industry Applications for Global Distributors
Due to its enhanced aesthetic properties and premium corrosion isolation levels, this plastic-coated steel mesh excels in diverse high-profile settings:
- Professional Athletic and Stadium Fencing: Widely deployed in high-altitude configurations around tennis courts, soccer pitches, baseball batting cages, and school fields.
- Premium Residential Complex Enclosures: Harmonizes perfectly with surrounding landscapes and gardens, shifting away from harsh industrial aesthetics.
- High-Corrosion Industrial Perimeters: Essential protection adjacent to chemical treatment plants, oil facilities, and waste treatment lagoons.
- Coastal Infrastructure and Marine Borders: Resists the accelerated pitting oxidation caused by salty sea air and intense oceanic moisture zones.
Advanced Protective Logistics and Optimized Maritime Export Packing
We provide multiple flexible container stuffing matrices based on your logistics infrastructure. For heavy buyers looking to maximize financial value, we supply compressed coreless roll packaging configurations, increasing 40HQ volumetric density by up to 25%. For distribution networks seeking automated warehousing handling, we secure the rolls within reinforced structural wooden skids or open steel crates, preventing shifting during oceanic sea freight movements.
Frequently Asked Questions (FAQ)
Q1: What is the technical structural difference between Extruded PVC and Adhered/Bonded PVC coating?
A1: Extruded PVC coating (ASTM F668 Class 2a) involves stretching a smooth vinyl jacket around the steel core wire, allowing high flexibility at a competitive price. Adhered/Thermally Fused PVC coating (ASTM F668 Class 2b) utilizes an intermediate structural adhesive layer that metallurgically bonds the plastic skin directly onto the zinc-coated wire. Class 2b prevents moisture tracking between the wire and the plastic shell, making it recommended for heavy-duty industrial or coastal security engineering.
Q2: What specific parameters are required to manufacture standard international tennis court fencing?
A2: Standard tournament-level tennis court fencing typically demands an inner core wire of 11 Ga. or 9 Ga., resulting in a finished coated diameter of 8 Ga. (4.0mm) or 6 Ga. (5.0mm). The optimal mesh aperture is restricted to 1.75 inches (45mm) to ensure high-velocity tennis balls cannot become lodged within the mesh openings. Forest Green (RAL 6005) or Jet Black (RAL 9005) are the standard visual options.
Q3: How does your factory guarantee colorfastness over extended exposure to intense solar ultraviolet rays?
A3: We strictly implement virgin, non-recycled PVC compound resins mixed with specialized hindered amine light stabilizers (HALS). This custom polymer blend absorbs destructive ultraviolet wavelengths and dissipates the radiation as low-level heat energy, preventing premature structural embrittlement, peeling, or chalking under intense sun exposure.
Q4: Are matching posts, framework hardware, and structural tension wires available from your facility?
A4: Yes, we provide full-system supply chain capabilities. We manufacture matching PVC-coated line posts, top rails, tension bars, brace bands, and colored tie wires that correspond exactly with your mesh selections. This allows B2B buyers to procure complete, coordinated fencing solutions out of a single container consignment, streamlining installation work.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your PVC Coated Chain Link Mesh procurement costs? Partner with us to enjoy premium corrosion-resistant, smooth-finish, and perfectly woven quality compliant with international security, boundary, and aesthetic fencing standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, PVC coating adhesion, inner wire gauge, and mesh-uniformity testing samples available for your local residential, commercial, or sports fencing construction project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated weaving and precision PVC-coating lines ensure prompt manufacturing and on-time shipment of your PVC coated chain link mesh.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage, coating scratches, and roll deformation.
