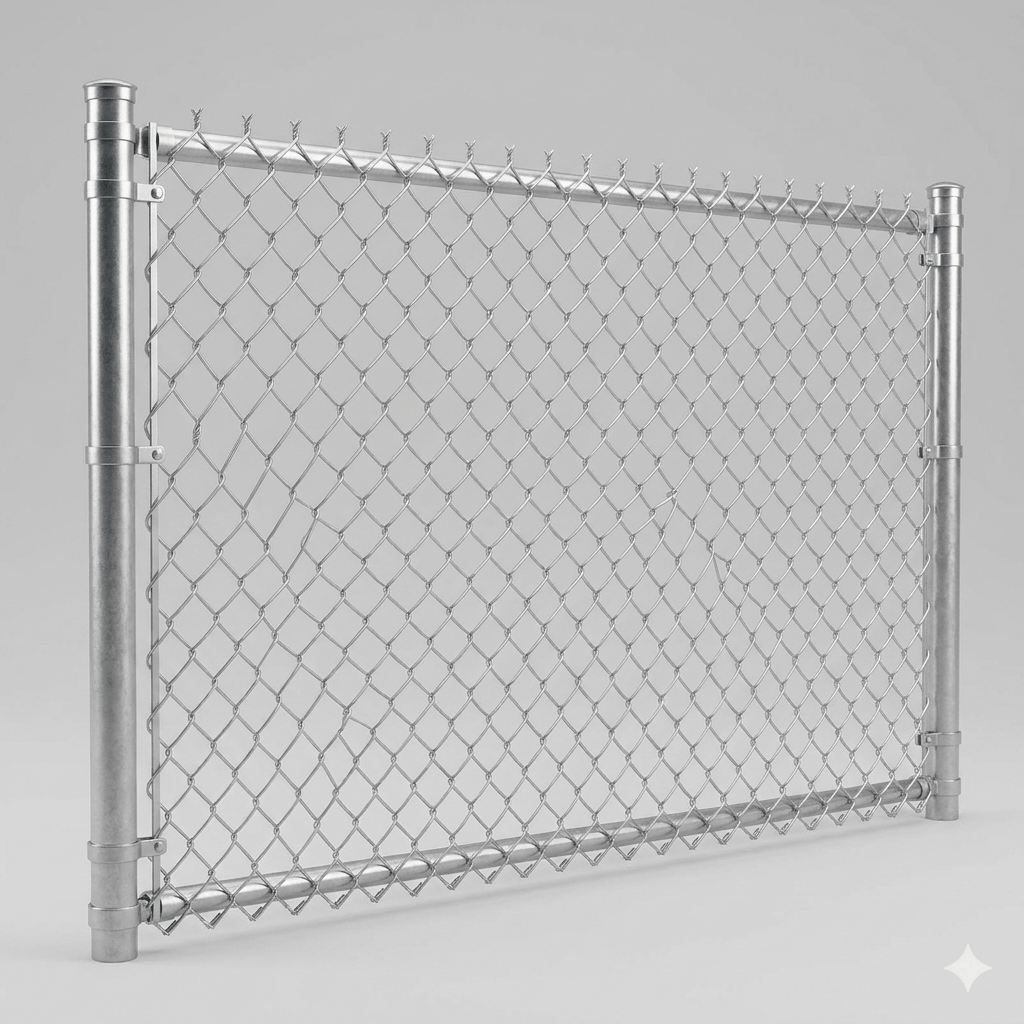

Heavy-Duty B2B Chain Link Fence Wholesale Manufacturer
As a premier global supplier of perimeter security systems, our chain link fence (also widely known as cyclone wire fence or diamond wire mesh) delivers commercial-grade security with unparalleled durability. We utilize advanced automated weaving machinery to produce consistent, high-tensile fabric rolls that reduce installation labor and withstand environmental stress. Whether you are executing a national infrastructure project or supplying localized industrial fencing marketplaces, our massive production capacity guarantees short lead times and uncompromising quality compliance.
Why Importers & Engineers Choose Our Diamond Mesh Fencing
Our manufacturing process utilizes superior structural carbon steel wire, ensuring enhanced elastic recovery and remarkable resistance against forced entry and high winds. Engineered with precise knuckle or twist selvages, our chain link fabric stays perfectly flat, untangled, and smooth during unrolling, dramatically saving on-site assembly costs for contractors.
Technical Specifications & Ordering Guide
| Parameter / Attribute | Standard Option A | Heavy Commercial Option B | Customizable Range |
|---|---|---|---|
| Wire Diameter (Gauge) | 11.5 AWG (2.5mm) | 9 AWG (3.76mm) or 6 AWG | 2.0mm to 5.0mm (6 to 14 Gauge) |
| Mesh Aperture Size | 2″ x 2″ (50mm x 50mm) | 1.5″ x 1.5″ (38mm x 38mm) | 1″ to 4″ (25mm to 100mm) |
| Surface Coating Tech | Hot-Dipped Galvanized | Galvanized + Premium PVC Coated | Electro / Hot-Dipped / Polymer PVC |
| Zinc Weight Class | 60 g/m² – 120 g/m² | 240 g/m² – 366 g/m² (High Spec) | Up to 610 g/m² (ASTM A392 Class 2) |
| Standard Height | 4 ft, 6 ft (1.2m, 1.8m) | 8 ft, 10 ft, 12 ft (2.4m – 3.6m) | 3 ft to 15 ft (0.9m to 4.5m) |
| Fabric Selvage Treatment | Knuckle & Knuckle (K-K) | Knuckle & Twist Barb (K-T) | Both edges customizable per security needs |
| Standard Roll Length | 50 ft (15.24 meters) | 100 ft (30.48 meters) | 10 meters to 50 meters per roll |
Advanced Structural Engineering & Surface Treatment Options
The service life of a chain link fence depends directly on its wire chemistry and surface coating purity. We offer two distinct coating methodologies designed for specific environmental categories:
- Hot-Dipped Galvanized (GA) Fabric: Utilizing an immersion process, our steel wire receives an ultra-dense layer of pure metallurgical zinc. This layer provides electrochemical sacrificial protection, preventing oxygen and moisture from attacking the iron base even when physically scratched.
- Polyvinyl Chloride (PVC) Thermoplastic Coating: Extruded seamlessly over high-tensile steel wire core (often combined with a galvanized base coat), this UV-stabilized polymer matrix delivers incredible resistance to industrial acids, marine salt mist, and intense solar radiation. It is available in signature hunting green and architectural black to blend into landscapes.
To maximize security barrier efficacy, you can choose between two main selvage types. The Knuckle-Knuckle (K-K) finish eliminates sharp wire ends, making it ideal for residential backyards, recreational public parks, and school playgrounds. For high-security zoning, such as military perimeters, correctional facilities, and sensitive industrial yards, the Knuckle-Twist (K-T) barbed finish sharpens the wire ends into twists, serving as a powerful mechanical deterrent against scaling or climbing attempts.
B2B Packaging, Logistics & Container Loading Excellence
International shipping of heavy fencing materials demands rigorous packaging to ensure product integrity upon arrival. Each individual chain link fence roll is tightly wound using specialized tension spools to ensure a consistent, uniform outer diameter across the entire shipment. The delicate roll ends are carefully protected using high-density waterproof plastic woven sacks or heavy-duty hessian cloth wrappers, entirely avoiding wire-to-wire friction and ensuring trouble-free unrolling at the construction site.
We provide two flexible container loading configurations tailored to your local logistics machinery:
-
- Palletized Industrial Bundles: Securely strapped horizontally on fumigated solid-wood or metallic pallets, optimized for immediate unloading via standard warehouse forklifts.
- Loose Roll Max-Volume Loading: Maximizes every cubic inch of container space by carefully layering the rolls manually, yielding the lowest possible ocean freight cost per square meter of fence fabric.
Frequently Asked Questions (FAQ)
Q1: How do I choose between Hot-Dipped Galvanized and PVC Coated chain link fencing?
A1: Hot-dipped galvanized fencing is highly functional, cost-efficient, and suitable for general industrial or agrarian perimeters. If your project is located in coastal cities, high-pollution industrial zones, or requires an aesthetic design that matches landscaping, PVC coated mesh is highly recommended. The polymer outer jacket adds an extra layer of moisture defense, significantly extending service life in humid climates.
Q2: What exact standards do your commercial chain link products comply with?
A2: Our chain link mesh fabrics are engineered and tested in accordance with international benchmark standards, including ASTM F668 (Standard Specification for Polyvinyl Chloride and Other Organic Polymer-Coated Steel Chain-Link Fence Fabric), ASTM A392 (Zinc-Coated Steel Chain-Link Fence Fabric), and European standard EN 10223-6. We can issue formal factory testing certificates (MTC) prior to dispatch.
Q3: Do you provide a complete perimeter system including posts and hardware fittings?
A3: Yes! As an end-to-end B2B manufacturing hub, we provide complete fencing solutions. Aside from the diamond mesh fabric, we supply matching Line Posts, Corner Posts, Top Rails, Tension Bars, Tension Bands, Brace Bands, Post Caps, and Tie Wires. This full-spectrum consolidation allows you to import everything in a unified container, optimizing custom clearance and ensuring a flawless physical fit during installation.
Q4: What is the Minimum Order Quantity (MOQ) for customizable B2B production runs?
A4: For standard configurations (such as 9 Gauge 2″ mesh galvanized or black rolls), our standard factory MOQ is 200 rolls or equivalent weight. For completely custom specifications involving special wire gauges or irregular mesh apertures, our factory calculates production setups based on a minimum of 3-5 metric tons of wire material. Please contact our sales team to discuss trial order possibilities.
Get Factory-Direct Wholesale Price & Free Samples
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, wire gauge accuracy, and mesh-uniformity testing samples available for your local architectural, residential, or commercial construction project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty weaving and galvanizing/PVC-coating lines ensure prompt manufacturing and on-time shipment of your chain link fence.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage, mesh distortion, and roll bending.
