Premium Vinyl Coated Chain Link Fence Manufacturer & Wholesale
As a premier B2B manufacturer specializing in high-performance perimeter security barrier systems, we supply world-class vinyl coated chain link fence solutions to distributors, contractors, and infrastructure developers worldwide. Unlike standard galvanized mesh, our vinyl-coated (also known as PVC coated) steel wire fabric undergoes a meticulous multi-stage coating process to guarantee maximum adhesion and elite atmospheric protection.

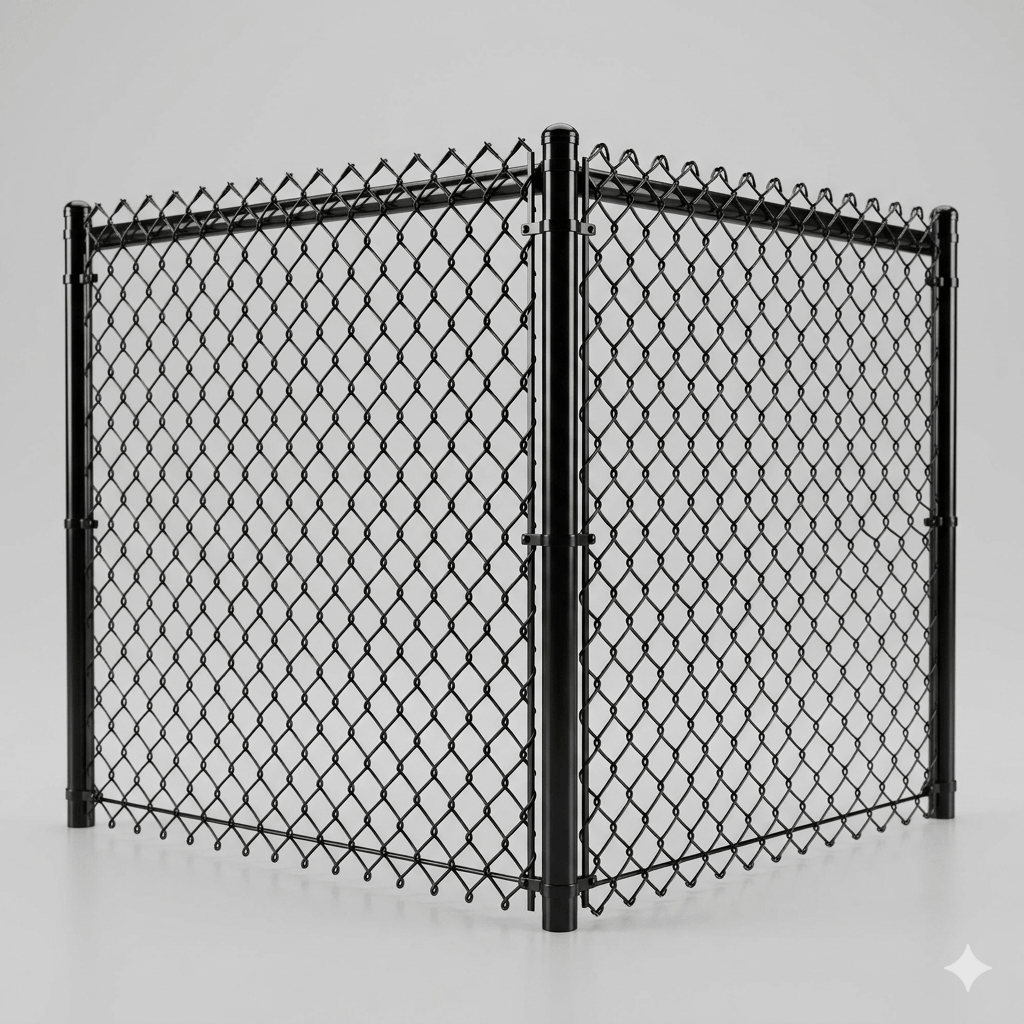

Vinyl Coated Chain Link Fence integrates premium galvanized steel core wire with a high-density polyvinyl chloride (PVC) outer protective layer. This commercial-grade perimeter fencing provides dual-layer corrosion resistance and excellent aesthetic appeal for both industrial security and architectural landscaping.
- Dual-Layer Protection: Extruded or fused vinyl coating over zinc-coated steel prevents rust and weathering.
- Versatile Configurations: Available in multiple wire gauges (6-12 gauge), mesh sizes, and standard architectural colors like Black and Forest Green.
- Low Maintenance Cost: UV-inhibited polymers ensure long-term color retention without the need for painting or re-galvanizing.
Why Choose Our Vinyl Coated Chain Link Fencing Systems?
1. Superior Rust Isolation: The structural core wire is first treated with hot-dip galvanization (up to 240g/m² zinc coating) before being sealed with architectural-grade vinyl, neutralizing moisture and chemical hazards.
2. Smooth & Safe Surface Finish: The vinyl coating eliminates sharp metallic burrs and splinters, making it exceptionally safe for sports fields, school playgrounds, and residential parks.
3. Structural Compliance: Our manufacturing processes fully satisfy ASTM F668 specification criteria for Class 1 (extruded), Class 2a (extruded and adhered), and Class 2b (fused and bonded) chain link fence fabrics.
4. Wind and Impact Resilience: The interlocking diamond weave matrix distributes impact forces uniformly while maintaining structural openness for low wind resistance.
Technical Specifications & Matrix Chart
To ensure precise procurement planning, please review our comprehensive engineering matrix below. We accept custom orders regarding non-standard core wire diameters, explicit roll lengths, and specific selvage configurations.
| Technical Parameters | Commercial / Heavy Industrial Grade | Standard Residential Grade | Custom Testing Metrics |
|---|---|---|---|
| Finished Wire Gauge (PVC Incl.) | 6 Gauge (4.11mm) / 9 Gauge (3.76mm) | 11 Gauge (2.95mm) / 12 Gauge (2.68mm) | Micrometer Laser Verification |
| Steel Core Wire Material | Hot-Dip Galvanized Carbon Steel Wire | Electro-Galvanized Mild Steel Wire | Tensile Test: 350-550 Mpa |
| Mesh Aperture / Opening | 1-3/4″ (44mm), 2″ (50mm) | 2-1/4″ (57mm), 2-1/2″ (64mm) | Diagonal Gauge Conformity |
| Vinyl Coating Type | Class 2b Thermo-Plastic Fused & Bonded | Class 1 Polymer Extruded (Standard Coating) | ASTM F668 Certified Standard |
| System Height Range | 6ft to 12ft (Up to 3.66 Meters) | 3ft to 5ft (Up to 1.52 Meters) | Vertical Measurement Tolerances |
| Top & Bottom Selvage | Knuckle & Barb (K&B) twist style | Knuckle & Knuckle (K&K) loop style | Manual Twist Security Control |
| Color Fastness & UV Defense | Ultra-Stabilized > 2000 hrs Xenon Arc | Standard Outdoor UV Block Layer | Zero Cracking / No Flaking |
Advanced Manufacturing Technology
Our plant integrates fully automated, synchronized CNC chain link weaving systems. The low-carbon steel wire undergoes high-velocity zinc bath immersion before tracking into the high-pressure vinyl extrusion chambers. By optimizing temperature metrics during the fused polymer application, we achieve an unyielding, vacuum-tight structural seal over the steel mesh core. This prevents internal corrosion caused by microscopic air pockets or water vapor infiltration commonly found in lower-quality imported generic fences.
Global Export Logistics & Packaging Standards
Understanding the strict handling and volume demands of international B2B building materials procurement, we implement highly optimized container stuffing blueprints:
- Compact Roll Winding: Every vinyl coated mesh roll is tightly wound using specialized tensioners to reduce total volume footprint, cutting ocean freight costs per unit.
- Protective End Wrapping: Both extremities of the fence rolls are thickly packed with durable woven polypropylene bags to secure individual selvages from entanglement or deforming during port transits.
- Heavy-Duty Palletization: Bulk commercial wire orders are structurally grouped via reinforced wooden or steel storage pallets, utilizing thick nylon bands to secure fast loading and unloading via standard forklifts.
- Moisture Mitigation: Interstitial spaces inside the containers are reinforced with heavy desiccant packs to prevent high-humidity condensation during long ocean voyages.
Frequently Asked Questions (FAQ)
Q1: What is the main structural difference between Extruded (Class 1) and Fused & Bonded (Class 2b) vinyl coated fence wire?
A1: Extruded vinyl (Class 1) features a thick plastic casing formed loosely around the galvanized wire core, offering standard aesthetic enhancement. Fused and Bonded vinyl (Class 2b) utilizes an advanced molecular bonding agent, applying a thinner yet resilient polymer layer that adheres directly to the metal wire. Class 2b prevents tearing and internal moisture traps, making it ideal for severe commercial environments.
Q2: Will the vinyl coating crack, peel, or fade under high UV desert climates or coastal salty air?
A2: Absolutely not. Our vinyl polymer composition includes organic UV-inhibitors and thermal stabilizers that resist molecular decomposition caused by intense sunlight. Additionally, the underlying hot-dip zinc plating safeguards the steel mesh even if the outer coating is physically gouged by heavy machinery.
Q3: What are the standard packaging MOQs for custom commercial fence color matching and height adjustments?
A3: For standard stock colors like Dark Black and Emerald Green, our MOQ starts at 50 rolls. For custom architectural colors (e.g., Charcoal Gray, Safari Brown) or unique wire diameters, the standard production run MOQ is 1 Full Container Load (20GP FCL) to optimize machine calibration efficiency.
Q4: Are matching posts, framework rails, tension bars, and gate accessories available to purchase in the same container?
A4: Yes, we provide full turnkey perimeter solutions. We manufacture matching color-coordinated PVC-powder coated line posts, top rails, tension wire, line fittings, and industrial swing/slide gate assemblies to simplify one-stop wholesale sourcing.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Vinyl Coated Chain Link Fence procurement costs? Partner with us to enjoy premium corrosion-resistant, smooth-finish, and perfectly uniform quality compliant with international security and residential fencing standards, alongside a seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, wire gauge, and color-matching testing samples available for your local commercial, residential, or industrial project and distribution verification.
- Guaranteed Fast Lead Time:Advanced automated heavy-duty wire drawing, core galvanizing, and vinyl-coating lines ensure prompt manufacturing and on-time shipment of your vinyl-coated chain link fence.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof protective wrap inside + PE shrink film outside) with heavy-duty reinforced pallets or tight rolls to prevent transit damage, mesh distortion, and edge bending.
