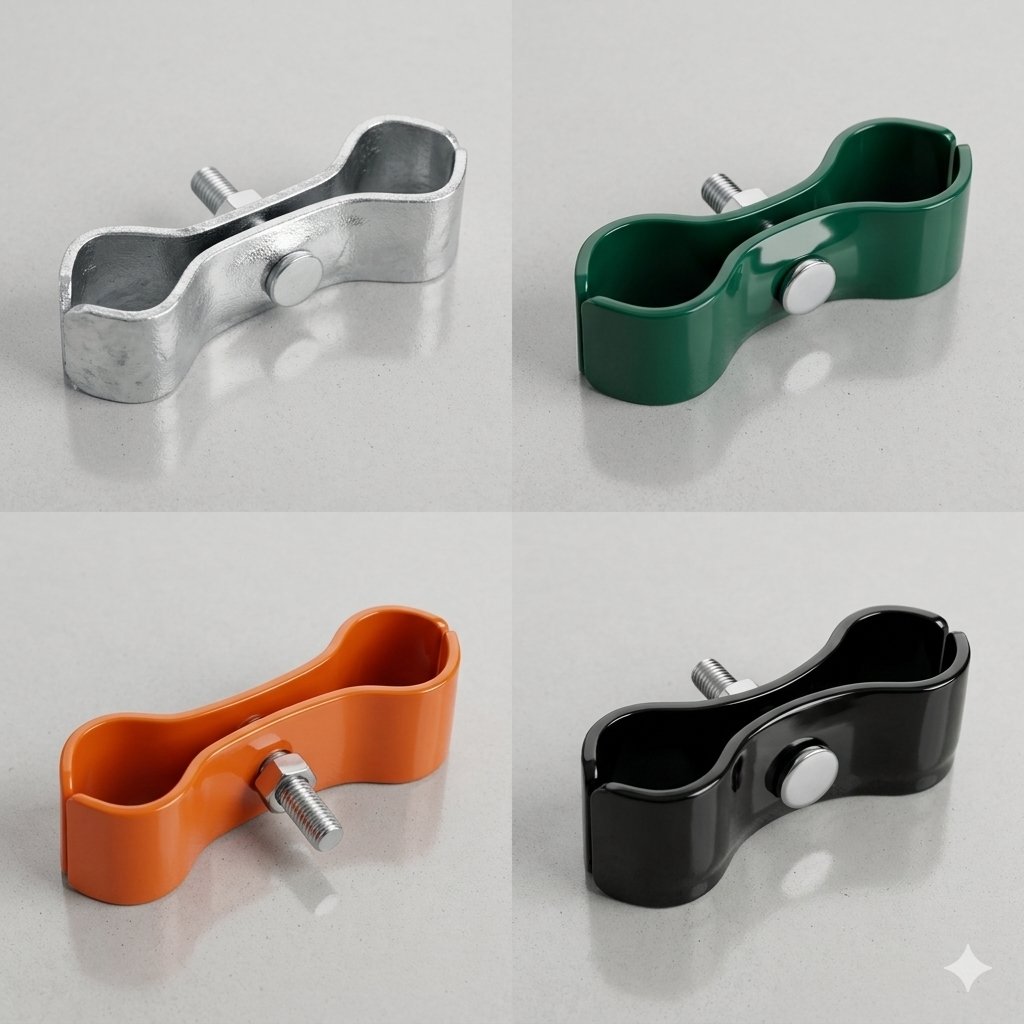

Industrial-Grade Temporary Fence Clamp Systems for Heavy-Duty Panel Security
As a leading global B2B manufacturing enterprise specialized in high-performance building materials and structural security fencing hardware, we proudly introduce our engineering-grade Temporary fence clamp matrix. Extensively relied upon across mainstream European construction zones, massive logistical expansions, and high-occupancy event zoning grids, these specialized security couplers serve as the physical link holding your perimeter networks together. Often subjected to immense lateral stress during wind storms or rowdy crowd surges, a high-quality connector is essential to prevent perimeter failure. We optimize our structural temporary fence clips specifically for heavy-duty hire operations, ensuring the structural steel withstands consecutive material-handling cycles while preventing unauthorized personnel from dismantling individual mesh modules.
Key Mechanical Advantages of Our Stamped Steel Fencing Couplers
1. Precise Mold Contour Fit with Zero Lateral Slippage: Lower-tier imported couplers feature poorly shaped geometric alignments that pinch or dent vertical framing tubes without providing full surface grip. Our clamps are formed using multi-stage automated die-stamping presses, ensuring an absolute 360-degree interlocking fit around 32mm, 38mm, or 42mm round posts. This leaves no gaps and maximizes friction holding forces to eliminate manual rattling or frame shifts under physical impact.
2. High-Grade Post-Stamping Hot-Dipped Galvanization (HDG): Rust defense requires more than basic paint application. Our metal clips go through full post-stamping hot-dipped zinc bath immersion. By coating all critical surface areas inside and out with a heavy zinc shell exceeding 400g/m², our products resist humidity, salty marine air, and concrete splash damage, ensuring a prolonged operational lifecycle for commercial rental networks.
3. High-Tensile 8.8 Grade Bolt & Lock-Nut Hardware Assembly: The tightening mechanism dictates the field endurance of boundary fences. Every single clamp kit we export is outfitted with high-strength Grade 8.8 carbon steel carriage bolts and flanged lock nuts. The precision-cut threads are specifically designed to resist continuous impact vibrations, stopping localized thread stripping even when installers use high-torque pneumatic air impact wrenches during quick site deployments.
Technical Specifications & Structural Blueprint Parameters
| Component Attribute | Standard Wholesale Baseline | B2B Customizable Fleet Scope |
|---|---|---|
| Steel Manufacturing Profile | Heavy Stamped Steel (Q235 Carbon Structural Grade) | Forged steel / Heavy-duty cast iron alloy modifications |
| True Plate Thickness | 3.0 mm / 4.0 mm (Strict Tolerance ±0.1mm) | 4.5 mm up to 5.0 mm ultra-heavy security specifications |
| Compatible Pillar OD | 32 mm / 38 mm / 42 mm Round Tubes | 48 mm scaffolding sizes / Square post customized slots |
| Hole Pitch (Center to Center) | 75 mm / 90 mm / 100 mm Universal Pitch | Custom pitch spacing matching local rental specs |
| Fastening Hardware Spec | Grade 8.8 M10 x 75mm Bolt + Flanged Lock Nut | Anti-tamper shear bolts / Stainless steel rustless assemblies |
| Zinc Layer Coating Mass | Hot-Dipped Galvanized After Production (> 300g/m²) | Super heavy marine-grade HDG up to 500g/m² (70μm film) |
| Unit Net Weight Array | 0.38 kg / 0.42 kg per complete set unit | Heavy-wall custom sets scaling up to 0.70 kg piece weights |
| Quality Testing Compliance | Australia AS 4687 Structural Pull Tests Approved | Full SGS material testing certificates delivered on order runs |
High-Density Freight Stacking & Maximum Container Capacity Optimization
Because our Temporary fence clamp components carry high dead-weight density relative to volume, global ocean shipping optimization is governed strictly by container weight capacity limits rather than volumetric space constraints. Our shipping logistics team excels in configuring maximum-tonnage loads without risking cargo shift. Utilizing our engineered nesting design, the steel clamps are safely packed in anti-friction, heavy-duty protective woven bags. These inner sacks are neatly arranged inside heavy-duty, reinforced plywood export crates or continuous structural iron cradles to completely block sub-surface moisture tracking or maritime sea spray corrosion during open-sea transit. This specialized packaging allows you to easily mix heavy clamp shipments along with high-volume, lightweight temporary fence panels within a single 40ft High Cube container—effectively reaching maximum weight thresholds while minimizing container dead space, delivering considerable per-unit shipping savings to your business channels.
Frequently Asked Questions (FAQ)
Q1: What are the engineering performance benefits of specifying stamped carbon steel clips versus traditional cast-iron fence couplers?
A1: Traditional cast-iron couplers possess high vertical hardness but exhibit severe material brittleness; when local site technicians overtighten them with power impact drivers or drop them from high truck flatbeds onto frozen concrete ground, the casting structure can suddenly snap. Our stamped structural Q235 steel plates offer superior tensile ductility. Under extreme forces or over-torque tools, a stamped clip will slowly deform rather than experience catastrophic shearing or sudden breakage, allowing fleet managers to reuse components across multiple project rotations.
Q2: How does your factory guarantee the M10 bolt threads do not experience severe galling or stripping after multiple rental deployments?
A2: Thread stripping or galling generally happens when low-strength Grade 4.6 fasteners bend out of alignment or encounter zinc accumulation inside the threads. We exclusively package true high-tensile Grade 8.8 carbon steel bolts with precision-machined thread tolerances. Following our heavy hot-dip galvanizing phase, the thread lines undergo a computerized hot-spin spin-clearing process that leaves a smooth, rust-resistant coat with zero excess zinc deposits, ensuring reliable thread engagement and consistent torque ratings across years of open-field deployments.
Q3: Will your standard 38mm temporary fence clamps perfectly lock down premium European Heras post frames without rattling?
A3: Yes, absolutely. Our standard 38mm ID coupling matrix is designed directly to the precise manufacturing blueprints of mainstream European and UK round-top Heras structural frames. Our stamp dyes maintain precise dimensional tolerances within ±0.5mm, creating a tight surface fit when clamped down by the center bolt, which stops panel twisting or sliding along uneven jobsite contours.
Q4: What is the Minimum Order Quantity (MOQ) required for customized embossed logos or customized center-pitch spacing profiles?
A4: For our cataloged standard inventory sizing (like our hot-dipped galvanized 38mm / 42mm configurations), our factory B2B MOQ starts at 2,000 individual clamp piece sets, which seamlessly packs onto a single compact ocean pallet skid. If your commercial distribution firm requires your unique corporate brand logo permanently embossed into the outer face of the steel plate or specialized square post dimensions, the custom setup requires an MOQ of 5,000 sets to cover the secondary milling tool setups.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Temporary Fence Clamp procurement costs? Partner with us to enjoy premium heavy-duty, anti-corrosion, and high-clamping-force quality compliant with international temporary fencing, construction site safety, and perimeter hardware standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, steel plate thickness accuracy, center distance/hole pitch precision, tensile strength, and hot-dipped galvanizing thickness testing samples available for your local temporary fence rental, construction site hoarding, or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty steel stamping, precision robotized welding, and premium galvanizing lines ensure prompt manufacturing and on-time shipment of your Temporary Fence Clamp.
- Customized Packaging: Marine-grade rust-proof dual packing (reinforced heavy-duty cartons inside + plastic woven bags or wooden crates outside) with reinforced pallets to prevent transit damage, component loss, and thread deformation during bulk shipping.
