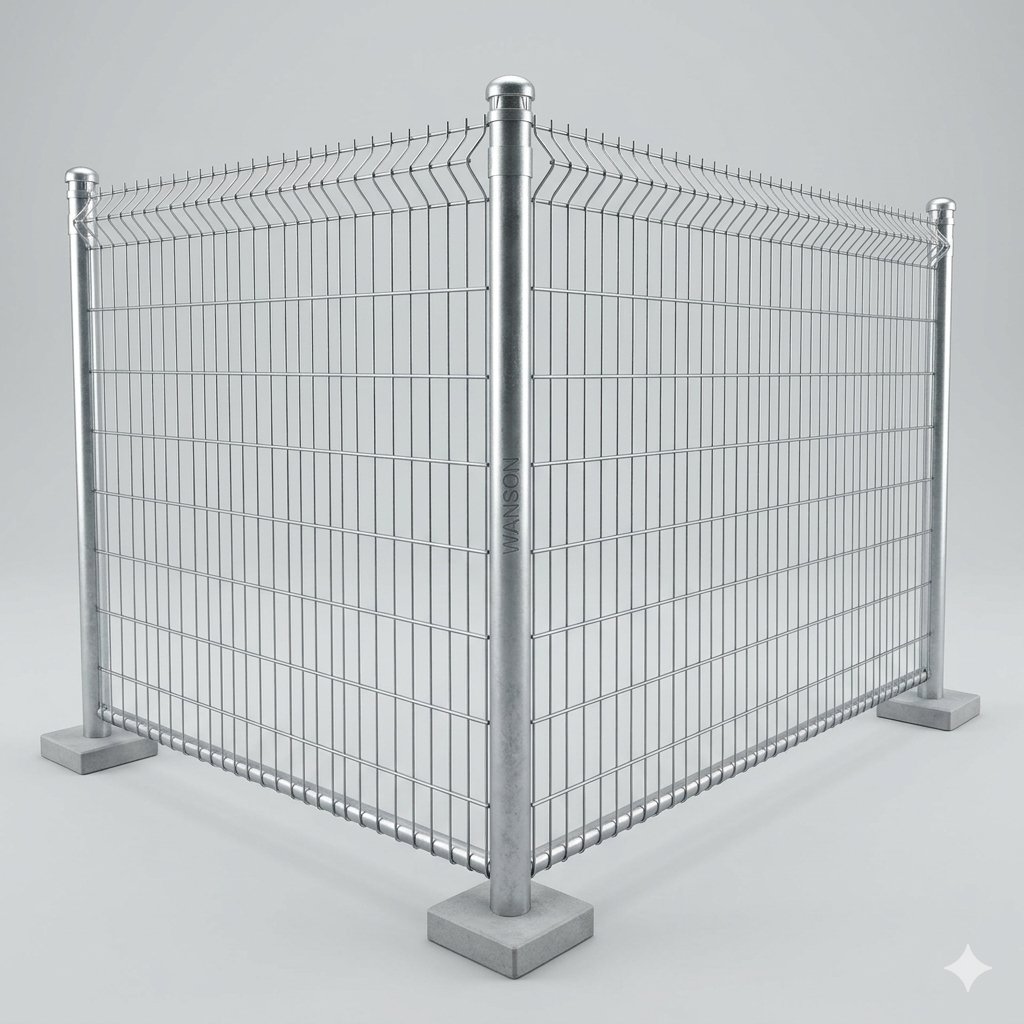

Industrial-Tier V-bend Fence Panels for Heavy Commercial Boundaries
As a leading industrial manufacturer specialized in global building materials and security fence exports, we proudly manufacture the high-rigidity V-bend fence system. Explicitly engineered to satisfy the demanding structural specifications of commercial civil contractors, infrastructure procurement executives, and global industrial distributors, this modular framework provides an impermeable boundary shield without altering architectural aesthetic values. The strategic incorporation of integrated structural V-beams along the panel frame acts as a physical barrier and a psychological deterrent. It effectively stops illegal trespassers while enabling clear sightlines for thermal surveillance networks deployed around critical corporate or municipal real estate assets.
Mechanical Excellence of Our Heavy-Duty V-Beam Wire Enclosures
1. Integrated V-Bend Engineering for Enhanced Structural Load Capacity: Traditional flat fences easily sag or deform when subjected to physical pressure. Our automated press lines incorporate dedicated V-shaped structural folding, which increases the moment of inertia across the vertical grid profile. This geometric feature ensures the network stays straight and preserves its defensive posture under high wind resistance or forced physical climbing attempts.
2. Precision Resistance Welding with Low Tolerances: Structural longevity begins at the weld joint. Using computerized resistance grid welding machinery, our wires are fused under precise pressure and current control. This automated process minimizes wire burn-through and internal structural stress, resulting in outstanding weld shear values that resist joint failure or manual wire snipping during forced entry attempts.
3. Multi-Layer Marine-Grade Surface Treatment Matrix: Our panels feature a heavy zinc layer base beneath an advanced conversion coat and premium weather-resistant polyester powder. This industrial-tier finish blocks moisture and industrial airborne chemical runoffs, preventing under-film creep rust and ensuring the surface retains its smooth finish without chalking or peeling under intensive UV light exposure.
Technical Specifications & Structural Component Configurations
| Engineering Metric | Standard Wholesale Specifications | B2B Customizable Range |
|---|---|---|
| Finished Wire Diameter | 4.0 mm / 4.5 mm / 5.0 mm | 3.0 mm up to 6.5 mm heavy security configurations |
| Mesh Aperture Pattern | 50 mm x 200 mm / 50 mm x 150 mm | 50 mm x 100 mm / Custom dense engineering grids |
| Panel Height Array | 1230mm, 1530mm, 1830mm, 2030mm, 2430mm | 630 mm to 3000 mm single structural segment |
| Standard Panel Width | 2500 mm / 3000 mm | 2000 mm to 3100 mm custom spans |
| V-Fold Beam Count | 2 folds (low panels) / 3 or 4 structural V-beams (high sections) | Calculated precisely via structural safety deflection codes |
| Zinc Coating Base | Electro-galvanized (min 20g/m²) / HDG (min 60g/m²) | Super heavy marine-grade HDG up to 275g/m² |
| Compatible Pillar Posts | Square Post (60x60mm), Peach Shape Post (70x100mm) | Rectangular Post (60x40mm), Round pipe configurations |
| Polyester Powder Brand | Genuine AkzoNobel / Interpon pure virgin powder (80-120μm) | Full RAL classic selection index matching availability |
Precision Engineering Palletization & Optimized Sea Freight Densities
Efficient shipping logistics for bulk architectural components heavily impact profit margins for B2B global importers. Given that the V-folds of a V-bend fence panel can easily lock together or suffer paint scuffs if packed incorrectly, our warehouse logistics division implements a specialized nested interlocking stack method. Panels are arranged face-to-face on reinforced, heavy-gauge steel transport pallets, separated by anti-friction rubber padding strips at key touchpoints. The entire structure is wrapped in thick corrugated fiberboard corner shields and sealed with high-density stretch wrapping film. Additionally, our compatible support posts are separately bundle-packed on dedicated structural timber skids to simplify forklift unloading. This advanced packing density enables us to maximize the payload of a 40ft High Cube container, reducing per-unit ocean freight expenditures and protecting your incoming distribution inventory from sea-transit damage.
Frequently Asked Questions (FAQ)
Q1: How does the specific depth and number of the V-bends affect the wind-load calculations of the perimeter barrier?
A1: The V-bend depth (typically ranging between 40mm to 50mm) directly modifies the panel’s cross-sectional section modulus. Each horizontal V-shaped folder acts as a built-in reinforcing structural beam that disperses wind kinetic forces laterally toward the structural posts. For standard panels under 1.5m in height, 2 V-folds are mechanically sufficient; for heavy heights up to 2.5m, we engineer 4 distinct V-bends to distribute localized shear stresses properly and ensure optimal wind loading stabilization ratings.
Q2: What parameters do your factory monitor during the cross-linking phase to ensure the powder coat layer does not crack at the curves?
A2: Micro-cracking at curved segments usually happens if the wire substrate has residual oils or if the powder curing stage has erratic heat distributions. Our quality control line forces a comprehensive 7-stage chemical cleaning cycle to guarantee pristine metal adhesion surfaces. We then utilize multi-zone computerized curing ovens that bake the applied AkzoNobel powder at a steady 200°C for exactly 20 minutes. This creates uniform polymer cross-linking, allowing the paint shield to remain pliable enough to accommodate structural flexing without micro-fracturing or peeling away.
Q3: Which fastening post combination provides the maximum anti-tamper security for an open industrial warehouse plot?
A3: For high-security environments, we strongly suggest utilizing our 60x60mm Heavy Square Posts equipped with metal spider clamps and stainless steel anti-theft shear bolts. The security nuts feature a special hexagonal upper head that cleanly shears off once the calibrated installation torque is reached. This leaves a smooth, conical dome surface that standard screwdrivers or wrench tools cannot grab or remove from the exterior face, making the fence structure highly resistant to vandalism.
Q4: What is your standard B2B production factory minimum order quantity (MOQ) for a non-standard custom mesh aperture arrangement?
A4: For standard catalog colors such as Moss Green (RAL 6005) or Anthracite Grey (RAL 7016) in standard 50x200mm grids, our factory MOQ is 300 individual panels. For custom wire mesh adjustments, non-standard heights, or tailored commercial corporate color matching requests, the factory line setup requires an MOQ of 500 panels or a full 20ft container load (FCL) to maintain optimized B2B price efficiencies.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your V-bend Fence procurement costs? Partner with us to enjoy premium heavy-duty, high-rigidity, and aesthetic V-fold reinforcement quality compliant with international security, boundary, and perimeter protection standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, wire gauge accuracy, V-bend rigidity, and PVC/powder coating thickness testing samples available for your local residential, commercial, or public infrastructure fencing project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated precision mesh welding, high-accuracy CNC V-bending, and premium powder coating/galvanizing lines ensure prompt manufacturing and on-time shipment of your V-bend Fence.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets and specialized edge protectors to prevent transit damage, panel distortion, and coating scratches.
