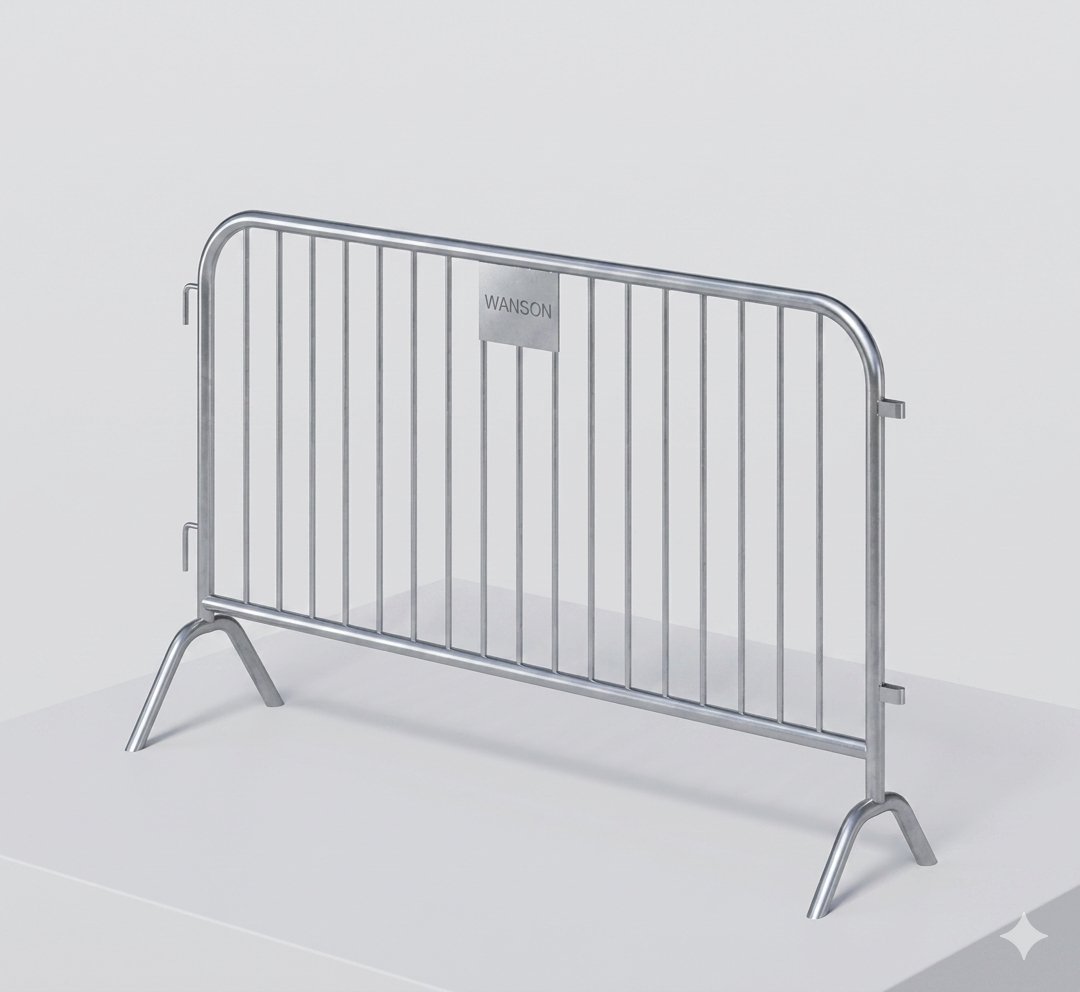

Industrial-Grade Crowd Control Barrier Systems for Global Events & Traffic Management
As a leading tier-1 infrastructure metal products manufacturing factory exporting globally, we engineer commercial-grade Crowd control barrier platforms optimized to deliver elite physical division, pedestrian channeling, and high-occupancy perimeter security protection. Extensively specified for international music festivals, presidential rallies, metropolitan transit rerouting plans, and rapid civil engineering perimeter isolations, our modular barricades are constructed with meticulous attention to structural balance. By focusing our manufacturing on uncompromised raw steel material grades and strict welding stress controls, our product arrays afford security management directors exceptional fleet service lifecycles across consecutive high-intensity field deployments without structural breakdown or bending.
Key Technical Engineering Advantages of Our Steel Pedestrian Barricades
1. Robust Male/Female Interlocking Hook Assembly: Structural perimeter line security is only as strong as its weakest connection link. Our portable barricades feature heavy-gauge solid steel connecting hooks welded straight to the outer frame pipe. Once connected at an acute installation angle, the interlocking array creates a unified physical perimeter line that cannot be broken or single panels separated from the middle by aggressive crowd surges or rowdy pedestrian crowds.
2. Comprehensive Post-Welding Hot-Dipped Galvanization (HDG): Unlike lower-tier pre-galvanized fences that instantly rust along raw cut ends or fresh weld seams, our premium barricades go through full post-weld hot-dipped zinc bath immersion. By coating all critical frame surface areas inside and out with a heavy zinc shell exceeding 400g/m², our products resist humidity, salty marine air, and concrete splash damage, ensuring a prolonged operational lifecycle for commercial rental companies.
3. Ergonomic Child-Safe Upright Distribution Pitch: The inner vertical bars are welded securely inside the frame tube using precision pre-punched spacing matrix templates. We strictly limit the spacing interval between vertical bars to under 120mm. This precise geometry prevents small toddlers from passing through or getting their limbs or heads caught inside the perimeter grid, matching global civilian occupational safety and welfare compliance protocols.
Technical Specifications & Structural Configuration Blueprint
| Engineering Metric Component | Export Standard Parameter | B2B Customizable Fleet Range |
|---|---|---|
| Standard Dimensions (H x W) | 1100mm Height x 2000mm / 2200mm Width | 1200mm x 2500mm / Bespoke municipal sizes |
| Outer Frame Pipe Diameter | 25 mm / 32 mm / 38 mm Outer Diameter (OD) | 42 mm / 48 mm heavy structural pipe options |
| Tube Wall Thickness Scale | 1.2 mm / 1.5 mm / 2.0 mm (Precision Cut) | 1.0 mm lightweight up to 3.0 mm extra-heavy gauge |
| Infill Vertical Uprights | 14 mm / 16 mm Round Tube (12 bars/14 bars standard) | 20 mm tubes / Solid square metal rod inserts |
| Upright Spacing Interval | 110 mm / 120 mm Pitch (Clear Gap Distance) | 90 mm to 150 mm custom grid pitch setups |
| Zinc Protection Mass | Hot-Dipped Galvanized After Welding (> 420g/m²) | Pre-galvanized base tube + Exterior Polyester Powder Finish |
| Base Feet Variations | Removable Flat Feet / Heavy-Duty Fixed Bridge Feet | Universal caster wheel bases / Triangular plates |
| Interlock Connection Type | Solid Steel Hook & Eye Clasp Array | Custom double lock system / Bolt-on fastener plates |
Optimized Pallet Stillages, High-Density Freight Packing & Cost-Effective Ocean Shipping
Because maritime freight charges heavily influence the gross profitability profile for global building materials distributors, our warehouse logistics division utilizes specialized engineering stack layouts to maximize space efficiency. Instead of loose-loading Crowd control barrier systems—which can cause surface scratches, product movement, and extensive warehouse handling delays—we stack panels face-to-face inside heavy structural steel stillages. The male/female interlocking hooks are systematically nested together to eliminate dead space. Concurrently, removable flat or bridge bases are bundled on separate, low-profile skids to simplify layout balancing. The entire steel pallet stack is reinforced with composite edge protectors and securely bound under heavy high-tension structural strapping before being enclosed in heavy stretch-film wrap. This professional arrangement protects your zinc surface coatings and maximizes your 40ft High Cube container payload, ensuring safe delivery and easy forklift offloading at destination sea terminals.
Frequently Asked Questions (FAQ)
Q1: How do I choose between Flat Feet and Bridge Feet configurations for an international event equipment rental fleet?
A1: This depends entirely on the terrain profiles of your primary client applications. Removable Flat Feet are highly recommended for urban concrete pavements, tarmac paths, and indoor stadiums; their low-profile design minimizes pedestrian tripping hazards and allows vehicle tires to roll over them safely. Conversely, Bridge Feet (Arched Feet) are ideal for uneven grass plots, festival fields, and dirt tracks; the arched geometric shape spans across ground contours, providing superior structural tipping resistance against crowd side pressures.
Q2: What is the exact expected outdoor service lifespan of your Hot-Dipped Galvanized crowd barricades in marine coastal conditions?
A2: Our post-welding hot-dipped galvanized barricades receive a substantial metallurgical zinc casing exceeding 420g/m² (approx 60-85 microns thickness). This robust protection provides strong defense against coastal atmosphere corrosion. In typical high-salinity marine or humid tropical regions, our barriers reliably withstand rust for over 10 to 12 years under open-field conditions, outlasting common pre-galvanized alternatives by three to four times.
Q3: How does your factory prevent structural weld cracking at the connection joints between internal vertical bars and the outer frame?
A3: Lower-tier manufacturers often implement rapid manual tack welding, which results in brittle joints that crack when panels are dropped from transport trucks. Our automated production line utilizes digital MIG welding heads executing 360-degree continuous fusion around every bar intersection. This process ensures optimal penetration depth into the tube wall, resulting in high joint weld shear strength that withstands significant impact forces without breaking away.
Q4: What is your minimum manufacturing volume (MOQ) for a custom powder-coated color run matching local police or corporate branding?
A4: For our standard post-welding hot-dipped galvanized barriers in standard sizes, the factory wholesale MOQ is 200 panels. For custom electrostatic powder coatings matching specific corporate or municipal RAL palettes (e.g., Caution Yellow or Safety Orange), our automated paint line recalibration requires a minimum order of 400 barricades or a full 20ft container load (FCL) to achieve optimal price efficiencies.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Crowd Control Barrier procurement costs? Partner with us to enjoy premium heavy-duty, seamless interlocking, and high-stability quality compliant with international public safety, event management, and temporary perimeter protection standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, frame tube thickness, infill picket diameter, interlocking hook strength, and hot-dipped galvanizing thickness testing samples available for your local public event, construction site, or venue security project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated precision tube bending, multi-point welding, and premium galvanizing/powder coating lines ensure prompt manufacturing and on-time shipment of your Crowd Control Barrier.
- Customized Packaging: Marine-grade rust-proof dual packing with heavy-duty reinforced steel pallets to maximize container space and prevent transit damage, frame distortion, and hook deformation during shipping and unloading.
