2D Mesh Panel Fence: High-Rigidity Double Wire Perimeter Security Systems
Uncompromising Rigidity for Heavy Commercial Applications

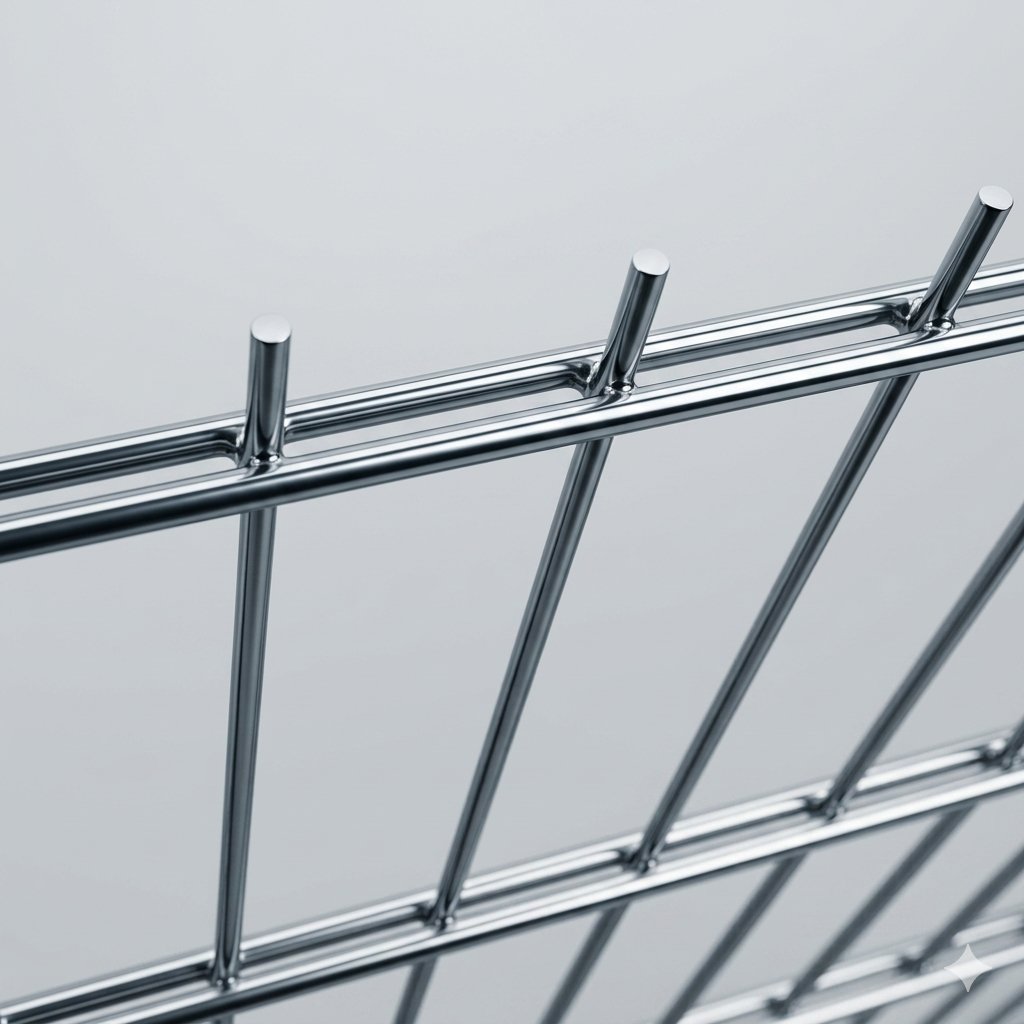

The 2D Mesh Panel Fence is explicitly engineered to address the weaknesses of generic wire perimeters. By deploying twin horizontal wire combinations (either 6mm or 8mm) to sandwich a single vertical wire strand, this system creates a completely flat profile with exceptional lateral stability. It cannot be easily crushed or distorted by external force, making it the preferred high-security choice for properties requiring dependable, long-term boundary protection.
Advanced Resistance Welding & Climbing Deterrence
Structural reliability begins at the factory floor. Our high-capacity automated production machinery employs multi-point synchronized resistance welding to fuse every intersection. This guarantees uniform cell sizes and eliminates thermal cracking common in cheaper manual processes. The narrow 50x200mm mesh matrix minimizes handholds and footholds, drastically reducing intruder climbing rates. Additionally, the lack of protruding V-bends means there are no intermediate horizontal ledge platforms to support a trespasser’s weight during a breach attempt.
From a security monitoring perspective, the flat 2D profile maintains an ultra-clear line of sight. It eliminates the visual blind spots or optical distortion that can occur when viewing traditional profiled fencing patterns through commercial CCTV or thermal imaging perimeter cameras, ensuring your automated site detection systems remain highly effective.
AkzoNobel Coating & Marine-Grade Rust Defense
To satisfy the demanding service-life expectations of commercial developers, our 2D fence panels utilize a highly resilient multi-layered coating process. The manufacturing loop begins with heavy galvanized steel cores or comprehensive post-weld hot-dipped zinc treatments complying fully with international ISO 1461 protocols. This is followed by a thorough conversion coating stage to enhance adhesion, after which an elite thermosetting AkzoNobel powder coating layer is applied.
This premium exterior skin prevents rain, high-salinity marine air, and airborne pollutants from attacking the core metal. Our product lines undergo extensive salt-spray and accelerated weathering testing to ensure the fences preserve their aesthetic brilliance, chemical integrity, and structural tensile values without chalking or flaking over decades in the field.
2D Flat Mesh Panel Technical Specifications
| Component & Metric | Light-Duty Heavy Configuration (656 Type) | Ultra-Heavy Security Configuration (868 Type) |
|---|---|---|
| Horizontal Wire Diameter | 6.0 mm (Double Strands) | 8.0 mm (Double Strands) |
| Vertical Wire Diameter | 5.0 mm (Single Strand) | 6.0 mm (Single Strand) |
| Standard Mesh Aperture | 50 mm × 200 mm / 50 mm × 100 mm Options | |
| Available Height Range | 630 mm to 2430 mm (Panels can be stacked up to 4000 mm or higher) | |
| Panel Width Selection | 2500 mm / 3000 mm Standard Modular Layouts | |
| Anti-Vandal Fittings | Full-length steel flat bars or metal clamp blocks with M8 breakaway safety nuts | |
| Post Options | 60×40mm, 60×60mm, 80×60mm (Pre-drilled with threaded rivet inserts) | |
| Corrosion Prevention Life | Up to 25 Years under standard urban or rural outdoor installations | |
Industrial B2B Export Logistics & Quality Packing Standards
For international bulk building material distribution, logistics handling efficiency determines project profitability. Because our 2D mesh panels are flat without 3D bend profiles, they stack compactly, minimizing wasted dead space in sea shipping containers. Panels are carefully positioned on heavy reinforced export pallets with dense protective foam interlayers to eliminate scuffing during rough sea voyages. Heavy-duty plastic strapping bands and a comprehensive external shrink-wrap hood keep each shipping bundle rigid, perfectly clean, and easy to unload using standard commercial forklifts upon arrival at port terminals.
Frequently Asked Questions (FAQ)
Q1: Why choose a 2D mesh panel fence over a 3D profiled mesh fence?
A1: While 3D fences use pressed folds to gain rigidity, 2D mesh panel fences deploy actual double horizontal steel wire lines along the entire panel plane. This flat design provides substantially higher resistance to heavy impacts and deliberate cutting attempts, eliminating horizontal folds that intruders can use as climbing footrests.
Q2: What are the main application areas for the 8/6/8 heavy-duty 2D fence?
A2: The ultra-thick 868 configuration is reserved for high-security environments or high-impact zones, such as railway perimeters, utility power grids, school sports cages, distribution warehouses, and areas prone to heavy vandalism. The heavy 8mm steel bars make cutting with traditional hand tools extremely difficult.
Q3: Do you supply the entire post and attachment system together with the 2D mesh panels?
A3: Yes, we provide a complete B2B turn-key system. Every order includes matching steel support posts, specialized anti-tamper security fasteners, rubber sound-absorption spacers, and post caps. We can also customize matching single or double-leaf security swing gates tailored to your precise structural layout parameters.
Q4: How do you guarantee powder coat adhesion under severe coastal or humid conditions?
A4: We utilize advanced surface pretreatments, including precise chemical washing and sandblasting, to strip all surface contaminants. We then apply an elite primer layer under the authentic AkzoNobel polymer topcoat. This specific production routine prevents sub-surface rust tracking, ensuring the coating system does not peel or blister even when installed near highly humid coastal shorelines.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your 2D Mesh Panel Fence procurement costs? Partner with us to enjoy premium heavy-duty, smooth-finish, and high-rigidity quality compliant with international security, boundary, and perimeter protection standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, wire gauge accuracy, welding strength, and coating thickness testing samples available for your local industrial, commercial, or residential construction project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated precision mesh welding and premium powder coating/galvanizing lines ensure prompt manufacturing and on-time shipment of your 2D mesh panel fence.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage, panel distortion, and wire bending.
