Industrial-Grade Galvanized Welded Wire Mesh Panel
As a seasoned manufacturing factory focused on global export, we produce premier Galvanized Welded Wire Mesh Panel options that balance high performance with budget efficiency. Our multi-stage automated production lines feed premium quality drawn steel wires into precise multi-spot resistance welding matrices. This ensures each grid intersection retains maximum shear strength. Depending on your environmental layout, our panels are processed via state-of-the-art Electro or Hot-dipped galvanizing techniques to seal the steel core from humidity, oxygen, and structural degradation.
These welded galvanized sheets are highly valued by international B2B importers, hardware wholesale distributors, and infrastructure developers. They provide dependable flatness, precise square mesh grids, and clean borders, minimizing installation labor costs on global project sites.
Why Choose Our Galvanized Welded Wire Mesh Sheet?
- Robust Computerized Point Welding: Micro-controlled welding currents avoid wire burn-through or weak links, ensuring every intersection bears consistent load stresses.
- Flexible Galvanizing Processes: We tailor zinc weight parameters (from 15g/m² up to 300g/m²+) to accurately match your strict bidding budgets and localized service life demands.
- Flawless Panel Flatness: Advanced multi-roller leveling systems remove inner mechanical tensions, guaranteeing that the mesh sheets lie flat without bowing or warping during setup.
- Safe and Clean Edge Trimming: Optional edge-flush trimming eliminates sharp wire overshoots, creating safer handling conditions for site installers and lowering logistics damage.
Technical Specifications & Standard Grid Configurations
| Technical Parameter | Standard Export Specifications | B2B Engineering Support |
|---|---|---|
| Wire Gauge Range | 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm (BWG 8 – BWG 16) | Mixed wire gauge custom configurations |
| Mesh Opening Size | 12.7×12.7mm, 25x25mm, 50x50mm, 75x75mm, 100x100mm | Imperial and Metric spacing matrices |
| Standard Sheet Size | 4ft x 8ft, 1m x 2m, 1.2m x 2.4m, 1.5m x 3.0m | Maximum panel length up to 6.0 meters |
| Galvanization Type | Electro Galvanized or Hot-dipped Galvanized after/before welding | Custom zinc density allocation per batch |
| Tensile Strength Base | 380 N/mm² – 550 N/mm² (Soft or medium low carbon steel) | High-yield steel mesh options for concrete |
| Weld Shear Test Value | Conforms entirely to global ASTM A1064 standards | Full Mill Test Report (MTC) supplied |
Versatile Global B2B Product Applications
Our galvanized welded wire panels serve as essential components in various residential and commercial frameworks:
- Structural Reinforcement & Screeds: Deployed in masonry walls, brickwork beds, and floor heating cement pours to control internal cracking and spread localized weight.
- Perimeter Fencing & Safety Enclosures: Ideal for building affordable, rigid site fences, temporary factory perimeter walls, and heavy window protection guards.
- Logistics Storage & Material Handling: Formed into reliable backing panels for pallet racks, industrial shelf dividers, and mesh logistics sorting cages.
- Agricultural Husbandry Enclosures: Extensively purchased by modern commercial farms to build durable mink, rabbit, or poultry cages, alongside garden root defense barriers.
Strategic Packaging Standards for Overseas Ocean Freight

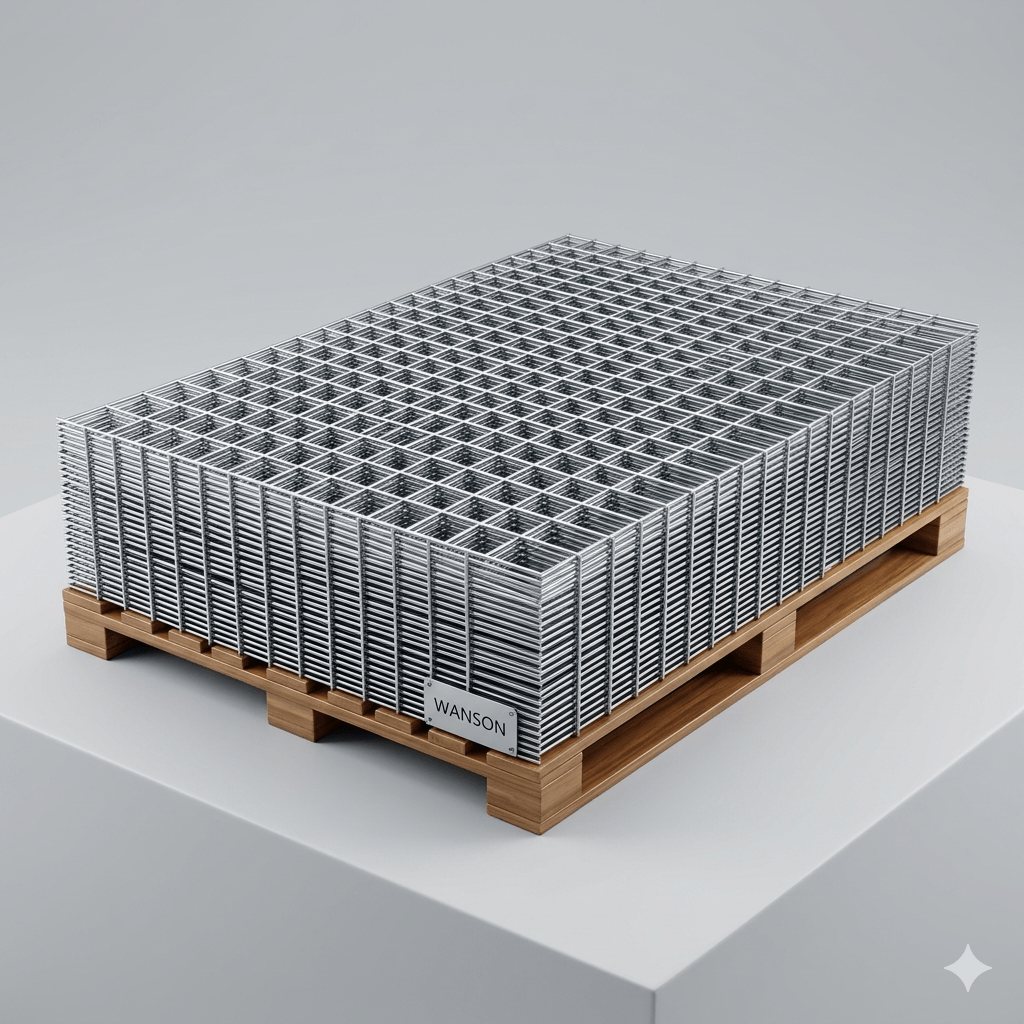

Exporting massive industrial steel goods demands reliable packaging knowledge. Each batch of our Galvanized Welded Wire Mesh Panel products is layered onto heavy-duty ISPM-15 compliant fumigated wooden pallets or heavy structural steel platforms. The panel bundles are compressed and bound via high-tension plastic-steel strapping bands. To neutralize sea-salt air and marine humidity inside ocean container cells, the cargo is wrapped in robust, multi-layer waterproof stretch film with reinforced cardboard corner guards. This deep logistics care guarantees your bulk mesh order lands at your port perfectly flat, shiny, and ready for retail sale.
Frequently Asked Questions (FAQ)
Q1: What is the technical difference between GAW and GBW process methods?
A1: GAW stands for Galvanized After Welding. In this method, raw steel wire is welded first, and then the entire panel is galvanized, meaning the weld points are fully coated and sealed against rust. GBW stands for Galvanized Before Welding; it utilizes pre-galvanized wires to weld. GBW is more economical, though the points may lose a tiny amount of zinc during intense spot welding.
Q2: How do I choose between Electro Galvanized and Hot-dipped Galvanized wire panels?
A2: If your application is indoors, inside concrete layers, or used for dry storage racks, Electro Galvanized panels provide a bright, clean look with low cost. If the panel is deployed outdoors under rain, heavy coastal mist, or structural agricultural compounds, Hot-dipped Galvanized sheets are highly recommended for their long lifespan.
Q3: Do you support mixed container sizes for standard wholesale wire products?
A3: Yes, we understand B2B distributors need to manage inventory efficiently. You can mix different mesh sizes, wire gauges, and overall sheet lengths into a single 20ft or 40ft High Cube container, provided the total weight adheres to international maritime shipping limits.
Q4: How can we request a factory material sample to verify welding strength?
A4: We provide small sample pieces (e.g., 20cm x 20cm or 30cm x 30cm sheets) completely free of charge for verified B2B procurement corporate buyers. You only cover the basic international courier express fee, which we gladly credit back once your initial full container order contract is finalized.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Galvanized Welded Wire Mesh Panel procurement costs? Partner with us to enjoy premium corrosion-resistant, uniform-mesh, and perfectly flat quality compliant with ASTM A1064 / BS EN 10223 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, dimensional flatness, and weld-strength testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated multi-spot welding and precise panel straightening/cutting lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and panel bending.
