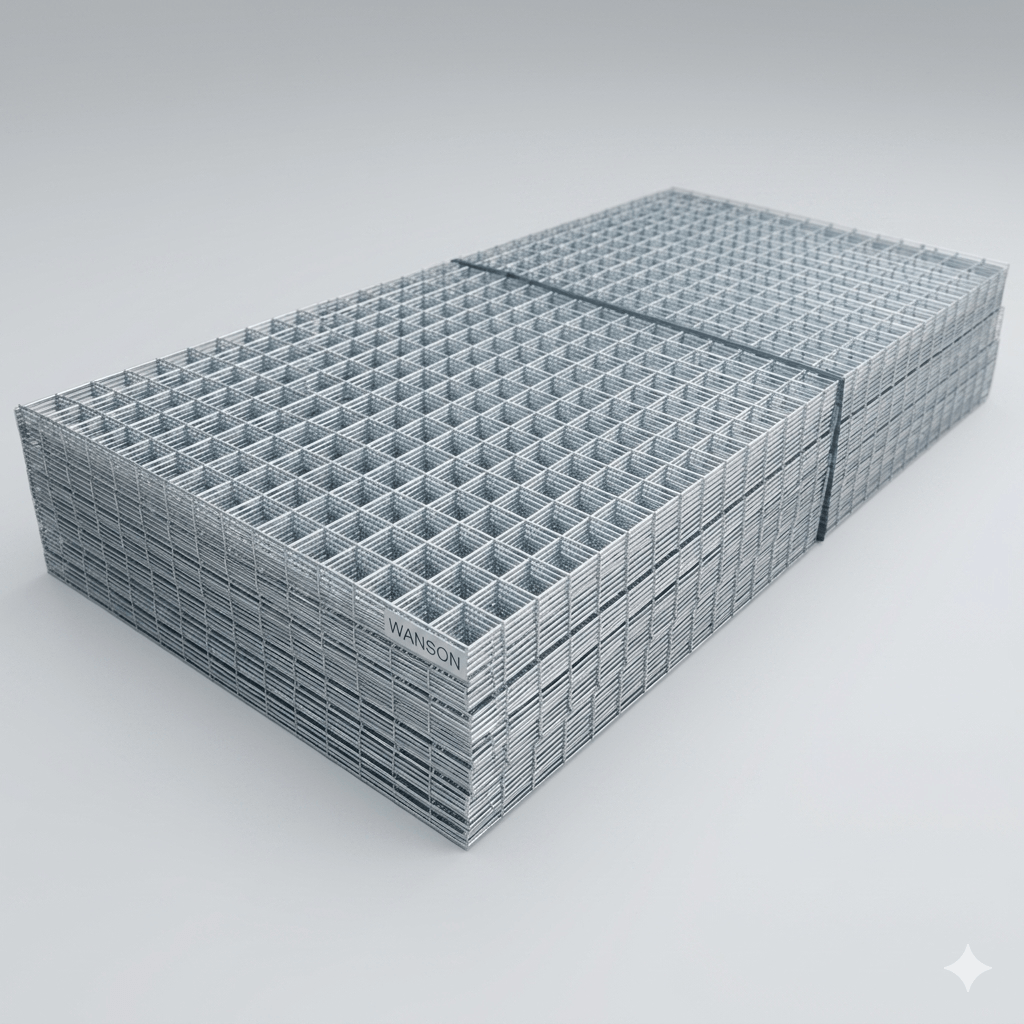

Industrial Hot-dipped Galvanized Welded Wire Mesh Panels
As an industry-leading global manufacturer, we supply elite-grade Hot-dipped Galvanized Welded Wire Mesh Panels (HDG Welded Mesh) specifically built to endure high moisture, salinity, and subterranean chemical stresses. By combining precision resistance welding with specialized heavy hot-dip galvanizing technology, every square inch of the wire steel core—especially the vulnerable cross-welded joints—is shielded by a dense zinc-iron alloy layer. This eliminates the premature rusting and weld-decay common in standard wire products.
These heavy-gauge mesh sheets offer unrivaled structural rigidity, excellent cross-wire shear resistance, and remarkable lifespan. They are widely utilized by international construction firms, agricultural wholesalers, and municipal contractors who refuse to compromise on structural longevity and safety standards.
Why Choose Our Hot-dipped Galvanized Mesh Sheets?
- Ultra-Thick Zinc Defense Layer: Offering zinc coating densities from 120g/m² up to 500g/m², delivering up to 5 to 10 times more lifespan than standard electro-galvanized sheets under outdoor weathering.
- Total Joint Seal Post-Welding: Opting for our Galvanized After Welding (GAW) process completely seals the welding intersection, closing any microscopic windows where rust might start.
- High Tensile & Yield Load Capacity: Utilizing Q235 cold-drawn steel wire guarantees a sturdy, flat paneled framework capable of withstanding shifting ground or heavy concrete pour pressure.
- Engineered for Tough Environments: Chemically stable against soil acidity, agricultural waste compounds, and heavy coastal salt air exposure.
Technical Specifications & Standard Configurations
| Specification Property | Standard Industrial Parameter | B2B Customization Options |
|---|---|---|
| Heavy Wire Gauge (Diameter) | 3.0mm, 4.0mm, 4.5mm, 5.0mm, 6.0mm, 8.0mm | Precision tolerances down to ±0.05mm |
| Mesh Openings (Pitch) | 50x50mm, 100x100mm, 150x150mm, 200x200mm | Custom variable line-spacing layouts |
| Panel Width & Length | 1.5m x 3.0m, 2.0m x 4.0m, 2.4m x 6.0m | Max sheet size can reach 3.0m x 6.0m |
| Hot-Dip Zinc Mass | ≥ 120 g/m² (Up to 450-500 g/m² for extreme marine use) | Tested via standard weight-stripping method |
| Weld Shear Force Standard | Meets ASTM A1064, EN 10223, and AS/NZS 4671 | Full lab reporting provided per production batch |
| Edge Finishes | Clean flush cut or safe smooth rounded borders | Extended wire tips can be saved for overlap tying |
Engineered for High-Demand Global Applications
Thanks to its dense metallurgical composition, our HDG welded panels excel in intensive environments:
- Structural Concrete Overlays (BRC Mesh): Extensively used to strengthen industrial concrete floors, bridge decks, runways, and high-load foundation slabs against cracking.
- High-Security Perimeter Fencing: Serves as the indestructible core framework for security barriers, railway fencing, power station grids, and airport perimeters.
- Mining & Slope Protection Systems: Installed on rockfaces and retaining walls to anchor loose soil, absorb heavy impacts, and provide long-term underground coal-mine roofing support.
- Heavy-Duty Agricultural Enclosures: Ideal for cattle ranches, large breeding farms, grain silos, and aquaculture barriers where animal waste or moisture would accelerate standard metal corrosion.
Heavy Export Packaging & Ocean Logistics Security
Handling large-scale, heavy bulk cargo requires true industrial export expertise. Our factory guarantees secure preparation for all Hot-dipped Galvanized Welded Wire Mesh Panels. Sheets are mechanically flat-stacked onto structural reinforced steel pallets or heavy-duty fumigated wooden frames capable of lifting up to 3 tons per bundle. They are then locked via high-tension industrial metal strapping blocks and cocooned inside thick, tear-proof UV-stabilized stretch films. This dense reinforcement eliminates shifting or metal-on-metal collision inside shipping containers, ensuring optimal cargo protection from dockside loading straight to your project destination.
Frequently Asked Questions (FAQ)
Q1: Why do hot-dipped galvanized panels have a slightly uneven surface compared to electro galvanized panels?
A1: Hot-dip galvanization involves immersing the steel panel directly into a molten zinc bath at around 450°C. This forms a massive, thick metallurgical zinc-iron layer. The resulting texture is naturally slightly less smooth but yields exceptionally high anti-corrosion protection compared to the decorative, thin layer produced by electroplating.
Q2: What is your standard factory capacity for producing these heavy-duty mesh sheets?
A2: Operating multiple automated heavy mesh production lines alongside our dedicated eco-friendly galvanizing facility allows us to process up to 150 metric tons of hot-dipped welded wire panels daily. We can comfortably maintain rapid delivery schedules for tight municipal deadlines or large international infrastructure contracts.
Q3: Do you support customized wire sizing and specific grid openings for national standard projects?
A3: Yes. We work closely with international procurement agents and consulting engineers. Our CNC multi-spot welding frames can adjust line and cross wire positions dynamically to produce structural specifications adhering strictly to ASTM, AS/NZS, or Eurocode design layouts.
Q4: How do you verify the precise zinc thickness and layer weight for a B2B order shipment?
A4: We feature an on-site testing facility. For every production run, we utilize calibrated magnetic coating thickness gauges and conduct stripping tests to verify exact zinc coating parameters (e.g., g/m² or microns). Comprehensive quality compliance certificates and laboratory test records are packed along with the container shipping invoices.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Hot-dipped Galvanized Welded Wire Mesh Panels procurement costs? Partner with us to enjoy premium heavy-zinc coated, ultra-corrosion-resistant, and perfectly flat quality compliant with ASTM A1064 / ASTM A123 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, zinc-coating thickness, dimensional flatness, and weld-strength testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated multi-spot welding and precise panel straightening/cutting lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and panel bending.
