Industrial-Grade Galvanized Welded Wire Mesh Manufacturer
As a leading galvanized welded wire mesh manufacturer, we deliver premium-grade wire mesh solutions tailored for global commercial and industrial applications. Galvanized welded wire mesh is a structural mesh grid consisting of orthogonal longitudinal and transverse wires welded together at each intersection. By applying a thick zinc protective coating via advanced hot-dip or electro-galvanizing processes, our wire mesh achieves unparalleled longevity even in humid, coastal, or highly corrosive chemical environments.
Why Choose Our GI Welded Wire Fabric?
1. Superior Zinc Coating & Anti-Rust Lifespan: Our hot-dipped galvanized after welding (GAW) process coats every single weld spot with a thick layer of zinc (up to 240g/m²). This completely eliminates vulnerable raw steel exposures, preventing localized rust and increasing the mesh service life by up to 300% compared to standard wire mesh products.
2. High Tensile Strength & Uniform Mesh: Utilizing state-of-the-art multi-spot welding production lines ensures that each mesh opening is perfectly square and geometrically precise. The high-quality low-carbon steel raw wire gives the panels and rolls exceptional impact resistance and rigid structural tensile load capability.
3. Custom Profiles for Large Scale B2B Orders: We provide full OEM/ODM flexibility. Whether your construction project requires heavy-duty 4.0mm wire gauge panels for concrete reinforcement or agricultural clients need 1/4 inch fine wire mesh rolls for rodent control, our production line dynamically meets your custom specifications.
Technical Specifications & Standard Size Chart
| Mesh Size (Inches) | Mesh Size (mm) | Wire Gauge (BWG) | Wire Diameter (mm) | Standard Roll Width | Standard Roll Length |
|---|---|---|---|---|---|
| 1/4″ x 1/4″ | 6.4mm x 6.4mm | BWG 22, 23, 24 | 0.55mm – 0.70mm | 0.914m, 1.0m, 1.2m | 15m, 30m, 45m |
| 1/2″ x 1/2″ | 12.7mm x 12.7mm | BWG 16, 18, 19, 20 | 0.80mm – 1.60mm | 0.914m, 1.0m, 1.2m, 1.5m | 30m, 50m |
| 1″ x 1″ | 25.4mm x 25.4mm | BWG 14, 15, 16, 17 | 1.40mm – 2.00mm | 1.0m, 1.2m, 1.5m, 1.8m | 30m, 50m |
| 2″ x 2″ | 50.8mm x 50.8mm | BWG 10, 11, 12, 13 | 2.00mm – 3.40mm | 1.0m, 1.5m, 1.8m, 2.0m | 30m, 50m |
| Heavy Panels (Custom) | 100mm x 100mm etc. | Heavy Gauge Wire | 4.00mm – 6.00mm | Max Panel Width: 2.5m | Panel Length: 1m – 6m |
Versatile Applications Across Industries
Our galvanized welded wire fabric acts as a multipurpose staple for numerous engineering and agricultural designs worldwide:
- Agricultural Fencing & Animal Enclosures: Used extensively to construct safe chicken coops, rabbit runs, cattle pens, and aviary netting. The thick zinc finish protects against animal waste erosion.
- Construction Concrete Reinforcement: Deployed as heavy structural reinforcing mesh panels for floor slabs, masonry walls, and structural plaster backing to enhance concrete tensile hold.
- Perimeter Safety & Machinery Guards: Ideal for creating rugged security perimeter fencing around factories, warehouse partitions, and protective covers for hazardous industrial machinery.
- Horticultural & Garden Protection: Crafted into durable tree guards, plant climbing supports, and underground root-barrier cages to deter burrowing pests like gophers and rats.
Export Logistics & Packaging Security

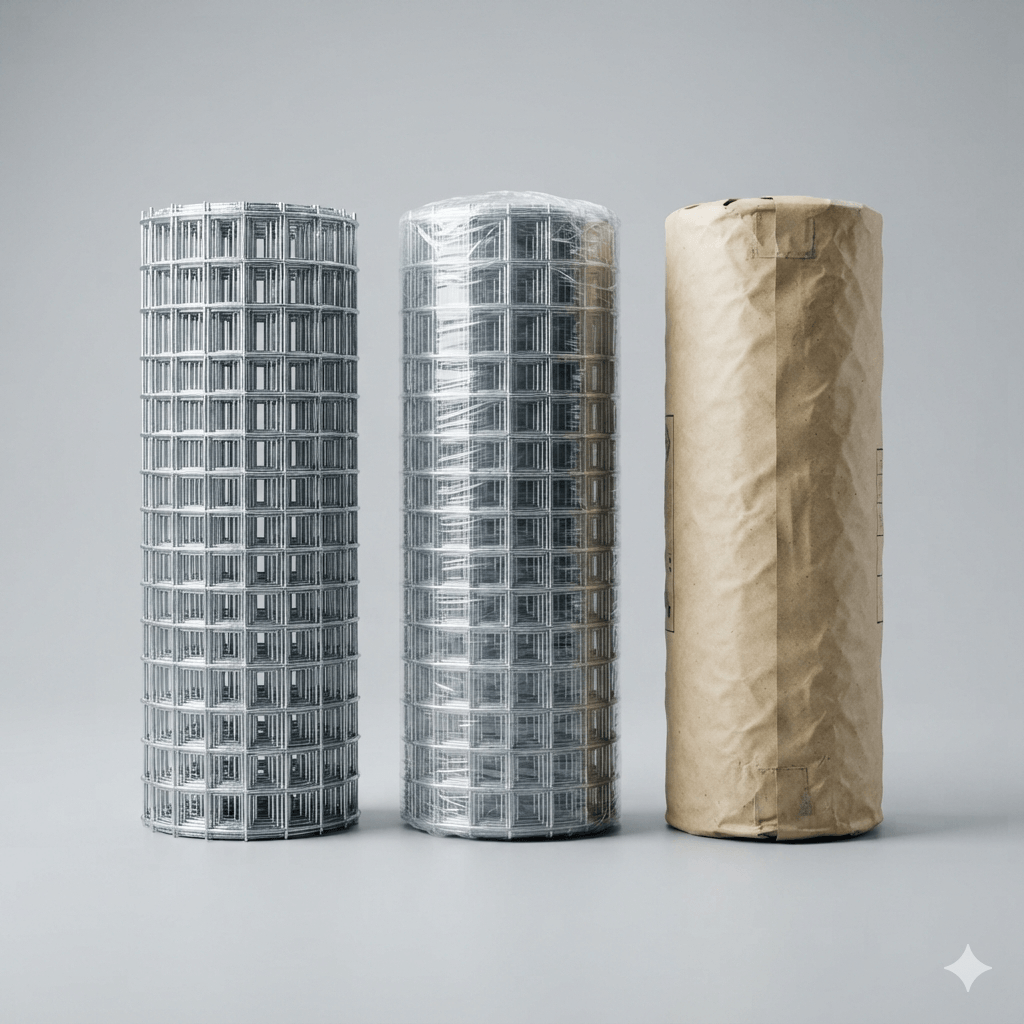

We understand that long-distance ocean freight poses severe moisture and handling risks to metal hardware products. To protect your investment, every single galvanized welded wire mesh roll is first tightly wrapped in internal heavy-duty moisture-proof waterproof paper, then completely sealed with an external transparent PE shrink film. For large panel configurations, we utilize standardized international steel or fumigated wooden pallets reinforced with heavy metal strapping bands, guaranteeing effortless forklift unloading and pristine product condition upon arrival at your warehouse port destination.
Frequently Asked Questions (FAQ)
Q1: What is the difference between GAW and GBW galvanized welded wire mesh?
GAW (Galvanized After Welding) means the raw steel wire is first welded into the grid mesh, and then the entire structure is submerged into molten zinc. This ensures the weld spots are fully encapsulated by zinc. GBW (Galvanized Before Welding) utilizes pre-galvanized wire for high-speed welding. While GBW is more economical, GAW offers significantly superior rust prevention at the cross joints.
Q2: What options do you provide for the zinc coating density?
For standard commercial orders, our electro-galvanized mesh features a zinc layer of 10-20g/m². For heavy-duty industrial or agricultural clients, we supply premium hot-dipped galvanized mesh with a heavy zinc coating ranging from 60g/m² up to 240g/m² to guarantee long-term outdoor rust resistance.
Q3: Can you customize specific mesh apertures and wire thicknesses for construction projects?
Yes, absolutely. Our manufacturing facility operates flexible computerized CNC welding equipment. We can custom-produce unique structural configurations with wire diameters from 0.6mm up to 6.0mm and varied rectangular or square mesh sizes tailored precisely to your engineering prints.
Q4: What is your Minimum Order Quantity (MOQ) for international container shipping?
To provide you with optimal FOB/CIF unit pricing and spread logistics overhead efficiently, our standard MOQ is typically 3 to 5 tons per specification, or a mixed full container load (20GP FCL). Small trial orders can be negotiated based on current warehouse stock availability.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your galvanized welded wire mesh procurement costs? Partner with us to enjoy premium corrosion-resistant quality compliant with ASTM A740/BS EN 10223 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality and weld-strength testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated multi-spot welding production lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with reinforced pallets to prevent transit damage.
