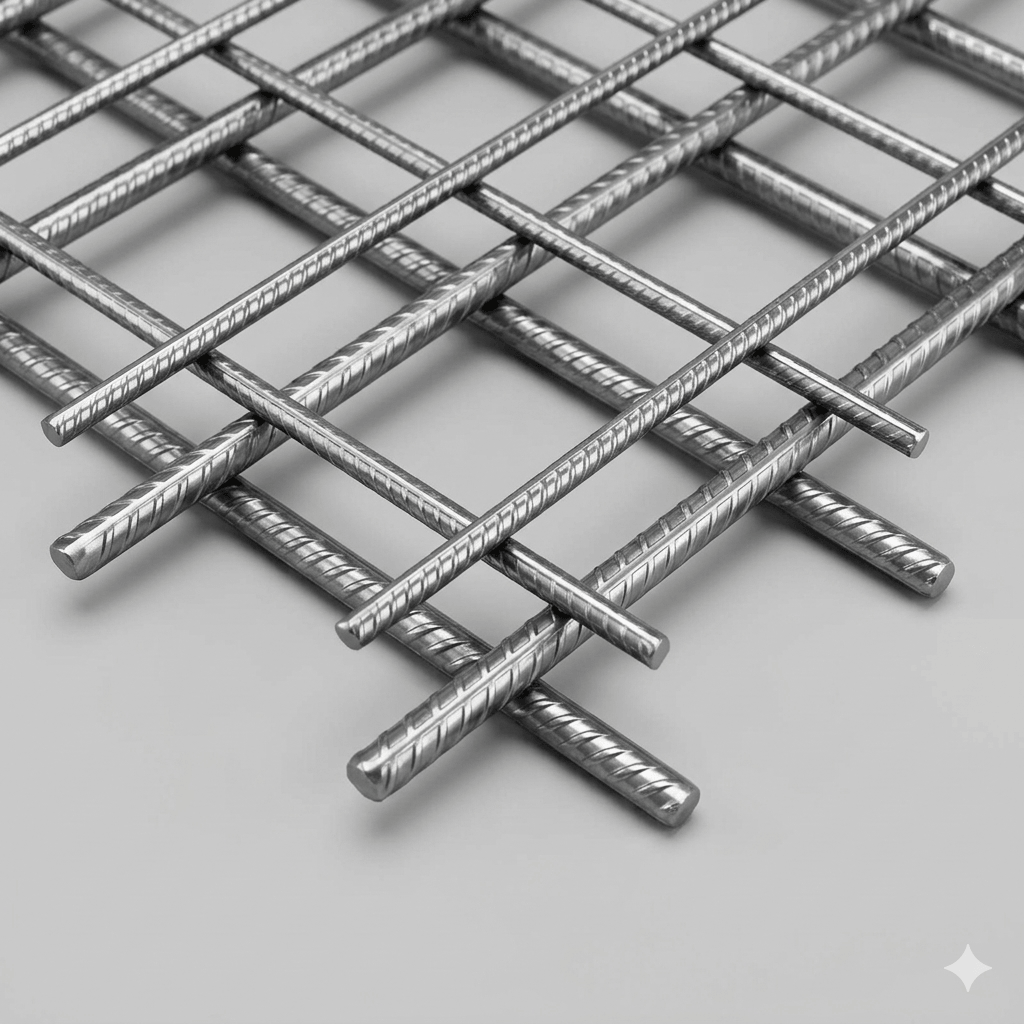

Premium Reinforcing Mesh for Structural Concrete Engineering
Our heavy-duty reinforcing mesh (also known as welded wire fabric or steel mesh fabric) is the industry benchmark for enhancing the tensile strength and structural integrity of concrete elements. Plain unreinforced concrete is inherently strong in compression but exceptionally weak in tension. By embedding our precision-engineered steel reinforcing mesh into the concrete matrix, you effectively mitigate structural failure risk, manage localized stresses, and radically minimize shrinkage-induced cracking across large surface areas.
Why Choose Our Structural Welded Wire Reinforcing Mesh?
- Automated Full-Flush Welding: Advanced multi-point resistance welding tech ensures every single joint bears equal load shear strength, maintaining grid dimensional stability during heavy concrete pours.
- Certified Structural Integrity: Fully complies with strict global market requirements, including AS/NZS 4671 for Oceania, ASTM A1064 for North America, and BS 4483 for the UK market.
- Advanced Anti-Rust Coating Options: Available in hot-dipped galvanized (HDG), electro-galvanized, black raw steel, and specialized epoxy coatings to withstand hyper-corrosive coastal environments.
- Substantial Labor Cost Savings: Replaces traditional on-site manual steel bar tying, cutting installation time by up to 70% and drastically speeding up your project timeline.
Versatile Applications in Global Construction Projects
Our steel reinforcing mesh handles rigorous demands across multiple industrial, commercial, and residential infrastructure projects. It functions as the core tensile backbone in slab-on-ground foundations, industrial warehouse flooring subjected to constant forklift traffic, high-load airport runways, highway bridge decks, and concrete retaining walls. Furthermore, precast concrete manufacturers globally rely on our precision mesh grids to produce highly uniform precast panels, drainage pipes, and structural box culverts with optimized structural efficiency.
Technical Specifications & Standard Dimensions
| Standard Reference Code | Wire Diameter (mm) | Mesh Pitch / Aperture (mm) | Standard Sheet Size (m) | Yield Strength (MPa) | Weight Per Sheet (kg) |
|---|---|---|---|---|---|
| SL62 Mesh | 6.00 | 200 x 200 | 2.4 x 6.0 | ≥ 500 MPa | 33.0 |
| SL72 Mesh | 6.75 | 200 x 200 | 2.4 x 6.0 | ≥ 500 MPa | 41.0 |
| SL82 Mesh | 7.60 | 200 x 200 | 2.4 x 6.0 | ≥ 500 MPa | 52.0 |
| SL92 Mesh | 8.55 | 200 x 200 | 2.4 x 6.0 | ≥ 500 MPa | 66.0 |
| SL102 Mesh | 9.50 | 200 x 200 | 2.4 x 6.0 | ≥ 500 MPa | 81.0 |
| Custom Industrial Mesh | 4.0 – 12.0 mm | 100×100 to 300×300 | Max Width: 3.0m | 300 – 550 MPa | Based on Specs |
Global Export Shipping, Packaging & Quality Assurance
As an elite building material exporter, we recognize that logistical execution is just as critical as product quality. Steel reinforcing mesh sheets are heavy, bulky, and highly vulnerable to edge deformation or surface rust if handled poorly during sea transit. To solve this, our factory utilizes heavy-duty high-tensile steel banding to secure bundles tightly, supported by customized reinforced steel or specialized wooden pallets that allow seamless forklift operations at international ports.
We implement moisture-proof plastic wrapping layers for bare steel shipments to protect them against sea-salt air corrosion throughout extended ocean voyages. Our dedicated logistics team has extensive experience optimizing 20GP container layouts, consistently packing 25 to 27 metric tons safely within legal maritime weight limits. This significantly reduces ocean freight costs per sheet for our B2B distributors, commercial importers, and large procurement corporations globally. Every export batch includes a certified Mill Test Certificate (MTC), tensile elongation data reports, and weld shear testing results to guarantee zero hassle during local customs clearance and engineering site inspections.
Frequently Asked Questions (FAQ)
Q1: What steel wire grades do you use for your reinforcing mesh?
A1: We primarily use premium cold-rolled ribbed steel wire with a minimum yield strength of 500 MPa. This includes steel grades that strictly fulfill AS/NZS 4671 (Grades 500L, 500N), ASTM A1064 (Welded Wire Reinforcement), and BS 4483 benchmarks. Custom ductile steel options are also available upon engineering request.
Q2: Can you manufacture custom grid sizes and custom sheet dimensions for specific infrastructure designs?
A2: Absolutely. Our state-of-the-art fully automated welding production lines are highly flexible. We can customize sheet widths up to 3 meters and lengths up to 8 meters. Mesh apertures can range from 100mm to 300mm with variable wire gauges across longitudinal and transverse directions to meet your precise engineering layouts.
Q3: How do you verify and guarantee the weld cross-joint strength of the reinforcing mesh?
A3: We enforce rigorous in-house quality control testing protocols. Random cross-joint samples are systematically extracted from every single production batch and placed inside computerized hydraulic tensile testing machines. The weld shear strength must successfully exceed the minimum standards mandated by international building regulations before being approved for packaging and shipment.
Q4: What is your standard lead time for a full container load (FCL) of reinforcing mesh sheets?
A4: For standard specifications like SL62, SL72, or SL82 mesh, our lead time typically ranges between 10 to 15 days from deposit confirmation. For heavily customized wire diameters or complex hot-dipped galvanized mesh finishes, production schedules generally require 15 to 22 days. We run multiple automated production lines 24/7 to guarantee on-time shipping for high-volume commercial contracts.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Reinforcing Mesh procurement costs? Partner with us to enjoy premium high-tensile, heavy-duty, and perfectly flat quality compliant with ASTM A1064 / BS EN 10223 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, dimensional flatness, and weld-strength testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced heavy-duty automated multi-spot welding and precise panel straightening/cutting lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and panel bending.
