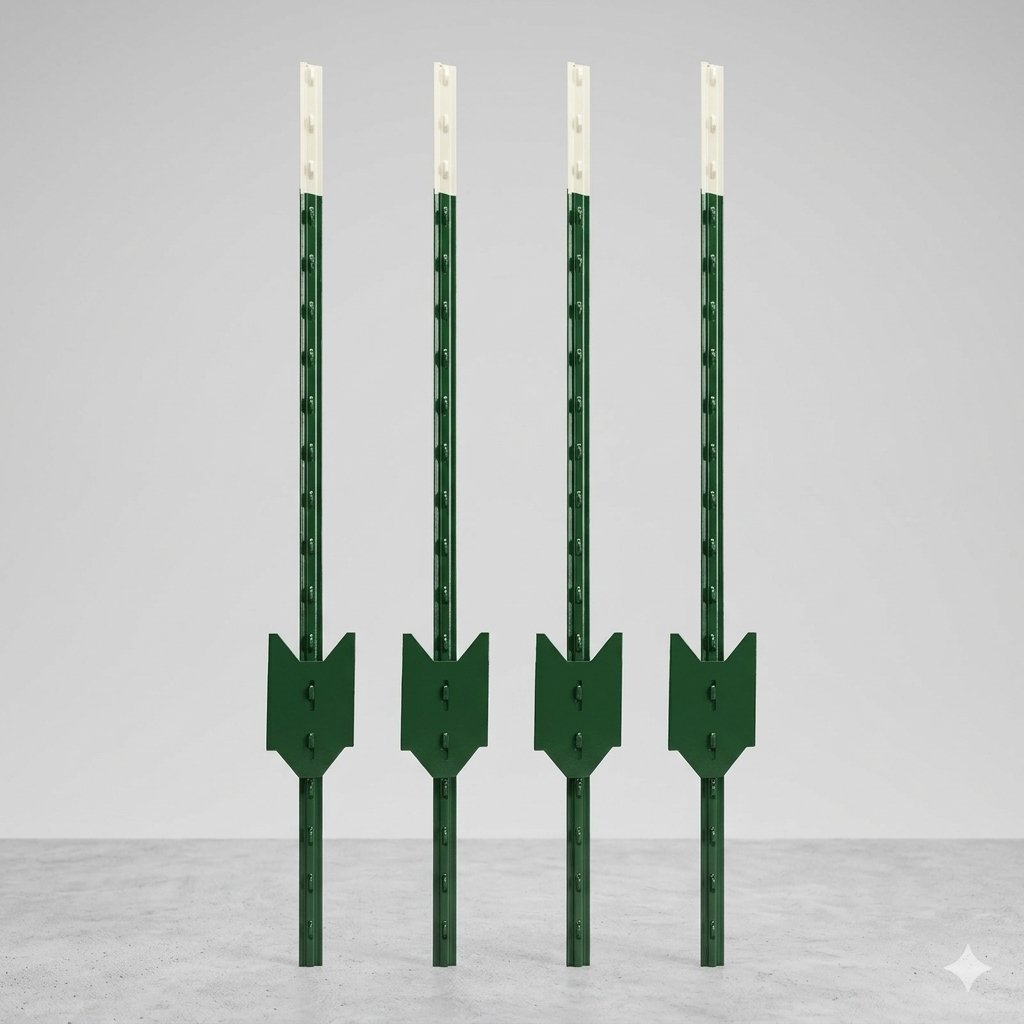

Heavy-Duty Studded T Post with Spade for Farm & Agricultural Fencing
Our industrial-strength Studded T Post with Spade serves as the fundamental anchor for robust outdoor perimeter systems across global agricultural regions. Specifically manufactured to comply with strict ASTM specifications, these posts offer excellent rigidity that prevents bowing when structural lines are tightly tensioned. Perfect for securing barbed wire, fixed knot field fences, and heavy-duty cattle wire mesh, our T posts outperform traditional timber or hollow pipes by offering a combination of high driven speed, dynamic underground holding capacity, and multi-decade structural durability.
Advanced Mechanical Engineering For Extreme Ground Anchoring
- High-Strength Rail Steel Core: Yields a high bending resistance rating, allowing the posts to withstand intense crowding impacts from cattle, horses, and wild hogs.
- Premium Swaged Spade: The structural anchor plate is fused using heavy industrial hydraulic presses to guarantee zero detachment or loose rattling during heavy mechanical pile driving.
- Precision CNC Stud Distribution: Uniform studs along the front flange prevent horizontal wires from riding up or down under severe wind loads or livestock friction.
- Eco-Friendly Enamel Coating: Features a high-bake poly-shield enamel paint finish that protects against rust, soil acids, and intensive UV degradation.
Why Weight Matters: 1.25 lbs/ft vs. 1.33 lbs/ft Classifications
Understanding linear weight density is critical for procurement departments handling bulk B2B agricultural tenders. Our factory manufactures two industry standard weight grades: the 1.25 lbs/ft Regular Duty post and the 1.33 lbs/ft Heavy Duty post. The heavier 1.33 variant features a thicker steel core cross-section which naturally enhances the ultimate moment-load capability of the post. When selecting T-posts for long-distance range lines or areas subject to heavy wildlife pressure (such as elk, deer, or feral hogs), choosing the 1.33 lbs/ft specification paired with a securely riveted wide spade effectively prevents fence line collapse and significantly lowers long-term repair costs.
Technical Specifications
| Post Parameter | Regular Duty Specification | Heavy Duty Infrastructure Grade |
|---|---|---|
| Linear Weight Density | 1.25 lbs / foot (1.86 kg/m) | 1.33 lbs / foot (1.98 kg/m) |
| Post Length Range | 5.0 ft, 5.5 ft, 6.0 ft, 6.5 ft | 7.0 ft, 8.0 ft, 9.0 ft, 10.0 ft |
| Spade Connection Method | Dual-Riveted Flat Mount | Hydraulic Interlocking Triple-Weld / Swaged Plate |
| Stud Configuration | Every 2 inches (Continuous) | Every 2 inches (Reinforced Base Profiling) |
| Anti-Corrosion Finish | Single coat Enamel Gloss Green Paint | Double-Bake Enamel Paint / Hot-Dipped Galvanized |
| Master Bundle Pack | 200 Pcs per Steel-Strapped Pallet | 250 Pcs per Solid Timber-Skid Pallet |
B2B Bulk Export, Flat Nested Bundling & Port Shipping
As a global tier-one steel post supplier, we optimize our structural product packaging layout to maintain strict compliance with worldwide ocean freight standards. T posts are tightly compiled into small 5-piece bundles via durable high-tensile wire wraps. These sub-bundles are nested back-to-back inside heavy wooden or reinforced steel shipping skids. This interlocking geometric configuration eliminates lateral movement and prevents the paint finish from scratching during intense maritime motions. Our streamlined palletization layout allows logistics managers to pack maximum weight configurations (up to 27 metric tons per container) into standard 20ft GP or 40ft containers, lowering unit shipping rates for bulk wholesale distributors.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the steel spade attached to the lower section of the T post?
A: The spade plate acts as an underground stabilization anchor. When the T-post is driven into the earth using a mechanical or manual post driver, the broad surface area of the spade seats firmly into the subsoil. This mechanical anchor blocks rotation, prevents side-to-side wobble under wire tension, and counteracts the upward lifting forces caused by wind or animal leverage.
Q2: How do I select the right T post length relative to my final fence line height?
A: A general structural rule of thumb is that approximately 1.5 to 2.0 feet of the T post must be embedded permanently below ground level to activate full anchor spade resistance. For instance, if you are erecting a standard 4-foot agricultural wire fence, you should purchase our 6-foot or 6.5-foot T-posts to guarantee adequate structural leverage under the soil surface.
Q3: Do you offer hot-dipped galvanized T posts for extremely wet, marshy, or high-salinity agricultural lands?
A: Yes! While our high-gloss green enamel paint coat is the standard commercial choice across North America, we manufacture heavy-gauge hot-dipped galvanized (HDG) T-posts for extreme agricultural settings. The HDG process applies a comprehensive liquid zinc layer that treats all surface cut edges, ensuring deep immunity to highly acidic farm runoff and saline environments.
Q4: Are the installation wire clips included inside the bulk T post pallet packages?
A: By standard industrial export rules, T-post wire clips are quoted and packed independently due to varied user gauge preferences. However, we can easily match your bulk post orders with our heavy-duty galvanized wire fasteners packaged in master boxes of 200, 500, or 1000 pieces, shipping them inside the same container to save custom clearance fees.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Studded T Post with Spade procurement costs? Partner with us to enjoy premium heavy-duty, high-stability anchor spade, and rugged studded T-profile quality compliant with international agricultural fencing, highway boundary, and ranch perimeter support standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP) to maximize your purchasing advantage.
- 100% Free Samples: Quality, weight per foot accuracy (e.g., 0.95 lbs/ft, 1.25 lbs/ft, 1.33 lbs/ft), spade attachment shear strength, stud uniformity, and painted/galvanized coating thickness testing samples available for your local farm supply retail, fence contracting, or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty steel rail rolling, high-precision hydraulic spade swaging, and continuous premium enamel painting/hot-dipped galvanizing lines ensure prompt manufacturing and on-time shipment of your Studded T Post with Spade.
- Customized Packaging: Marine-grade rust-proof dual packing (heavy-duty steel strapping in compact bundles + waterproof protective wrapping outside) with master steel pallets to prevent transit paint chipping, post bending, and spade detachment during heavy ocean shipping and forklift unloading.
