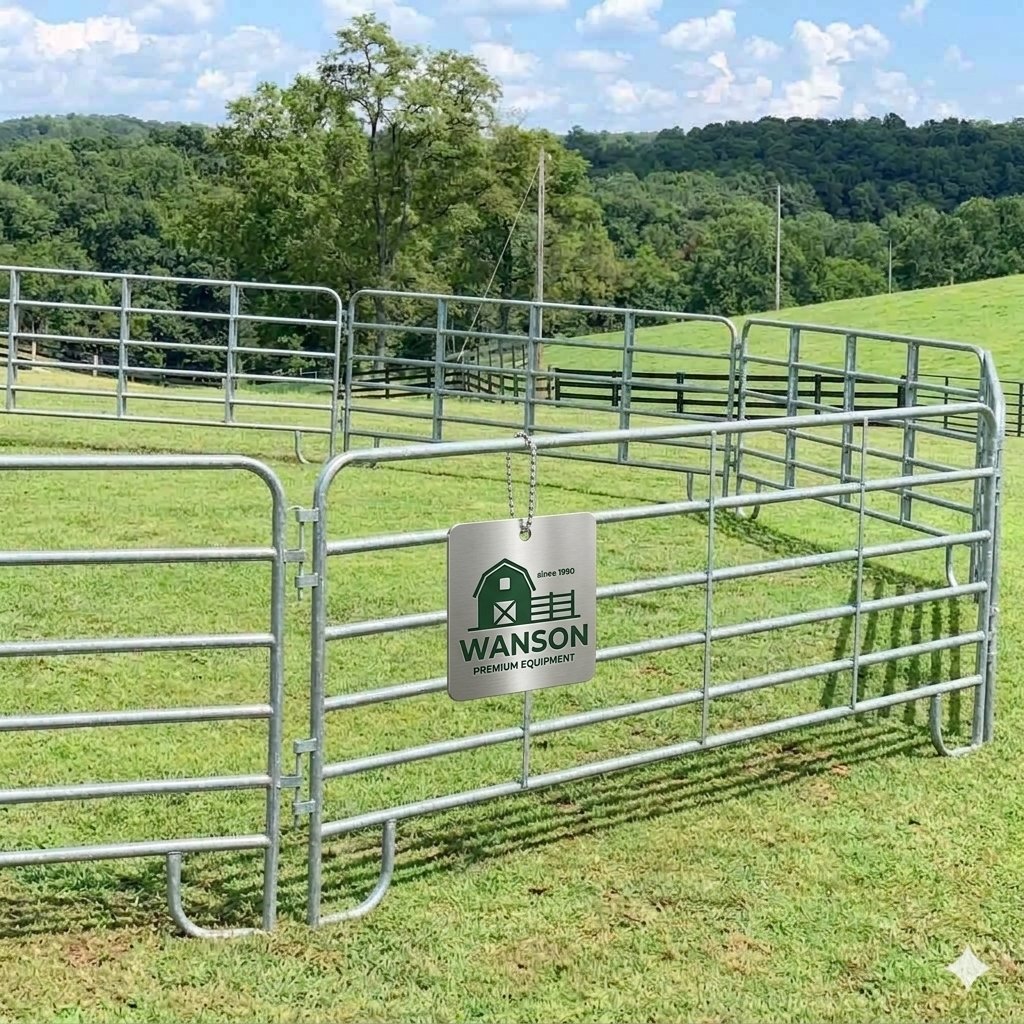

Heavy-Duty Galvanized Horse Corral Panels & Round Pen Fencing
Our industrial-grade Horse Corral Panels are the premier choice for equestrian facilities, livestock breeders, and ranch owners worldwide. Unlike standard light-duty agricultural gates, our horse panels are built to withstand the unique physical stresses exerted by large, high-energy animals. Manufactured using structural steel tubing with high-yield strength, these portable fencing panels are highly stable yet flexible enough to be transported, reconfigured, and set up in a fraction of the time required for permanent fencing.
Engineered for Horse Safety & Durability
- Zero-Injury Framework: Featuring premium loop-top corners and perfectly ground, smooth weld seams to eradicate any sharp edges that could harm a horse’s hide or coat.
- Heavy-Duty Zinc Protection: Every pipe is coated inside and out with heavy galvanization (up to 270g/m²) or finished with architectural-grade UV powder coating to fight off manure acids and coastal humidity.
- Dual-Pin Connector System: Solid steel male/female drop-pin lugs ensure ultra-tight panel interlocking while allowing the corral structure to articulate smoothly over rolling pastures.
- Anti-Sinking J-Leg Design: Curved loop feet prevent the panel ends from burrowing into loose dirt, sand, or deep mud in busy training arenas.
Advanced Structural Profiles: Oval Rails vs. Round Pipes
The structural geometry of our horse corral panels plays a pivotal role in animal welfare and fence longevity. While traditional round steel pipes provide excellent multi-directional strength, our premium Oval Rail Corral Panels (30x60mm / 40x80mm) are rapidly becoming the industry gold standard. The wide, flat surface profile of an oval rail distributes impact forces much more broadly if a horse panics and rears against the fence, dramatically minimizing the risk of severe bone bruising or muscle tearing. Furthermore, the vertical orientation of oval tubes yields a significantly higher section modulus, meaning the rails exhibit virtually zero sag or warp over extended, heavy-use spans.
Technical Specifications
| Panel Parameter | Standard Paddock Utility | Heavy-Duty Stall & Arena Grade |
|---|---|---|
| Available Panel Dimensions | 10ft x 5ft / 12ft x 5ft | 12ft x 6ft / 14ft x 6ft / 16ft x 6ft |
| Outer Frame Tube | 32mm OD (1-1/4″) Round / 40x40mm Square | 42mm OD (1-5/8″) / 48mm OD (2″) Heavy Tube |
| Inner Rail Shape & Size | 32mm Round Pipe / 25x50mm Oval Tube | 42mm Round Pipe / 30x60mm or 40x80mm Oval Rail |
| Rail Count & Spacing | 5 Rails (approx. 200mm space) | 6 Rails (approx. 150mm tight spacing for foals) |
| Wall Thickness of Steel | 1.5 mm / 1.6 mm (16 Gauge) | 2.0 mm / 2.5 mm (14 to 12 Gauge) |
| Corrosion Finish | Pre-Galvanized + Clear Weld Spray | Hot-Dipped Galvanized After Welding / AkzoNobel Powder |
B2B Logistics, Bundled Packing & Bulk Container Loading
To support massive regional agricultural supply chains and distributors, our factory utilizes high-efficiency automated robotic welders to construct each horse corral panel. This ensures flawless structural uniformity and 100% full-penetration welding across thousands of units. For maritime export, panels are densely packed in interlocking nested vertical bundles on custom steel pallet bases. We layer high-density EPE foam padding between each painted or galvanized panel to avoid abrasions or finish scratching from ocean vibrations. Bundles are bound tightly using heavy-duty industrial steel strapping, enabling safe, fast overhead forklift loading and unloading, while ensuring full 40ft High Cube container optimization.
Frequently Asked Questions (FAQ)
Q1: How many corral panels do I need to build a standard 40ft, 50ft, or 60ft horse round pen?
A: For a standard 50ft (15m) diameter training round pen using our popular 12ft panels, you will need approximately 13 standard panels plus 1 matching bow gate panel for entry. For a 60ft (18m) round pen, you will need 15 standard 12ft panels and 1 gate panel. Our team can provide precise technical layouts based on your preferred panel lengths.
Q2: Why are square or loop-top corners better than sharp square corners for horses?
A: Horses are naturally skittish and prone to sudden movements. Sharp, exposed top corners are a major hazard if a horse attempts to jump or rears near the panel. Our square corners are rounded via cold-bending machinery, and our loop-tops feature continuous curved tubes, ensuring that even under frantic contact, there are zero sharp catch points to snare blankets, tack, or animal skin.
Q3: What is the difference in longevity between Pre-Galvanized and Hot-Dipped Galvanized After Welding (HDG)?
A: Pre-galvanized panels use steel sheets galvanized before being rolled into pipes; the weld seams are exposed during manufacturing and require an zinc-rich anti-rust spray topcoat. Hot-Dipped Galvanized After Welding (HDG) means the entire fabricated panel is submerged into a molten zinc bath, sealing all interior welds and tube interiors. HDG panels cost more but last 2-3 times longer in highly damp or acidic paddock environments.
Q4: Can we order custom color powder coatings to match our existing equestrian center branding?
A: Yes! For commercial B2B orders meeting our minimum container load requirements, we offer custom architectural powder coating in any standard RAL color code (popular colors include Hunter Green, Matte Black, Ranch Brown, and Pure White). We use a multi-stage pre-treatment wash and AkzoNobel powder to guarantee high adhesion and excellent UV color stability over years of outdoor exposure.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Horse Corral Panels procurement costs? Partner with us to enjoy premium heavy-duty, animal-safe, and high-impact resistance quality compliant with international livestock containment, ranch management, and equestrian arena standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Quality, tube wall thickness accuracy (oval/round/square tubing), welding strength, quick-pin latch alignment, and hot-dipped galvanized or powder coating thickness testing samples available for your local horse breeding, ranch supply, or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated tube cutting, precision hydraulic bending, robotized multi-point welding, and high-capacity surface treatment lines ensure prompt manufacturing and on-time shipment of your Horse Corral Panels.
- Customized Packaging: Marine-grade rust-proof dual packing with heavy-duty reinforced steel pallets and vertical stacking frame protectors to prevent transit paint scratching, panel distortion, and rail deformation during long-distance ocean transit.
