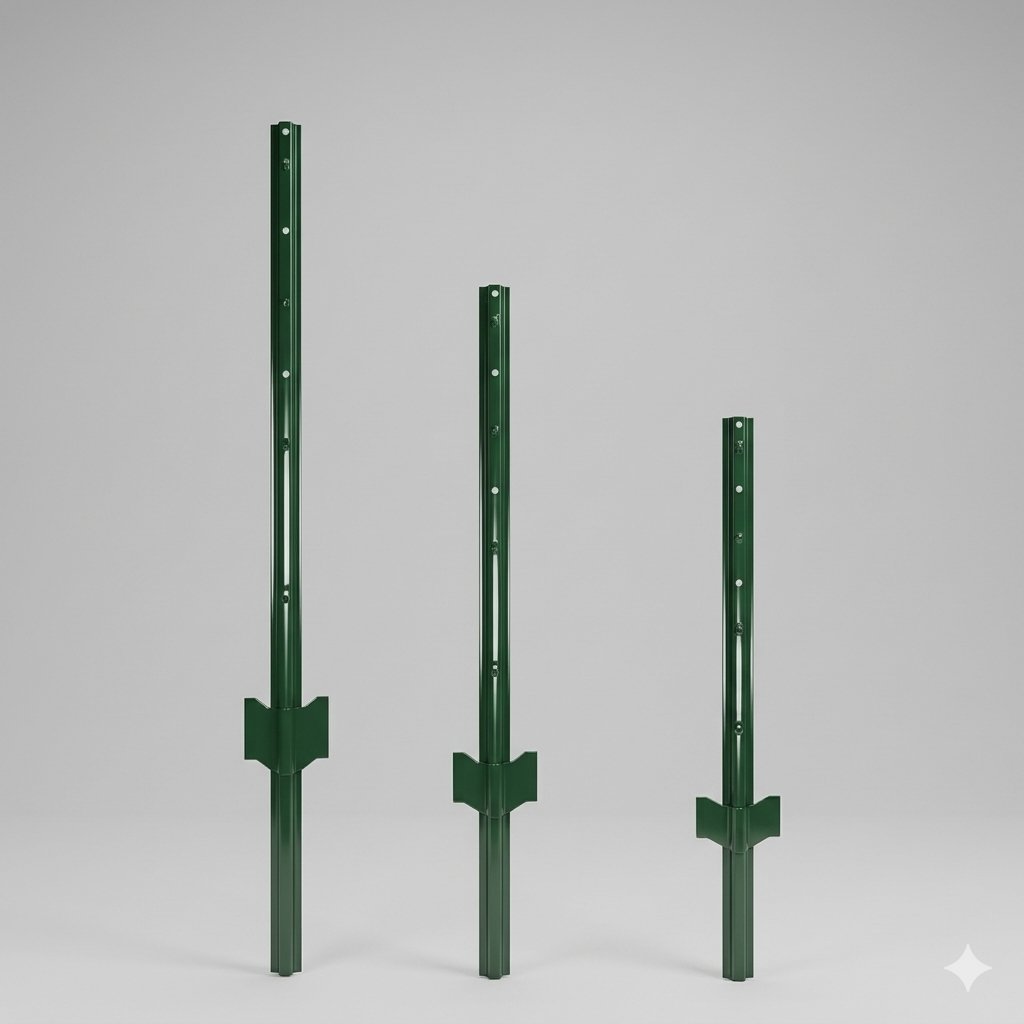

Premium Steel Fence U-Post for Heavy-Duty Agricultural & Security Fencing
As a leading manufacturer and global exporter of structural building materials, we supply high-performance Steel Fence U-Posts designed to meet the rigorous demands of global commercial distributors, farming cooperatives, and industrial fencing contractors. Our metal U-channel posts are cold-rolled from premium quality rail steel or structural carbon steel, ensuring high yield strength and resilience against high-impact loads from livestock or harsh weather conditions.
Why Choose Our Heavy-Duty Metal U-Posts?
1. Superior Rust Mitigation & Multi-Layer Coating Technology
Our standard inventory features advanced thermoset dark green powder coating over a phosphate-treated steel substrate. For coastal zones or acid-soil farmlands, we supply hot-dipped galvanized (HDG) finishes reaching minimum zinc coatings of 400g/m², yielding elite resistance against moisture, oxidation, and chemical corrosion.
2. Heavy-Duty Stabilizing Anchor Plate
Each steel U-post comes securely equipped with a robust, swaged steel anchor plate. This engineered plate amplifies the lateral subterranean surface area, counteracting heavy pulling forces and ensuring the post remains perfectly vertical even in waterlogged, muddy, or loose sandy soils.
3. High-Efficiency Punching Pattern
The linear flange surface features precision pre-punched holes spaced uniformly at 1-inch or 2-inch intervals. This facilitates swift, modular fastening of wire mesh, high-tensile field fence fabrics, barbed wires, or protective lattice networks via regular wire ties or heavy clips.
Technical Specifications & Structural Dimensions
| Technical Parameters | Standard Specifications / Value Range |
|---|---|
| Material Composition | Q235 Carbon Steel, Premium Rail Steel, Rebar Alloy Steel |
| Linear Weight Options | 0.95 lbs/ft, 1.15 lbs/ft, 1.25 lbs/ft, 1.33 lbs/ft, 1.50 lbs/ft |
| Available Heights | 3ft, 4ft, 5ft, 6ft, 7ft, 8ft, 9ft, 10ft (915mm to 3050mm) |
| Surface Finish Options | High-adhesion Electrostatic Polyester Powder Coated / Hot-Dipped Galvanized |
| Color Codes | Forest Green (RAL 6005), Industrial Black (RAL 9005), Zinc Metallic Silver |
| Anchor Plate Configuration | Interlocking rivet-attached square or spade profile; Thickness: 2.0mm – 3.5mm |
| Hole Configuration | Linear center-line punching, Dia 5mm/6mm, customizable spacing increments |
| Tensile Mechanical Rating | Yield Strength ≥ 235 MPa, Ultimate Tensile Strength 370 – 500 MPa |
Global Export, Logistics, & Custom OEM Packing
Understanding the intricacies of heavy industrial maritime transit, we enforce unmatched bulk packaging protocols. Our standard wholesale packing model features groups of 10 individual steel U-posts strapped tightly with heavy-gauge high-tensile steel bands. These bundles are masterfully grouped into 200 or 400 pieces mounted over solid steel or heavy-duty heat-treated wooden pallets. We wrap all structural bundles with high-density moisture-barrier shrink films and custom corner guards to fully secure the powder-coated edges against abrasion during multi-port handling.
Through optimized nesting patterns inside standard 20ft or 40ft containers, we maximize container weight limits up to 26-28 metric tons depending on the custom destination ports’ regulatory frameworks. This strategic weight-to-volume ratio sharply lowers ocean freight costs per unit, boosting profitability for overseas regional hardware chains, fencing distributors, and industrial importers.
Frequently Asked Questions (FAQ) – Deep Technical Insights
Q1: What are the primary differences between the rail steel and structural carbon steel options for U-Posts?
A: Rail steel consists of recycled railroad tracks, providing exceptionally high hardness, rigid memory, and high tensile capacity, preventing bending under sudden impacts. Carbon steel (such as standard industrial Q235) offers superior malleability and consistent metallurgical uniformity, which translates into seamless customization, reliable welding properties, and precise linear straightness for larger industrial perimeters.
Q2: How does your green powder coating withstand high UV exposure and extreme cold weather?
A: We utilize an advanced electrostatic application procedure with premium cross-linked TGIC polyester powders. This industrial formulation undergoes a precise curing process at 200°C. The resultant polymer shell exhibits phenomenal UV cross-linking stabilization, ensuring zero chalking, fading, cracking, or lifting when exposed to persistent solar radiation or sub-zero winter temperatures.
Q3: Can these steel fence U-posts be driven directly into rocky or high-clay soils?

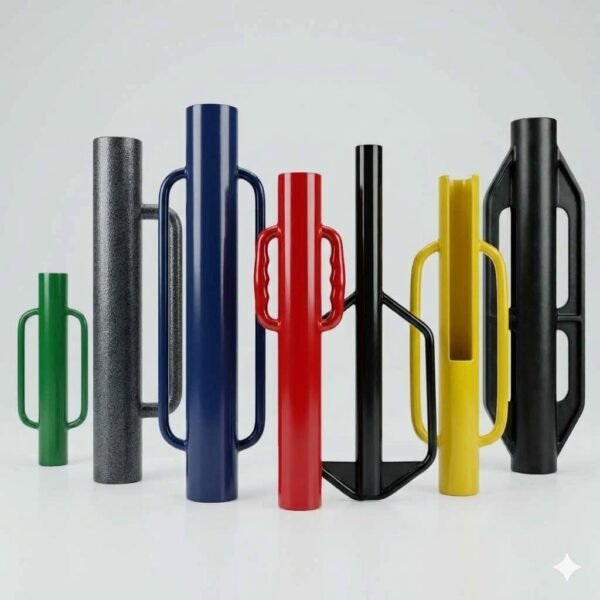

A: Yes. Thanks to the reinforced V-and-U structural design profile and heavy-duty, hydraulically swaged anchor plate, these posts can be driven into harsh high-clay or compacted rocky substrates. For automated structural setups, standard mechanical manual post-drivers or pneumatic slide hammers can be deployed directly over the top cap flange without structural deformations.
Q4: Do you support customized hole diameters, non-standard lengths, and custom branding labels?
A: Absolutely. As an industry-tier OEM/ODM factory supplier, we offer multi-die automated stamping configurations. We can customize hole positioning, add specific branding stickers, imprint logo stamps on the steel body, and roll-form custom lengths up to 12 feet to fit your precise localized procurement specifications or governmental tenders.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Steel Fence U-Post procurement costs? Partner with us to enjoy premium heavy-duty steel, superior rust-resistant finish, and robust anchor plate stability quality compliant with international residential perimeter fencing, agricultural garden protection, and light-duty boundary standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP) or bulk wholesale shipments.
- 100% Free Samples: Quality, steel gauge thickness/tensile strength accuracy, protective finish durability, anchor plate welding reliability, and ground impact-resistance testing samples available for your local rural hardware retail, farm supply distribution, or contractor verification.
- Guaranteed Fast Lead Time: A
dvanced automated heavy-duty steel roll-forming, high-precision robotized anchor plate welding, and premium green powder coating or hot-dip galvanizing lines ensure prompt manufacturing and on-time shipment of your Steel Fence U-Post.
- Customized Packaging: Marine-grade rust-proof dual packing (reinforced heavy-duty bundles or master cartons + PE shrink film outside) with heavy-duty pallets to prevent transit corner damage, finish scratching, and post bending during bulk ocean transit.
