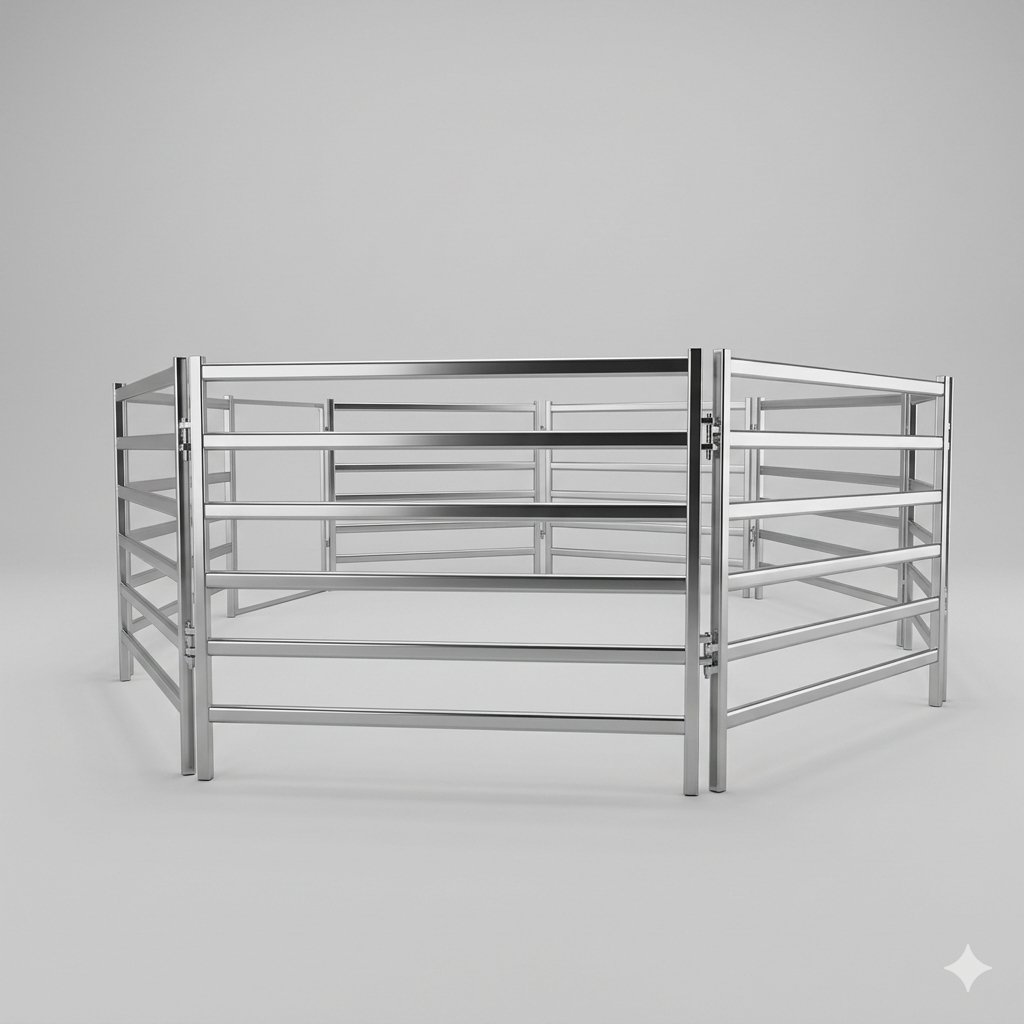

Industrial-Grade Galvanized Livestock Yard Panels & Cattle Handling Systems
Our premium Livestock Yard Panels are highly optimized steel barrier systems engineered explicitly for high-pressure livestock environments. When handling heavy cattle, unpredictable bulls, or skittish sheep, standard farm fences fail under the sheer kinetic force of animal crowding. Our yard panels utilize premium hot-rolled structural steel tubing that delivers exceptional yield strength, ensuring the perimeter remains perfectly intact during intense sorting, drafting, and loading operations. These portable structures provide agricultural enterprises with a versatile, high-mobility asset that can be deployed anywhere on the ranch without requiring permanent concrete post anchors.
Engineered for Ultimate Ranch Safety & Structural Longevity
- High-Adhesion Zinc Layer: Submerged completely in molten zinc after fabrication to guarantee a heavy, comprehensive shield against caustic animal waste and humid air.
- Livestock-Safe Smooth Welds: All structural joints undergo fully fused 360-degree carbon dioxide shielded welding, manually dressed to prevent skin tears or horn trapping.
- Dynamic Dual-Drop Pin Connectors: Heavy-gauge solid steel pins drop seamlessly into double welded U-lugs, creating an unbreakable link while maintaining flexibility on sloped terrains.
- Anti-Sinking Stability Bars: Designed with specialized loop bases or broad ground flanges to resist heavy vertical down-forces in muddy, high-traffic sorting pens.
Advanced Anti-Bruise Oval Rail Profile Technology
The core structural innovation of our premium livestock panels lies within the geometry of our horizontal rails. Standard square or round pipes present a narrow contact point when livestock slam or lean against the perimeter. Our premium Anti-Bruise Oval Rails (typically 30x60mm or 40x80mm) feature a broad, gently curved flat surface facing the interior of the yard. This humanely distributes any crowding impact forces across a wide surface area on the animal’s flank, significantly reducing the risk of internal bruising and hide scarring. For meat processors and commercial cattle exporters, this structural design directly translates to higher meat grading and maximized carcass value at market.
Technical Specifications
| Specification Parameter | Heavy-Duty Cattle Grade | Standard Sheep / Goat Grade |
|---|---|---|
| Standard Panel Sizes | 2.1m L x 1.8m H / 2.4m L x 1.8m H | 2.1m L x 1.05m H / 3.0m L x 1.05m H |
| Outer Frame Profiles | 40x40mm RHS / 50x50mm RHS (Square) | 32mm OD Round Pipe / 40x40mm RHS |
| Horizontal Rail Quantity | 6 Rails (Optimized for large cattle) | 7 Rails (Tight bottom gaps for lambs) |
| Rail Dimensions & Shape | 30x60mm / 40x80mm Anti-Bruise Oval | 25x50mm Oval / 32mm OD Round Tube |
| Steel Wall Thickness | 1.6 mm / 2.0 mm / 2.5 mm | 1.2 mm / 1.5 mm / 1.6 mm |
| Galvanized Zinc Weight | Hot-Dipped Post-Weld (300g-450g/m²) | Pre-Galvanized Core (80g-120g/m²) |
B2B Bulk Export, Interlocking Stacking & Global Port Delivery
As a Tier-A structural steel exporter, we offer highly engineered logistics coordination for international farm supply distributors, government livestock initiatives, and rural commercial hardware importers. Our yard panels are geometrically optimized to interlock flatly against one another during grouping. We assemble them into dense vertical or horizontal bundles utilizing heavy-duty structural steel transport skids. To protect the zinc layers against saltwater salt-fog corrosion, every stack is wrapped in premium multi-layer stretch film and reinforced with durable edge protectors. This compact layout maximizes the volumetric density inside 40ft High Cube ocean containers, keeping your ocean freight-per-panel costs at an absolute minimum.
Frequently Asked Questions (FAQ)
Q1: Why do commercial cattle feedlots prefer Oval Rail yard panels over traditional Round Pipe panels?
A: Oval rails provide two massive operational advantages. First, they possess an immensely higher horizontal section modulus, giving them double the resistance to bending when a heavy animal crowds sideways against the panel. Second, the wide flat profile eliminates narrow pressure edges, shielding cattle from heavy bruising and reducing veterinary overhead while enhancing general carcass yield values.
Q2: What is the benefit of your J-Leg style foot compared to straight vertical panel legs?
A: Straight vertical steel tubes can easily burrow down into soft arena sand or rain-soaked mud under the heavy shifting weight of localized crowds. Our J-Leg features a continuously rolled, curved bottom loop. This design serves as a broad mechanical skid that floats smoothly on loose dirt or mud, making sliding panels effortless during yard reconfiguration and completely preventing panel sinking.
Q3: How do your sheep panels differ structurally from your standard heavy-duty cattle yard panels?
A: Sheep and goat yard panels are engineered with a significantly lower total height (typically 1.05m vs 1.8m for cattle) to match their physical size. Crucially, they utilize a denser 7-rail layout with progressively narrower gaps near the bottom. This prevents small lambs or goats from slipping through or accidentally sticking their heads out and becoming fatally trapped.
Q4: Can you manufacture custom yard panels with integrated walk-through gates or race bows?
A: Yes, we specialize in comprehensive B2B OEM manufacturing. We can integrate slam-latches, drop-gates, sheeted panel configurations for forcing yards, and high-clearance overhead race bows directly into your bulk yard order. Send our commercial engineering department your ranch technical drawings, and we will formulate precision CAD files matching your exact layouts.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Livestock Yard Panels procurement costs? Partner with us to enjoy premium heavy-duty, bruise-free, and high-impact resistance quality compliant with international livestock handling, cattle yard, and farm holding perimeter standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to optimize your commercial farming procurement costs.
- 100% Free Samples: Quality, tube wall thickness (oval/round/square), weld shear strength, interlocking pin precision, and hot-dipped galvanizing thickness testing samples available for your local livestock handling system, cattle/sheep yard design, or wholesale distribution verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty steel pipe cutting, robotized multi-point welding, and premium anti-corrosion galvanizing lines ensure prompt manufacturing and on-time shipment of your Livestock Yard Panels.
- Customized Packaging: Marine-grade rust-proof dual packing with heavy-duty reinforced steel pallets and heavy-duty separation strapping to prevent transit friction, panel distortion, and bracket deformation during ocean shipping and forklift unloading.
