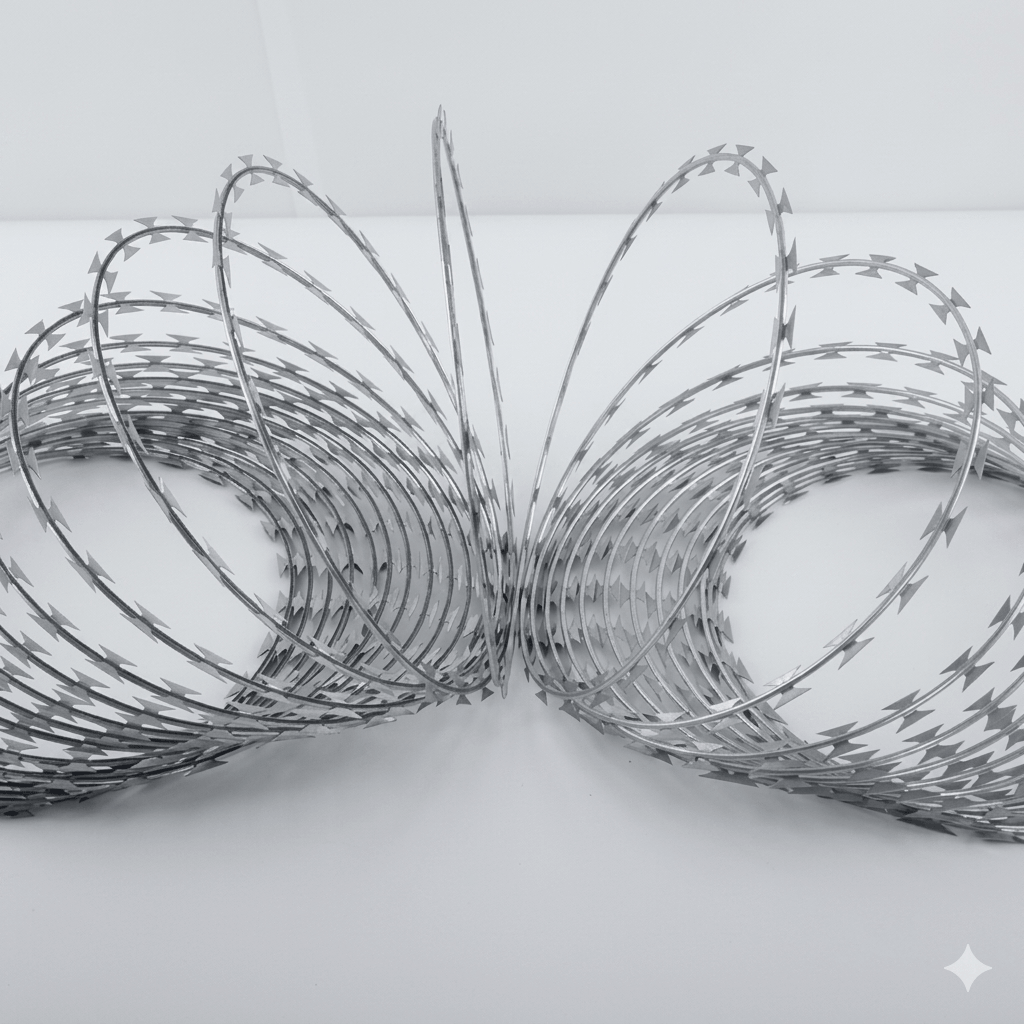

Premium Single Coil Razor Barbed Wire for Cost-Efficient Perimeter Defense
Our heavy-duty Single Coil Razor Barbed Wire represents the industry benchmark for high-efficiency, budget-conscious perimetric barrier engineering. By forming a continuous, unclipped single-spiral loop network, this system expands naturally to provide maximum linear coverage per roll. Manufactured under strict ISO 9001 quality compliance, our single concertina razor wire offers an immediate, aggressive physical and psychological warning track on top of walls, chain links, or welded mesh panels.
Key Engineering Advantages of Single Helical Razor Coils
- Maximised Cost-Per-Meter Efficiency: The elimination of interlocking clips allows each single roll to stretch further, drastically cutting down total project component expenses.
- Aggressive Stamped Barb Deterrent: Uniformly cold-clenched steel blades (available in BTO-22 or CBT-65 profiles) guarantee continuous sharp hooks that trap clothing and deter climbing attempts.
- High-Tensile Mechanical Rigidity: Utilises a 2.5mm heavy-gauge spring carbon steel interior core that maintains its circular shape and resists bending under external loading.
- Long-Life Metal Finishes: Hot-dipped galvanized layers up to 275g/m² or pure grade SS304/SS316 stainless steel ensure reliable defense against seasonal downpours and humid coastal environments.
Technical Specifications & Coil Variations
| Coil Size Model | Coil Outer Diameter | No. of Loops / Roll | Standard Covered Length | Recommended Blade Type |
|---|---|---|---|---|
| SC-450 (Eco Area) | 450 mm (18″) | 56 Loops | 10 – 12 Meters | BTO-10 / BTO-22 / BTO-28 / CBT-65 |
| SC-500 (Standard) | 500 mm (20″) | 56 Loops | 11 – 13 Meters | BTO-10 / BTO-22 / BTO-28 / CBT-65 |
| SC-730 (Heavy Industrial) | 730 mm (28″) | 56 Loops | 13 – 15 Meters | BTO-10 / BTO-22 / BTO-28 / CBT-65 |
| SC-900 (High Infrastructure) | 900 mm (36″) | 56 Loops | 14 – 16 Meters | BTO-10 / BTO-22 / BTO-28 / CBT-65 |
Advanced Stamping Lines & Material Quality Grades
Our manufacturing complex utilizes continuous high-speed automated clamping lines that seamlessly roll the razor blade ribbons entirely around the core spring wire. This specialized process ensures that no blade shifts position or slides under seasonal wind storms or physical stretching. Wholesalers can specify three distinct metallurgical grades:
- Commercial Galvanized Finish: Features an economical 60-80g/m² zinc layer, which provides durable and effective corrosion resistance for suburban and inland environments.
- Heavy-Duty High-Zinc Finish: Offers an exceptional 275g/m² zinc barrier, making it ideal for government border infrastructure and harsh desert environments.
- Premium Stainless Steel Finish (SS304/SS316): Complete immunity to saltwater spray, high humidity, and industrial chemical fumes, providing reliable decades-long service life.
High-Density Packing & Container Freight Logistics Optimization
Because single helical razor wire loops are free of rigid cross-clips, they possess an exceptional spatial nesting capability during export packaging. Our dispatch division leverages heavy-duty hydraulic compressors to press the individual spiral segments into ultra-compact, flat discs. This process maximizes container loading capacity and helps control ocean freight costs. Bundles are wrapped in thick, waterproof polypropylene woven covers and secured to pallets with high-tensile steel bands. This heavy-duty packaging allows for safe forklift handling at international ports and keeps customs inspection teams protected.
Frequently Asked Questions (FAQ)
Q1: What is the main structural difference between Single Coil Razor Wire and Concertina Crossed Wire?
A: The core difference is the presence of steel tie clips. Single coil razor wire has no clips connecting adjacent wire loops, allowing it to stretch out like a regular uncoiled spring with uniform circle apertures. Concertina crossed wire uses clips to link overlapping loop sections together, expanding into a heavy three-dimensional honeycomb diamond cylinder network. The single coil type is lighter, covers more distance per roll, and is significantly more economical.
Q2: What are the installation steps for single coil helical razor ribbons on an existing chain link wall?
A: Installation is fast and straightforward. Post extensions (Y-posts or V-brackets) are anchored onto the existing wall or fence posts at regular intervals (typically 2.5m to 3m apart). Tension wires are strung between the brackets, and the single coil razor wire strands are unrolled along the line and fastened securely onto the tension wires using professional tie wires or heavy-duty hog rings.
Q3: Can I request customization on loop count, diameter, and packaging markings for B2B orders?
A: Yes, absolutely. As a dedicated OEM supplier, we handle extensive custom engineering requests. We can precisely adjust the total loops per roll (commonly 56 loops) to modify the extended length, adjust the wire sheet thickness, or design customized heavy-duty shipping tags tailored to your company’s distribution standards.
Q4: What is the factory minimum order quantity (MOQ) and production schedule?
A: Our standard factory MOQ for international shipments is 5 metric tons to ensure cost efficiency on ocean freight. For standard specifications like BTO-22 galvanized steel wire, our daily production capacity exceeds 20 tons, allowing us to complete a standard 20ft container order within 10 to 14 working days from deposit confirmation.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your industrial Single Coil Razor Barbed Wire procurement costs? Partner with us to enjoy premium quality precision-engineered high-security barriers and seamless global supply chain service that maximizes your operational reliability.
- Flexible Tiered Pricing: Massive volume-based discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP) to significantly boost your local perimeter security distribution or infrastructure tender re-selling margins.
- 100% Free Samples: Physical single coil razor wire testing samples are available immediately for your local laboratory wire gauge verification, zinc coating density thickness audits, or tensile strength testing.
- Guaranteed Fast Lead Time: Our advanced automated stamping and precision helical nesting lines, backed by a stable raw high-tensile spring steel wire rod inventory, guarantee prompt manufacturing and on-time shipping schedules.
- Customized Packaging: Heavy-duty marine-grade dual packing (waterproof anti-moisture woven geotextile fabric inside + rugged compressed high-density structural wood pallet casing or specialized metal band reinforcement outside) to thoroughly protect against salty sea air, loop distortion, and barb abrasion during long-distance transit.
