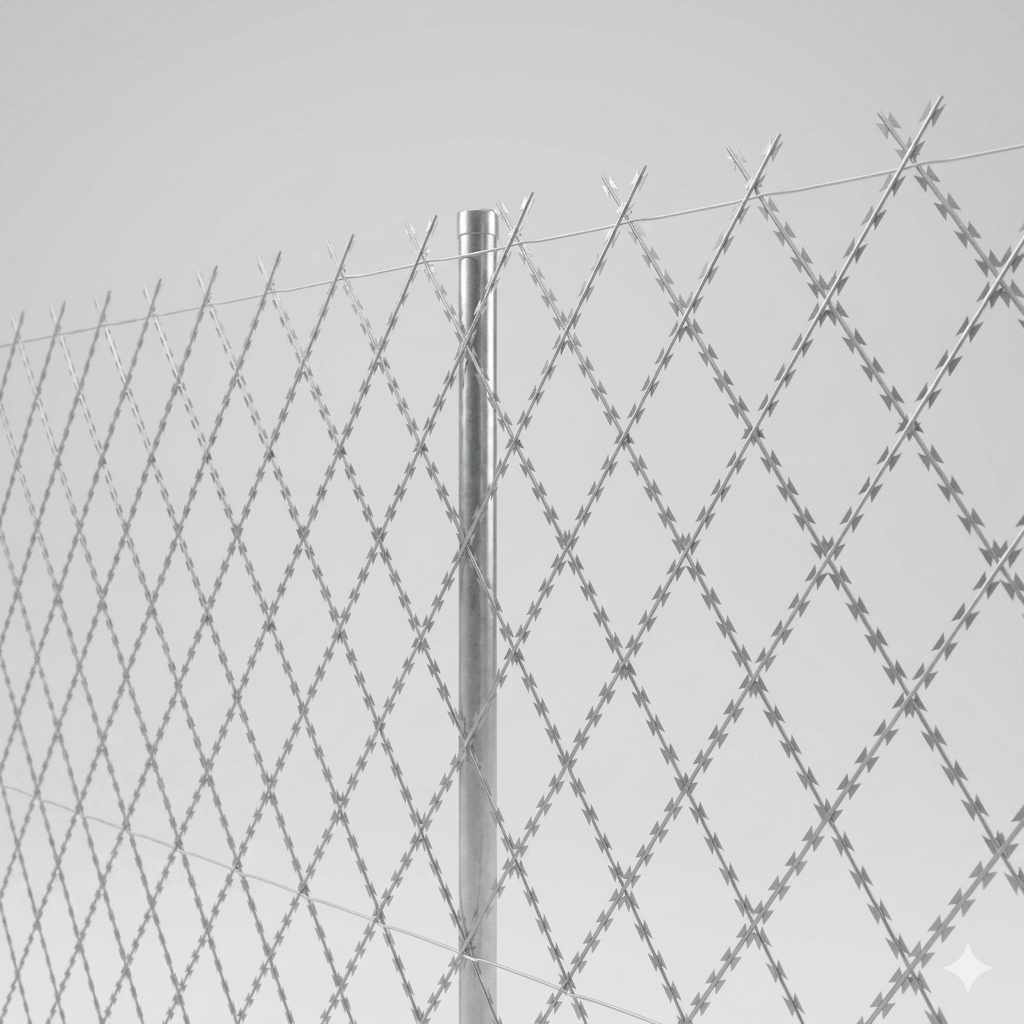

Welded Razor Mesh: High-Rigidity Diamond Panel Fencing for Extreme Security
When tactical infrastructure requires a continuous, self-supporting physical defensive barrier rather than just a fence topping, Welded Razor Mesh provides the ultimate structural security. This premium high-security fencing is engineered by systematically straightening premium razor wire rows and executing automated precision welding at every geometrical intersecting junction. The resulting mesh fabric forms a dense, flat, two-dimensional diamond or square grid matrix. Combining the menacing, razor-sharp slicing profiles of commercial blades with the unyielding structural rigidity of classic welded wire panels, Welded Razor Mesh delivers an uncompromised containment zone that blocks climbing, climbing assistance, and standard tool breaching completely.
Tactical Advantages of Our High-Rigidity Welded Razor Mesh
- Absolute Anti-Climb Architecture: The dense diamond mesh openings (e.g., 75mm × 150mm) are geometrically too narrow to accommodate hand-holds or toe-holds, neutralizing scaling attempts entirely.
- High Structural Rigidity: Unlike loose coils, these heavy flat panels stay structurally taut and self-supporting, preventing intruders from utilizing down-force pressure to collapse the grid.
- Reinforced Anti-Cut Core Matrix: Utilizes 2.50mm spring steel inner core wire with a high tensile rating exceeding 1200 MPa, delivering supreme resistance against commercial bolt cutters.
- Seamless System Integration: Can be deployed as individual standalone fence panels, combined as a backing layer on chain link structures, or installed directly inside masonry facility walls.
Technical Specifications & Standard Configurations
| Specification Property | Standard Metric Value | Engineering Custom Tolerances |
|---|---|---|
| Structural Format | Rigid Flat Panel / Continuous Welded Web | Precision Flat Mesh Standard |
| Mesh Pattern Openings | Diamond (75mm×150mm / 100mm×200mm / 150mm×300mm) | Custom Grid Sizes Allowed |
| Available Blade Models | BTO-10, BTO-22 (Standard Choice), BTO-30 | Grade Specific Matching |
| Core Wire Diameter | 2.50 mm (High Tensile Spring Carbon Steel) | ± 0.05 mm Precision |
| Blade Plate Thickness | 0.50 mm | ± 0.05 mm |
| Standard Panel Heights | 1.2m, 1.5m, 1.8m, 2.0m, 2.4m | Tailored to Fence Pillar Blueprints |
| Standard Panel Lengths | 2.0m, 2.5m, 3.0m | Continuous Frame Layout Matching |
| Anti-Rust Surface Finish | Hot-Dipped Galvanized / SS304 / SS316 / Polymer Powder Coated | Certified Test Compliant |
Advanced Metallurgical Grades & Automated Welding Engineering
To successfully integrate with global high-hazard perimeter defense tenders, our production facility executes distinct architectural grading for Welded Razor Mesh panels, matching geographical environmental climate stresses with optimal chemical treatment streams:
- Hot-Dipped Galvanized Steel (Commercial & Severe Atmospheric Weight): Fabricated from high-purity zinc pools. Heavy galvanized zinc skins exceeding 240g/m² provide a comprehensive barrier layer, protecting the core wire joints from humidity-driven localized scaling.
- High-Alloy Stainless Steel (SS304 & SS316 Grade Allocations): Formulated with premium chromium-nickel alloy matrices. Completely eliminates atmospheric oxidation or pitting, providing a multi-decade maintenance-free operational life along coastal defense frontiers or toxic industrial containment zones.
- UV-Stabilized PVC Powder Layering: Adds a double defense polymer envelope over the galvanized structural wire framework. Provides custom aesthetic colors (typically industrial green or black) while adding extra insulation against severe acidic rain conditions.
The structural integrity of our bulk welded panels depends on Precision Resistance Welding Systems. Using advanced multi-point automated mesh welders, our manufacturing cells execute uniform energy pulses at every single grid intersection. This specialized process forms a clean, flush cross-weld matrix with an exceptionally high tensile shear-break threshold. The resulting flat panels maintain high flatness and rigid structural limits, ensuring the wire fabric cannot be unraveled or deformed even if an intruder compromises an isolated cell row.
B2B Logistics Engineering & High-Capacity Panel Packing
Efficient shipping logistics and deep container volume optimization are critical success elements for global infrastructure material importers. The flat, stable 2D profile of welded razor mesh panel frames delivers premium material handling metrics directly to your transport pipeline:
-
- Flat Stackable Volume Optimization: Eliminating hollow structural loop spaces allows individual mesh sheets to layer directly on top of one another, minimizing volumetric waste inside ocean cargo containers.
- Palletized Shield Safeguards: Panel stacks are fully wrapped inside thick moisture-proof kraft sheets and stabilized by heavy stretch plastic film, isolating the sharp metal teeth completely to prevent damage during long-distance transits.
- Forklift-Ready Secure Packing: Finished panel stacks are bound onto reinforced iron framing or non-fumigation wood pallets using heavy steel compression bands, ensuring smooth, highly secure crane and forklift operations at international port terminals.
Frequently Asked Questions (FAQ)
Q1: What are the main defensive advantages of Welded Razor Mesh panels over standard helical Concertina wire coils?
A: While concertina coils excel as rolling top barriers, they can be compressed using high down-force tools if unsupported. Welded Razor Mesh provides a completely flat, high-rigidity self-supporting panel. The automated weld points ensure it cannot be compressed, and the narrow diamond mesh pattern leaves zero footholds, making it highly effective against scaling and climbing.
Q2: Does the intense heat from the welding process damage the anti-rust zinc layer at the intersection points?
A: Our manufacturing facility utilizes micro-computerized medium-frequency resistance welding systems. This advanced process complete point fusion in microseconds, concentrating energy strictly within the inner steel core wire. This short thermal cycle prevents widespread zinc burning and protects the anti-corrosion layer across the panel framework.
Q3: Can your factory provide official Mill Test Certificates (MTC) and quality reports for government public tenders?
A: Yes, we provide full transparency for our global B2B procurement partners. Every production run of Welded Razor Mesh panels includes official Mill Test Certificates (MTC). This paperwork verifies the high-tensile core wire strength, steel alloy composition, and precise zinc coating weights required to clear strict state inspections.
Q4: What data must be submitted by a B2B importer to receive an official bulk wholesale quote?
A: To provide an accurate, high-utility quote, please specify your chosen material grade (galvanized or stainless steel), the external coil diameter, the weight per individual coil or loop count, the clip configuration, and your total required container volume.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your industrial Welded Razor Mesh procurement costs? Partner with our ISO-certified facility to secure premium-grade, high-rigidity anti-climb razor fence panels and a seamless global supply chain service designed to maximize your perimeter protection and market competitiveness.
- Flexible Tiered Pricing: We offer massive volume-based bulk discounts alongside highly competitive FOB, CIF, and CFR quotes tailored for full container loads (20GP). This rigid cost-control approach is structurally designed to significantly boost your local perimeter fencing distribution margins or commercial re-selling profitability.
- 100% Free Samples: Pre-qualification physical Welded Razor Mesh testing samples can be dispatched immediately to your facility. This allows your project engineering team to complete local laboratory mesh aperture verification, zinc coating density and thickness audits, or rigorous high-tensile joint weld strength testing before placing a commercial tender order.
- Guaranteed Fast Lead Time: Our infrastructure features advanced automated razor blade punching presses and heavy-duty automatic mesh welding production lines. Backed by a permanent, massive raw material galvanized steel sheet and high-carbon steel wire rod inventory, we guarantee prompt manufacturing turnaround and strict adherence to your global deployment schedules.
- Customized Packaging: To thoroughly eliminate shipping vulnerabilities and handling hazards associated with sharp, rigid fence panels, we utilize specialized dual-layer protective packing. The interior of the flat-stacked mesh sheets is wrapped with waterproof, anti-moisture kraft paper or VCI protective film, while the exterior is securely bound in rugged, anti-puncture woven bags and reinforced with high-density structural wood pallets or heavy steel strapping. This complete armor system guarantees zero rust from salty sea air, zero panel distortion, and maximum safety during long-distance maritime transit and port unloading.
