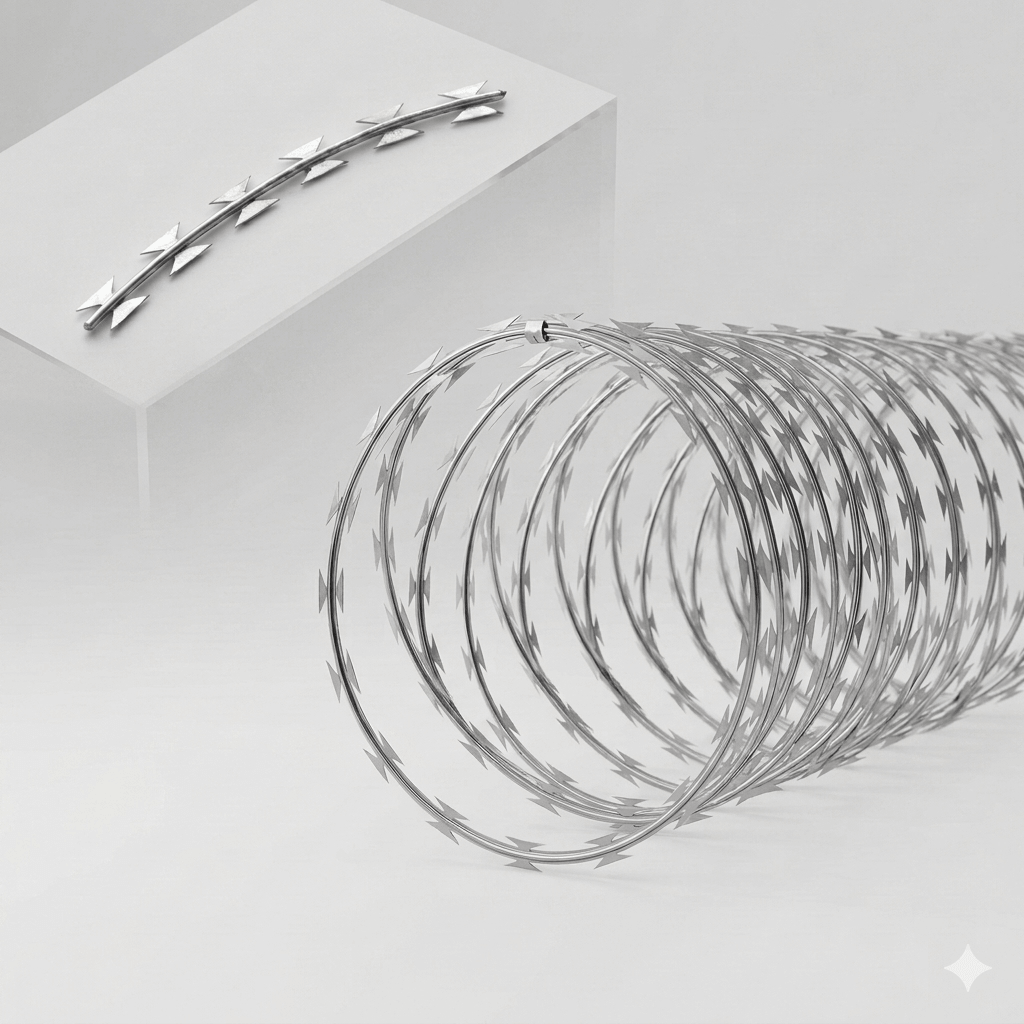

BTO-22 Razor Wire: The Ultimate High-Security Perimeter Deterrent
When it comes to securing high-risk perimeters, military installations, national borders, and critical infrastructure, BTO-22 Razor Wire stands out as the industry-standard choice. Also recognized as BTO-22 concertina wire, this specialized fencing material features medium-length blades arranged closely together, creating an impenetrable physical barrier that effectively prevents cutting, climbing, or trespassing. Engineered from premium raw materials, our razor wire products offer uncompromised security and structural stability under the most demanding environmental conditions.
Why Global B2B Buyers Prefer Our BTO-22 Razor Wire
- High Tensile Core Strength: Built with 2.50mm spring steel wire with a tensile strength exceeding 1200 MPa, ensuring the wire cannot be severed using standard hand tools.
- Aggressive Blade Design: The 22mm blade length provides a sharp, menacing profile that physically traps and deters intruders effortlessly.
- Anti-Rust Longevity: Zinc coating choices ranging up to 275 g/m² or stainless steel alloy upgrades provide exceptional performance in humid, coastal, or industrial environments.
- Seamless Architectural Integration: Easily installed on top of existing chain link fences, 3D welded wire mesh panels, or concrete boundary walls.
Technical Specifications & Standard Configurations
| Specification Property | Standard Metric Value | Engineering Tolerances |
|---|---|---|
| Blade Type Designation | BTO-22 (Blade Type Overlay) | Industry Standard |
| Blade Length | 22 mm | ± 1.00 mm |
| Blade Width | 15 mm | ± 1.00 mm |
| Blade Thickness | 0.50 mm | ± 0.05 mm |
| Core Wire Diameter | 2.50 mm | ± 0.05 mm |
| Blade Center Spacing | 34 mm | ± 1.00 mm |
| Coil Diameters Available | 450mm, 500mm, 600mm, 700mm, 900mm, 980mm | Custom Orders Accepted |
| Surface Finish Options | Hot-Dipped Galv. / Stainless Steel / PVC Coated | Grade Specific |
Material Selection & Structural Classifications
Depending on your project site requirements, we classify our manufacturing outputs into three premium material streams to balance budget and structural service life:
- Hot-Dipped Galvanized Steel (Commercial & Heavy Duty): Features a zinc coating ranging from 60g/m² up to 275g/m². This is the standard choice for general national infrastructure, commercial zoning, and agricultural boundaries.
- Stainless Steel Alloys (SS304 & SS316): Offers premium corrosion resistance against strong chemical components, high humidity, and marine salt spray. Essential for long-term investments in severe coastal regions.
- PVC Powder Coated: Adds an extra polymer layer over galvanized wire, providing localized color customization (typically forest green or black) while adding double-layered defense against moisture.
Architecturally, we supply BTO-22 in either Single Coil Style or Cross-Type Concertina Style. Single coil loops follow a spiral pattern without tie-clips, offering a lightweight profile. Concertina structures tie adjacent loops together using specialized heavy-duty iron clips. When expanded, this creates a formidable, interlocking three-dimensional tubular web that cannot be easily compressed or bypassed by intruders.
B2B Packaging & Global Logistics Efficiency
As an experienced exporter specializing in building materials, we understand that handling and freight costs directly impact your final project margins. Our factory enforces rigorous industrial packaging protocols for BTO-22 razor wire coils:
- Compact Compression Coils: Every single coil is compressed tightly to reduce volumetric waste, allowing for maximum container space utilization.
- Double-Layer Protection Wraps: Coils are inner-wrapped with waterproof bitumen paper and outer-enclosed in strong woven bags to prevent sharp blade exposure and rust contamination during oceanic transit.
- Reinforced Palletization: For bulk industrial handling, we offer robust pallet arrangements strapped with steel banding, enabling seamless forklift operations upon arrival at international destination ports.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between BTO-22 and CBT-65 razor wire profiles?
A: The primary distinction lies in the blade dimensions and spacing. BTO-22 has a blade length of 22mm, which offers a compact and dense barrier suited for comprehensive perimeter defenses. CBT-65 features a much larger 65mm blade length with broader spacing, providing a more aggressive hook profile. BTO-22 is typically favored for general high-security barriers due to its optimized structural stability and balanced cost efficiency.
Q2: How do I choose between 3 clips and 5 clips for a concertina BTO-22 coil?
A: Tie-clips determine the density of the expanded concertina tube. A coil configured with 3 clips per loop is cost-effective and expands wider, suitable for standard commercial boundaries. A configuration with 5 clips creates a highly rigid, much denser interlocking mesh structure that resists deformation, heavily recommended for military zones, prisons, and high-risk state borders.
Q3: Can your factory supply customized zinc coating weights for coastal infrastructure?
A: Yes, absolutely. For standard commercial environments, we provide 60-80g/m² zinc coatings. For coastal infrastructure or heavy industrial areas prone to acid rain, we specialize in supplying high-zinc hot-dipped galvanized options exceeding 200g/m² to 275g/m², or we can substitute with Stainless Steel 304/316 alloys based on your exact tender specifications.
Q4: What information should I provide to get an accurate bulk quotation?
A: To deliver an immediate and accurate quote, please specify your preferred raw material (galvanized or stainless), the outer coil diameter (e.g., 450mm or 500mm), the weight per coil or number of loops, the clip count configuration, and your total required volume (total tonnage or number of containers).
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your industrial BTO-22 Razor Wire procurement costs? Partner with our ISO-certified facility to secure premium-grade, high-security concertina wire products and a seamless global supply chain service designed to maximize your perimeter protection and market competitiveness.
- Flexible Tiered Pricing: We offer massive volume-based bulk discounts alongside highly competitive FOB, CIF, and CFR quotes tailored for full container loads (20GP). This rigid cost-control approach is structurally designed to significantly boost your local security fencing distribution margins or commercial re-selling profitability.
- 100% Free Samples: Pre-qualification physical BTO-22 Razor Wire testing samples can be dispatched immediately to your facility. This allows your project engineering team to complete local laboratory blade profile verification, zinc coating density and thickness audits, or rigorous core wire tensile strength testing before placing a commercial tender order.
- Guaranteed Fast Lead Time: Our infrastructure features advanced automated razor blade punching presses and high-tensile wire clipping lines. Backed by a permanent, massive raw material galvanized steel sheet and high-carbon steel wire rod inventory, we guarantee prompt manufacturing turnaround and strict adherence to your global deployment schedules.
- Customized Packaging: To thoroughly eliminate shipping vulnerabilities and handling hazards, we utilize specialized dual-layer protective packing. The interior is wrapped with waterproof, anti-moisture kraft paper or VCI protective film, while the exterior is securely bound in rugged, anti-puncture woven bags and reinforced with high-density structural wood pallets or metal strips. This complete armor system guarantees zero rust from salty sea air, zero loop distortion, and maximum safety during long-distance maritime transit and port unloading.
