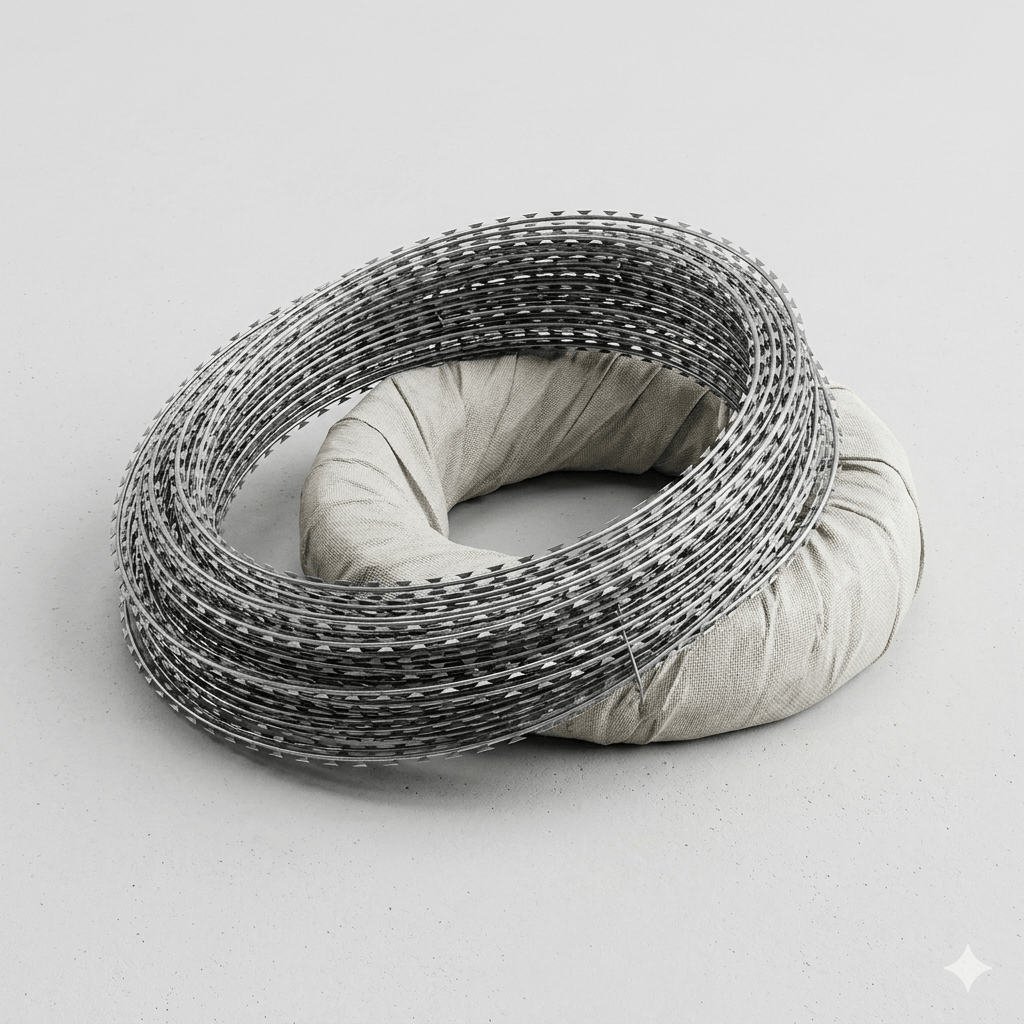

Premium BTO-12 Razor Wire – Industrial Galvanized Security Fencing
Our heavy-duty **BTO-12 Razor Wire** represents a highly specialized, cost-efficient breakthrough in modern perimeter security hardware. Featuring a 12mm short-medium blade profile spaced at precise 30mm pitches, this specific barbed tape model delivers a balanced, continuous cutting barrier without the excessive weight or cost of larger military-grade ribbons. Manufactured under strict ISO 9001 factory production guidelines, it serves as an excellent visual and physical deterrent atop chain link meshes, welded wire grid frameworks, or concrete wall structures.
Key Engineering Advantages of BTO-12 Short-Medium Razor Coils
- Strategic Cost-to-Density Ratio: The 12mm optimized barb profile reduces sheet metal consumption during automated stamping, leading to more competitive tier wholesale pricing for international contractors.
- High-Density Barb Alignment: A compact 30mm blade pitch ensures an intensive distribution of sharp steel hooks per linear meter, significantly maximizing cloth-snagging and climb-prevention capabilities.
- Uncompromising High-Tensile Core: Powered by a 2.5mm heavy-gauge spring steel interior core with a tensile strength rating over 1450 MPa, rendering standard manual cutters and wire tools completely ineffective.
- Long-Life Corrosion Resistance: Available with hot-dipped zinc coatings up to 275g/m² or marine-grade stainless alloys (SS304/SS316) to ensure decades of dependable outdoor protection against rust and environmental breakdown.
Technical Specifications & Verification Parameters
| Specification Property | BTO-12 Technical Standard | Tolerance Margin | Testing Compliance Method |
|---|---|---|---|
| Blade Length | 12.00 mm | ± 1.0 mm | Micrometer Measuring Check |
| Blade Width | 15.00 mm | ± 1.0 mm | Standard Template Verification |
| Blade Spacing (Pitch) | 30.00 mm | ± 1.0 mm | Continuous Caliper Checked |
| Core Wire Outer Diameter | 2.50 mm | ± 0.05 mm | High-Tensile Spring Wire Gauge |
| Blade Sheet Thickness | 0.50 mm | ± 0.05 mm | Galvanized/SS Sheet Strips |
| Available Coil Out Diameters | 450mm / 500mm / 730mm / 900mm | ± 5.0 mm | Standard Spiral Loop Expansion |
| Zinc Mass Tiers Available | 60g – 275g / m² | Minimum Limit Set | Hot-Dipped Plating Check |
Advanced Stamping Lines & Material Quality Tiers
Our production facilities utilize continuous, automated rotary press machinery to securely fold the stamped BTO-12 blade ribbon completely around the high-stiffness spring wire. This heavy-duty manufacturing method ensures that individual loops retain uniform spatial orientation and zero blade slippage during expansion. Wholesalers and project procurement managers can select from three main metallurgical classes:
- Standard Industrial Galvanized Sheet: Coated with an economical 60-80g/m² zinc barrier, providing durable protection for general commercial warehouses, storage yards, and dry climates.
- Heavy-Duty High-Zinc Galvanized Sheet: Up to 275g/m² heavy zinc density, engineered specifically for critical infrastructure projects, military zones, and long-term outdoor field deployment.
- Premium Stainless Steel Sheet (SS304/SS316): Yields ultimate chemical immunity to ocean salt spray, coastal moisture, and acidic chemical plant fumes, ensuring decades of performance.
High-Density Export Bundling & Safe Freight Logistics
Because BTO-12 razor wire coils are compact and highly uniform by design, they possess an exceptional spatial nesting capability during export packaging. Our dispatch division leverages heavy-duty hydraulic compressors to press the individual spiral segments into ultra-compact, flat discs. This process maximizes container loading capacity and helps control ocean freight costs. Bundles are wrapped in thick, waterproof polypropylene woven covers and secured to pallets with high-tensile steel bands. This heavy-duty packaging allows for safe forklift handling at international ports and keeps customs inspection teams protected.
Frequently Asked Questions (FAQ)
Q1: When should I choose the BTO-12 razor wire profile over the standard BTO-22?
A: BTO-12 is heavily favored in specific regional public tenders where the blueprint demands high barb density but strict budgetary controls. BTO-12 features a slightly shorter blade length (12mm) and a tighter pitch (30mm) compared to BTO-22 (22mm blade, 34mm pitch). This allows it to save structural steel weight during production while providing an exceptionally high concentration of sharp hooks per meter to effectively stop intruders.
Q2: What is the typical linear expansion length of a single BTO-12 concertina coil?
A: The expansion length depends on the coil outer diameter and the number of internal cross-clips (3 or 5 clips). A standard 56-loop coil with an outer diameter of 500mm can comfortably expand across 9 to 11 linear meters under a standard crossover cross-clipped configuration. Stretching the loops beyond recommended guidelines is not advised, as it increases loop gaps and reduces perimetric defense strength.
Q3: Is your factory capable of adjusting the zinc coating weight explicitly to pass local customs lab tests?
A: Yes, absolutely. We specialize in bulk OEM engineering project fulfillment. For municipal and governmental border projects, we provide certified heavy hot-dipped galvanized material guarantees ensuring up to 275g/m² zinc density. Complete factory chemical analysis and mill test certificates (MTC) are supplied with every cargo shipment to guarantee local lab compliance.
Q4: What is the estimated factory production lead time for a full container load of BTO-12?
A: Our advanced manufacturing complex maintains multiple high-capacity automated stamping lines running continuously. For standard galvanized steel configurations matching the BTO-12 profile, our daily factory capacity exceeds 20 metric tons. This allows us to complete precision fabrication, rigorous quality testing, and international export packing for a full 20ft container load within 10 to 14 business days.
Get Factory-Direct Wholesale Price & Free Samples
- Flexible Tiered Pricing: Massive volume-based discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP) to significantly boost your local perimeter security distribution or infrastructure tender re-selling margins.
- 100% Free Samples: Physical BTO-12 razor wire testing samples are available immediately for your local laboratory wire gauge verification, zinc coating density thickness audits, or tensile strength testing.
- Guaranteed Fast Lead Time: Our advanced automated stamping and precision helical nesting lines, backed by a stable raw high-tensile spring steel wire rod inventory, guarantee prompt manufacturing and on-time shipping schedules.
- Customized Packaging: Heavy-duty marine-grade dual packing (waterproof anti-moisture woven geotextile fabric inside + rugged compressed high-density structural wood pallet casing or specialized metal band reinforcement outside) to thoroughly protect against salty sea air, loop distortion, and barb abrasion during long-distance transit.
