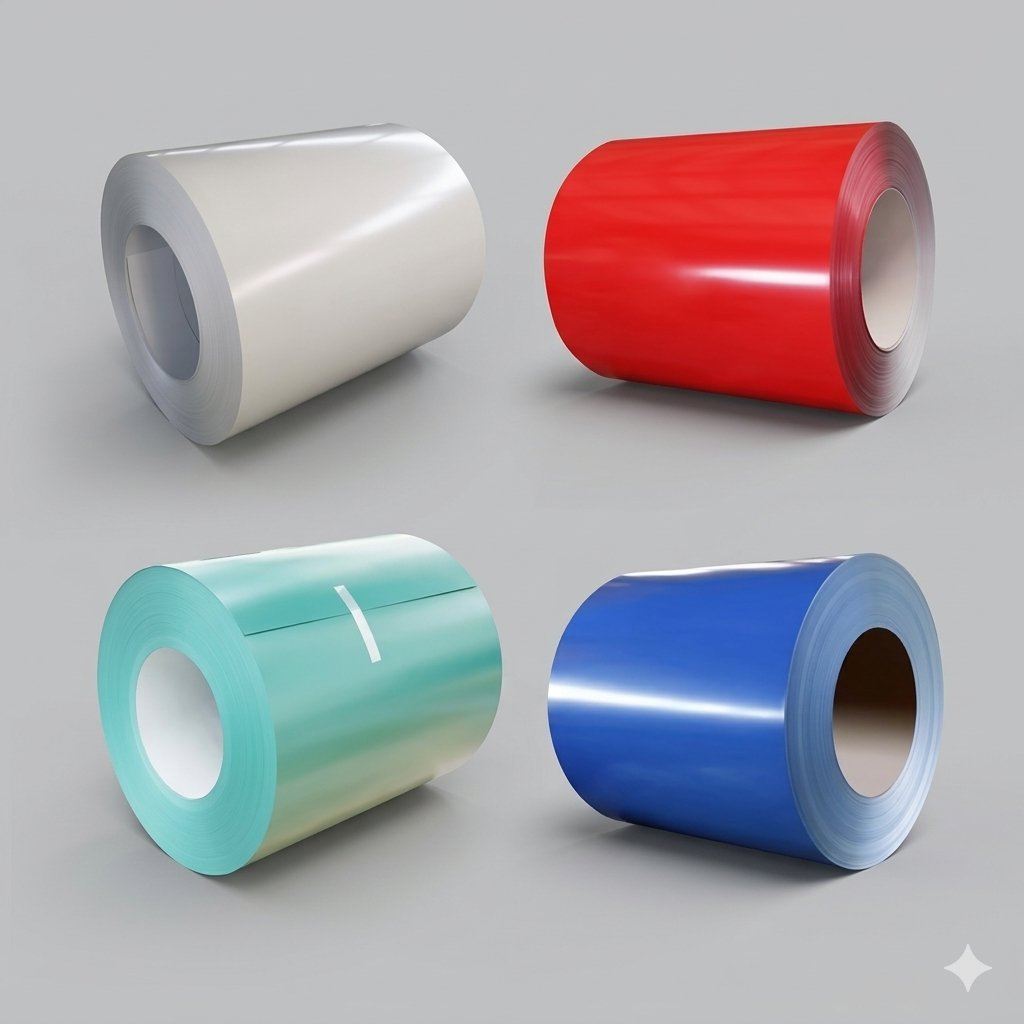

Industrial Prepainted Galvalume Steel Coils & Color Coated PPGL Strips
Our premium-grade PPGL coil product matrix represents the absolute mechanical and aesthetic benchmark for continuous architectural roll forming, industrial roof deck pressing, high-insulation sandwich panel injection, and heavy infrastructure profiling. Configured precisely to comply with strict international B2B technical plant specifications and architectural bidding codes, these color-coated aluzinc metal strips serve as the primary raw material base for high-speed continuous manufacturing lines. By combining high-purity 55% aluminum-zinc chemical substrates with advanced computerized curing technologies, our PPGL coils ensure exceptional film elasticity, uniform color density distribution, and absolute protection against chalking or fading over decades of intense outdoor sun exposure.
As an authoritative global manufacturer and direct exporter of structural metal products, our processing plant coordinates automated multi-roller slitting machines, high-accuracy chemical coating lines, and integrated thermal annealing chambers. This advanced configuration guarantees precise coil concentricity, strict paint thickness mapping matching international gloss requirements, and smooth sheared borders that safeguard automated profiling tools from premature wear down the line. Whether your enterprise handles volume wholesale warehousing distribution across global infrastructural logistics hubs, or procures directly for massive regional industrial shed construction frameworks, our prepainted lines provide uncompromised mechanical safety boundaries, certified T-bend flexibility, and a highly competitive cost-to-volume structure.
Core Engineering Strengths of Our PPGL Color Coated Coils
1. Premium 55% Aluzinc Core Substrate for 4X Corrosion Protection Lifespan
Standard galvanized substrates can fail prematurely under industrial acid rain or marine air track exposures. Our PPGL products utilize an advanced 55% Aluminum, 43.4% Zinc, and 1.6% Silicon alloy coating core. The microscopic aluminum matrix provides an impenetrable barrier against environmental oxidations, while the zinc element delivers sacrificial cathodic shielding, multiplying the base rust-free lifecycle up to four times.
2. Continuous 2C2B Process for Maximum Liquid Paint Film Adhesion
Standard spray-painted steel sheets frequently suffer from localized coating delamination when subjected to severe stamping forces. Our production lines utilize a continuous double-coat and double-bake (2C2B) process, molecularly bonding the conversion layer, primer paint, and top resin film onto the aluzinc interface. This creates an elastic skin that handles intricate bending profiles without bubbling or cracking.
3. Extreme Weathering Formulations (PVDF & HDP) Against Intense UV Fading
In tropical or high-radiation equatorial environments, low-tier coatings suffer rapid chalking, discoloration, and polymer film brittleness. We incorporate certified chemical resin packages like Polyvinylidene Fluoride (PVDF) and High Durability Polyester (HDP). These premium systems provide an uncompromised barrier against chemical acid rains, intense solar UV radiation, and high humidity.
4. High-Yield Strength Capabilities (G550 Grading) for Heavy Structural Decks
Large-span metal roof deckings require extreme physical rigidity to manage high localized wind shear loads and snow accumulations without sagging. We provide structural-grade PPGL options utilizing continuous full-hard S350GD or G550 high-tensile core substrates. This allows contractors to minimize core thickness parameters while safely expanding architectural span widths.
Technical Specifications & Coil Ordering Configurations
We provide full customizable capabilities to support your target bidding frameworks and regional market demands. Review our standardized architectural specifications below:
| Technical Properties | Standard Commercial Roof Series | High-Tensile Structural PPGL Series |
|---|---|---|
| Substrate Material Grade | DX51D+AZ, SGCC Commercial Quality | S350GD+AZ, G550 Extra High-Tensile Structural |
| Thickness Span Range | 0.14 mm – 0.50 mm (Thin Roofing Ribbons) | 0.50 mm – 1.20 mm (Heavy Structural Wall Panel) |
| Slitting Width Capacity | 10 mm – 600 mm (Custom Slit Narrow Bands) | 600 mm – 1250 mm (Standard Wide Master Coils) |
| Aluzinc Coating Undercoat | AZ40 – AZ70 (40g/m² to 70g/m² Standard Prep) | AZ90 – AZ150 Heavy Industrial Aluzinc Cladding |
| Top Paint Film Thickness | 15 μm – 20 μm Regular Film Line | 25 μm – 35 μm Extra Thick Multi-Bake Film |
| Paint Resin Formulations | Regular Polyester (PE), SMP Coatings | High Durability Polyester (HDP), PVDF Fluorocarbon |
| Primer / Back Paint Film | 5 μm Primer / 5 μm – 7 μm Epoxy Backer | 7 μm Primer / 10 μm – 15 μm Functional Back Paint |
| Execution Codes | ASTM A755M, EN 10169, JIS G3322, ISO 9001 | Full Compliance with Global Construction Bids |
Primary Global Architectural & Structural Applications
Our structural prepainted galvalume coils operate as primary material feeding inputs specified by international civil contractors and industrial designers across massive global sectors:
- Profiled Metal Roofing & Siding Decks: Fed natively into continuous roll forming presses to generate corrugated roof sheets, trapezoidal wall cladding panels, and standing seam flashing boards for industrial warehouses.
- Thermal Insulated Sandwich Panels: Utilized across automated injection lines as the decorative outer skin layers enclosing EPS, Polyurethane (PU), or Rockwool cores for modern cleanrooms and commercial cold storage warehouses.
- Coastal Infrastructure & Animal Barn Enclosures: Extensively specified for environments containing intensive animal ammonia fumes or beachfront salt air tracks where standard PPGI strips fail from premature pitting decay.
- HVAC & Outdoor Electrical Cabinets: Sourced in specialized multi-bake qualities to shape long-lasting commercial ventilation housings, power distribution kiosks, and solar racking accent panels.
B2B Bulk Supply Chain Quality Control & Ocean Freight Logistics
We tailor our shipping packaging protocols to securely transport high-tonnage concentrated steel payloads while insulating sensitive paint faces completely from marine moisture degradation and high-impact transit movement:
- Anti-Scratch Face Wrapping & Custom Palletization: Color-coated surfaces are highly vulnerable to rubbing friction scuffs. Every coil is interspersed with non-abrasive paper or protective poly films, fully enclosed within heavy steel sheet wrappers, and secured on extra-thick solid timber runners to prevent metal-on-metal sliding.
- Full Enclosure Moisture-Proof Anti-Rust Wrapping: Coils are completely sealed inside heavy water-repellent asphaltic kraft paper covers, wrapped with high-density polymer stretch films, and packed with active desiccant blocks to stop sea salt-vapor condensation inside container channels.
- High-Security Container Shoring and Wire Choking: Our specialized shipping crew blocks and ties down steel coil bundles inside 20ft dry containers using reinforced timber chocks, heavy turnbuckles, and industrial steel wire rope systems, fully eliminating shifting slippage and avoiding port customs delay penalties.
Frequently Asked Questions (FAQ)
Q1: What are the primary performance differences between PPGI and PPGL coils under extended outdoor service conditions?
A1: The fundamental difference lies in the chemical formulation of the underlying metallic substrate. PPGI utilizes a 100% pure zinc coating (Galvanized), which provides robust sacrificial protection but dissolves faster under acidic rain or salt-heavy atmospheres. PPGL utilizes a 55% Aluminum-Zinc alloy substrate (Galvalume). The integrated aluminum element locks into a microscopic passive oxide barrier net that stops atmospheric oxygen penetration completely, while the zinc components deliver localized cathodic shielding. Under equivalent environmental stresses, a PPGL coil provides up to 3 to 4 times the structural anti-rust lifetime of a standard PPGI sheet.
Q2: How does the sheared edge of a PPGL panel protect itself from rusting if the carbon steel core is exposed?
A2: This is managed by the galvanic configuration of the 55% Al-Zn alloy layer. When moisture covers the raw sheared edge line, the zinc component within the alloy layer dissolves slightly to form a protective zinc hydroxide scale over the exposed iron cross-section. Simultaneously, the aluminum provides an inert physical barrier layer that stops rust from creeping inward beneath the paint film. This self-healing effect is highly effective for standard sheet widths, though specifying an undercoat layer rating like AZ150 is recommended for intense coastal projects to increase the shielding lifespan.
Q3: Why is high-tensile G550 full-hard PPGL preferred for specific architectural wall cladding profiles?
A3: Grade G550 full-hard steel possesses a minimum yield strength of 550 MPa, delivering immense mechanical stiffness that allows architectural roofing and siding panels to maintain structural lines under intense cross-winds or snow loads. This high yield limit prevents indentation or bending buckles over wide structural purlin span settings. When processing G550 full-hard lines on a roll forming machine, operators should specify larger bending radii (such as 3T-4T limits) to accommodate the steel stiffness and ensure zero paint film fracture.
Q4: What is your typical factory minimum order quantity (MOQ) and production time frame for custom RAL color matching?
A4: For our standard library colors (such as RAL 9002 White Gray or RAL 5012 Light Blue in standard 0.4mm/0.5mm gauges), our baseline production factory MOQ is 5.0 to 10.0 metric tons per width allocation, with container packing finishing inside 10 to 12 days. For highly proprietary custom color matching matching arrays, textured matte films, or thick structural G550 base plates, the minimum order line spans a full 25-ton container allocation to balance paint line cleanouts and machine recalibrations, with lead times averaging 20 days.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your procurement costs? Partner with us for premium Prepainted Galvalume Steel Coils (PPGL) featuring heavy-duty, high-precision, and superior atmospheric corrosion-resistant quality. We ensure full compliance with international metal roofing profiles, severe-weather building envelopes, sandwich panel fabrication, and architectural wall cladding standards, backed by seamless global supply chain service.
- Flexible Tiered Pricing: Enjoy massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Test our quality firsthand. We offer premium PPGL Coil samples featuring 55% Al-Zn alloy coating substrates, precise paint film thicknesses (Top: 15–25µm / Back: 5–12µm), customized RAL colors/textures, exceptional heat reflectivity, and superior T-bend flexibility. Perfect for local roll-forming factories, building material distributors, or severe-environment roofing wholesale verification.
- Guaranteed Fast Lead Time: Our advanced high-capacity continuous color coating lines (two-coat & two-bake), precision automated CNC slitting machinery, heavy-duty tension levelers, and automated high-speed recoiling systems ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Prevent coil telescoping, edge denting, surface paint scratching, or moisture corrosion during long-distance ocean transit. We use heavy-duty eye-to-sky or eye-to-wall wooden pallets, waterproof kraft paper wraps, VCI anti-rust films, robust steel edge protectors, and high-tensile steel strapping bands.
