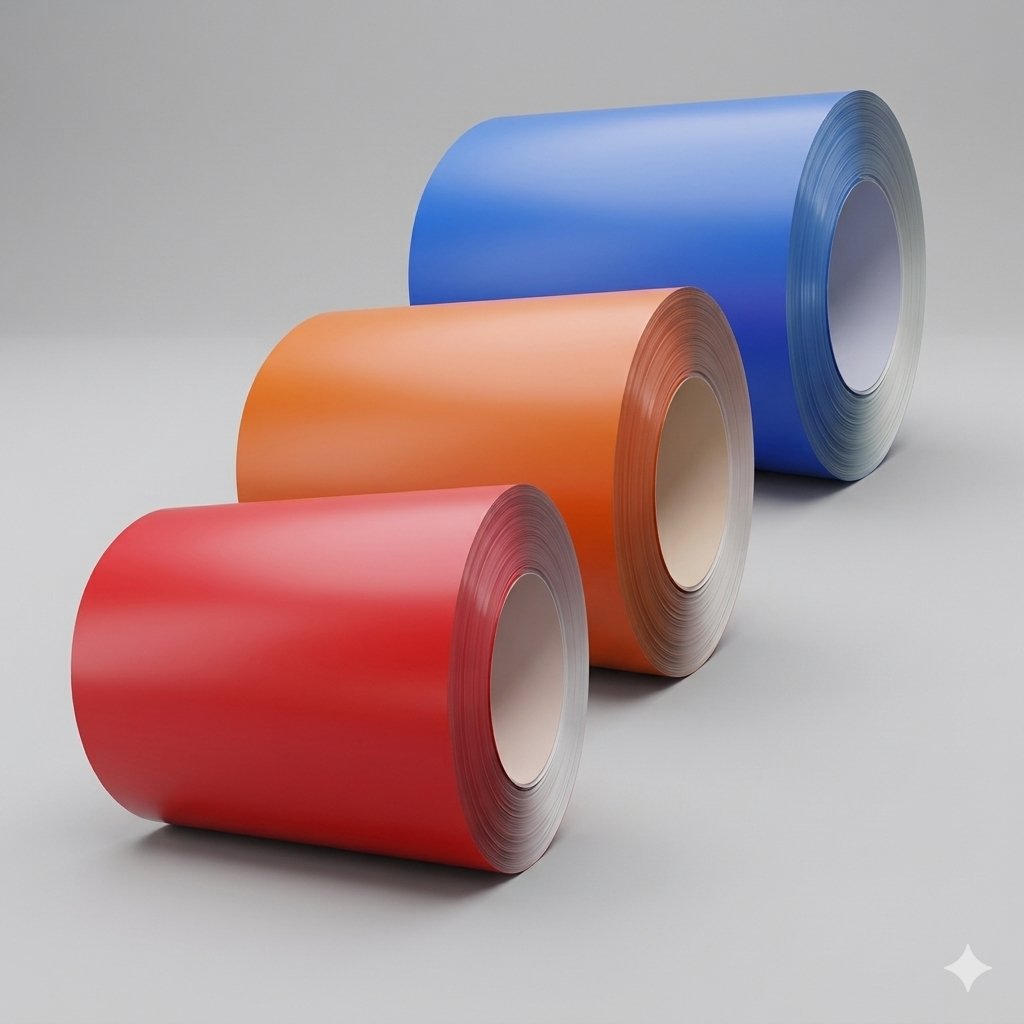

Industrial Prepainted Galvanized Steel Coils & Color Coated PPGI Strips
Our premium-grade Prepainted galvanized steel coil (PPGI) product matrix represents the absolute mechanical and aesthetic benchmark for continuous architectural roll forming, industrial roof deck pressing, high-insulation sandwich panel injection, and heavy home appliance profiling. Configured precisely to comply with strict international B2B technical plant specifications and architectural bidding codes, these color-coated metal strips serve as the primary raw material base for high-speed continuous manufacturing lines. By combining high-purity galvanized chemical substrates with advanced computerized curing technologies, our PPGI coils ensure exceptional film elasticity, uniform color density distribution, and absolute protection against chalking or fading over decades of intense outdoor sun exposure.
As an authoritative global manufacturer and direct exporter of structural metal products, our processing plant coordinates automated multi-roller slitting machines, high-accuracy chemical coating lines, and integrated thermal annealing chambers. This advanced configuration guarantees precise coil concentricity, strict paint thickness mapping matching international gloss requirements, and smooth sheared borders that safeguard automated profiling tools from premature wear down the line. Whether your enterprise handles volume wholesale warehousing distribution across global infrastructural logistics hubs, or procures directly for massive regional industrial shed construction frameworks, our prepainted lines provide uncompromised mechanical safety boundaries, certified T-bend flexibility, and a highly competitive cost-to-volume structure.
Core Engineering Strengths of Our PPGI Color Coated Coils
1. Continuous 2C2B Process for Maximum Liquid Paint Film Adhesion
Standard spray-painted steel sheets frequently suffer from localized coating delamination when subjected to severe stamping forces. Our production lines utilize a continuous double-coat and double-bake (2C2B) process, molecularly bonding the conversion layer, primer paint, and top resin film onto the zinc interface. This creates an elastic skin that handles intricate bending profiles without bubbling or cracking.
2. High-Precision Slitting down to 10mm Ribbons with Micro-Deburred Borders
Width inconsistencies and edge tracking errors can cause critical alignment jams inside roll forming machines. Our processing facility employs advanced high-tonnage computerized circular knife slitting lines, maintaining a razor-sharp width tolerance within ±0.05mm. The resulting micro-deburred edge lines eliminate paint-chipping residues and ensure smooth ribbon feeding.
3. Extreme Weathering Formulations (PVDF & HDP) Against Intense UV Fading
In tropical or high-radiation equatorial environments, low-tier coatings suffer rapid chalking, discoloration, and polymer film brittleness. We incorporate certified chemical resin packages like Polyvinylidene Fluoride (PVDF) and High Durability Polyester (HDP). These premium systems provide an uncompromised barrier against chemical acid rains, intense solar UV radiation, and high humidity.
4. Strict T-Bend Testing Compliance for Flawless Mechanical Ductility
Zinc undercoat cracking or face paint fractures during heavy 180-degree profiling is a common failure mode in sub-standard steels. Our coils are subjected to intensive inline testing to ensure strict compliance with 0T-2T bending limits. The metal stretches smoothly with a high yield-to-tensile elongation profile, ensuring flawless execution in continuous sandwich panel and ridge cap stamping lines.
Technical Specifications & Coil Ordering Configurations
We provide full customizable capabilities to support your target bidding frameworks and regional market demands. Review our standardized architectural specifications below:
| Technical Properties | Standard Architectural Roof Series | Premium Heavy-Duty Anti-Corrosion Series |
|---|---|---|
| Base Substrate Metallurgy | DX51D+Z, SGCC Commercial Quality | S280GD+Z, S350GD+Z, S550GD High-Yield Structural |
| Thickness Span Range | 0.14 mm – 0.50 mm (Thin Roofing Ribbons) | 0.50 mm – 1.20 mm (Heavy Structural Panel Sheet) |
| Slitting Width Capacity | 10 mm – 600 mm (Custom Slit Narrow Bands) | 600 mm – 1250 mm (Standard Wide Master Coils) |
| Zinc Coating Mass Undercoat | Z40 – Z90 (40g/m² to 90g/m² Standard Prep) | Z180 – Z275 Heavy Undercoat Cladding |
| Top Paint Film Thickness | 15 μm – 20 μm Regular Film Line | 25 μm – 35 μm Extra Thick Multi-Bake Film |
| Paint Type Chemistry | Regular Polyester (PE), SMP Coatings | High Durability Polyester (HDP), PVDF Fluorocarbon |
| Primer / Back Paint Film | 5 μm Primer / 5 μm – 7 μm Epoxy Backer | 7 μm Primer / 10 μm – 15 μm Functional Back Paint |
| Execution Codes | ASTM A755M, EN 10169, JIS G3312, ISO 9001 | Full Compliance with Global Bidding Standards |
Primary Global Architectural & Structural Applications
Our structural prepainted galvanized coils operate as primary material feeding inputs specified by international civil contractors and industrial designers across massive global sectors:
- Profiled Metal Roofing & Siding Decks: Fed natively into continuous roll forming presses to generate corrugated roof sheets, trapezoidal wall cladding panels, and standing seam flashing boards for industrial warehouses.
- Thermal Insulated Sandwich Panels: Utilized across automated injection lines as the decorative outer skin layers enclosing EPS, Polyurethane (PU), or Rockwool cores for modern cleanrooms and commercial cold storage warehouses.
- Roll-Up Shutter Doors & Secure Gates: Slit down into precise structural bands to form heavy-duty interlocking rolling shutter curtains, window slats, security gates, and perimeter fence enclosures.
- Home Appliance Back-Panels & Enclosures: Sourced in high-gloss or textured zero-defect qualities to shape computer housing skeletons, refrigerator side wraps, washing machine chassis bodies, and micro-switch terminals.
B2B Bulk Supply Chain Quality Control & Ocean Freight Logistics
We tailor our shipping packaging protocols to securely transport high-tonnage concentrated steel payloads while insulating sensitive paint faces completely from marine moisture degradation and high-impact transit movement:
-
- Anti-Scratch Face Wrapping & Custom Palletization: Color-coated surfaces are highly vulnerable to rubbing friction scuffs. Every coil is interspersed with non-abrasive paper or protective poly films, fully enclosed within heavy steel sheet wrappers, and secured on extra-thick solid timber runners to prevent metal-on-metal sliding.
- Full Enclosure Moisture-Proof Anti-Rust Wrapping: Coils are completely sealed inside heavy water-repellent asphaltic kraft paper covers, wrapped with high-density polymer stretch films, and packed with active desiccant blocks to stop sea salt-vapor condensation inside container channels.
- High-Security Container Shoring and Wire Choking: Our specialized shipping crew blocks and ties down steel coil bundles inside 20ft dry containers using reinforced timber chocks, heavy turnbuckles, and industrial steel wire rope systems, fully eliminating shifting slippage and avoiding port customs delay penalties.
Frequently Asked Questions (FAQ)
Q1: How do I select the right top paint formulation among PE, HDP, and PVDF for an infrastructure project?
A1: The choice depends directly on the localized environmental stresses of your project site. Regular Polyester (PE) is highly cost-effective and optimal for inland ordinary climate zones, residential fencing, or internal component stamping. High Durability Polyester (HDP) incorporates superior UV-resistant pigments and resin stability, offering an excellent economic balance for sunny, dry regions and industrial zones. Polyvinylidene Fluoride (PVDF) represents the top-tier fluorocarbon chemistry, providing up to 25–30 years of certified defense against heavy UV fading, marine salt spray corrosion, and chemical acid rain, making it mandatory for coastal power stations and premium commercial roofings.
Q2: What is the purpose of the back paint coating on a PPGI coil, and does it require custom configurations?
A2: The back paint serves primarily as a protective shell to prevent scratch marks during continuous uncoiling loops and to resist moisture oxidation from inside the structural building cavity. Standard back coatings consist of a single gray or white 5μm–7μm epoxy/polyester wash coat layer. However, if your processing line intends to inject liquid Polyurethane foam directly onto the back of the metal sheet to manufacture sandwich insulation panels, you must specify a dedicated structural polyurethane or adhesive back primer to ensure total bonding integrity.
Q3: How does the slit edge of a prepainted steel sheet resist rust if the raw metal core is exposed during cutting?
A3: This is handled by the sacrificial galvanic mechanism of the underlying hot-dipped zinc undercoat. When rain droplets touch the exposed sheared edge, the surrounding zinc layer dissolves slightly to form a protective zinc hydroxide deposit over the raw iron face, providing natural self-healing properties that stop rust from creeping inward beneath the paint film. For coastal allocations, specifying a heavier undercoat mass like Z275 is critical to enhance this cathodic shielding lifespan.
Q4: What is your typical factory minimum order quantity (MOQ) and production turnaround for custom RAL color matching?
A4: For our standard library colors (such as RAL 9002 White Gray or RAL 5012 Light Blue in standard 0.4mm/0.5mm gauges), our baseline production factory MOQ is 5.0 to 10.0 metric tons per width allocation, with container packing finishing inside 10 to 12 days. For highly proprietary custom color matching matching arrays, textured matte films, or thick structural S350GD base plates, the minimum order line spans a full 25-ton container allocation to balance paint line cleanouts and machine recalibrations, with lead times averaging 20 days.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your procurement costs? Partner with us for premium Prepainted Galvanized Steel Coils (PPGI) featuring heavy-duty, high-precision, and superior color-retention quality. We ensure full compliance with international metal roofing profiles, sandwich panel fabrication, rolling shutter doors, and architectural wall cladding standards, backed by seamless global supply chain service.
- Flexible Tiered Pricing: Enjoy massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Test our quality firsthand. We offer premium Prepainted Galvanized Steel Coil samples featuring precise paint film thicknesses (Top: 15–25µm / Back: 5–12µm), uniform zinc coating substrates, customized RAL colors/textures, excellent T-bend flexibility, and superior cross-hatch adhesion. Perfect for local roll-forming factories, building material distributors, or sandwich panel wholesale verification.
- Guaranteed Fast Lead Time: Our advanced high-capacity continuous color coating lines (two-coat & two-bake), high-precision automated CNC slitting machinery, heavy-duty tension levelers, and automated high-speed recoiling systems ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Prevent coil telescoping, edge denting, surface paint scratching, or moisture corrosion during long-distance ocean transit. We use heavy-duty eye-to-sky or eye-to-wall wooden pallets, waterproof kraft paper wraps, VCI anti-rust films, robust steel edge protectors, and high-tensile steel strapping bands.
