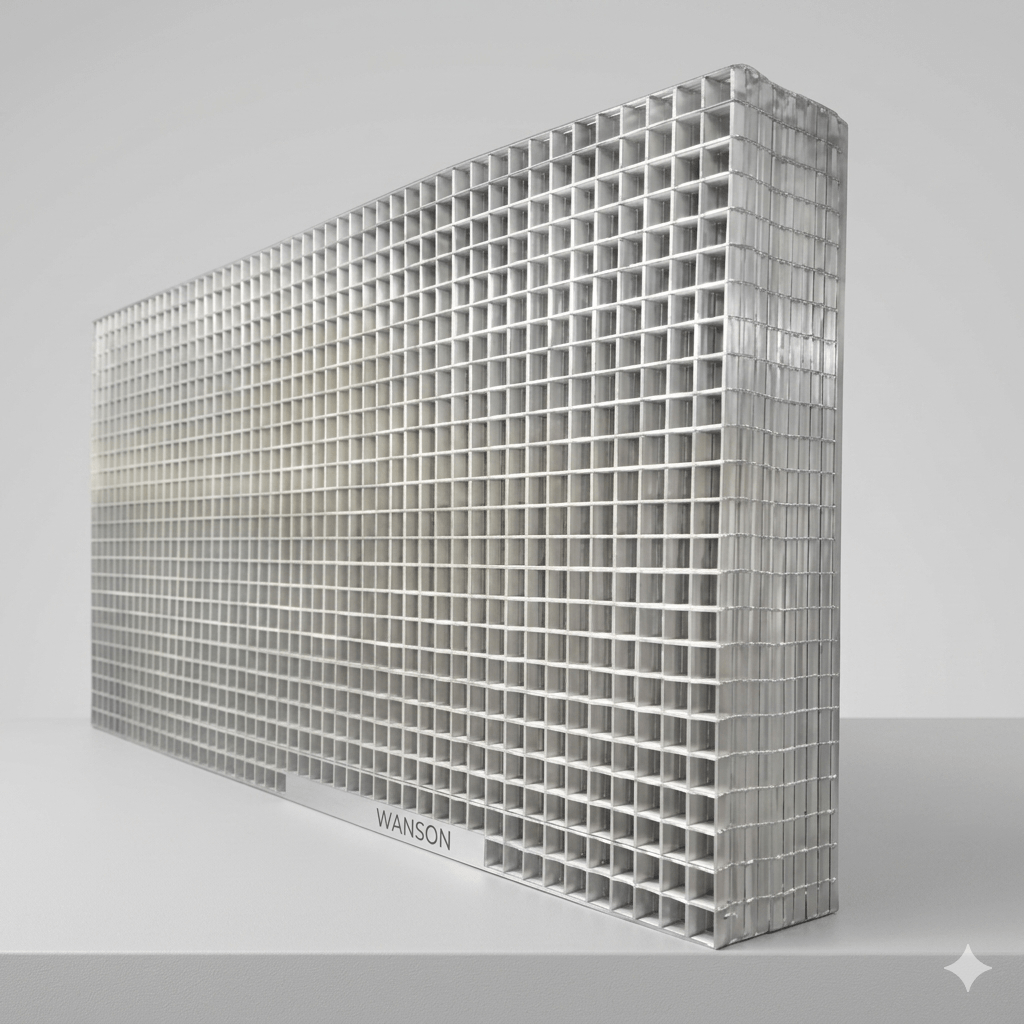

Premium Electro Galvanized Welded Wire Mesh Panels
As a leading global supplier of industrial wire products, we manufacture premium Electro Galvanized Welded Wire Mesh Panels designed to meet rigorous B2B engineering standards. Utilizing advanced automatic welding production lines, each wire intersection is firmly fused to guarantee structural integrity. Following the welding process, the panels undergo a uniform electro-galvanization treatment, providing a clean, bright aesthetic while shielding the steel core from atmospheric oxidation and mild corrosive environments.
These galvanized mesh sheets provide excellent flat surfaces, square openings, and high tensile strength. They are widely preferred by global contractors, distributors, and industrial manufacturers for building reinforcement, safety guards, enclosure fencing, and custom fabrication projects.
Why Choose Our Electro Galvanized Welded Mesh Panels?
- Advanced Cross-Wire Welding: Precision computer-controlled welding machines ensure zero missing welds and uniform tensile strength across the entire panel surface.
- Bright and Smooth Surface: The electro-galvanizing process yields a shiny, smooth, and burr-free zinc layer, enhancing both safety during handling and optical appeal.
- Superior Flattness & Tolerances: Strict quality control ensures each mesh sheet remains perfectly flat without warping, allowing easy installation on site.
- Excellent Workability: The robust welded nodes allow the mesh panel to be cut, bent, or formed into specific shapes without the risk of wire unraveling.
Technical Specifications & Standard Configurations
| Parameter Item | Standard Specifications Available | Customization Support |
|---|---|---|
| Wire Diameter (Gauge) | 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm | Available upon project request |
| Mesh Size / Opening | 25x25mm (1″), 50x50mm (2″), 75x75mm (3″), 100x100mm (4″) | Rectangular openings available |
| Panel Dimensions | 1m x 2m, 1.2m x 2.4m, 2m x 3m, 2m x 4m | Max width up to 2.4 meters |
| Zinc Coating Weight | 15 g/m² to 25 g/m² (Electro Galvanized Coating) | Can upgrade to Hot-Dipped if required |
| Tensile Strength | 350 N/mm² – 550 N/mm² (Mild low-carbon steel) | High-tensile wire options |
| Welding Shear Force | Exceeds international B2B building mesh standards | 100% destructive laboratory tested |
Diverse Applications Across Global Industries
Our galvanized mesh panels deliver reliable structural reinforcement across multiple fields:
- Construction & Floor Heating: Placed within concrete slabs, walls, and underfloor heating systems to uniformly distribute thermal stress and eliminate crack formations.
- Industrial Enclosures & Machining Safety: Used to manufacture perimeter fencing, security window grilles, protective machinery guards, and heavy-duty storage partitioning.
- Agricultural Logistics & Farming: Utilized for constructing robust poultry cages, animal pens, garden trellises, and protective crop netting enclosures.
- Commercial Warehousing: Fabricated into lightweight yet strong wire mesh decks for material handling racks and logistic transport cages.
Global Export Logistics & Packaging Standards
Understanding the strict demands of international shipping, our factory enforces rigorous packaging protocols for all Electro Galvanized Welded Wire Mesh Panels. The panels are neatly stacked, bundled tightly with high-tensile steel straps, and securely placed on premium wooden or steel pallets. We wrap the entire package with multi-layer waterproof stretch film to shield the electro-galvanized surface from moisture and sea salt corrosion during maritime transport. This guarantees that your order arrives in flawless condition, ready for immediate distribution or project installation.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between Electro Galvanized and Hot-Dipped Galvanized panels?
A1: Electro galvanized welded wire panels feature a thinner zinc coating (15–25g/m²) with an exceptionally bright, smooth, and aesthetic finish, making them ideal for indoor industrial applications, light cages, or concrete reinforcement where cost efficiency is paramount. Hot-dipped galvanized panels possess a much thicker zinc layer for extreme outdoor weathering but have a more textured, matte surface.
Q2: Can these galvanized mesh panels be cut into custom sizes without falling apart?
A2: Yes, absolutely. Every single wire cross point is welded using state-of-the-art automated resistance welding machines. The high welding shear strength guarantees that the panel remains structurally secure, flat, and intact even if you cut it into specific custom shapes or sizes on site.
Q3: What are your minimum order quantity (MOQ) terms for B2B export?
A3: As a manufacturing facility dedicated to foreign trade, our standard MOQ is typically 1 Full Container Load (FCL) to optimize shipping costs for our buyers. However, for specialized sizes or initial trial orders, we can accommodate mixed container loads or small quantities depending on current factory production schedules.
Q4: Do you provide quality certifications before shipment?
A4: Yes, we provide full transparency. We issue factory Mill Test Certificates (MTC) detailing wire tensile strength, precise mesh tolerances, and zinc coating weight. We also welcome third-party inspections such as SGS or BV to inspect the panels prior to container loading.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Electro Galvanized Welded Wire Mesh Panels procurement costs? Partner with us to enjoy premium bright, smooth-finish, and perfectly flat quality compliant with ASTM A1064 / BS EN 10223 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, dimensional flatness, and weld-strength testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated multi-spot welding and precise panel straightening/cutting lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and panel bending.
