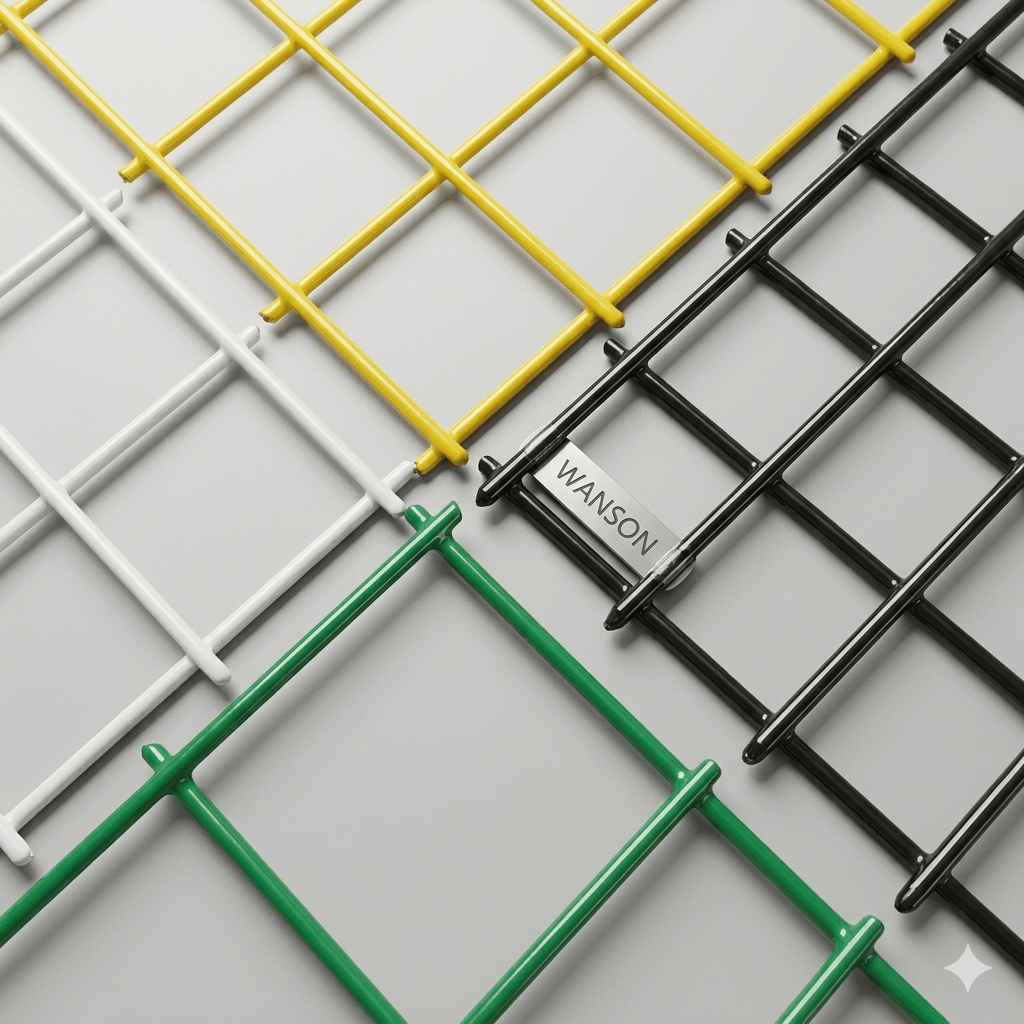

Premium PVC Coated Welded Wire Mesh Panels
As a premier global exporter of advanced wire perimeter goods, we engineer high-durability PVC Coated Welded Wire Mesh Panels (also known as Vinyl Coated Wire Mesh Sheets) designed to achieve long lifespans under intense elements. Our precision automatic welding centers first construct a perfectly flat, high-yield steel grid framework. Following a rigorous chemical cleaning and primer application, the panels undergo specialized thermal powder spraying or fluid bed dipping. This wraps every millimeter of the steel core in an unbreakable, dense polyvinyl chloride plastic jacket.
These beautiful plastic-coated mesh sheets provide exceptional aesthetic value alongside massive mechanical barrier strength. They are heavily specified by international municipal bidding agencies, large-scale commercial fencing wholesalers, and agricultural equipment distributors who demand decades of service without maintenance.
Why Buy Our PVC Coated Welded Wire Mesh Sheets?
- Dual-Layer Corrosion Shield: Integrating an inner zinc matrix beneath the exterior thick polymer skin creating a formidable double barrier against atmospheric oxygen, aggressive acid rains, and coastal salt water.
- Advanced UV-Stabilized Compound: Our premium vinyl powder is pre-blended with high-grade anti-oxidants and UV absorbers, shielding the vibrant green or black panels from chalking, embrittlement, and color bleaching.
- Unmatched Coating Adhesion: Utilizing specialized thermal cross-linking treatments guarantees the plastic layer chemically bonds to the wire surface, staying intact even when panels are bent or sheared on site.
- Safe Ergonomic Finish: The seamless thermoplastic wrap completely covers raw sharp burrs and steel cutting ends, maximizing safe handling during field installation and protecting livestock.
Technical Specifications & Standard PVC Configurations
| Technical Parameter | Standard Export Specifications | B2B Customization Options |
|---|---|---|
| Wire Diameter (Inner / Outer) | Inner: 2.0mm – 4.0mm | Outer Finished: 2.5mm – 5.0mm | Heavy duty inner cores up to 5.0mm available |
| Mesh Openings Size | 50x50mm (2″x2″), 50x100mm (2″x4″), 100x100mm (4″x4″) | Custom rectangular or dense security layouts |
| Standard Panel Dimensions | 1.0m x 2.0m, 1.2m x 2.4m, 1.5m x 3.0m, 1.8m x 2.5m | Max panel height can extend up to 2.5 meters |
| Aesthetic Coating Colors | Moss Green (RAL 6005), Jet Black (RAL 9005), Pure White | Any custom tone from the classic RAL card system |
| Plastic Coating Thickness | 0.4mm to 1.2mm depending on spraying or fluid dipping | Verified via micro-destructive layer tests |
| Weld Point Integrity | Exceeds ISO 1461 and ASTM B117 salt spray ratings | Full environmental weather testing documentation provided |
Versatile Global Applications in High-Humidity Environments
Thanks to their heavy weatherproof plastic shielding, our vinyl-coated panels excel across numerous intensive landscapes:
- Premium Garden & Residential Fencing: Widely fabricated into border fences for private villas, golf courses, parks, and botanical zones, blending harmoniously with surrounding greenery.
- Infrastructure Barriers & Highway Shields: Installed as reliable security grids along expressways, railways, and municipal greenways to restrict pedestrian crossing while maintaining high airflow.
- Heavy-Duty Aquaculture & Agriculture: Deployed in coastal farms, oyster cultivation frameworks, crab traps, and high-salinity breeding areas where standard galvanized wires rapidly fail.
- Humane Zoo Enclosures & Pet Kennels: Crafted into durable, smooth enclosures for veterinary clinics, modern farms, and botanical sanctuaries, providing zero skin-abrasion hazards for animals.
Delicate Pallet Packaging & Container Logistic Safety
Shipping custom-coated architectural elements overseas requires high industrial packaging knowledge. To completely avoid scratching, peeling, or fracturing the premium vinyl shell, our factory uses a multi-layered protective system for all PVC Coated Welded Wire Mesh Panels. Sheets are carefully flat-stacked on structural reinforced pallets, interleaved with heavy corrugated cardboard or foam buffering inserts. The bundle is secured tightly with high-elastic nylon strapping loops and completely enclosed inside dense, multi-layer waterproof shrink film. This extensive logistics preparation ensures your vinyl sheets reach your global distribution hub in pristine retail condition.
Frequently Asked Questions (FAQ)
Q1: Is it better to select a galvanized or raw steel inner wire before the PVC coating process?
A1: For long-term outdoor infrastructure or coastal bids, we strongly advise utilizing a galvanized inner wire core (Galvanized Before Welding). This setup offers a second layer of defense. If the outer vinyl skin is accidentally cut or damaged by heavy machinery during field setup, the inner zinc layer will continue protecting the steel core from rusting.
Q2: What is the lifespan difference between thermal powder spraying and fluidized bed plastic dipping?
A2: Powder spraying provides a smooth, highly uniform finish with a coating thickness of around 0.3mm – 0.5mm, perfect for architectural fences. Fluidized bed vinyl dipping fully submerges the panel, yielding a much thicker plastic layer (0.8mm – 1.2mm+) with superior heavy-duty impact and moisture defense, though the surface is slightly more textured.
Q3: Will the thick plastic coating crack or peel off when the panels are exposed to extreme freezing or blistering heat?
A3: No. Our proprietary industrial thermoplastic powder features high-grade elasticizers that allow the vinyl shell to shrink and expand in sync with the steel core. The coating maintains excellent flexibility and structural stability across extreme temperature ranges from -30°C up to +60°C.
Q4: Can we order customized sheet profiles with V-bends or double horizontal wires in PVC finishes?
A4: Yes, absolutely. We are a comprehensive structural manufacturer. We can stamp 3D reinforcement V-bends (such as classic Euro-fence paneling) or build 2D twin-wire structures (8/6/8 or 6/5/6 grids) prior to the chemical coating stage, fulfilling your exact civil bidding design layouts.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your PVC Coated Welded Wire Mesh Panels procurement costs? Partner with us to enjoy premium weather-resistant, UV-protected quality with an anti-peeling finish, fully compliant with international industrial standards, backed by seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, coating thickness, and weld-strength testing samples available for your local fencing, agricultural, or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated multi-spot welding and precise polymer-coating lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade protective packing with specialized edge guards and heavy-duty pallets to prevent any coating scratches or transit damage to the panels.
