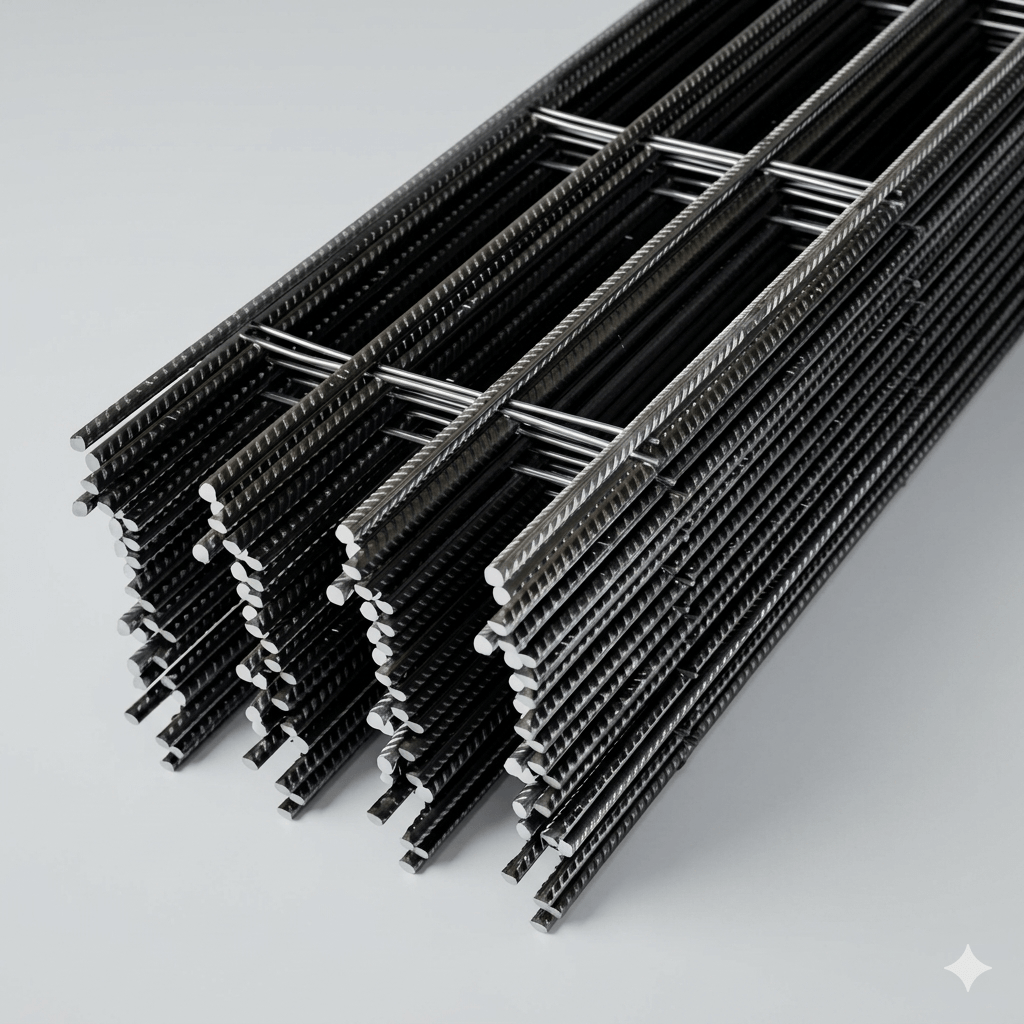

Grade 500N Steel Trench Mesh for Concrete Strip Footing Foundations
Our premium grade structural trench mesh is the quintessential reinforcement solution engineered explicitly for narrow concrete configurations. Residential single-dwellings, heavy multi-unit complexes, and structural brick walls rely on concrete strip footings to transfer loads safely into underlying soil substrates. Standard square mesh grids are highly inefficient and cost-prohibitive to cut down for long, narrow trenches. Our structural trench mesh addresses this industry bottleneck by delivering long, 6-meter prefabricated narrow strips that drop effortlessly into excavated ground paths, drastically stabilizing the foundation perimeter against soil shifts and seismic friction forces.
Unmatched Advantages of Our Certified Ribbed Trench Mesh
- Perfected Form-Factor Compliance: Available in highly accurate 200mm, 300mm, 400mm, and 500mm widths, aligning instantly with standard industrial bucket excavation sizes.
- High-Bond Ribbed Deformations: Made from cold-rolled deformed wire conforming strictly to Class N Grade 500N structural steel specifications, achieving maximum aggregate bonding.
- Industrial Anti-Separation Welds: Electronic synchronized resistance welding forces cross wires to fuse deeply with the main load-bearing longitudinal bars, preventing separation under severe site handling.
- Flawless Logistics Interleaving: Packs are flatly packed and optimized for tight nested shipping bundles, optimizing standard 20ft container space and reducing transport friction costs.
Strategic Infrastructure Deployment for Narrow Trench Mats
The specialized elongated geometries of trench mesh render it irreplaceable across modern residential, light commercial, and municipal civil systems. Structural engineers predominantly mandate these 3-bar and 4-bar configurations within heavy residential concrete footings, brick perimeter fencing foundations, and structural edge beams designed to retain fill materials. In municipal environments, our trench mesh provides internal crack resistance inside continuous poured curbs, roadside drainage channels, and utility cable trench encasements. Furthermore, landscaping architects utilize these rigid steel mats to distribute shear stress evenly underneath heavy stone retaining walls, ensuring long-term structural alignment against hydro-static pressure.
Technical Specifications & Standard Australasian Configurations
| Standard Reference Code | Main Wire Setup (Bar Counts) | Main Wire / Cross Wire Dia. (mm) | Sheet Dimensions (Length x Width) | Cross Wire Spacing (mm) | Mass Weight Per Sheet (kg) |
|---|---|---|---|---|---|
| TM8-3 Mesh | 3 Bars Longitudinal | 8.00 mm / 4.00 mm | 6.0 m x 200 mm | 300 mm Centers | 7.50 kg |
| TM8-4 Mesh | 4 Bars Longitudinal | 8.00 mm / 4.00 mm | 6.0 m x 300 mm | 300 mm Centers | 10.10 kg |
| TM11-3 Mesh | 3 Bars Longitudinal | 11.00 mm / 4.75 mm | 6.0 m x 200 mm | 300 mm Centers | 14.50 kg |
| TM11-4 Mesh | 4 Bars Longitudinal | 11.00 mm / 4.75 mm | 6.0 m x 300 mm | 300 mm Centers | 19.30 kg |
| TM12-4 Mesh | 4 Bars Longitudinal | 12.00 mm / 5.00 mm | 6.0 m x 400 mm | 400 mm Centers | 23.10 kg |
| Custom Narrow Grid | 3 to 6 Continuous Bars | Custom Gauges (6-16mm) | Widths: 150mm – 600mm | Variable Pitch | Engineered Mass |
Smart Stacking Export Logistics, Bundle Safety & Import Document Support
Because structural trench mesh features a distinctly narrow width relative to its 6-meter length, poor marine cargo configuration will cause long-term bending deformities due to gravitational sag during rough transits. Our manufacturing export plant fully mitigates this material risk by applying an advanced interlocking nesting technique. Sheets are systematically flipped and tightly packed into each other, forming a highly rigid block before being compressed by high-tension industrial steel banding loops.
We anchor each nested trench mesh batch on continuous, full-length heavy wooden runners or steel channels, distributing structural weight evenly and avoiding center bowing when handled by harbor machinery. Our loading specialists are experts at optimizing vertical container storage, ensuring that narrow trench mesh bundles nest perfectly alongside larger structural rebar orders without wasting valuable freight volume. All export invoices are paired with authentic chemical ladle analysis documents, certified physical elongation certifications, and AS/NZS compliance stickers to ensure instant, hassle-free customs release at international border inspection stations.
Frequently Asked Questions (FAQ)
Q1: What are 3-bar and 4-bar trench mesh configurations, and how do I select between them?
A1: 3-bar and 4-bar indicate the total count of heavy continuous longitudinal ribbed steel wires embedded running the full length of the 6-meter strip. Selection depends entirely on your civil excavation trench width: 3-bar mesh is standard for narrow 200mm to 300mm footing paths, whereas 4-bar or 5-bar mesh is required for wider 400mm+ foundation excavations to meet edge coverage codes.
Q2: What is the purpose of the long protruding cross-wires at both ends of your trench mesh sheets?
A2: These engineered end extensions, often referred to as overhangs, are purposefully built into our standard production lines. They allow engineering crews to quickly overlay sequential sheets in a continuous foundation line, establishing a secure splice overlap without needing to crop or overlay main bars manually on-site.
Q3: Does your factory supply supporting steel spacers or trench mesh chairs for large civil contracts?
A3: Yes, we provide a complete one-stop procurement solution. We manufacture and supply matching heavy-duty steel trench mesh spacers and plastic-tipped clip-on metal chairs. These items ensure your reinforcement grid remains firmly suspended at the mathematically optimized midpoint during high-impact concrete pouring.
Q4: What specific quality benchmarks do you verify to comply with Australian AS/NZS 4671 building codes?
A4: Our trench mesh undergoes systematic quality control. We perform hydraulic tensile resistance testing to confirm the minimum 500 MPa yield threshold, uniform spacing gauge validation, and automated cross-weld fracture checks. Each test is fully logged to ensure full compliance with Grade 500N structural criteria.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Trench Mesh procurement costs? Partner with us to enjoy premium high-tensile, heavy-duty, and perfectly straight quality compliant with AS/NZS 4671 or ASTM A1064 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, dimensional flatness, and weld-strength testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated welding and precise longitudinal rib-wire straightening/cutting lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and panel bending.
