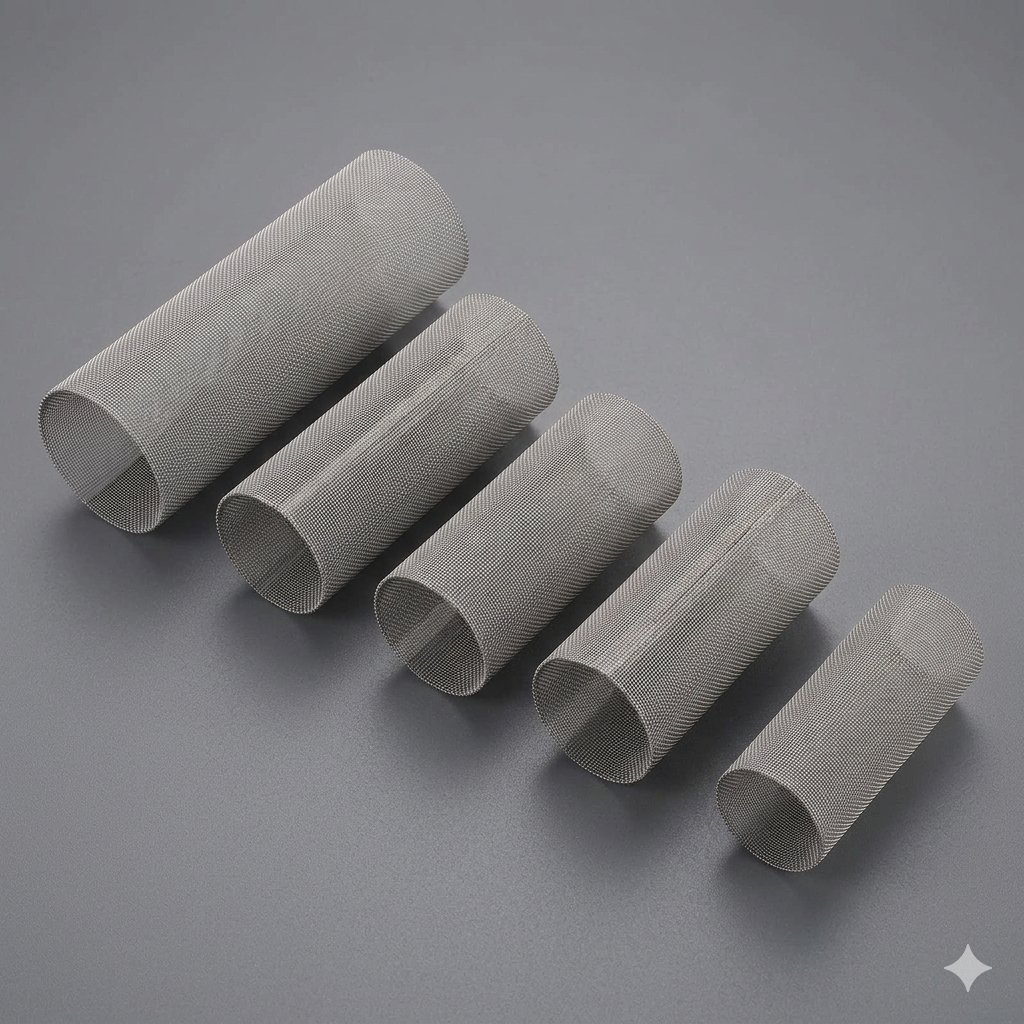

Industrial Stainless Steel Tubular Filter Screens & Cylindrical Strainers
Our industrial-grade Stainless Steel Tubular Filter Screen series delivers uncompromising fluid classification, debris containment, and structural core shielding across rigorous municipal, chemical, and engineering sectors. Extensively integrated within high-flow inline pipeline systems, catch basin assemblies, and rainwater pre-tank separation units, these tubular filter components function as the primary structural defense line against sand, gravel, plant matter, and organic particulates. By pairing premium metallurgy with precise mechanical alignments, our tube filters protect downstream high-value pumps, industrial meters, and sensitive process sprayers from destructive abrasive wear.
As a leading global B2B manufacturing specialist in metallic wire cloth fabrication, we combine computerized mechanical roll-forming machinery with advanced laser-guided seaming networks. This configuration guarantees absolute cylindrical concentricity, smooth edge transitions, and uniform tension across the entire welded seam, ensuring quick drop-in fitting actions. Whether you are executing heavy regional contracts for municipal water management facilities, supplying OEM components for commercial rainwater silt buckets, or sourcing replacement high-pressure filter cores for chemical refinery lines, our tubular filters offer exact micron ratings, robust structural ratings, and superior lifetime value.
Core Engineering Strengths of Our Tubular Filter Screens
1. Multi-Stage Composite Layering & Structural Support Cages
To combat massive horizontal fluid drag and high pressure drops that crimp standard screen sleeves, we offer multi-layer composite tubes. Fine-mesh woven wire cloth is layered and welded directly onto a heavy-gauge perforated steel support core. This architecture maintains clear flow channels and prevents mesh collapse or flexing distortion under severe pulsing surge forces.
2. Slag-Free Bypass-Free Precision Automated Seaming
Fluid bypass along joint boundaries can cause critical system failures in fine pipeline operations. Our tubular elements are fabricated using automated plasma and TIG seam welding. This locks the wire weaves and solid metal end caps into a flawless, flush mechanical unit that prevents unfiltered bypass loops under continuous structural vibrations.
3. Outstanding Metallurgical Integrity & Thermo-Chemical Stability
We utilize verified low-carbon SUS304L or marine-grade SUS316L wire alloys to eliminate contamination risks common in cheap recycled steel scrap. Operating safely between temperatures of -200°C and +600°C, these non-magnetic metallic cylinders provide exceptional resistance to pitting corrosion in acidic chemical paths and salt-heavy coastal environments.
4. Infinite Washable Operations with Superior Backwash Efficiency
Unlike disposable paper or polypropylene melt-blown media that must be scrapped upon dirt saturation, our stainless wire grids release trapped particles cleanly during routine cleaning. The filter tubes can be treated multiple times via high-pressure liquid washouts, ultrasonic sound cleanings, or chemical solvents, significantly reducing operating costs.
Technical Specifications & Structural Matrices
We provide full customizable capabilities to support your target bidding frameworks and regional market demands. Review our standardized architectural specifications below:
| Manufacturing Parameters | Precision Woven Mesh Tube Series | Perforated Heavy Support Cylinder Series |
|---|---|---|
| Available Metal Base | SUS 304, SUS 316, SUS 316L (Premium Alloys) | SS 304, SS 316, Super Duplex Steel, Hastelloy |
| Structural Design | Woven Square Mesh Sleeve / Sintered Fabric Layers | Staggered Perforated Plate Tube / Wedge Wire Profile |
| Aperture / Micron Rating | 5 μm – 200 μm (High Precision Micron Matrix) | 0.5 mm – 12.0 mm (High Flow Macro-Particulate Traps) |
| Wall Thickness Profiles | 0.4 mm – 1.2 mm | 1.5 mm – 4.0 mm (Heavy Structural Cage Resistance) |
| Outer Diameter (OD) Span | 20 mm – 150 mm | 150 mm – 500 mm (Large Tank Inlet Configurations) |
| Tube Length / Height | 100 mm – 1000 mm | 500 mm – 2000 mm (Custom Deep Inspection Shafts) |
| End Connection Styles | Threaded Sleeve (NPT/BSP), DOE, 222 Bayonet Caps | Standard Bolted Flange, Solid Bottom, Lifting Handle |
| Max Working Pressure | Up to 5.0 MPa (Dependent on backing core mesh) | Up to 25.0 MPa (Ultra-High Differential Resistance) |
Primary Global Infrastructure & Engineering Applications
Our custom stainless tubular screens are integral components specified by engineering procurement networks across multiple global fluid management sectors:
- Pre-Tank Rainwater Harvesting Filters: Inserted cleanly within underground inspection pits and rainwater holding tank inlets to serve as the structural mesh cylinder that blocks foliage, moss, and stone debris.
- Pipeline Basket Strainers & Tee Filters: Fitted perfectly inside Y-strainer and T-style pressure vessel pipelines to ensure fine fluid filtration for industrial cooling networks, water treatment stations, and spraying nozzles.
- Silt Catchment & Drainage Basin Tubes: Deployed in municipal stormwater junctions as deep-pit silt removal drop-ins, preventing large sludge deposits from compacting main city channels.
- Petrochemical & Corrosive Fluid Processing: Assembled deep within gas scrubber towers, chemical fluid conduits, and maritime fuel separation loops to strip away fine oxides under extreme chemical exposures.
B2B Wholesale Supply Chain Quality Control & Export Logistics
We tailor our shipping frameworks to guarantee that hollow, cylindrical steel mesh structures maintain perfect geometric tolerances and flat, rust-free surfaces through multi-stage ocean freight travels:
- Anti-Crush Structural Support Packing: Hollow metallic cylinders are highly sensitive to compressive side shocks. Every tubular piece is equipped with an internal rigid core support or wrapped inside specialized thick bubble sleeves before boxing.
- Advanced Ultrasonic Cleaning Treatments: To ensure total safety for water filtration and chemical systems, finished tubes pass through multi-stage ultrasonic chemical degreasing lines to extract all drawing lubricants.
- Fumigation-Free Plywood Box Sealing: Master honeycomb boxes are arranged firmly inside heavy plywood crates fortified with interior edge blocks, eliminating risk of damage from industrial port crane machinery.
Frequently Asked Questions (FAQ)
Q1: How does your factory secure the fine woven wire screen mesh to the heavy perforated tubular steel frame?
A1: We employ state-of-the-art resistance seam welding or precision micro-spot array fusing. This molecularly fuses the wire weave layers directly to the structural nodes of the perforated backing cage, eliminating structural gaps and preventing mesh delamination or tearing away during high-pressure liquid backwashing cycles.
Q2: Can you manufacture replacement tubular filter screens based on non-standard diameters or old machinery blueprints?
A2: Yes, our engineering department regularly supports OEM reverse-engineering and custom prototype setups. Provide us with your technical PDF/CAD drawings or mail a worn physical element to our factory group, and we can replicate the exact flange specifications, overall heights, mesh count, and pressure tolerance profile.
Q3: What brand of raw materials do you use, and do you supply official testing certifications?
A3: We exclusively source premier-grade certified steel coils and wire stocks from top-tier metallurgical mills. Every international order is dispatched along with verified Manufacturer Test Certificates (MTC 3.1) and chemical heat analysis documentation to confirm true nickel and chromium weight thresholds.
Q4: What is your standard factory MOQ and lead time for custom-engineered tubular filters?
A4: For custom diameters or specialized flange developments requiring machine tool setup re-indexing, our baseline factory MOQ is 10 to 20 units. Production usually takes about 15 to 20 days. For standard inline piping dimensions where stocking materials are open, we can facilitate smaller trial lot distributions.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your procurement costs? Partner with us for premium Stainless Steel Tubular Filter Screens featuring heavy-duty, high-precision, and structural rigidity quality. We ensure full compliance with international pipeline strainers, industrial water treatment, liquid-solid filtration systems, and specialized rainwater harvesting filter standards, backed by seamless global supply chain service.
- Flexible Tiered Pricing: Enjoy massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Test our quality firsthand. We offer premium Stainless Steel Tubular Filter Screen samples (available in SS304/SS316/SS316L) featuring precise mesh/micron ratings, flawless longitudinal welding joints, perfectly round dimensions, and burr-free edges. Perfect for industrial processing suppliers, water treatment system integrators, or mechanical hardware wholesale verification.
- Guaranteed Fast Lead Time: Our advanced automated tube rolling systems, high-precision laser welding lines, CNC mesh cutting machinery, and strict concentricity testing equipment ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Prevent tubular screens from crushing, oval deformation, or surface scratching during long-distance ocean transit. We use inner core support tubes, individualized shock-absorbing foam sleeves, waterproof wrap, and heavy-duty reinforced wooden crates on sturdy pallets.
