High-Precision Stainless Steel Die-Cut Mesh Filter Shapes & Discs

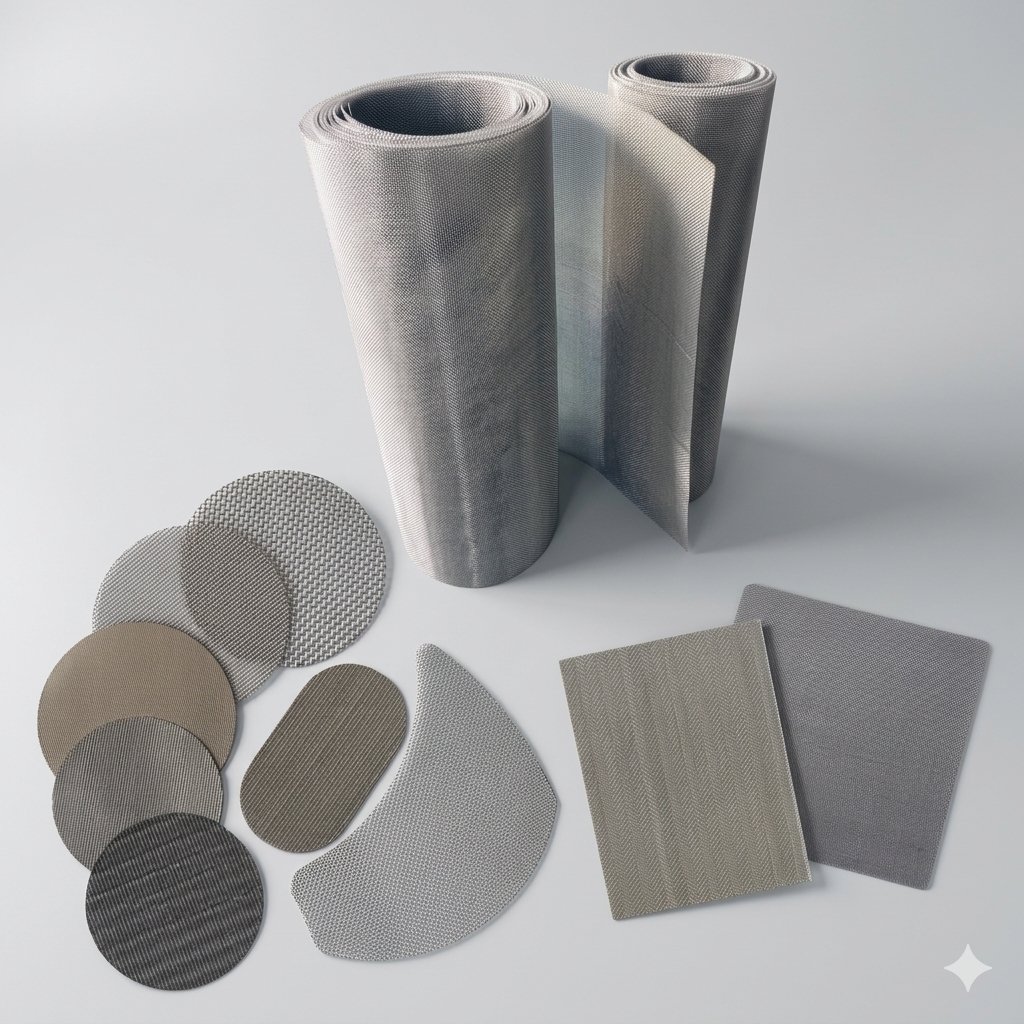

Our premium **stainless steel Die-cut mesh filter shapes** represent the definitive technical solution for high-precision fluid purification, gas-liquid separation, polymer melt conditioning, and particle sizing. Manufactured to meet strict B2B architectural and industrial engineering specifications, these stamped wire mesh circles, rings, and irregular geometric shapes are dropped directly into machine housings, hydraulic conduits, and pipe adapters. By utilizing advanced mechanical metal die stamping techniques, we transform vast rolls of industrial stainless mesh into ready-to-install finished component blanks, eliminating manual edge cutting, improving product uniformity, and preventing costly material waste.
As a leading global manufacturing partner for high-precision filtration products, we balance state-of-the-art metal stamping tools with strict metallurgical trace integrity. Our production workflow includes automated wire mesh tension mapping, ultra-precise tool alignment, and multi-stage clean-room degreasing treatments. Whether you are executing large wholesale contracts for plastic extruder screen changers, stocking regional distribution lines for hydraulic valves, or prototyping custom 41mm/46mm mesh discs for residential garden hose connectors, our products deliver outstanding flatness, perfect geometric concentricity, and long-term service lifespans under intense hydraulic loads.
Core Engineering Strengths of Our Stamped Mesh Shapes
1. Ultra-Precise Stamping Tolerances (±0.05mm) for Bypass Prevention
In specialized chemical, medical, and aerospace fluid processing systems, any minor geometric error in the filter screen creates a fluid bypass loophole. Our automated hydraulic clicker presses and wire EDM cut stamp dies ensure that the outer diameters and inner rings fit cleanly inside internal valve housings, ensuring 100% filtration block security.
2. Run-Free, Clean Stamped Edges with Compressed Wire Technology
Loose wire fibers entering micro-apertures can sever hydraulic piston cups and damage final components. Our proprietary stamping process cuts cleanly through individual metal filaments while compressing the perimeter wire boundaries. This locks the interlocking warp and weft fibers securely in position, eliminating fraying or wire shedding during manual handling.

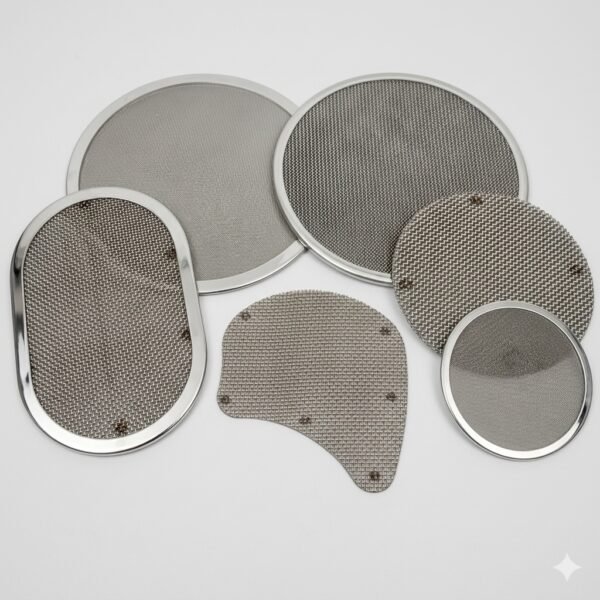

3. Dynamic Layer Matrix Configurations (Spot-Welded / Sintered Packs)
To combat intense pressure drops that bend fragile micro-meshes, we provide custom multi-layer assemblies. We combine varying mesh counts—placing fine filtration wires inside heavy-gauge perforated steel sheet frames—and join them via automated micro-spot welding or high-temperature vacuum sintering to produce a highly rigid, blowout-resistant multi-stage filter pack.
4. Pure Premium Alloy Integrity with Maximum Corrosion Thresholds
We source certified raw steel wires to eliminate contamination issues common in cheaper mixed-scrap materials. Selecting our premium low-carbon SS316L alloy gives the finished die-cut filter shapes excellent resistance to pitting corrosion in saltwater, acidic chemical baths, and intensive heat zones up to 600°C.
Technical Specifications & Manufacturing Limits
We provide full customizable capabilities to support your target bidding frameworks and regional market demands. Review our standardized architectural specifications below:
| Manufacturing Parameters | Precision Micron Mesh Discs | Heavy-Duty Stamped / Rimmed Shapes |
|---|---|---|
| Available Metal Base | SUS 304, SUS 316, SUS 316L, SUS 904L | SS 304, SS 316, Brass, Aluminum Alloy Frame Sheets |
| Mesh Media Alignment | Woven Square Wire Mesh / Micro-Etched Foil | Multi-layered Woven Mesh / Perforated Backup Sheets |
| Dimensional Span (OD) | 4.0 mm – 250.0 mm Diameter Blanks | Up to 900.0 mm Custom Oblong / Annular Layouts |
| Mesh Count Matrix | 20 Mesh up to 635 Mesh (Ultra-Fine Screening) | 1 Mesh – 100 Mesh Coarse Straining Core Grates |
| Filtration Aperture | 5 μm – 200 μm Precision Micron Ratings | 0.5 mm – 10.0 mm Macro-Particle Trapping Holes |
| Stamping Tolerances | ±0.05 mm (CNC Automated Press Runs) | ±0.10 mm (Heavy Stamping Die Matrix) |
| Edge Processing Styles | Raw Clean Cut Border, Ultrasonic Welded Margin | Aluminum/SS Rim Binding, Silicon/Rubber Gaskets |
| Total Pack Thickness | 0.12 mm – 0.75 mm | 1.00 mm – 6.00 mm Heavy Reinforced Blocks |
Primary Global High-Precision Applications
Our custom die-cut stainless steel mesh disks are integrated as critical internal filter elements across advanced industrial manufacturing lines:
- Polymer Extrusion & Melt Screen Changers: Dropped sequentially into automated polymer slide plates to strain out un-melted resins, mineral agglomerates, and impurities from high-temperature recycled plastic streams.
- Automotive Fuel & Hydraulic Control Systems: Functioning as precision mesh washers or micro-stamped screens fitted inside fuel injectors, transmission control solenoids, and ABS braking fluid conduits.
- Pipeline Connections & Hose Washers: Extensively engineered as specialized mesh strainers (such as 41mm flat discs or 46mm configurations with rubber silicone borders) inside garden hose connectors, tap aerators, and pump housings.
- Chemical & Pharmaceutical Fluid Processing: Inserted within sanitary inline filter piping clamps and centrifugal fluid separators to separate micro-precipitates under strict chemical sterilization protocols.
B2B Wholesale Supply Chain & Export Maritime Logistics Precision
Operating a specialized manufacturing center allows us to deliver intensive chemical cleanliness controls and robust export container packaging configurations:
-
- Multi-Stage Ultrasonic Degreasing: Prior to final count verification, all die-cut mesh components undergo ultrasonic chemical wash treatments to completely eliminate processing oils and fine metallic dust, ensuring residue-free delivery.
- Moisture-Proof Vacuum Sealed Wrapping: Stamped mesh discs are bundled in precise counts, wrapped inside heavy anti-static films, and vacuum-sealed. This prevents ocean humidity oxidation or saltwater vapor damage during marine transit.
- Fully Traceable Technical Documentation: We ensure straightforward procurement tracking. Every shipment batch is dispatched with comprehensive Material Test Certificates (MTC 3.1) confirming chemical heat analysis, thickness, and micron validation.
Frequently Asked Questions (FAQ)
Q1: Do custom geometric mesh filter shapes require an initial tooling mold fee?
A1: For standard metric circular dimensions, we maintain a vast library of pre-built stamping dies that require no setup fees. If your drawing features unique irregular profiles, notches, or proprietary shapes, a dedicated stamping mold fee is required. We provide full tool fee refunds once your cumulative B2B wholesale procurement volume passes our machine setup threshold limits.
Q2: What are the distinct performance differences between raw stamped edges and metal-rimmed boundaries?
A2: A raw stamped edge is highly cost-efficient and ideal for flush drop-in slots where the mesh perimeter is fully enclosed by the machine housing. Adding an aluminum or stainless steel rim binding increases structural rigidity, prevents the mesh from folding under extreme fluid pressure, and encapsulates loose wire tips, ensuring safe manual handling during maintenance cycles.
Q3: How are multi-layer stainless steel mesh filter packs joined without blocking the wire openings?
A3: We primarily utilize high-frequency precision resistance spot-welding at optimized outer coordinates. This fuses the overlapping wire junctions securely into a monolithic pack without adding foreign weld material or closing the center open filtration area. For high-stress industrial applications, we offer vacuum thermal sintering to bond all wire crossover points.
Q4: What is your standard factory MOQ for non-standard diameter stainless steel mesh discs?
A4: For standard stocking grid configurations where tool sets are open, our baseline minimum order quantity is 500 to 1,000 pieces, depending on the item dimensions. For unique custom prototype tool engineering loops or specialized super-alloy blends, the MOQ is adjusted based on raw wire coil minimum weights and machining time.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your procurement costs? Partner with us for premium Die-cut mesh filter shapes featuring high-precision, burr-free edges, and dimensionally stable quality. We ensure full compliance with international automotive filtration, custom industrial fluid processing, and microfiltration component standards, backed by seamless global supply chain service.
- Flexible Tiered Pricing: Enjoy massive discounts and competitive FOB/CIF/CFR quotes for full container loads or bulk custom batches to maximize your procurement budget.
- 100% Free Samples: Test our quality firsthand. We offer precision Die-cut mesh filter shapes samples (available in stainless steel, aluminum, brass, or synthetic meshes) featuring flawless stamped edges, uniform mesh openings, flat surfaces, and precise geometrical tolerances. Perfect for precision engineering suppliers, medical device components manufacturers, or specialized filtration wholesale verification.
- Guaranteed Fast Lead Time: Our advanced high-tonnage precision stamping presses, high-speed laser cutting systems, automatic die-punching machinery, and strict optical dimensional inspection lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Prevent custom shapes from bending, nesting, or edge deformation during long-distance ocean transit. We use specialized layered trays, vacuum moisture-proof packaging, and shock-absorbing heavy-duty wooden crates on sturdy pallets.
