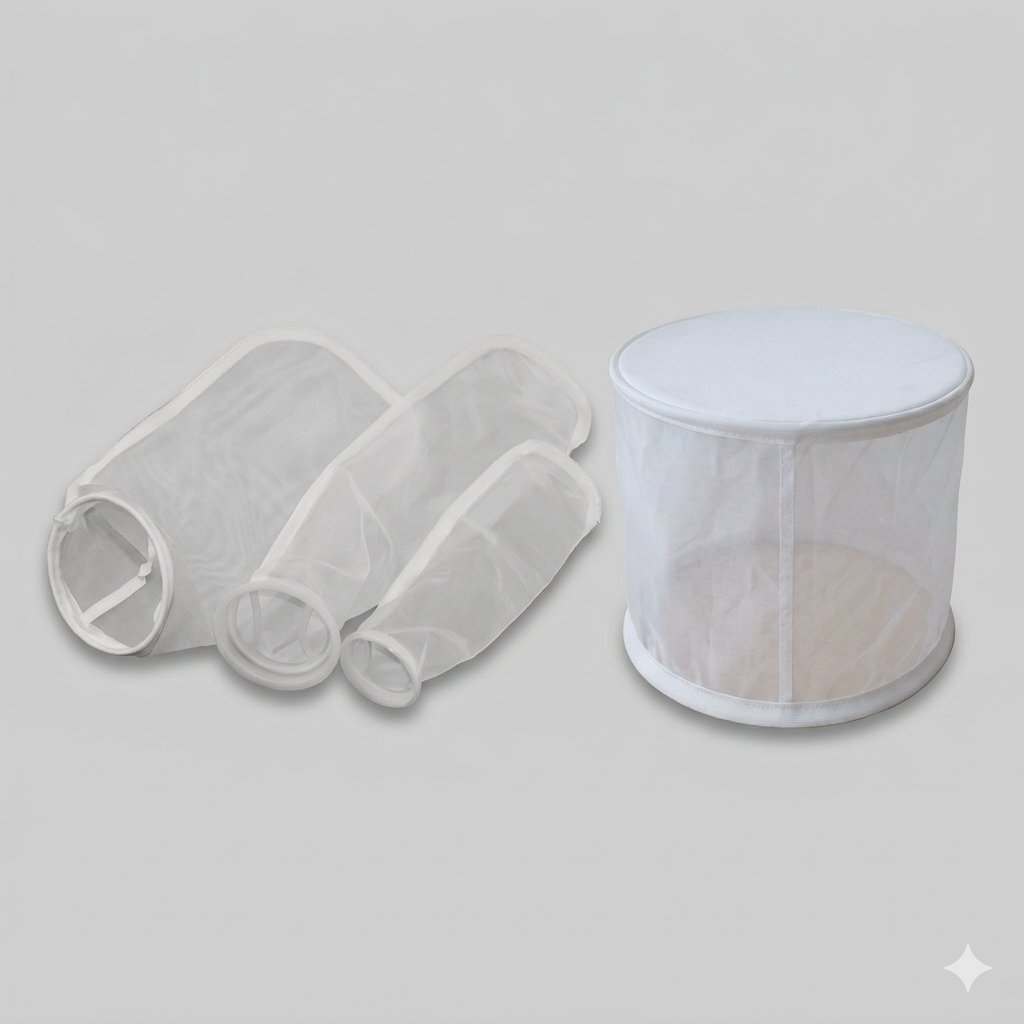

Industrial Polyester Microfilter Bags & Micron Liquid Filter Sleeves
Our premium-grade Polyester microfilter bag selection represents the absolute manufacturing and mechanical benchmark for high-velocity liquid clarification, chemical manufacturing filtration, paint and coating processing, and municipal wastewater processing. Configured to comply with strict international B2B architectural and plant procurement specifications, these non-woven needle felt and monofilament woven sleeves serve as the definitive mechanical core within single or multi-bag pressurized filter housings. By combining progressive-density fiber matrices with advanced automatic seaming technologies, our filter socks ensure continuous high-flow parameters while capturing microscopic silt, rust flakes, organic particulate matter, and metallic residues down to 1 micron.
As a leading global B2B supplier and technical filtration textile factory, we balance computer-calibrated needle-punching fiber layers with automated ultrasonic thermal fusion welding assembly networks. This state-of-the-art tooling configuration ensures absolute structural dimensions, scratch-free collar seats, and uniform thickness across the bag profile, eliminating structural bypass risks common in low-tier sewed alternatives. Whether your market involves distributing wholesale municipal pipeline strainers, supplying custom splash guard filters for commercial catch basins, or stocking high-temperature process bags for chemical refineries, our polyester filter elements provide exact micron alignment, robust physical tensile strengths, and exceptional cost-to-volume value.
Core Engineering Strengths of Our Polyester Filter Bags
1. 100% Fully Welded Thermal Fusion Seams against Fluid Bypass
Traditional sewn seams leave thousands of small needle path apertures that allow unfiltered fluid or over-size particulates to bypass the bag structure under pressure surges. Our premium filters feature fully ultrasonic thermal welded longitudinal seams and collar joints, melting the polymer fibers uniformly into an impassable mechanical bond for absolute bypass-free sealing security.
2. Progressive-Density Non-Woven Felt Matrix for Depth Filtration
Instead of relying on a flat, two-dimensional screening layout that blinds over instantly, our polyester needle felt creates a deep three-dimensional labyrinth. Coarser outer fibers capture large sludge masses while the denser internal core traps fine micron fragments, multiplying total dirt-holding capacities and extending processing run-times.
3. Singed and Glazed Exterior Treatments to Stop Fiber Migration
Downstream contamination caused by loose filter fibers breaking away into purified fluids is a critical failure mode in premium paint and pharmaceutical processing. Every batch of our polyester bags undergoes uniform singeing and calendering treatments, fusing loose surface filaments into a slick, stable finish layer that retains total pore permeability while eliminating shedding.
4. Heavy-Duty Structural Collars with Dynamic Self-Sealing Tops
We mold our proprietary plastic sentinel collars with flexible V-shaped sealing lips and integrated lifting handles. When compressed by the heavy vessel lid clamping mechanism, the ring expands outward against the internal metal basket basket edge, utilizing the fluid head pressure to create a dynamic seal that eliminates bypass loops.
Technical Specifications & Architectural Configurations
We provide full customizable capabilities to support your target bidding frameworks and regional market demands. Review our standardized architectural specifications below:
| Technical Properties | Industry Standard Size 1 Bag | Industry Standard Size 2 Bag |
|---|---|---|
| Bag Nominal Dimensions | 7 inches × 16 inches (178 mm × 406 mm) | 7 inches × 32 inches (178 mm × 813 mm) |
| Total Filtration Area | 0.25 m² (2.6 sq ft) | 0.50 m² (5.4 sq ft / High-Volume Processing) |
| Internal Liquid Capacity | 8.0 Liters (2.1 Gallons) | 17.0 Liters (4.5 Gallons Maximum Slurry Holding) |
| Max Recommended Flow Rate | 20 m³/h (88 GPM) | 40 m³/h (176 GPM / High Permeability Operation) |
| Available Micron Ratings | 1, 5, 10, 25, 50, 75, 100 μm (Precision Felt) | 1 μm to 200 μm / Coarse Mesh configurations available |
| Collar Interface Formats | Sentinel Plastic Ring (PP/PE), Stainless Steel Ring | Galvanized Steel Ring, Drawstring, Custom Profiles |
| Continuous Thermal Window | ≤ 135°C (Excellent High Heat Creep Resistance) | ≤ 150°C Peak Flue Spikes (Material Verified) |
| Change-Out Delta P | 0.12 MPa – 0.15 MPa Optimum Operational Point | 0.25 MPa Safe Structural Saturation Limit |
Primary Global Fluid & Industrial Applications
Our heavy-duty polyester filter sleeves function as critical processing elements across automated industrial fluid configurations globally:
- Automotive Paint & Electroplating Lines: Installed to continuously filter recirculating e-coats, primers, and solvent-based clearcoats, trapping metallic debris and gel specks to achieve a mirror finish.
- Petrochemical & Lubricant Purification: Dropped directly into high-pressure inline vessel filtration networks to extract fine iron oxides, sand grit, and moisture-precipitates from fuel and machinery lubricants.
- Industrial Wastewater & Catch Basin Filtration: Deployed as heavy silt-retaining socks or catch basin sediment bags to screen sand clusters and chemical debris from discharge effluents, protecting municipal drainage grids.
- Pre-RO Membrane Pre-Filtration Units: Positioned before expensive reverse osmosis (RO) membrane chambers to trap fine silica clusters, preventing membrane scaling and extending system operational lifespans.
B2B Wholesale Supply Chain Quality Control & Export Ocean Freight Packaging
We configure our post-production cleanliness controls and packaging tracking specifically to preserve flexible fabric dimensions and ensure absolute particle control limits during ocean transit:
-
- Cleanroom Dust-Free Bagged Sealing: Non-woven materials easily absorb warehouse ambient particles. Every roll lot or box bundle of finished filter socks is sealed inside double anti-static poly liner films to ensure a particle-free delivery.
- High-Rigidity Anti-Collapse Cartoned Stacking: Flexible bag sleeves are highly vulnerable to side folding. We arrange pieces flat inside rigid corrugated cartons with shock-absorbing corner blocks, avoiding shipping wrinkles that degrade collar seals.
- Fumigation-Free Plywood Export Palletization: Master boxes are securely arranged and shrink-wrapped onto standard heat-treated or plastic pallets with protective plastic edge stays, completely resisting vertical warehouse stacking pressures.
Frequently Asked Questions (FAQ)
Q1: What are the distinct performance differences between an ultrasonic fully welded bag and a traditional stitched filter bag?
A1: Traditional stitched filter bags utilize textile threads that leave needle apertures along the length of the seam, which can allow particles larger than the micron rating to bypass. Additionally, the sewing threads themselves can loosen and shed filaments under high flow surges. In contrast, our fully welded polyester bags fuse the fibers completely via ultrasonic thermal energy, creating a seamless, leak-proof joint for absolute filtration safety.
Q2: How do I choose between Polyester (PE) and Polypropylene (PP) microfilter bags for a newly installed liquid filtration vessel?
A2: The choice depends on your fluid operating temperatures and chemical composition. Polypropylene (PP) provides outstanding resistance to aggressive strong caustic bases and acids but is limited to lower temperatures (under 90°C). Polyester (PE) handles high thermal loads continuously up to 135°C–150°C and delivers superior horizontal tensile strength, making it ideal for high-pressure industrial wastewater loops, heavy oils, and steam condensate lines.
Q3: Can your engineering plant manufacture non-standard size filter sleeves or custom drawstring storm drain catch basin filter nets?
A3: Yes, our technical division specializes in custom OEM replacement components. Provide us with your technical PDF/CAD drawings or mail a physical sample sleeve to our facility, and we can replicate the exact collar configurations, length dimensions, micron structures, and lifting accessories to seamlessly fit your legacy filter shells or municipal storm basins.
Q4: What is your standard factory MOQ and typical manufacturing lead time for high-volume B2B wholesale filter bag contracts?
A4: For standard stocking specifications (such as industry-standard Size 1 and Size 2 bags with plastic Sentinel rings), our factory baseline MOQ is 100 pieces per specific micron lot, with production wrapping up within 7 to 10 days. For fully customized lengths, unique overmolded rings, or specialized drawstring configurations, the minimum start sequence begins at 500 units to offset automated welder tooling recalibrations and machinery setup loops.
