Premium Stainless Steel Ferrule Rope Mesh Solutions for Global B2B Projects
Welcome to our industrial-grade Stainless Steel Ferrule Rope Mesh collection, engineered specifically for modern architectural decoration, safety protection, and specialized animal enclosure systems. As a leading manufacturer and exporter in the global B2B building materials sector, we combine advanced cold-drawing wire technology with high-precision seamless ferrule pressing to deliver unmatched structural integrity and visual aesthetics.

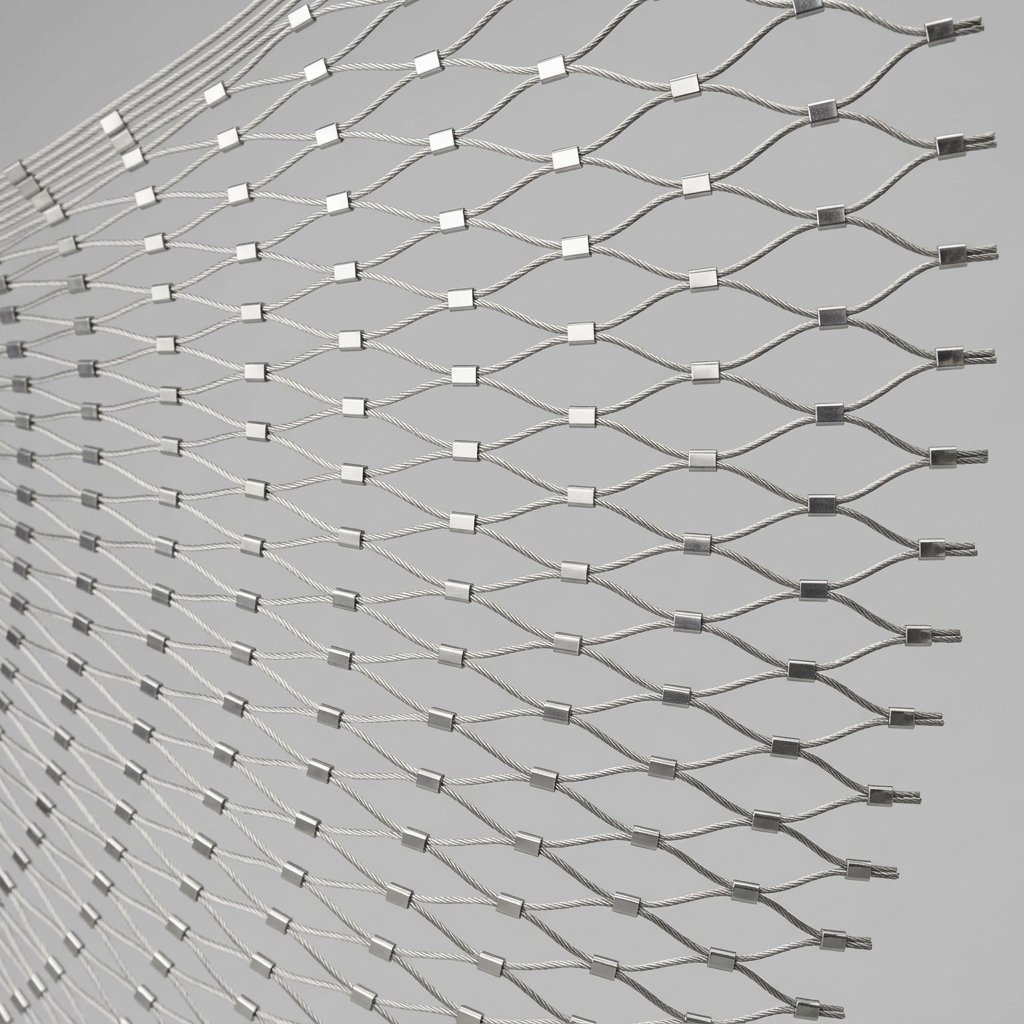

Unlike traditional welded mesh or chain link fences, our ferrule cable mesh features a unique diamond-pattern structure woven from high-tensile stainless steel wire ropes. The intersection points are tightly secured by seamless metal sleeves (ferrules) made of the same premium alloy, forming a robust, flexible, and completely maintenance-free netting system that withstands extreme weather conditions across coastal and industrial environments.
Key Structural Advantages & Engineering Highlights
1. Uncompromised Visibility and Ventilation: The ultra-thin yet high-strength steel wire configuration provides exceptional transparency, ensuring that building facades, bridge safety nets, and zoo exhibits maintain a light, open, and unobstructed visual effect.
2. Superior Corrosion and Weather Resistance: Manufactured using top-tier AISI 304, 304L, 316, or 316L stainless steel, our mesh exhibits supreme resistance to acid rain, UV radiation, salt fog corrosion, and extreme temperature fluctuations, guaranteeing a service life of over 30 years.
3. Exceptional Flexibility and Load-Bearing Capacity: The diamond mesh can be stretched into various geometric angles to fit complex curved surfaces, balustrades, and irregular staircases while absorbing massive dynamic impact loads without permanent deformation.
Our stainless steel ferrule rope mesh has been widely specified in numerous international infrastructure and architectural projects. Common industrial and commercial applications include:
- Architectural Facades & Green Walls: Supporting climbing vegetation while creating striking metallic exterior building skins.
- Fall Prevention & Safety Netting: Protecting stairwells, balconies, bridge sides, and multi-level atrium voids.
- Zoo Enclosures & Aviary Netting: Designing safe, spacious, and natural-looking habitats for birds, large mammals, and primates.
- Balustrade & Railing Infill: Offering a sleek, modern architectural safety barrier for commercial complexes and residential towers.
Technical Specifications Table
| Specification Item | Standard Parameter Options | Customization Range |
|---|---|---|
| Material Grades | AISI 304, AISI 316 | AISI 304L, 316L available on request |
| Wire Rope Diameter | 1.2mm, 1.5mm, 2.0mm, 3.0mm | 1.0mm up to 4.0mm |
| Mesh Aperture Size | 30x30mm, 50x50mm, 100x100mm | Customized from 20mm to 200mm |
| Mesh Angle | Standard 60-degree diamond | Adjustable 30 to 90 degrees |
| Ferrule Type | Seamless Stainless Steel Sleeves | High-precision hydraulic pressed |
| Surface Finish | Pickled and Passivated Clean Surface | Electro-polished or Black Oxidized |
Frequently Asked Questions (FAQ)
Q1: How is the stainless steel ferrule rope mesh installed on-site?
A: The mesh panels are supplied in custom dimensions ready for installation. They can be easily secured to structural steel frames, tubular posts, or concrete boundaries using stainless steel perimeter cables, tension bolts, or specialized wire rope clamps. Our team provides comprehensive installation guides and shop drawings for every project.
Q2: What is the expected service life of the ferrule cable mesh outdoors?
A: When manufactured using marine-grade AISI 316 stainless steel, the mesh offers an exceptional outdoor lifespan exceeding 30 years, even in harsh coastal environments, high-humidity regions, or industrial zones, requiring virtually zero maintenance.
Q3: Can you customize irregular shapes or non-standard dimensions?
A: Yes! As a direct manufacturer, we specialize in custom fabrication. We can produce mesh panels in trapezoidal, triangular, parallelogram, or irregular geometric shapes according to your CAD drawings or precise site dimensions.
Q4: Do you provide product samples for quality evaluation before bulk orders?
A: Absolutely. We offer free material and small mesh samples for international clients to assess our manufacturing quality, rope flexibility, and surface finish. Contact our sales engineering team to request your sample kit today.
Ready to Upgrade Your Next Project? Get a Fast Quote Today!
Looking for factory-direct pricing, custom engineering support, or bulk shipment for your architectural and safety projects?
Partner with us for premium quality control, competitive wholesale rates, and fast global delivery. Our expert technical team is ready to review your blueprints and provide a detailed quotation within 24 hours.
