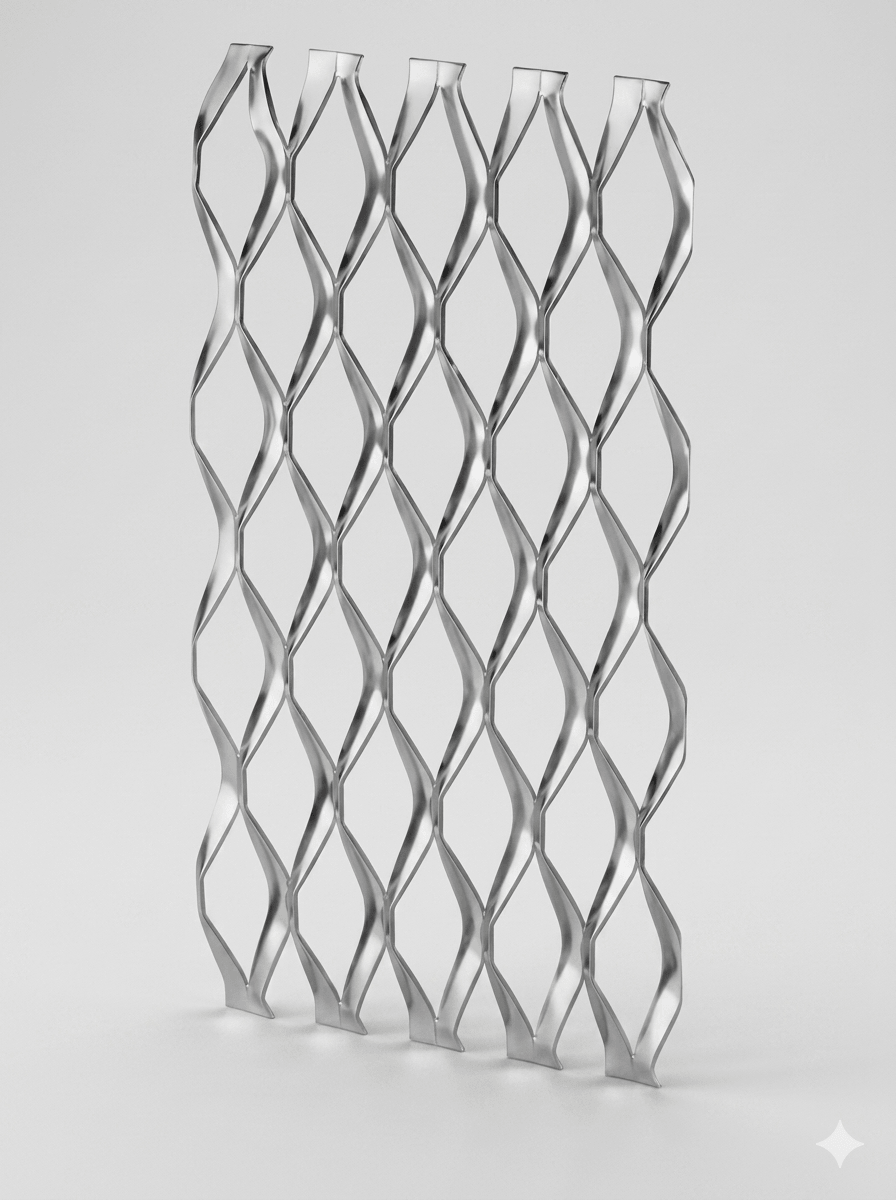

Premium Stainless Steel Expanded Metal Mesh
As a leading B2B manufacturer, we supply high-performance Stainless Steel Expanded Metal Mesh engineered for heavy-duty industrial and architectural applications. Unlike welded or woven wire mesh, expanded metal is a single piece of material with no joints or welds. This unique fabrication process delivers an unparalleled strength-to-weight ratio while maximizing material efficiency with zero manufacturing waste.
Why Choose Our Expanded Stainless Steel Mesh?
Our production line utilizes advanced heavy-duty CNC expanding machines to ensure highly accurate dimensions and edge consistency. Whether you require standard raised mesh for slip-resistant walkways or flattened mesh for sleek architectural facades, our stainless steel expanded metal sheets deliver long-lasting service in the most demanding environments, reducing lifecycle maintenance costs significantly.
Outstanding Product Features
Every batch of our expanded stainless steel sheet undergoes rigorous quality inspection. The critical technical advantages include:
- Extreme Corrosion Resistance: Fabricated from premium SUS 304, 316, or 316L, making it highly resistant to chemical exposure, saline environments, and organic acids.
- Unmatched Structural Strength: The interconnected strands support heavy structural loads, distributing weight evenly across the entire metal panel without unraveling when cut.
- High Open Area Efficiency: Allows excellent light, air, sound, and liquid permeability, making it perfect for ventilation, security screenings, and chemical filtration systems.
- Flexible Surface Finishes: Options include standard raised mesh for superior 3D mechanical grip, or flattened mesh via cold-rolling for a smooth, safe, and aesthetic surface.
Technical Specifications & Sheet Dimensions
To assist your engineering and purchasing decisions, please review our comprehensive industrial specification matrix below. Custom hole sizes, thicknesses, and specialized alloy grades are available upon direct request.
| Parameter Type | Standard Range / Value | Available Options & Customization |
|---|---|---|
| Material Grades | SUS 304, SUS 316, SUS 316L | SUS 321, 430, Duplex Stainless Steel |
| Mesh Pattern Shapes | Diamond (Most Popular) | Hexagonal, Square, Gothic, Micro-mesh |
| Sheet Thickness | 0.5 mm – 6.0 mm | Heavy duty plates up to 8.0 mm thickness |
| Strand Width | 0.8 mm – 8.0 mm | Adjustable based on structural strength requirements |
| Short Way of Opening (SWO) | 2.0 mm – 50 mm | Precision tooling for micro or macro apertures |
| Long Way of Opening (LWO) | 4.0 mm – 100 mm | Engineered to match required ventilation ratio |
| Surface Finishes | Mill Finish, Cleaned & Pickled | Electro-polishing, PVDF, Powder Coating |
| Standard Panel Sizes | 1000x2000mm, 1220x2440mm | Custom roll lengths or cut-to-size square panels |
Industrial & Architectural Applications
Due to its versatile configurations, our stainless steel expanded metal screen excels across several massive global industries:
- Industrial Walkways & Catwalks: The raised diamond texture provides incredible multi-directional mechanical traction, ensuring workforce safety on oil rigs, chemical processing plants, and mining platforms where water, grease, or mud are present.
- Architectural Facades & Cladding: Increasingly specified by top global architects for contemporary commercial buildings. It serves as decorative exterior facades, modern drop ceiling panels, interior room dividers, and durable solar shading curtains.
- Machinery Guards & Security Enclosures: Used to manufacture high-strength security cages, perimeter fencing, infrastructure window guards, and hot turbine enclosures, keeping personnel safely isolated from moving mechanical elements.
- Advanced Filtration & Strainers: Acts as structural support mesh or primary filtration media in wastewater treatment, food and beverage processing, petrochemical refinement, and pharmaceutical sorting equipment.
Global Supply Chain & Industrial Packing
As an experienced global B2B supplier, we minimize international logistics risks through standardized, high-integrity export packaging procedures. For stainless steel expanded metal sheet products, we utilize reinforced steel-banded iron pallets or heavy-duty fumigation-free wooden cases. Each individual panel tier is interleaved with moisture-barrier kraft paper and waterproof PE shrink wraps to effectively isolate coastal humidity and maritime salt spray. This robust configuration guarantees that our products arrive at your warehouse or construction site in absolute mint, ready-to-install condition. We offer optimized container loading diagrams to lower your overall ocean freight costs per metric ton.
Frequently Asked Questions (FAQ)
Q1: What is the technical difference between Raised and Flattened stainless steel expanded mesh?
A1: Raised mesh (or standard expanded metal) is the direct output from the expanding machine. The strands and bonds are set at a uniform angled slant to the plane of the sheet, providing great 3D depth and high slip resistance. Flattened mesh is processed by passing the raised mesh through a heavy-duty cold-rolling mill. This flattens the strands and bonds back down into a single horizontal plane, reducing overall thickness and creating a smooth surface ideal for architectural design and safe handling enclosures.
Q2: Should I select SUS 304 or SUS 316 for industrial expanded metal applications?
A2: SUS 304 is the standard industrial choice, providing excellent atmospheric corrosion resistance and robust structural properties for general manufacturing and urban architecture. However, if your project is located in coastal environments exposed to marine salt spray, or inside chemical processing facilities handling acids, chlorines, and severe industrial solvents, SUS 316 or 316L is highly recommended due to its Molybdenum content which prevents pitting corrosion.
Q3: How do you control camber and flatness tolerance during heavy-duty stretching?
A3: Mechanical stretching introduces inherent material stresses that can cause curling or twisting. To counter this, our facility employs precision automated roller leveling lines post-expanding. We calibrate tension and pressure according to the specific alloy temper and thickness. This ensures our final stainless steel expanded sheets lie exceptionally flat with tight dimensional tolerances, allowing seamless welding and framing on your production line.
Q4: What is your factory’s Minimum Order Quantity (MOQ) and sample policy for B2B buyers?
A4: For standard stock specifications (e.g., standard 304 diamond mesh in common sheet sizes), our MOQ starts as low as 50 sheets. For custom technical apertures or specialized surface treatments, the MOQ usually ranges from 100 to 200 sheets depending on raw coil availability. We provide free-of-charge technical samples (A4 or 30x30cm size blocks) to verified engineering firms and commercial distributors. Courier freight costs can be fully credited back upon the signing of your first full container order.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Stainless Steel Expanded Metal Mesh procurement costs? Partner with us to enjoy premium corrosion-resistant, high-strength, and perfectly flat quality compliant with ASTM A240 / ASTM F1267 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, mesh dimension accuracy, and material grade verification testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty expanding presses and precise sheet flattening/leveling lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade anti-scratch dual packing (protective foam/waterproof paper interlayer + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and panel warping.
