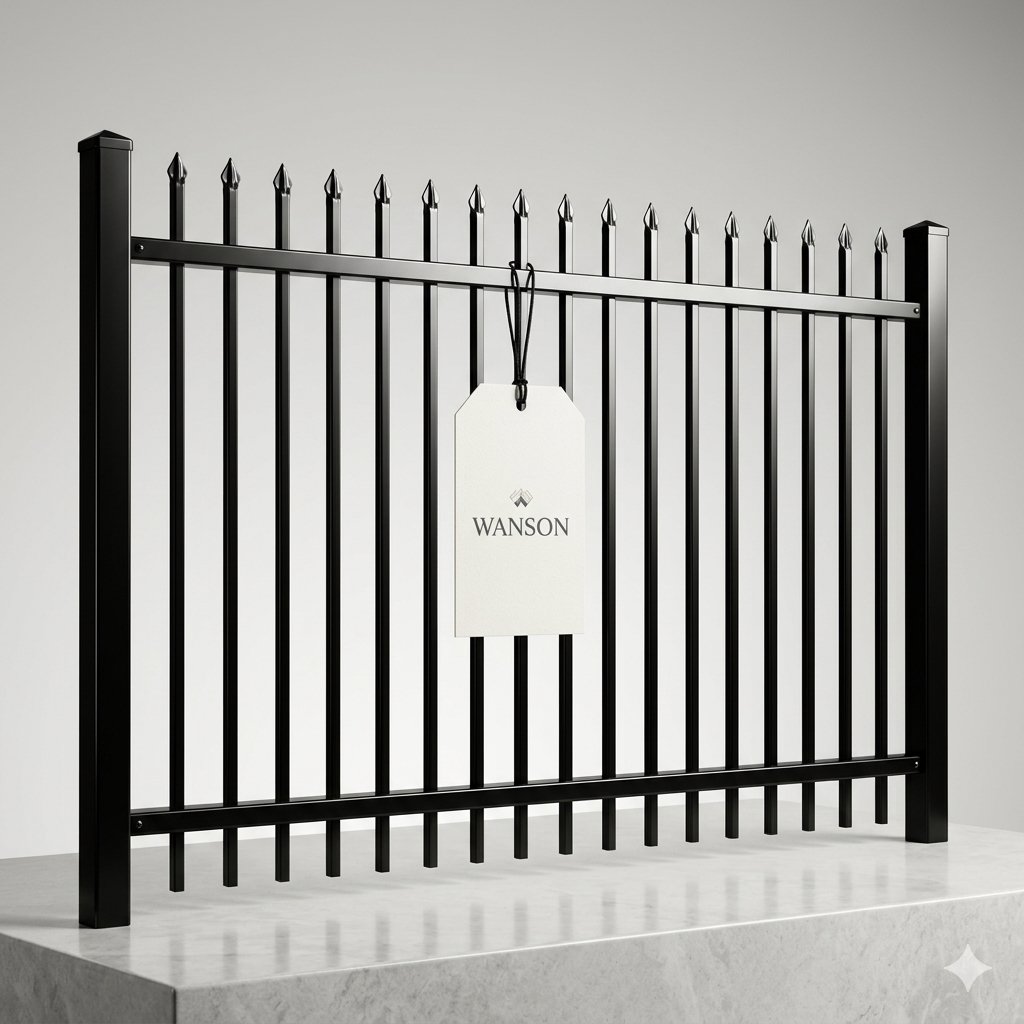

Industrial Grade Spear Top Metal Fence for Commercial Perimeter Protection
The elite spear top metal fence stands as the international benchmark for robust, aesthetically cohesive perimeter protection. Also historically designated across global architectural markets as Garrison fencing or pressed spear steel barrier grids, these panels provide heavy-duty structural security. By passing the upright square pickets completely through the horizontal rails before undergoing advanced automated robotic welding, our engineering matrix creates a rigid frame capable of bearing substantial static and dynamic loads. This eliminates the vulnerability of exposed weld beads and ensures long-term security performance for modern warehouse centers, public utilities, and infrastructure perimeters.
Advanced Technical Merits of Our Spear Top Steel Security Panels
1. Pressed Impenetrable Spear Top Perimeter Fortification
The top of each individual steel picket is mechanically compressed into an aggressive, sharp diamond spear head. This geometric structure serves as a powerful psychological and physical anti-climb deterrent. This high-security design helps shield facility managers from external liabilities and minimizes the risk of unauthorized entry into sensitive zones.
2. AkzoNobel Interpon Multi-Stage Powder Encapsulation
To combat long-term rust issues caused by chemical rain and atmospheric moisture, every panel goes through an exhaustive 6-stage surface preparation line. This includes shot-blasting, hot zinc-phosphate immersion, and an architectural-grade AkzoNobel thermosetting powder finish. This specialized finish withstands up to 3,000 hours of continuous salt spray testing, ensuring it won’t chalk, fade, or blister.
3. Punch-Through Anti-Sagging Engineering Matrix
Unlike low-cost fences where pickets are simply face-welded to the exterior of the cross rails, our heavy-duty horizontal steel tubes are fully punched using precision CNC machines. The vertical pickets slide through the center of the rails and are welded securely inside. This design evenly distributes physical impacts across the entire frame, eliminating panel sagging and preventing structural loosening over time.
Technical Specifications & Architectural Standard Matrices
| Engineering Metric | Standard Commercial Grade | High Security Heavy Duty | B2B Customizable Limits |
|---|---|---|---|
| Panel Size (H x L) | 1800mm x 2400mm (6ft x 8ft) | 2100mm x 2400mm (7ft x 8ft) | Heights available up to 3000mm |
| Vertical Picket Size | 19 mm x 19 mm Square | 25 mm x 25 mm Square | Thickness: 1.0mm to 2.5mm |
| Horizontal Rail Size | 40 mm x 40 mm Punched | 45 mm x 45 mm Punched | 2, 3, or 4 rail designs customizable |
| Picket Spacing (C/C) | 110 mm (Inner gap: ~91mm) | 115 mm (Inner gap: ~90mm) | Compliant with global anti-entrapment codes |
| Post Dimensions | 60 mm x 60 mm Square | 80 mm x 80 mm / 100 mm Square | Wall thickness up to 3.0mm heavy wall |
| Post Base Interlock | Direct Core Drill / In-ground 500mm | Bolt-down Welded Flange Plate | 4-hole anchor pattern heavy gusset plates |
| Coating Specification | Pre-Galvanized (120g/m²) + Powder | Hot-Dipped HDG (300g/m²) + Powder | Fully certified cross-hatch adhesion testing |
Elite Application Environments for Spear Top Metal Fencing
Combining elegant design lines with exceptional structural rigidity, our powder-coated garrison panels are widely specified across a variety of high-profile industries:
- Commercial Logistical Hubs & Industrial Warehouses: Provides reliable perimeter protection for critical logistics centers, preventing cargo theft and asset vandalism.
- Municipal Public Facilities & Educational Campuses: Secures public water works, power substations, and school perimeters while keeping spaces visually open and safe.
- High-End Residential Estates & Secure Subdivisions: Delivers premium perimeter security for master-planned neighborhoods, adding lasting value and architectural appeal.
- Government Administrative Buildings & Data Centers: Delivers a clean, professional appearance that meets strict anti-climb and anti-trespass mandates.
Palletized Transport & Global Export Quality Control
Transporting rigid security fence panels across maritime trade lanes requires specialized packaging management. Our facility follows a strict loading protocol. Every welded metal panel is layered with soft expanded polyethylene (EPE) foam sheeting to prevent friction between powder coatings. Post elements are individual wrapped in high-micron bubble sleeves to prevent scuffing. The entire assembly is then secured onto heavy-duty steel pallet frames with heavy-tension strapping bands. The pallet is wrapped in multi-layer water-resistant stretch film to block moisture during oceanic travel. This structure optimizes container space usage, maximizing packing counts per container and allowing your logistics team to safely unload standard shipments with standard forklifts.
Frequently Asked Questions (FAQ)
Q1: How do you ensure the interior of the square tubular pickets does not rust over time?
A1: We utilize heavy-duty pre-galvanized steel coils to form our structural square tubing. This industrial manufacturing methodology guarantees that the pipes are fully galvanized with a protective zinc layer on the inside and outside before any cutting, punching, or robotic welding occurs. This ensures complete internal corrosion protection that standard painting cannot offer.
Q2: Are the pressed spear top finials safe for installation around public parks or schools?
A2: Yes, our standard vertical picket spacing features a strict 110mm center-to-center layout, which creates an inner gap of roughly 91mm. This dimension satisfies standard child-safety anti-entrapment building codes worldwide. While the top spears provide a strong physical deterrent against adult climbers, they are fully uniform and vertically aligned to prevent accidental clothing snags during normal park activities.
Q3: Can your spear top metal fence panels adapt to sloped or uneven project boundaries?
A3: For sloping terrain, we offer two professional solutions: stepped installation and custom racked panels. Racked panels use specialized internal pinned pivoting joints that allow the pickets to follow the slope of the hill while keeping the upright bars perfectly vertical. Alternatively, our heavy-duty aluminum universal brackets allow for stepped adjustment on post connections, accommodating standard grade changes smoothly.
Q4: What is the wholesale MOQ and do you supply matching gates and security access systems?
A4: Our commercial production line wholesale MOQ is 1x20GP container (approx. 150-200 full panels with posts and mounting hardware). We operate a full architectural fabrication shop and can supply matching single pedestrian swing gates, double vehicle entry gates, and automated cantilever sliding track gates that align with your specified spear-top profile.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Spear Top Metal Fence procurement costs? Partner with us to enjoy premium heavy-duty, anti-intrusion spear top, and elegant ornamental quality compliant with international security, commercial boundary, and residential perimeter protection standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ).
- 100% Free Samples: Quality, steel picket/rail wall thickness, spear press precision, welding/punching strength, and multi-layer powder coating thickness testing samples available for your local architectural landscaping, residential estate, or commercial property fencing project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated tube cutting, precision spear pressing, automated multi-point welding/assembled punch processing, and premium outdoor-grade powder coating lines ensure prompt manufacturing and on-time shipment of your Spear Top Metal Fence.
- Customized Packaging: Marine-grade rust-proof dual packing (protective foam/bubble wrap sheets inside + PE shrink film outside) with heavy-duty reinforced iron or wooden pallets to prevent transit scratching, panel distortion, and picket deformation.
