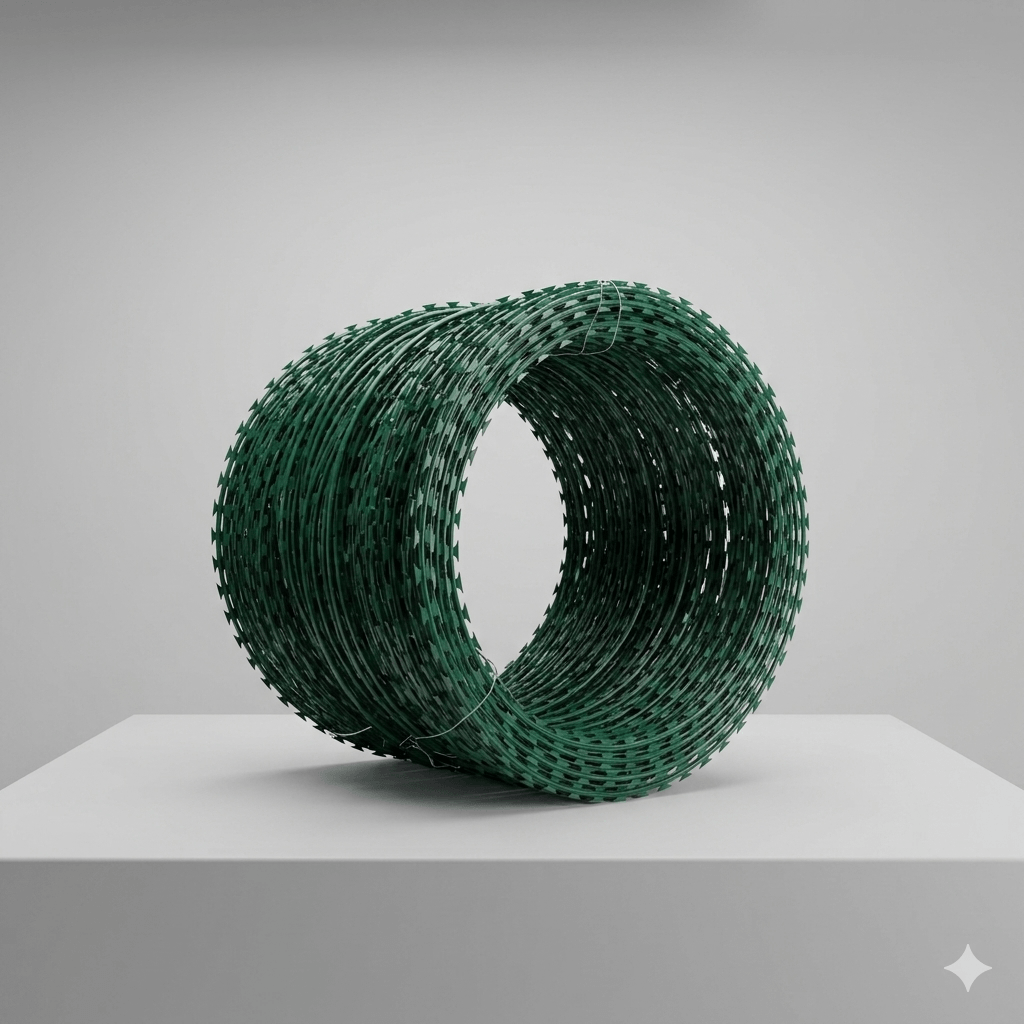

High-Security PVC Coated Concertina Wire: The Ultimate Perimeter Defense Barrier
When it comes to safeguarding highly restricted areas, commercial infrastructures, and international borders, standard fencing options fall short. The PVC Coated Concertina Wire represents the pinnacle of modern physical security engineering. Fabricated by punch-forming sharp steel ribbons onto high-tensile carbon steel core wire, this perimeter barrier is specifically modified with a dense thermal-bonded PVC coating. This unique engineering design delivers unmatched structural deterrence, preventing unauthorized breaches, scaling, or structural vandalism in the most hostile environments worldwide.
Our vinyl-coated concertina coils are structured into a three-dimensional helical configuration. When expanded, the interconnected loops create a formidable, dense mesh tunnel that offers no footholds or handholds. The integration of high-grade plastic polymers ensures that the underlying galvanized metal remains entirely sealed from moisture, industrial pollutants, and intensive UV exposure, preventing premature oxidation and structural failure.
Key Engineering Advantages of Our PVC Concertina Razor Wire
- 1. Superior Core Wire Tensile Strength: The inner wire is processed from cold-drawn high-carbon steel wire, boasting a tensile strength exceeding 1450 N/mm². This prevents clean cutting via standard wire cutters or manual saws, guaranteeing structural integrity under physical load.
- 2. Advanced Thermal Bonding PVC Coating: Unlike inferior liquid-painted wire, our wires undergo an advanced thermal-fusion powder coating process. The PVC layer is minimum 0.5mm thick, flexible enough not to crack during stretching, and highly resistant to impact.
- 3. Severe Weather & UV Resilience: The PVC compounds are chemically blended with specialized anti-UV and anti-aging agents. This ensures that the aesthetic green or black color remains vibrant and does not brittle under desert heat or tropical humidity.
- 4. Robust Multi-Clip Spiral Configuration: By arranging specialized interlocking clips across adjacent loops, the single-coil wire transforms into a rigid, non-deformable mesh wall. It eliminates gaps and maintains an aggressive profile even under external impact.
Technical Specifications & Standard Dimensions
| Specification Profile | Core Wire O.D. (Inner/Outer) | Blade Thickness | Blade Length | Blade Width | Blade Spacing | Standard Coil Diameter |
|---|---|---|---|---|---|---|
| BTO-10 | 2.5mm / 3.5mm | 0.5mm | 10mm (±1) | 13mm (±1) | 26mm (±1) | 450mm – 900mm |
| BTO-12 | 2.5mm / 3.5mm | 0.5mm | 12mm (±1) | 15mm (±1) | 26mm (±1) | 500mm – 960mm |
| BTO-22 (Most Popular) | 2.5mm / 3.5mm | 0.5mm | 22mm (±1) | 15mm (±1) | 34mm (±1) | 450mm – 980mm |
| CBT-60 | 2.5mm / 3.5mm | 0.6mm | 60mm (±2) | 32mm (±1) | 100mm (±2) | 600mm – 1000mm |
| CBT-65 (Heavy Duty) | 2.5mm / 3.5mm | 0.6mm | 65mm (±2) | 21mm (±1) | 101mm (±2) | 700mm – 1200mm |
Primary B2B Application & Project Environments
Our vinyl coated concertina coils are highly specified by global ministries of defense, structural general contractors, and large-scale industrial park developers. The primary installation configurations include:
- Military Grade & Border Lines: Positioned in multiple layered rows directly on the ground or paired with chain link fences to create impassable geopolitical buffer zones.
- Aviation & High-Risk Infrastructure: Mounted via Y-shaped posts on top of airport perimeter walls, electrical substations, and seaport security fences to mitigate terrorist threats and trespassing.
- Penitentiary & Detention Facilities: Integrated into internal yard barriers and external concrete wall crests, providing maximum physical delay and psychological deterrence.
- Agricultural & Industrial Boundaries: The dark green (RAL 6005) finish blends organically into natural landscaping, providing elite security without sacrificing rural aesthetics or causing rusting issues common with plain steel wires.
Industrial Packaging & Global Shipping Logistics
As a leading supplier of physical security wire meshes, we optimize our packaging protocols to lower sea-freight costs and ensure immaculate material arrival. Each concertina coil is tightly compressed mechanically to reduce dead volume. The inner wrap consists of moisture-proof protective paper, while the external shield is sewn with heavy-duty polypropylene woven bags.
For large-scale international B2B contracts, coils can be loaded loose within shipping containers to maximize volume efficiency, or securely mounted onto fumigated wooden/iron pallets wrapped with transparent stretch film. This prevents any scratching of the vital PVC coating during forklift operation, long-distance maritime transit, or multi-port handling.
Frequently Asked Questions (FAQ)
Q1: What are the distinct benefits of choosing PVC coated concertina wire over standard galvanized razor wire?
A: Standard galvanized wires are highly vulnerable to aggressive salty sea breezes, intensive industrial acid rains, or harsh chemical vapors, leading to rusting within 3-5 years. The premium thermal-bonded PVC coating acts as an impenetrable barrier shield that fully isolates oxygen and moisture. This doubles or triples the product lifecycle up to 15+ years while adding color options like forest green to blend seamlessly with surrounding landscapes.
Q2: How does the number of clips per coil affect the security performance of the razor wire fence?
A: Clips determine the density and structural rigidity of the expanded mesh tunnel. A 3-clip setup is standard for lower-height configurations or cost-sensitive projects, expanding into a looser spiral. A 5-clip configuration creates a tightly interlinked, dense diamond-like bellows structure that resists vertical sagging and cannot be easily forced apart by human weight or heavy tools, providing maximum security.
Q3: Can the PVC coating peel off during stretching or during manual installation?
A: Absolutely not when choosing our premium grade. We utilize an advanced thermal-fusion bonding process rather than simple dipping. The PVC formula contains specialized plasticizers that grant elite elasticity. This ensuring that when the razor wire is severely stretched, bent, or twisted by installation teams, the outer plastic matrix flexes synchronously with the inner core without cracking or peeling.
Q4: Do you offer custom color matching and customized B2B bulk branding options?
A: Yes. As an experienced B2B export manufacturer, we offer full customization. Our standard color is Dark Green (RAL 6005), but we can produce Black (RAL 9005), Yellow, or Blue based on project blueprints. We also offer custom B2B packaging, including weather-resistant branding labels, specialized barcode tracking tags, and palletized quantities tailored to your country’s customs regulations.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your industrial PVC Coated Concertina Wire procurement costs? Partner with our ISO-certified facility to secure premium-grade, high-visibility anti-climb razor wire coils and a seamless global supply chain service designed to maximize your perimeter protection and market competitiveness.
- Flexible Tiered Pricing: We offer massive volume-based bulk discounts alongside highly competitive FOB, CIF, and CFR quotes tailored for full container loads (20GP). This rigid cost-control approach is structurally designed to significantly boost your local security fencing distribution margins or commercial re-selling profitability.
- 100% Free Samples: Pre-qualification physical PVC Coated Concertina Wire testing samples can be dispatched immediately to your facility. This allows your project engineering team to complete local laboratory core wire diameter verification, PVC coating adhesion and thickness audits, or rigorous blade sharpness testing before placing a commercial tender order.
- Guaranteed Fast Lead Time: Our infrastructure features advanced automated razor blade punching presses and heavy-duty automatic coil wrapping production lines. Backed by a permanent, massive raw material galvanized steel wire and premium UV-resistant PVC compound inventory, we guarantee prompt manufacturing turnaround and strict adherence to your global deployment schedules.
- Customized Packaging: To thoroughly eliminate shipping vulnerabilities and handling hazards associated with sharp, springy wire coils, we utilize specialized protective packing. The core of the compressed coils is wrapped with waterproof, anti-moisture paper, while the exterior is securely bound in rugged, anti-puncture woven bags or heavy-duty cardboard boxes. This complete armor system guarantees zero rust from salty sea air, zero PVC coating scratches, and maximum safety during long-distance maritime transit and port unloading.
