Flat Wrap Razor Wire: Flat 2D Profile for Space-Saving Perimeter Lockdown
When high-level perimeters require absolute physical pushback but must also comply with strict zoning regulations or urban space limits, Flat Wrap Razor Wire emerges as the premier engineering selection. Unlike traditional three-dimensional helical concertina coils that protrude outward significantly, flat wrap configurations feature a specialized flat, two-dimensional overlapping grid layout. By clipping adjacent wire loops in a staggered planar sequence, the resulting barrier extends in a neat, flush alignment. This flat profile delivers intense anti-climbing protection while staying perfectly within localized site dimensions, making it an exceptional choice for public infrastructure, high-density residential boundaries, and industrial facilities globally.
Why Global B2B Distributors Source Our Flat Wrap Razor Wire
- Zero Volumetric Overlap: Stands perfectly flush against brick walls or wire mesh fencing panels, preventing structural overhang onto public sidewalks or adjacent commercial property boundaries.
- Aggressive Security Scaling: Can utilize multiple blade profiles—including BTO-22 and giant CBT-65 hook matrices—ensuring high physical entanglement risks.
- High-Tensile Structural Inner Core: Engineered around a high-carbon 2.50mm steel wire with an elite tensile rating, completely neutralizing manual cutting attempts with hand shears.
- Aesthetic & Neat Perimeter Visuals: Provides an orderly, uniform appearance that provides heavy psychological deterrence without looking overly chaotic in commercial zoning spaces.
Technical Specifications & Standard Configurations
| Specification Property | Standard Metric Value | Engineering Custom Limits |
|---|---|---|
| Structural Form Factor | Flat Wrap / Two-Dimensional Planar Overlay | Industry Standard Compliance |

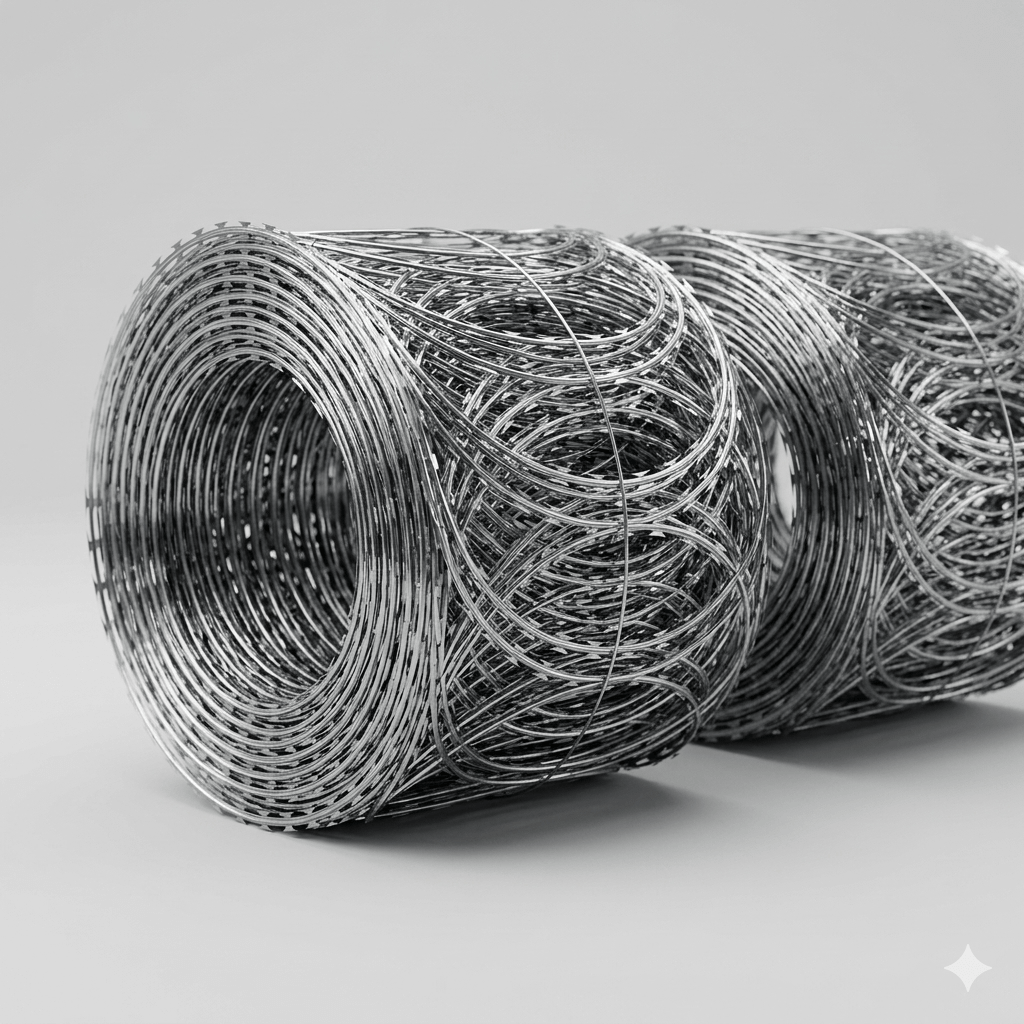

| Available Blade Designs | BTO-10, BTO-22, BTO-30, CBT-60, CBT-65 | Fully Interchangeable |
| Core Wire Diameter | 2.50 mm (High Tensile Spring Carbon Steel) | ± 0.05 mm Precision |
| Blade Structural Thickness | 0.50 mm – 0.60 mm Depending on Model Selection | ± 0.05 mm |
| Flat Coil Height Parameters | 450mm, 500mm, 730mm, 900mm | Tailored to Fence Post Blueprint |
| Standard Roll Length | 10/12/15/18/20 Meters per Expanded Grid Roll | Custom Layout Lengths Allowed |
| Surface Finishing Streams | Hot-Dipped Galvanized / SS304 / SS316 / Powder Coated | Grade Specific Testing Available |
| Clip Configurations | Heavy-Duty Zinc Interlocking Symmetrical Ties | Anti-Tamper Lock Engineering |
Advanced Metallurgical Grades & Flat Profile Architecture
To support critical infrastructure budgets while satisfying diverse geographical climatic stresses, our factory lines implement distinct chemical treatments for our flat wrap razor wire outputs:
- Premium Hot-Dipped Galvanized Coatings: Immersed in molten zinc vats to create a high-purity metallurgical protective layer. Heavy industrial finishes exceeding 240g/m² to 275g/m² are available for long-term corrosion prevention in severe tropical environments.
- Marine-Grade Stainless Steel Alloys (SS304 & SS316): Formulated with a strong chromium-nickel passivation matrix, entirely stopping rust scaling under harsh marine salt mists or proximity to chemical industrial refining plants.
- UV-Stabilized PVC Powder Layering: Applies a localized double polymer envelope over the inner wire, typically in dark green or deep black, blending seamlessly with residential estate landscapes while increasing chemical isolation layers.
Architecturally, the performance mechanics of the Flat Profile Layout depend on precision multi-point staggered positioning. Utilizing automatic mechanical tie-clip clusters, individual loops of razor ribbon are locked into an interlocking vertical matrix. When installer crews anchor the roll onto site pillars or security gates, it creates an uninterrupted anti-climb screen with no outward sag, ensuring that security remains fully functional along narrow boundary passages.
B2B Shipping Efficiency & Loose-Loading Volume Matrix
Managing international ocean container capacities is a vital margin driver for bulk building material importers. The flat, non-protruding geometric nature of flat wrap razor wire delivers incredible volumetric shipping value to your supply chain:
-

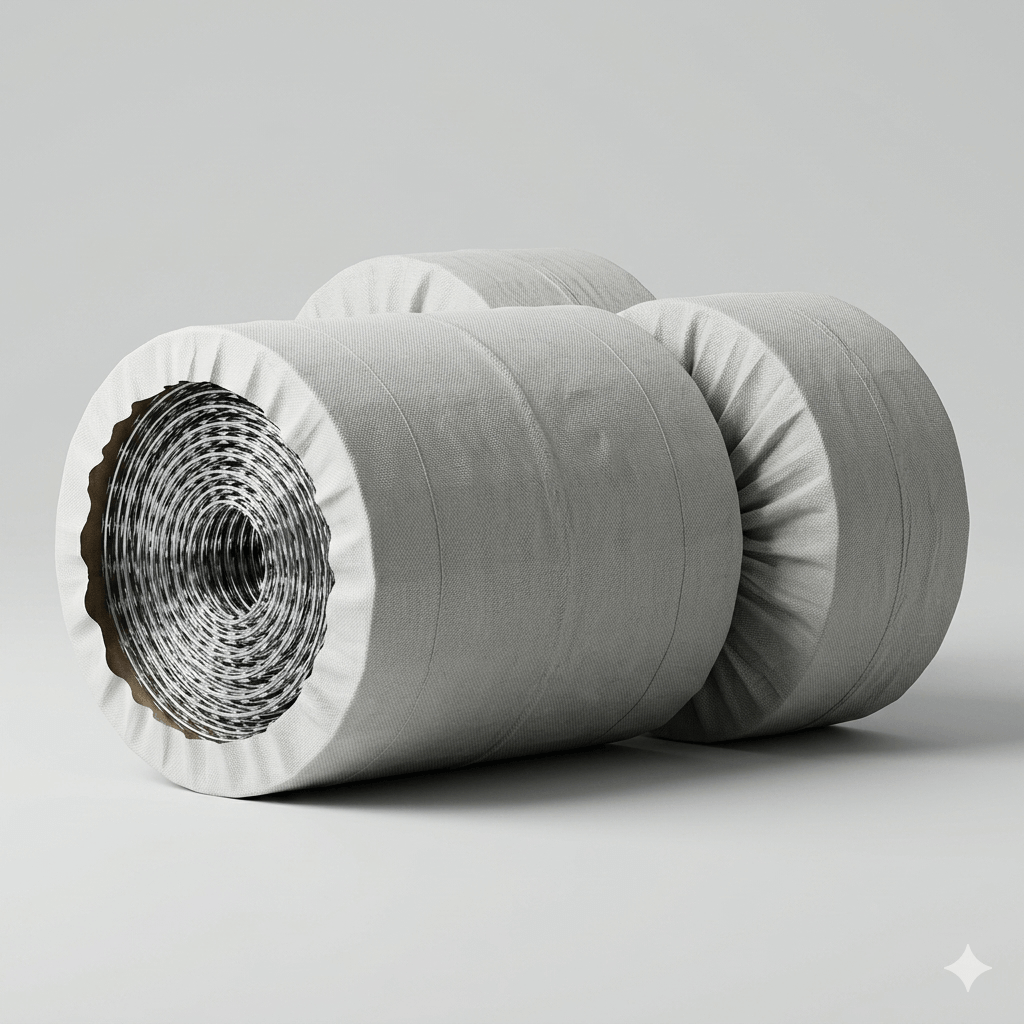

- Extreme Flat Compression Packing: Because flat profile rolls do not form three-dimensional tubes, they can be compressed and layered tightly into incredibly thin discs, reducing volumetric waste inside cargo containers.

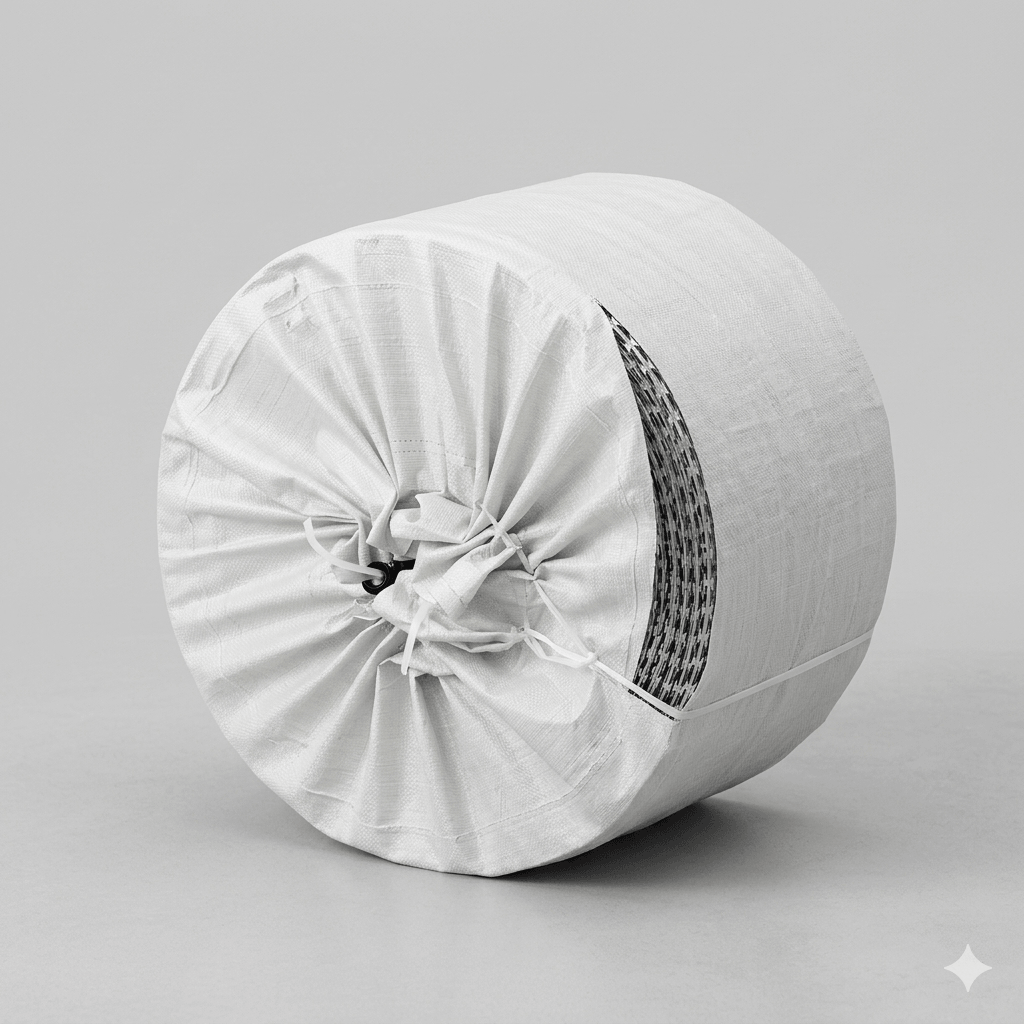

- Dual-Layer Shield Protection: Coils are securely sealed with an interior wrap of waterproof bitumen protective paper, followed by a heavy-duty outer woven plastic shield to protect long-distance transit workers from the sharp blades.
- Maximizing Bulk Shipping Payload Capacity: This flat layout allows our logistics crews to organize highly efficient loose loading schemes, maximizing stacking limits to fit more running meters per container compared to standard concertina models.
Frequently Asked Questions (FAQ)
Q1: What is the primary tactical difference between Flat Wrap Razor Wire and helical Concertina wire varieties?
A: The main difference lies in their installation profile. Helical concertina configurations expand into a large, three-dimensional tubular web that extends outward, which requires extensive boundary width. Flat wrap razor wire expands purely within a flat, two-dimensional plane. It provides high anti-climbing protection without overlapping walkways, making it the standard choice for tight urban perimeters.
Q2: What structures are best suited for mounting flat profile razor wire rolls?
A: Flat wrap wire is highly versatile due to its flush design. It is recommended for installation atop brick or masonry boundary walls, directly onto residential sliding vehicle gates, or as an anti-climb backing layer on standard 3D welded wire panels and commercial chain link frameworks.
Q3: Does your factory supply official Mill Test Certificates (MTC) matching government security tenders?
A: Yes, we provide full transparency for our global B2B procurement partners. Every production run of flat wrap razor wire includes official Mill Test Certificates (MTC). This paperwork verifies the high-tensile core wire strength, steel alloy composition, and precise zinc coating weights required to clear strict state inspections.
Q4: What metrics should our procurement team submit to secure an exact wholesale factory quote?
A: To generate an accurate, high-utility quote, please specify your required blade configuration (e.g., BTO-22 or CBT-65), your target flat roll height (such as 500mm or 900mm), your material stream selection (galvanized or stainless grade), and your estimated container purchase volume.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your industrial Flat Wrap Razor Wire procurement costs? Partner with our ISO-certified facility to secure premium-grade, space-saving neat perimeter security barriers and a seamless global supply chain service designed to maximize your operational reliability and market competitiveness.
- Flexible Tiered Pricing: We offer massive volume-based bulk discounts alongside highly competitive FOB, CIF, and CFR quotes tailored for full container loads (20GP). This rigid cost-control approach is structurally optimized for our flat-profile coils, significantly boosting your local security fencing distribution margins or commercial re-selling profitability.
- 100% Free Samples: Pre-qualification physical Flat Wrap Razor Wire testing samples can be dispatched immediately to your facility. This allows your project engineering team to complete local laboratory blade profile verification, zinc coating density and thickness audits, or rigorous core wire tensile strength testing before placing a commercial tender order.
- Guaranteed Fast Lead Time: Our infrastructure features advanced automated razor blade punching presses and precision flat-profile clipping lines. Backed by a permanent, massive raw material galvanized steel sheet and high-carbon steel wire rod inventory, we guarantee prompt manufacturing turnaround and strict adherence to your global deployment schedules.
- Customized Packaging: To thoroughly eliminate shipping vulnerabilities, manual handling hazards, and coil deformation, we utilize specialized dual-layer protective packing. The interior of the flat-stacked coils is wrapped with waterproof, anti-moisture kraft paper or VCI protective film, while the exterior is securely bound in rugged, anti-puncture woven bags and reinforced with high-density structural wood pallets or heavy steel strapping. This complete armor system guarantees zero rust from salty sea air, zero flat-profile distortion, and maximum safety during long-distance maritime transit and port unloading.
