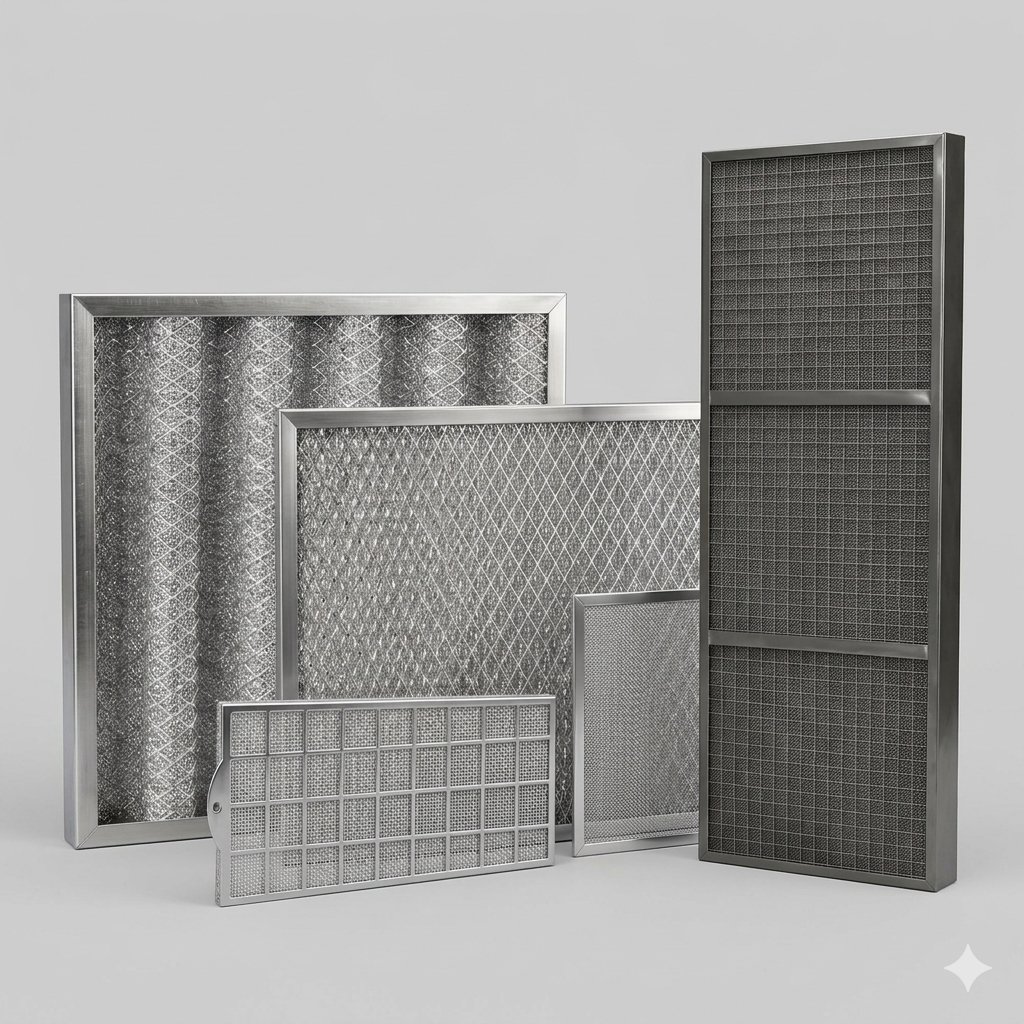

Industrial-Grade Metal Mesh Air Filters & Washable HVAC Cells
Our industrial Metal Mesh Air Filter collection provides heavy-duty mechanical particulate capture and oil mist containment across diverse commercial ventilation applications. Extensively specified as first-stage pre-filters in large-scale air handling networks and exhaust hoods, these metallic panels act as an indestructible barrier against coarse lint, insects, airborne sand, and sticky grease droplets. By utilizing specialized progressive-density mesh layouts, our filters capture significant volumes of dust while maintaining excellent aerodynamics, safeguarding expensive secondary bags and HEPA filters down the line.
As an authoritative global manufacturer of high-velocity environmental ventilation products, we operate automated CNC mesh-expansion and frame-miter presses. This automated production setup guarantees uniform sheet tension, square frames with zero wobble, and smooth edge folds that protect maintenance personnel during replacements. Whether your market involves bidding on public sector HVAC facility maintenance contracts, supplying industrial compressor intake hoods, or distributing restaurant kitchen hardware, our metal air filters provide exceptional operational life, certified fire resistance, and a highly competitive cost-to-volume ratio.
Core Engineering Strengths of Our Metal Air Filters
1. Progressive Multi-Layer Expanded Diamond Matrix
Instead of standard single-layer flat meshes that clog immediately, our filter core stacks up to 9 layers of cross-layered, corrugated expanded metal sheets. The wave patterns are configured out of phase to generate a complex labyrinth that forces airflow vectors to twist rapidly, capturing large particulate masses through momentum impaction.
2. High-Rigidity U-Channel Frame with Corner Miter Locks
Air handling fans generate strong localized suction forces that cause standard filter borders to bend. Our filters are built inside deep U-channel aluminum or galvanized steel frames with riveted mitered corners. This guarantees structural squareness and prevents air bypass loops under heavy static face pressures.
3. Outstanding Thermal Stability & Certified Fire Resistance
Perfect for hot exhaust systems, chemical processing ovens, and engine bays, our all-metal composition provides excellent fire protection. Selecting our premium stainless steel mesh line allows safe, ongoing operation up to 450°C, a threshold where plastic or glass fiber options melt or catch fire.
4. Streamlined Washability & Infinite Lifecycle Operations
When dust loading reaches capacity, the filter panel does not require disposal. Maintenance technicians can wash out dust or grease using high-pressure steam, warm water spray, or chemical cleaning detergents. Once dried, the metallic structure returns to its original low initial resistance rating, eliminating recurring filtration hardware costs.
Technical Specifications & Ordering Matrices
We provide full customizable capabilities to support your target bidding frameworks and regional market demands. Review our standardized architectural specifications below:
| Technical Properties | Standard Aluminum HVAC Series | Heavy Stainless Steel Grease Series |
|---|---|---|
| Core Media Mesh | Multi-layered Pleated Aluminum Foil Mesh | Woven/Expanded SUS 304 or 316 Stainless Steel |
| Frame Architecture | Extruded Aluminum Alloy (1.0mm – 1.5mm) | SUS 304 Stainless Steel Folded U-Channel |
| Filtration Class (EN779) | G2 / G3 Pre-Filter Standard | G4 High Arrestance (Grease & Mist Extraction) |
| Thickness Matrix | 25mm, 45mm, 95mm (Custom Depth Cages) | |
| Initial Pressure Drop | 15 Pa – 30 Pa (Ultra-Low Air Resistance) | 35 Pa – 55 Pa (Optimized for Commercial Exhaust) |
| Final Recommended Resistance | 150 Pa (Wash Cycle Indication Point) | 250 Pa (High Load Saturation Limit) |
| Max Ambient Temperature | ≤ 150°C | ≤ 450°C (Heavy Flame Flash Proof) |
| Face Dimensions | 595x595mm, 295x595mm (Standard HVAC Sizes) | Custom Cut Millimeters to fit Canopy Tracks |
Primary Global HVAC & Industrial Applications
Our heavy-duty washable metal filter panels are specified by ventilation professionals across multiple global sectors:
-
- Commercial HVAC Air Handling Units (AHUs): Installed as primary stage pre-filters inside shopping mall, hospital, and airport duct intakes to remove large dust clusters and safeguard multi-stage pocket filters.
- Commercial Kitchen Canopy Hoods: Functions as a highly effective flame-baffle and grease-extraction grid in industrial cooking spaces, cooling oily air vectors to drop fats safely into oil trays.
- Industrial Spray Booths & Cleanroom Intakes: Placed across paint lines and electronics assembly lines to stop paint overspray droplets and structural fabric fibers from contaminating components.
- Severe Machinery Air Intakes: Assembled over the external intakes of high-capacity air compressors, electrical cabinets, and marine wind turbine rooms to withstand moisture and high debris environments.
B2B Supply Chain Packaging & Maritime Logistics Quality
We tailor our shipping protocols to guarantee that lightweight aluminum and stainless steel panels retain perfect frame lines, smooth mesh structures, and precise sizing through deep-sea shipping:
-
- Corner-Protected Cartoned Stacking: Individual filter units are packed inside rigid corrugated cartons with shock-absorbing foam corner blocks, preventing side-impact crimping during multi-stage rail and sea freight handling.
- Fumigation-Free Packaging Units: Heavy master cartons are stacked flat and strapped firmly onto standard heat-treated or plastic pallets, then sealed inside moisture-proof stretch wrap to protect against marine air corrosion.
- Custom OEM Part Number Stamping: We support complete custom labeling frameworks. We can laser-etch your corporate logo, airflow direction arrows, nominal and exact dimensions, and local barcode listings directly onto frame faces.
Frequently Asked Questions (FAQ)
Q1: How do I select the right number of layer densities for my HVAC air filter?
A1: For standard comfort ventilation networks seeking maximum airflow and minimal motor power consumption, a 3 or 5-layer aluminum configuration is optimal. For highly demanding kitchen hoods or heavy dust environments where maximum particle capture is required, 7 or 9-layer configurations are ideal to maximize internal surface capture.
Q2: Can your aluminum mesh filters withstand strong chemical cleaners or caustics during cleaning?
A2: Pure aluminum will corrode when exposed to highly alkaline degreasers or caustic soda formulas. For harsh commercial kitchen cleaning routines using heavy alkaline baths, we highly recommend upgrading to our full SUS304 stainless steel filter lines, which handle high concentrations of chemical detergents without degrading.
Q3: Do you support non-standard fractional sizing matching older equipment?
A3: Yes, we provide full custom sizing flexibility. Our engineering division creates specialized tooling to manufacture non-standard fractional dimensions down to the exact millimeter, ensuring a tight seal inside older equipment lines without requiring expensive cabinet modifications.
Q4: What is your baseline minimum order quantity (MOQ) for high-volume B2B contract pricing?
A4: For standard global commercial configurations (e.g., 24″x24″x2″ panels), our baseline factory production MOQ is 100 units. For fully customized sizes or specialized stainless steel grades, the minimum sequence starts at 50 units to offset machine setup and custom miter recalibration loops.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your procurement costs? Partner with us for premium Metal Mesh Air Filters featuring heavy-duty, multi-layer, and high-dust-holding capacity quality. We ensure full compliance with international commercial HVAC ventilation systems, kitchen grease hood filtration, and industrial air intake protection standards, backed by seamless global supply chain service.
- Flexible Tiered Pricing: Enjoy massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Test our quality firsthand. We offer premium Metal Mesh Air Filter samples (available in aluminum, galvanized steel, or stainless steel) featuring multi-layered pleated wire mesh structures, sturdy rigid outer frames, low initial resistance, and washable/reusable performance. Perfect for HVAC components distribution, commercial kitchen supply, or industrial air filtration wholesale verification.
- Guaranteed Fast Lead Time: Our advanced high-precision mesh pleating machinery, automated frame crimping systems, progressive stamping lines, and strict airflow/resistance testing equipment ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Prevent transit frame bending, mesh crushing, or structural deformation during long-distance ocean transit. We use customized shock-absorbing honeycomb cardboard inserts, moisture-proof plastic packaging, and heavy-duty corrugated cartons on sturdy pallets.
