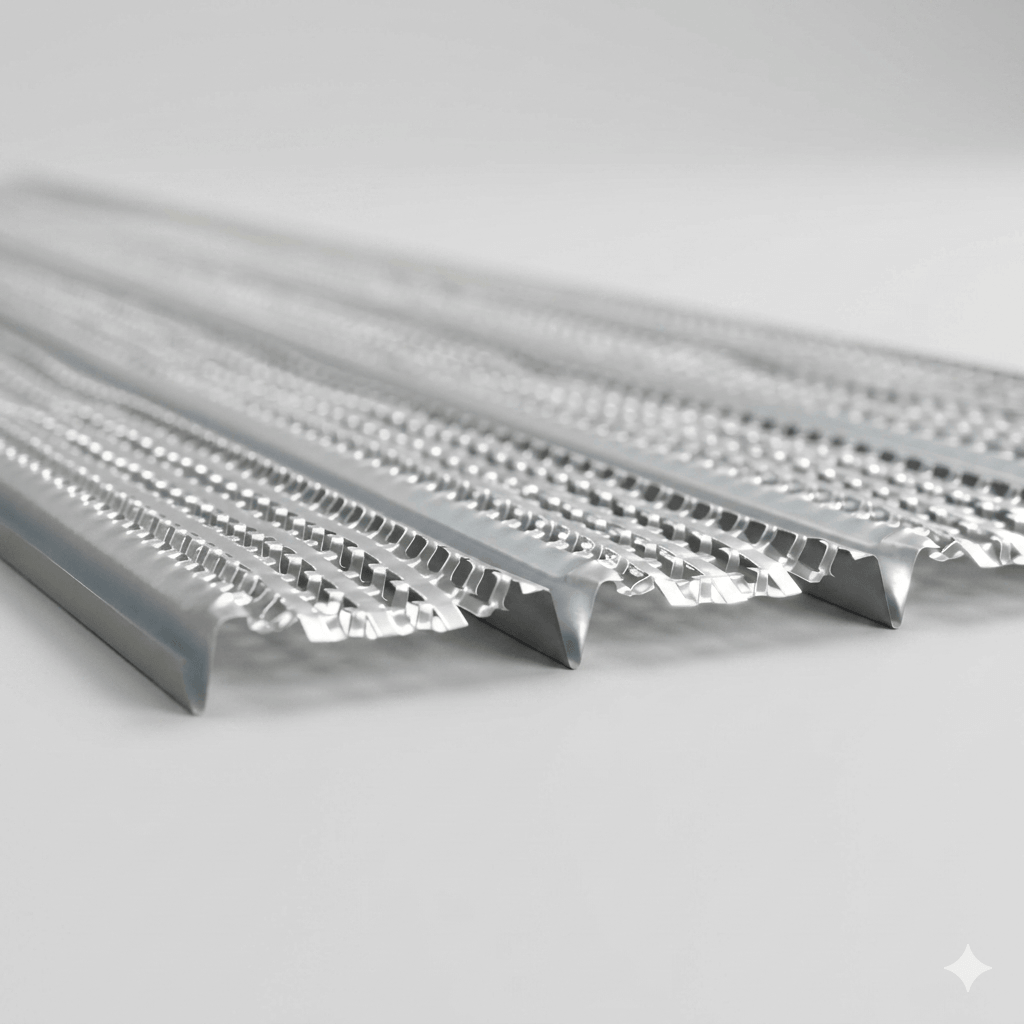

Heavy-Duty Hy-Rib Formwork for Concrete Construction Joints
Our premium Hy-Rib Formwork (also known as high rib lath or permanent mesh formwork) represents the pinnacle of modern B2B construction efficiency. Manufactured from high-tensile hot-dipped galvanized steel, this leave-in-place mesh formwork is specifically precision-engineered for concrete jointing applications where traditional wood or steel shuttering is too labor-intensive or structurally impractical. The open mesh allows concrete milk to bleed through perfectly, forming a highly secure mechanical key for the next pour.
Why Global B2B Buyers Choose Our Hy-Rib Mesh
Unmatched Structural Load Capacity: Equipped with deep 21mm V-ribs spaced at 150mm intervals, our formwork withstands immense hydrostatic pressure from wet concrete.
Massive Project Labor Savings: By completely eliminating the need for stripping, cleaning, oiling, and re-erecting traditional shuttering, on-site labor hours are slashed by up to 60%.
Elimination of Scabbing & Retarders: The rough, keyed surface generated by our mesh eliminates the expensive and hazardous task of chemical retarding, water jetting, or mechanical scabbing.
Advanced Structural Design & Bonding Mechanics
The mechanical excellence of Hy-Rib Formwork lies in its complex geometric profile. When concrete is poured against the mesh, the outer aggregate is retained while the water and fine cement paste bleed through slightly to form a highly textured, rough surface. This surface creates a perfect shear bond that meets or exceeds standard architectural guidelines for monolithic concrete joints.
Whether utilized in continuous foundation mat pours, complex tunnel segments, underwater marine engineering, or nuclear power facility bases, our high rib lath guarantees excellent structural integrity. The steel remains permanently embedded within the concrete matrix, acting as a secondary reinforcement layer that distributes local stresses uniformly across the joint.
Technical Specifications & Dimensions
| Model Code | Sheet Thickness (mm) | Rib Height (mm) | Rib Distance (mm) | Standard Width (mm) | Standard Length (mm) | Zinc Coating (g/m²) |
|---|---|---|---|---|---|---|
| HRF-30 | 0.30 mm | 21 mm | 150 mm | 445 / 450 mm | 2000 – 3000 mm | Z60 – Z275 |
| HRF-35 | 0.35 mm | 21 mm | 150 mm | 445 / 450 mm | 2000 – 3000 mm | Z60 – Z275 |
| HRF-40 | 0.40 mm | 21 mm | 150 mm | 445 / 450 mm | 2000 – 3000 mm | Z60 – Z275 |
| HRF-45 | 0.45 mm | 21 mm | 150 mm | 445 / 450 mm | 2000 – 3000 mm | Z60 – Z275 |
| HRF-50 | 0.50 mm | 21 mm | 150 mm | 445 / 450 mm | 2000 – 3000 mm | Z60 – Z275 |
Primary B2B Construction Applications
- High-Rise Building Foundations: Creates highly secure stop-ends for multi-phase concrete mat pouring in modern skyscrapers.
- Tunnel and Subway Linings: Ideal for cold joints in overhead tunnel segments where installing and removing timber panels is impossible.
- Bridge Abutments & Marine Walls: The dense zinc layer prevents fast oxidation in highly corrosive humid environments before the second pour.
- Nuclear Power Infrastructure: Guarantees structurally sound interlocking concrete structures required for strict nuclear radiation shielding containment.
Global Export Logistics & Packaging Standards
Every single export batch is tightly enveloped in high-density waterproof PE wrapping film to completely shield the steel mesh from sea-spray humidity and premature oxidation during multi-week ocean transport. We offer complete flexible shipping terms including FOB, CIF, CFR, and DDP to main sea hubs worldwide, ensuring safe delivery straight to your regional logistics hubs or direct project job sites.
Frequently Asked Questions (FAQ)
Q1: Can your Hy-Rib Formwork completely replace traditional plywood for heavy concrete structures?
A1: Yes. For construction joints, stop-ends, and bulkhead applications, our permanent high rib mesh replaces timber entirely. It remains in place, which means you skip the entire labor cycle of stripping, cleaning, patching, and storing expensive formwork panels.
Q2: Does leaving the galvanized mesh permanently inside the concrete cause internal corrosion?
A2: Absolutely not. Once the secondary pour is completed, the galvanized steel mesh is completely encased within the alkaline environment of dense concrete. This deprives the steel of oxygen and moisture, entirely eliminating any long-term corrosion concerns for civil structures.
Q3: What thickness should I choose for a deep foundation wall with 1.5-meter concrete pour height?
A3: For high-pressure pours between 1.0m and 1.5m heights, we strongly recommend our 0.40mm or 0.45mm thick sheets. Choosing thicker profiles guarantees the mesh maintains its V-rib geometry under hydro-pressure and minimizes the amount of temporary supportive timber bracing needed behind the mesh.
Q4: What is your factory’s minimum order quantity (MOQ) and production lead time for a 20ft container?
A4: Our standard factory MOQ is 1,000 sheets for custom sizes, while stock profiles have no MOQ constraints. For a full 20-foot GP container (approx. 8,000 to 10,000 sheets depending on weight parameters), our production cycle runs extremely fast, taking only 10 to 15 working days from advanced payment clearance to port delivery.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Hy-Rib Formwork procurement costs? Partner with us to enjoy premium bright, smooth-finish, and perfectly flat quality compliant with international concrete structure and permanent formwork standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples:Quality, dimensional flatness, and rib-rigidity testing samples available for your local construction joint, concrete pouring project, or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated roll-forming and deep-rib profile expanding lines ensure prompt manufacturing and on-time shipment of your Hy-Rib formwork.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage, rib distortion, and sheet bending.
