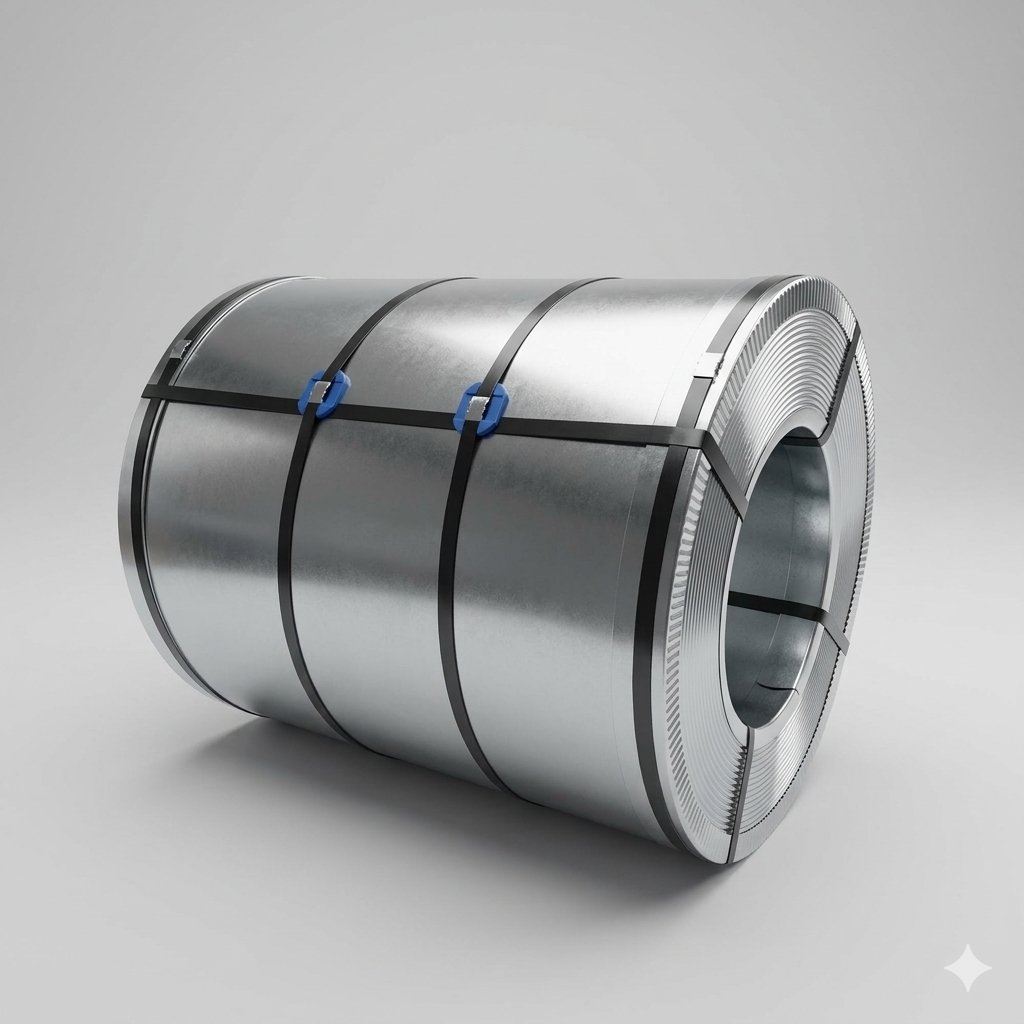

Industrial Hot-Dipped Galvanized Steel Coils & Slit GI Strip Ribbons
Our premium-grade Galvanized steel coil selection represents the absolute metallurgical and mechanical benchmark for high-speed continuous roll forming, automated progressive stamp pressing, HVAC environmental duct fabrication, and structural building profile setups. Configured explicitly to comply with strict international B2B architectural bidding and industrial procurement frameworks, these hot-dipped zinc-coated (GI) steel coils serve as the primary raw material base for multi-stage continuous processing facilities. By converting high-purity carbon steel sheets into dimensionally stable, micro-tolerance steel ribbons, we ensure that your automated decoilers and robotic manufacturing cells run at maximum volumetric efficiencies with zero tracking failures or machinery jam events.
As an authoritative global manufacturer and direct exporter of structural metal products, our manufacturing plant coordinates automated CNC slitting machines, heavy-gauge multi-roller leveling arrays, and continuous annealing lines. This advanced configuration guarantees absolute coil concentricity, uniform wall thicknesses matching strict ANSI and EN schedules, and smooth squared borders that prevent air or liquid bypass errors at joint links down the line. Whether your enterprise handles volume wholesale warehouse distribution across global infrastructural logistics hubs, or procures directly for tier-one roof cladding projects, our GI coil lines provide uncompromised mechanical safety boundaries, strict certification files, and highly competitive cost-to-volume ratio frameworks.
Core Engineering Strengths of Our Galvanized Steel Coils
1. Continuous Hot-Dip Metallurgy for Heavy Sacrificial Rust Prevention
Unlike standard electro-galvanized lines that deposit a micro-thin superficial layer, our steel bands pass through a full-immersion molten zinc bath at 450°C. This creates an interlocking iron-zinc alloy metallurgical shell (available up to Z275). Even if the face is scratched during forming, the surrounding zinc shields the core steel, blocking atmospheric pitting corrosion.
2. High-Precision Slitting Capacity Down to 10mm with Deburred Edges
Standard industrial manufacturers frequently struggle with width inconsistencies that jam progressive stamping dies. Our processing facility employs advanced high-tonnage computerized circular knife slitting lines, maintaining a razor-sharp width tolerance within ±0.05mm. This ensures smooth ribbon tracking inside continuous roll-forming systems.
3. Advanced Anti-Fingerprint (AFP) Resin Cure Coating Technology
To protect aesthetic surfaces and increase corrosion thresholds, our coils are processed with an organic anti-fingerprint acrylic coat. This transparent film prevents oil stains and fingerprint marks from spoiling bare metal faces during manual handling, while providing lubrication to reduce tool wear during stamping.
4. Uniform Elongation and Excellent Cold-Bending Ductility for Profiling
Zinc layer flaking or steel micro-cracking during heavy 90-degree profiling is a common failure mode in sub-standard steels. Our coils are subjected to inline continuous bright annealing loops to optimize mechanical properties, yielding stable elongation rates (≥ 28% for DX51D). This ensures flawless execution in high-speed roll forming machinery.
Technical Specifications & Coil Ordering Configurations
We provide full customizable capabilities to support your target bidding frameworks and regional market demands. Review our standardized architectural specifications below:
| Technical Properties | Commercial GI Strip Specifications | Heavy-Duty Structural Zinc Series |
|---|---|---|
| Base Steel Material | SGCC, DX51D, DX52D, CS Type A/B | S250GD, S350GD, S550GD (High Yield Structural) |
| Thickness Span Range | 0.12 mm – 1.5 mm (Thin Structural Ribbons) | 1.5 mm – 4.0 mm (Heavy Structural Mill Bands) |
| Slitting Width Capacity | 10 mm – 600 mm (Custom Slit Narrow Bands) | 600 mm – 1500 mm (Standard Wide Master Coils) |
| Zinc Coating Mass Range | Z40 – Z120 (40g/m² to 120g/m² Light Protection) | Z180 – Z275 (≥ 275g/m² Heavy Coastal Protection) |
| Surface Spangle Structure | Regular Spangle / Minimized Spangle | Zero Spangle (Flawless Smooth Passivated Surface) |
| Surface Chemical Finish | Chromated Passivation, Light Anti-Rust Oiled | Anti-Fingerprint (AFP Chrome-Free Acrylic Seal) |
| Coil Inner Diameter (ID) | 508 mm (Standard Trade Interlock) | 508 mm / 610 mm (Heavy Stamping Decoiler Core) |
| Thickness Tolerances | ±0.02 mm (Precision Slit Control) | Compliant with ASTM A924 / EN 10143 Frameworks |
Primary Global Structural & Roll-Forming Applications
Our structural galvanized steel coils operate as primary material feeding inputs specified by industrial factory lines and parts fabricators across massive global sectors:
- Light Gauge Steel Framing & Drywall Profiles: Fed natively into high-speed roll forming networks to continually shape construction C/Z purlins, partition drywall studs, and suspended ceiling grid tracks.
- HVAC Ventilation Ducts & Air Management Systems: Formed inside spiral or rectangular sheet duct folders to construct climate-control ducting loops, exhaust channels, and fan housings for modern high-rises.
- Cable Trays & Industrial Distribution Brackets: Slit down into precise structural bands to shape heavy perforated electrical cable trays, junction enclosures, and grounding strap arrays for infrastructure installations.
- Automotive & Appliance Stamping Closures: Sourced in commercial qualities to stamp internal computer chassis frames, vehicle door lock reinforcement backing brackets, wash machine rear panel housings, and agricultural bin structures.
B2B Bulk Supply Chain Quality Control & Ocean Freight Logistics
We tailor our shipping packaging protocols to securely transport high-tonnage concentrated steel payloads while insulating active coil faces from marine moisture white-rust degradation and high-impact transit movement:
- Versatile Eye-to-Sky and Eye-to-Wall Stacking Options: To perfectly match your regional port unloading machinery and warehouse decoiler constraints, we offer standard horizontal (Eye-to-Wall) cradle strapping or vertical (Eye-to-Sky) pallet layouts mounted on extra-thick, heat-treated timber structures.
- Full Enclosure Moisture-Proof Anti-Rust Wrapping: Coils are fully sealed inside heavy water-repellent asphaltic kraft paper covers, wrapped with high-density polymer stretch films, and packed with active desiccant blocks to stop sea salt-vapor condensation inside container channels.
- High-Security Container Shoring and Wire Choking: Our specialized shipping crew blocks and ties down steel coil bundles inside 20ft dry containers using reinforced timber chocks, heavy turnbuckles, and industrial steel wire rope systems, fully eliminating shifting slippage and avoiding port customs delay penalties.
Frequently Asked Questions (FAQ)
Q1: What are the distinct performance differences between Regular Spangle, Minimized Spangle, and Zero Spangle galvanized coatings?
A1: Spangle patterns represent the grain crystallization formations that occur as hot-dipped zinc cools on a moving steel band. Regular spangles show a classic visible snowflake-like pattern, optimal for unexposed structural purlins, HVAC ductings, and outdoor cable trays. Zero spangle is achieved by suppressing lead additives or applying high-speed air quenching on the production line, yielding a perfectly flat, matte-zinc profile. This flat finish prevents the pattern from telegraphing through outer layers, making it ideal for color-coated prepainted sheet bases, home appliances, and architectural trim facades requiring post-production spray painting.
Q2: What causes “White Rust” storage stain defects on galvanized coils, and how does your factory mitigate it during shipping?
A2: White rust (zinc hydroxide) occurs when tightly wound galvanized layers trap ambient moisture or marine condensation without adequate airflow, triggering galvanic oxidation of the protective zinc cladding. To prevent this, our production line passes every coil through an automated trivalent chromate passivation or acrylic sealer matrix chamber. This creates a chemical shield that resists water droplets. We then seal each coil package in moisture-barrier paper with active desiccant blocks prior to ocean transit.
Q3: How do I choose between commercial quality (DX51D) and structural grade (S350GD) GI coils for a roll forming line?
A3: During heavy mechanical cold-drawing or longitudinal thermal welding operations, the internal chrome-carbide components can precipitate along metal boundaries, causing crystal strain hardening and increasing the risk of stress corrosion cracking. Solid solution annealing heats the finished metal cylinders up to 1050°C–1150°C followed by a rapid water or air quench. This dissolves chromium carbide compounds back into the austenitic structure, optimizing ductility and chemical anti-pitting longevity.
Q4: What is your standard factory minimum order volume (MOQ) and delivery lead time for custom beveled pipes?
A4: The choice depends on the structural mechanical loads of your finished products. DX51D is an industry-standard commercial quality grade with excellent bending properties, perfect for general utility channels, drywall ceiling drag rails, and light stamping parts. S350GD is a high-yield structural grade engineered with a minimum yield strength of 350 MPa. It is optimal for heavy warehouse racks, multi-tier solar racking structures, and solar panel framing grids that manage high structural or wind loads without buckling.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your procurement costs? Partner with us for premium Galvanized Steel Coils featuring heavy-duty, high-precision, and superior corrosion-resistant quality [📈]. We ensure full compliance with international roofing sheet corrugation, structural purlin roll-forming, automotive body stamping, and HVAC ductwork fabrication standards, backed by seamless global supply chain service.
- Flexible Tiered Pricing: Enjoy massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Test our quality firsthand. We offer premium Galvanized Steel Coil samples (available in DX51D, SGCC, CS Type, etc.) featuring precise slit widths, uniform zinc coating thicknesses (Z30–Z275g/m²), flawless spangle conditions (regular, minimized, or zero spangle), and protective surface treatments (chromated, oiled, or anti-fingerprint). Perfect for local steel service centers, roll-forming factories, or industrial manufacturing wholesale verification.
- Guaranteed Fast Lead Time: Our advanced high-capacity continuous hot-dip galvanizing lines, high-precision automated CNC slitting machinery, heavy-duty tension levelers, and automated high-speed recoiling systems ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Prevent coil telescoping, edge denting, white rust (oxidation), or surface scratching during long-distance ocean transit. We use heavy-duty eye-to-sky or eye-to-wall wooden pallets, waterproof kraft paper wraps, VCI anti-rust films, robust steel edge protectors, and high-tensile steel strapping bands.
