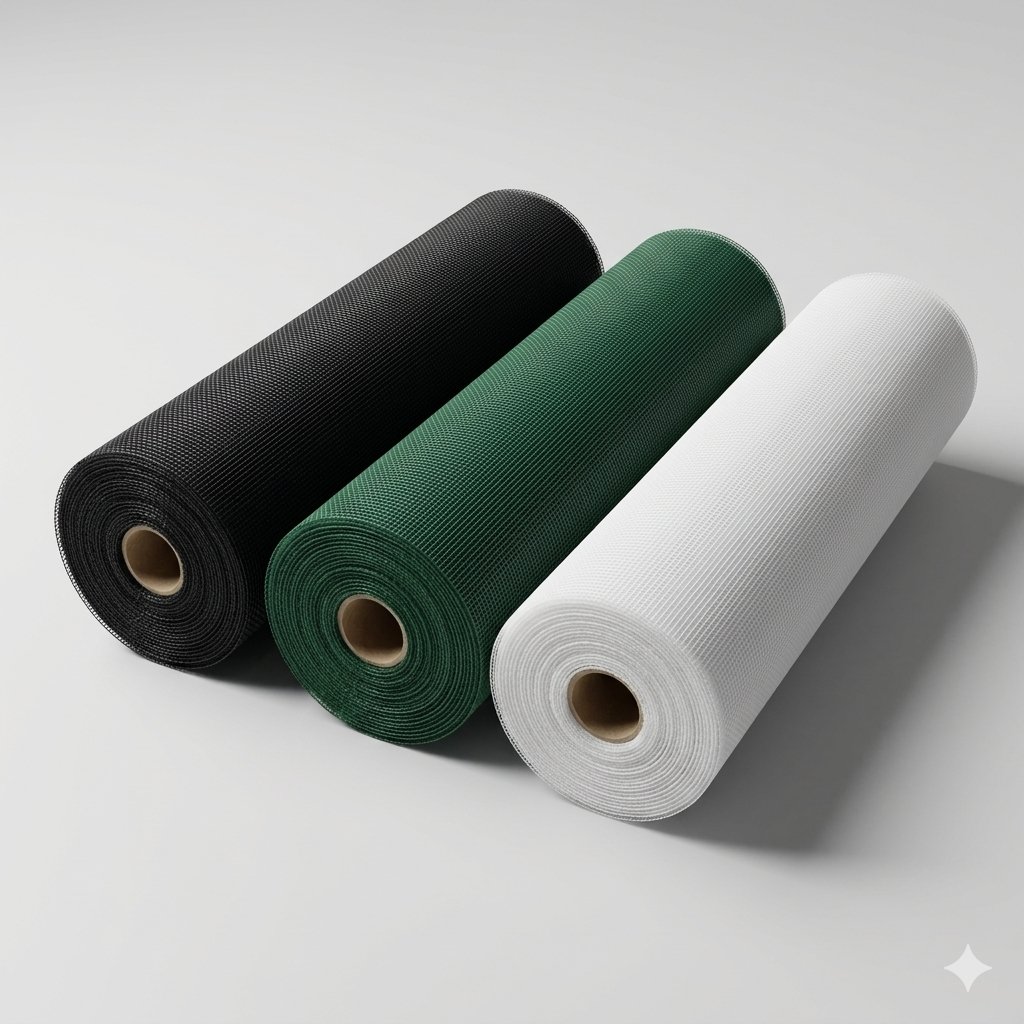

Wholesale Fiberglass Window Screen Roll for Residential and Commercial Projects
As a leading global B2B manufacturer specializing in high-performance structural composite weaves and technical building barriers, we present our premier range of Fiberglass Window Screen Rolls. Specifically engineered to meet rigorous international construction and retail standards, these high-tensile fiberglass insect meshes provide exceptional grid accuracy and zero-sag performance. For regional building material wholesalers, door and window fabrication lines, and home improvement retail suppliers, our bulk mesh rolls provide a market-proven solution that drives high volume and strong margins.
Key Engineering Advantages & Technical Strengths
- Advanced Weatherproof Co-polymer Extrusion: Prior to weaving, each individual glass fiber core filament is uniformly coated with chemical-grade PVC compound. This creates an airtight barrier that insulates the core substrate from chemical degradation, UV chalking, and acidic atmospheric exposure. It prevents the premature graying and fiber shedding common in unrated retail screen cloth.
- High-Temperature Thermal Lock Matrix: Fully woven meshes pass through a continuous, digitally controlled heat-setting tunnel. This thermal process fuses the warp and weft polymer casings directly at their geometric intersections, providing uniform grid structural rigidity. Fabricators and window frame technicians can shear the mesh at any dynamic angle without loose thread shedding or grid expansion.
- Lay-Flat Flexibility & Premium Invisible Clarity: Engineered with zero crease memory, our screening rolls out completely flat for smooth installation. The classic charcoal black color absorbs scattered outdoor light rays instead of reflecting glare. This gives a highly transparent, nearly invisible visual profile that coordinates perfectly with modern architectural facades.
The flexible structural framework of our wholesale fly screen roll enables seamless integration into residential sliding patio screen doors, traditional wood window casings, modern aluminum track splines, and commercial retractable screen cassettes. With stable multi-filament alignment parameters, it resists deformation during regular high-frequency cleaning, allowing property owners to easily wash away dust and debris without tearing the screen fabric.
Technical Specifications & Project Dimension Sizing Matrix
| Mesh Specification Configuration | Yarn / Wire Diameter (mm) | Theoretical Aperture Size (mm) | Aesthetic Finishes & Primary Application Profile |
|---|---|---|---|
| 18 × 16 Mesh (Global Standard) | 0.28 mm (±0.01mm Tolerance) | 1.20 mm x 1.38 mm Square | Charcoal Black, Grey, White / Residential Windows & Screen Doors |
| 16 × 16 Mesh (High Airflow) | 0.28 mm / 0.30 mm | 1.31 mm x 1.31 mm | Charcoal, Anthracite Grey / High-Ventilation Porch & Patio Framing |
| 20 × 20 Mesh (Micro Fly Screen) | 0.25 mm / 0.28 mm | 0.99 mm x 0.99 mm Fine Pore | Transparent White, Charcoal / Excludes Tiny Midges & Thrips |
| Core Base Composition | 65% Non-combustible Glass Fiber Core | 35% Weather-Resistant Polyvinyl Chloride (PVC) Sheathing Film | REACH & RoHS Compliant Formulation Standards Enforced |
| Available Dimension Roll | Widths: 24″, 30″, 36″, 48″, 60″, 72″, 84″ (Metric up to 3.0m) | Lengths: 100ft (30.48m) / 50m Standard; 300m Jumbo Rolls | Custom inline slit cuts and specialized core packaging available |
Precision Filament Coating Automation & Structural Quality Controls
To supply global B2B procurement networks with consistent screen reliability, our manufacturing plant operates dedicated, highly automated cleanroom weaving lines. Production begins with continuous glass fiber filaments drawn down through automated temperature-controlled bushings before inline polymer coating application. The raw yarns then feed into digital weaving looms that interlock threads under constant computerized brakes, eliminating edge waving and traditional loop sagging across the entire roll width.
Quality testing follows strict batch-validation protocols. Roll samples are regularly inspected under high-magnification digital micro-analyzers to confirm mesh counts and aperture uniformity. Our technicians run regular tensile strain assessments and accelerated UV-chamber weathering cycles on every production lot. This guarantees that our fly screen rolls retain their high burst strength and chemical stability before final export shipment approval.
Waterproof Export Packaging & Volumetric Ocean Freight Optimization
Frequently Asked Questions (FAQ)
Q1: What is your standard wholesale MOQ and production lead time for fiberglass screen rolls?
A1: For our in-stock catalog configurations (such as standard 18×16 mesh charcoal rolls in 1.0m/1.2m widths), the minimum wholesale order quantity is 50 rolls. For non-standard roll widths, custom grid densities (like 20×20 micro screens), or specialized short retail lengths, our MOQ is 150 rolls per individual specification. Standard full container orders clear manufacturing within 20 to 30 days.
Q2: What are the primary commercial market advantages of fiberglass screen mesh over nylon or metal screens?
A2: Fiberglass insect screening delivers the optimal balance of performance and economy for large-scale construction builds. While metal options offer rugged impact resistance, fiberglass is fully rust-proof, lightweight, and completely immune to denting or creasing. Additionally, compared to simple extruded plastic or nylon meshes, fiberglass features far superior dimensional stability under temperature swings, resisting the thermal sag and shrinkage common in unrated polymer netting.
Q3: Will the mesh grid stretch out of shape, crease, or distort when fabricators secure it into screen tracks?
A3: No. Because our production lines utilize a computerized thermal-setting process to lock wire cross-points, the warp and weft intersections are held tightly under mechanical friction. Screen door assembly teams can fold, stretch, and roll the mesh firmly into channel grooves using standard spline tools without creating local stretch pockets, diagonal distortion, or mesh line waviness.
Q4: Do you offer specialized inline narrow slitting and private-label graphics packaging for retail building centers?
A4: Yes, absolutely. We work as a contract OEM/ODM partner for major international DIY hardware brands and distribution lines. We can manufacture specialized retail roll lengths (such as short 10m/25m rolls), tuck custom-printed color catalog branding cards under the clear shrink film, print corporate graphics on outer boxes, and format localized barcoding to match your warehouse automation systems.
Get Factory-Direct Wholesale Price & Free Samples
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Quality, mesh density accuracy (standard 18×16, 17×15 etc.), weight per square meter (g/m²), PVC coating uniformity, tensile strength, and color fastness testing samples available for your local window and door manufacturing, hardware distribution, or building material supply verification.
- Guaranteed Fast Lead Time: Advanced automated fiberglass filament drawing, high-speed mesh weaving looms, precision heat-setting stabilization, and automated slitting/rewinding machinery ensure prompt manufacturing and on-time shipment of your Fiberglass Window Screen Roll orders.
- Customized Packaging: Marine-grade moisture-proof and puncture-resistant dual packing with heavy-duty hard paper inner tubes, protective PE plastic shrink wrap, and reinforced corrugated export cartons stacked on rugged wooden pallets to prevent transit roll crushing, edge distortion, and mesh deformation during long-distance ocean transit.
