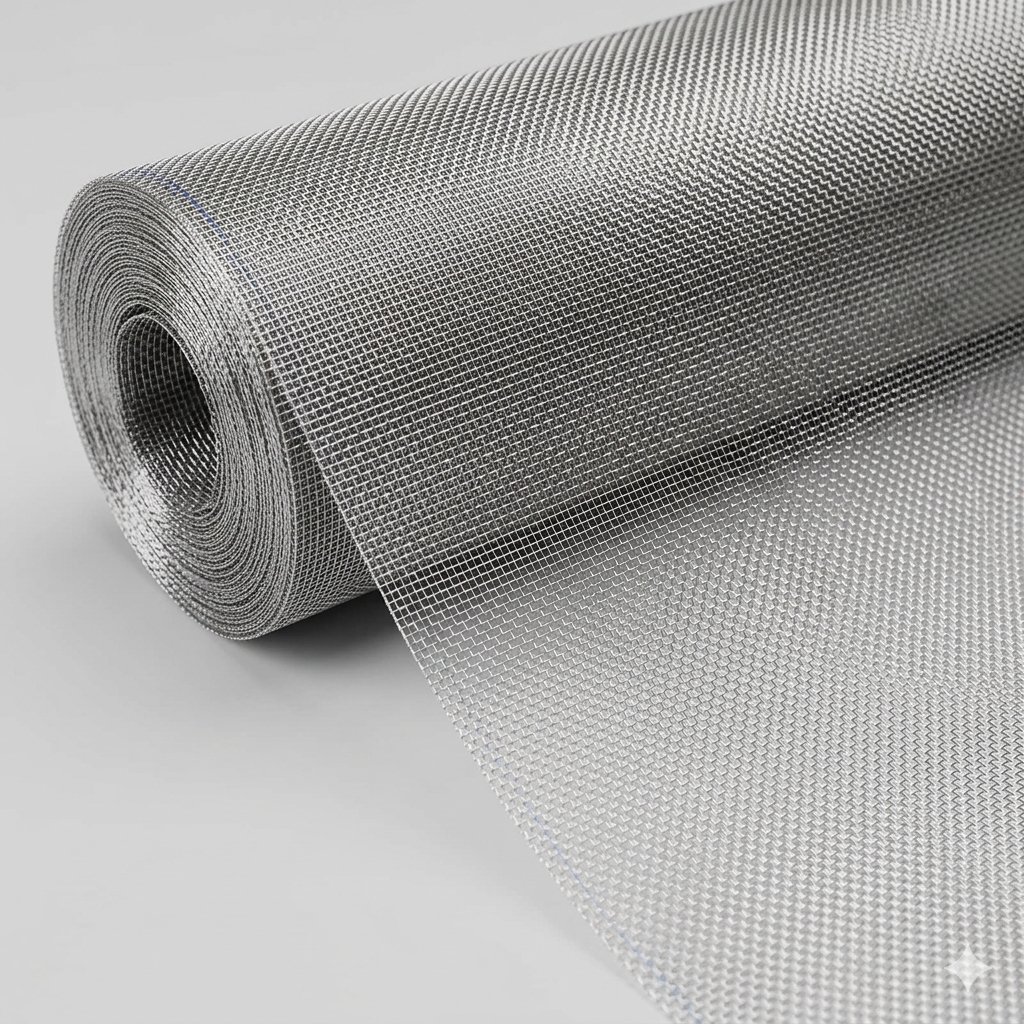

Industrial-Grade Stainless Steel Mosquito Mesh for Security Doors and Window Systems
As a leading global B2B manufacturer specializing in high-security wire weaving and architectural screening solutions, we deliver uncompromised quality with our premium Stainless Steel Mosquito Mesh range. Manufactured to exceed worldwide building codes and high-end residential requirements, these stainless steel insect screens offer durability and structural alignment. For window screen wholesalers, door manufacturing lines, and commercial real estate contractors, our metal fly screens provide a reliable upgrade that satisfies demanding project briefs.
Key Engineering Advantages & Material Performance
- High-Definition Vision & Insect Blocking: Our production line utilizes specialized optical alignment looms. The warp and weft stainless wires are crossed with continuous tension parameters, producing a highly precise grid that blocks small mosquitoes and gnats while maintaining a high open-air area for transparent visibility and room ventilation.
- Claw-Proof & Anti-Rodent Security: Unlike standard nylon or fiberglass meshes that tear easily, our high-tensile stainless steel insect screen handles sharp impact and persistent chewing. This makes it an ideal option for households with active pets, preventing screen tear-outs and offering an added level of security.
- AkzoNobel Anti-Corrosion Thermal Coating: Every roll is processed through an automated electrostatic powder-coating line using premium outdoor epoxy resins. Cured at 200°C, this matte finish protects the metal substrate from intense UV damage and coastal salt air, passing strict chemical salt spray test tracking without paint blistering.
The balanced rigidity of our ss fly screen roll ensures smooth alignment during assembly into aluminum window frame tracks, sliding screen patios, swing security doors, or retractable cassette setups. The mesh handles neat structural shearing without loose edge unraveling or wire shedding, which minimizes processing waste for manufacturing crews.
Technical Specifications & Standard Ordering Dimensions
| Mesh Specification | Wire Diameter Range (mm) | Aperture Width (mm) | Surface Finishes & Ventilation Rate |
|---|---|---|---|
| 18 × 16 Mesh | 0.18 mm / 0.21 mm | 1.23 mm x 1.41 mm | Matte Charcoal Black / Anthracite Grey (61% Airflow) |
| 14 × 14 Mesh | 0.23 mm / 0.25 mm (Thick Wire) | 1.58 mm x 1.58 mm | Epoxy Coated Finish / Extra Security Structural Strength |
| 20 × 20 Mesh | 0.15 mm / 0.18 mm | 1.12 mm x 1.12 mm | Bright Natural Polish / Blocks Ultra-Small Midges & Thrips |
| Base Steel Metallurgy | SS304 Premium / SS316 Marine Grade | Traceable chemical heat tracking profiles verified | High-tensile wire processing line elongation standards |
| Available Roll Widths | 0.8m, 1.0m, 1.2m, 1.5m (In-Stock) | Ultra-wide profiles up to 3.0m customized | Standard Coiled Length: 30m (100ft) tight core tube packaging |
Automated Weaving Cleanrooms & Precision Film Quality Testing
To supply global B2B procurement networks with steady, uniform screen quality, our factory operates advanced automated cleanroom weaving lines. Production begins with high-purity stainless steel wires processed through continuous diamond dies to match tight wire diameter parameters. The wires feed into computerized rapier weaving systems that apply precise mechanical tension adjustments, which eliminates edge waving and structural distortion across the entire roll length.
Premium Packaging & Volumetric Ocean Freight Optimization
Frequently Asked Questions (FAQ)
Q1: What is your standard batch MOQ and manufacturing lead time for stainless steel fly screen rolls?
A1: For our in-stock catalog configurations (such as standard 18×16 mesh rolls in 1.0m or 1.2m widths in classic black), the minimum wholesale order quantity is 20 rolls. For non-standard widths, custom alloy requests (like SS316L), or specialized roll length conversions, our MOQ is 100 rolls per individual specification. Standard container orders clear production within 20 to 30 days.
Q2: How does the corrosion lifespan of SS304 compare against marine-grade SS316 mesh in humid coastal markets?
A2: Standard SS304 with an epoxy coating provides reliable performance in dry or low-salinity inland environments. However, for properties located near marine coastlines, high-humidity salt corridors, or industrial zones, we highly recommend marine-grade SS316/SS316L mesh. The addition of Molybdenum in SS316 significantly increases resistance to localized pitting and crevice corrosion under harsh ambient environments.
Q3: Can this wire screen truly withstand persistent scratching from large domestic dogs or cats?
A3: Yes, absolutely. Our high-tensile stainless steel mesh is specifically engineered as a pet-safe, claw-proof screening solution. The mechanical properties of our structural alloy wire handle claws well, ensuring the mesh rows will not slip out of spec, sag, or puncture under heavy household use.
Q4: Do you offer precise inline narrow slitting and private-label packaging options for door and window manufacturers?
A4: Yes, we operate a fully integrated finishing shop. We can precise-slit wide master rolls into custom narrow widths to fit your manufacturing tracks. We also support OEM branding options, including private-label logo insertion inside the outer protective shrink wrap and custom-printed shipping cartons with localized UPC barcodes to streamline your inventory management.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Stainless Steel Mosquito Mesh procurement costs? Partner with us to enjoy premium heavy-duty, rust-resistant, and high-visibility quality compliant with international residential building, insect prevention, and architectural window screening standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ) to maximize your inventory budget.
- 100% Free Samples: Quality, wire gauge accuracy (mesh size, aperture width & wire diameter), surface flatness, anti-shear strength, and material grade chemical composition (SUS 304/316) testing samples available for your local window and door manufacturing, hardware distribution, or building material supply verification.
- Guaranteed Fast Lead Time: Advanced automated precision wire weaving, automated mesh flattening, robotized slitting, and high-capacity powder coating lines ensure prompt manufacturing and on-time shipment of your Stainless Steel Mosquito Mesh orders.
- Customized Packaging: Marine-grade rust-proof and puncture-resistant dual packing with heavy-duty hard paper tubes, waterproof plastic wrapping, and reinforced wooden crates to prevent transit mesh crushing, edge deformation, and wire scratching during long-distance ocean transit.
