Industrial-Grade Expanded Metal Filter Mesh for High-Efficiency Filtration Systems
In complex fluid dynamics and aerodynamics, maintaining consistent filtration purity while facing aggressive hydraulic pressures or high velocity air flows requires absolute structural reliability. Our premium Expanded Metal Filter Mesh represents the cutting edge of micro-aperture sheet metal engineering. Unlike woven wire cloth which can experience shifting strands or non-uniform gaps, expanded metal is manufactured from a single piece of solid metal material. This creates a uniform, rigid network that ensures absolute geometric stability across thousands of operating hours.
As an industry-leading OEM/ODM manufacturer, we leverage multi-stage flattening and ultrasonic de-oiling technologies to produce cleaner, flatter, and more structurally sound filter meshes. Our micro-expanded series features diamond grids meticulously designed to optimize fluid channeling. This reduces turbulence and significantly lowers initial pressure drops across filtration media. Whether you are assembling automotive oil filter tubes, aerospace hydraulic cores, or heavy industrial dust extraction panels, our mesh delivers the rugged support and precise mesh patterns your systems require.
Engineered Performance Advantages of Expanded Filter Screens
1. Rigid One-Piece Matrix (Zero Unraveling Risks)
Because this mesh is slit and stretched from a single continuous metal strip, there are no intersecting wires to slip, fray, or unravel over time. This architectural integrity prevents bypass leaks, eliminates fiber migration, and perfectly retains its shape even under explosive backwash pressures.
2. Optimal Fluid Channeling & Low Flow Resistance
The micro-diamond strands feature scientifically angled geometric planes that naturally guide gas or liquid flow smoothly through the filter substrate. This aerodynamic shape maximizes throughput rates while effectively minimizing pressure drop across the entire system footprint.
3. Ultra-Clean & Burr-Free Surface Engineering
Filtration elements demand absolute purity. Our post-production processing lineup includes chemical degreasing, clean-room hot water washes, and intense rotary mechanical deburring. This ensures every millimeter of the mesh surfaces is 100% free of loose metal particles, oils, or hazardous sharp flakes.
Technical Specifications & Precision Micro-Hole Matrices
| Model SKU | Material Alloys | Mesh Hole Size (SWD x LWD) | Strand Thickness (mm) | Strand Width (mm) | Standard Supply Form |
|---|---|---|---|---|---|
| EFM-AL-M05 | Aluminum 1060/3003 | 0.5 mm x 1.0 mm | 0.15 mm | 0.18 mm | Continuous Slit Coils |
| EFM-SS-M10 | Stainless Steel 316L | 1.0 mm x 2.0 mm | 0.20 mm | 0.25 mm | Spool Rolls / Custom Strips |

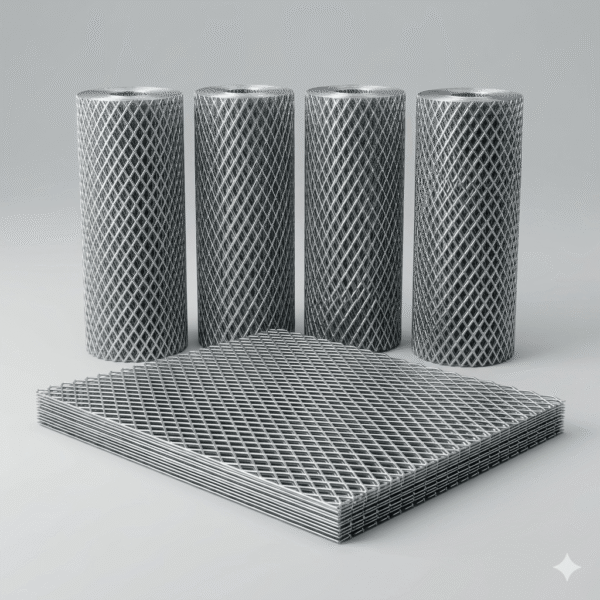

| EFM-GI-M20 | Galvanized Steel | 2.0 mm x 4.0 mm | 0.40 mm | 0.45 mm | Bulk Coils & Flat Sheets |
| EFM-AL-M30 | Aluminum Alloy | 3.0 mm x 6.0 mm | 0.50 mm | 0.60 mm | Pre-cut Filter Panels |
| EFM-SS-M40 | Stainless Steel 304 | 4.0 mm x 8.0 mm | 0.80 mm | 0.90 mm | Precision Circular Discs |
Primary Industrial Sectors & Filtration Applications
Our micro-slit expanded metal matrices are trusted cross-industry components deployed within critical filtration modules:
- Commercial HVAC & Air Purifiers: Deployed as the rigid pleat-holding support layer on both upstream and downstream faces of multi-stage HEPA filter frames.

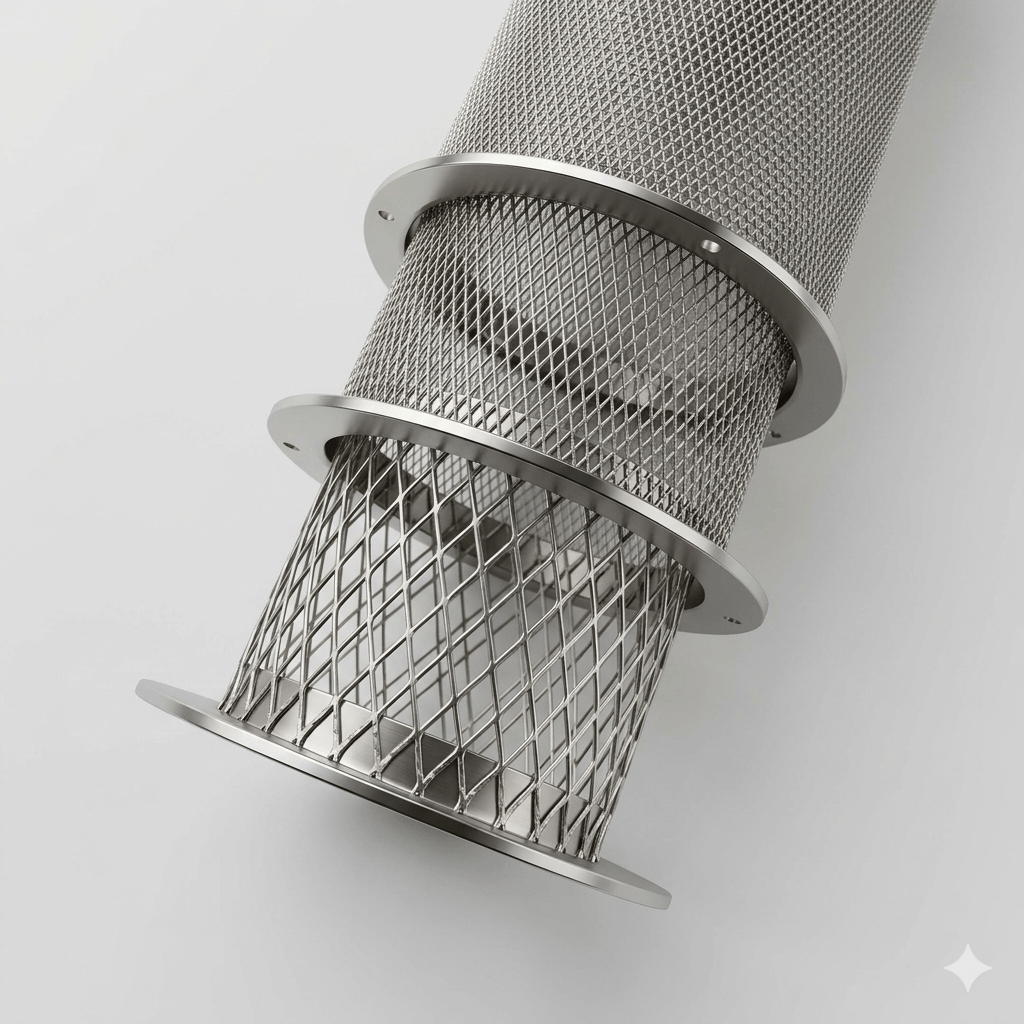

- Automotive & Aerospace Oil Filters: Rolled and resistance-welded into heavy structural inner perforated cylinders for hydraulic fluid and lubricating oil purification assemblies.
- Kitchen Range Hood Grease Insets: Layered multi-ply aluminum mesh screens designed to trap airborne grease and oil vapors with high efficiency while remaining entirely washable.
- Chemical & Pharmaceutical Processing: Manufactured using food-grade SUS316L sheets to resist aggressive acid and alkaline fluids in demanding centrifugal filtration systems.
Customized Post-Processing Capabilities
To match your precise automated fabrication lines, we provide specialized secondary post-processing capabilities:
Ultra-Precise Slitting: Splitting massive master master spools down to specialized ultra-narrow widths (minimum 10mm tolerances) with zero edge deformation.
Multi-Layer Spot Welding: Fusing multiple mesh configurations or sintering woven mesh faces with expanded metal support structures to produce high-efficiency multi-stage discs.
CNC Stamping & Blanking: Delivering cleanly stamped circular discs, sectors, and customized geometric shapes with zero dimensional variance for direct cartridge integration.
Anodizing & Electro-Polishing: Enhancing chemical passivity and imparting smooth, premium aesthetic surfaces that resist environmental staining.
Global Enterprise Supply Stability & Vacuum Anti-Oxidation Packaging
To maintain a clean environment during long-distance international transport, we pack rolls and flat sheets using specialized heavy-duty vacuum sealing technologies infused with industrial desiccant packets. These units are safely packaged inside shock-absorbing expanded polyethylene (EPE) foam enclosures and secured within extra-thick, fully enclosed seaworthy plywood crates. We provide comprehensive tracking and supply support, ensuring your manufacturing line receives high-quality components directly, smoothly, and precisely on schedule.
Frequently Asked Questions (FAQ)
Q1: How does expanded metal filter mesh compare to perforated metal sheets for filter element support cores?
A1: Expanded metal offers a superior open area ratio (up to 75% ventilation optimization) compared to typical perforated metal sheets (which average 30-40%). This large open area allows for higher flow rates and significantly lowers pressure drops. Additionally, expanded metal generates zero scrap metal waste during production, making it an eco-friendly and cost-effective solution for large-scale B2B purchasing.
Q2: Are your micro-expanded filtration materials fully compliant with global RoHS and REACH specifications?
A2: Yes, absolutely. All raw material coils (including our aluminum and galvanized series) are sourced directly from certified first-tier eco-friendly steel mills. We do not utilize heavy-metal chromium finishes or restricted chemical lubricants. Complete chemical composition reports, environmental compliance declarations, and SGS certification documents are provided with every industrial batch.
Q3: Can your machinery support ultra-narrow ribbon slitting without twisting or edge curling?
A3: Yes. Traditional slitting lines can cause thin micro-mesh to twist or develop edge waves. To prevent this, we utilize advanced high-speed CNC precision rotary slitting knives paired with hydraulic secondary web tension control units. This setup ensures that rolls down to 10mm wide remain completely flat, stable, and ready for high-speed automated winding operations.
Q4: What parameters must I provide to obtain an accurate wholesale volume quote?
A4: To generate an accurate technical quotation, please specify: 1) The exact metal alloy type (e.g., SUS304 vs Aluminum), 2) Raw foil material thickness, 3) Mesh hole measurements (Short Way of Diamond and Long Way of Diamond), 4) Required roll or strip widths, and 5) Total square footage or volume weight requirements. Technical CAD drawings can be submitted directly to our engineering division.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Expanded Metal Filter Mesh procurement costs? Partner with us to enjoy premium bright, smooth-finish, and perfectly flat quality compliant with industry filtration standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples:Quality, dimensional flatness, and aperture precision testing samples available for your local industrial filtration project or distribution verification.
- Guaranteed Fast Lead Time:Advanced automated micro-expanding presses and precise flattening/shearing lines ensure prompt manufacturing and on-time shipment of your expanded metal filter mesh.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and mesh deformation.
