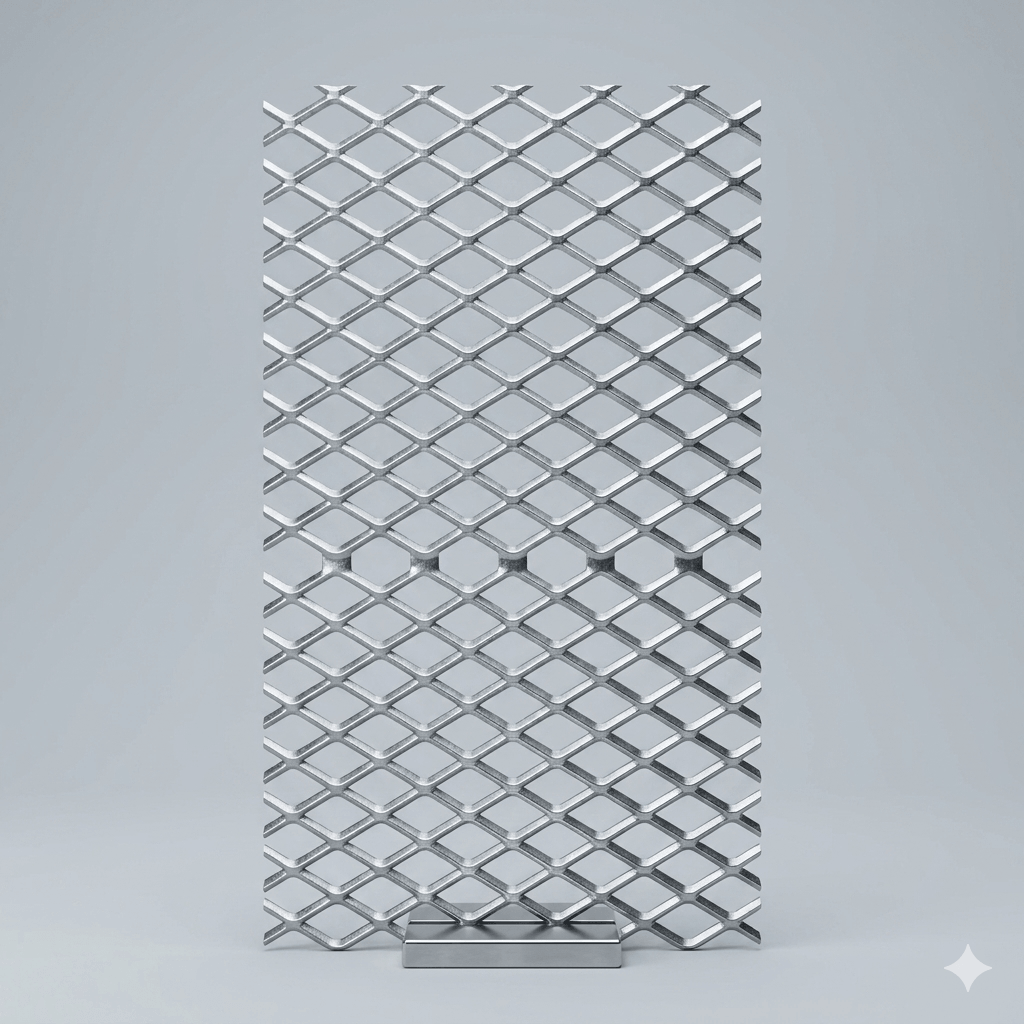

Industrial-Grade 3/4 Inch Diamond Expanded Metal
As a premier global B2B metal mesh manufacturer, we produce high-durability 3/4 Inch Diamond Expanded Metal tailored specifically to withstand heavy mechanical impact and severe operational environments. The 3/4-inch diamond design is uniquely engineered to provide extreme rigidity without adding unnecessary weight to your industrial infrastructure. Because it is formed from a continuous piece of solid steel sheet without joints, it offers superior load distribution capabilities and won’t unravel or lose its structural integrity under intense shearing forces.
The Gold Standard for Global Steel Distributors
Our 3/4″ diamond mesh series is produced under strict metallurgical control to ensure precise strand consistency and uniform aperture profiles. Whether you are custom-fabricating heavy machine guards for international manufacturing complexes or stocking bulk commercial sheet shipments for domestic steel centers, our 3/4 inch expanded metal panels seamlessly integrate into standard angle iron framing lines with perfect edge squaring.
Key Structural Advantages & Mechanical Features
Choosing professional factory-direct 3/4″ diamond metal plates guarantees your engineering projects enjoy precise technical advantages:
- Premium Anti-Slip Mechanics: The standard raised diamond version creates strong 3D ridges that cut through grease, mud, snow, and rain, significantly reducing slip-and-fall hazards on raised manufacturing platforms.
- High Air & Light Permeability: Features an optimized open area percentage that permits maximum airflow and natural light propagation, keeping electronic machinery cool while keeping working zones well-illuminated.
- Flawless Fabrication Uniformity: We execute multi-stage flattening and level rolling on our flattened 3/4″ mesh variations, removing all surface burrs and delivering an exceptionally smooth plane that prevents worker injury during handling.
- Zero Structural Weld Failures: The single-piece carbon steel body spreads localized vibration stress uniformly over the entire structural sheet, rendering it much more resistant to fatigue than welded wire alternative meshes.
3/4″ Diamond Series Specification Matrix
We provide multiple standard commercial weight designations and customized alloy choices to meet your exact design tolerances. Review our technical parameters below:
| Style Designation | Finish Profiling | Actual SWO x LWO | Strand Thickness x Width | Overall Weight (lbs/sq.ft) |
|---|---|---|---|---|
| 3/4″ #9 (Heavy Duty Carbon) | Raised (Standard) | 0.92″ x 2.00″ | 0.134″ x 0.150″ | 1.80 lbs/sq.ft |
| 3/4″ #9 (Smooth Surface) | Flattened (Cold-Rolled) | 0.92″ x 2.10″ | 0.120″ x 0.165″ | 1.71 lbs/sq.ft |
| 3/4″ #13 (Medium Commercial) | Raised (Standard) | 0.75″ x 2.00″ | 0.092″ x 0.096″ | 0.80 lbs/sq.ft |
| 3/4″ #13 (Smooth Surface) | Flattened (Cold-Rolled) | 0.75″ x 2.10″ | 0.075″ x 0.105″ | 0.75 lbs/sq.ft |
| 3/4″ Extra Heavy Grating | Heavy Industrial Raised | 0.92″ x 2.00″ | 0.188″ x 0.200″ | 3.00 lbs/sq.ft |
| 3/4″ SUS 304/316 Elite | Acid Resistant Raised | 0.92″ x 2.00″ | 0.134″ x 0.140″ | 1.85 lbs/sq.ft |
Elite B2B Procurement Application Scenarios
Due to its high structural versatility, our nominal 3/4 inch diamond steel mesh plays a critical protective and reinforcing role globally:
-
- High-Security Machine Safety Guards: Commonly specified by industrial engineers to manufacture robust protective shields wrapping high-vibration factory pulleys, gears, flywheel assemblies, and electronic components, protecting workforce extremities while letting technicians visually inspect parts.
- Industrial Floor Gratings & Catwalks: Our extra-heavy 3/4″ structural sheets act as highly dependable drainage floor panels inside hazardous chemical storage rooms, automated car wash bays, and water refinery skywalks.
- Heavy Trailer Sides & Cargo Racks: Widely cut and welded by logistics vehicle manufacturers to create ultra-breathable, rattle-free trailer walls, landscape equipment truck boxes, and customized over-cab structural roof storage systems.
- Storefront Security & Window Grilles: Cold-flattened 3/4″ steel grids are built inside commercial warehouse door units and school window frames to effectively repel forced break-ins without compromising structural natural lighting.
Advanced International Ocean Logistics Packing Standards
Exporting industrial 3/4″ diamond mesh sheets presents a unique logistics challenge: if individual panels compress too tightly during rough ocean swells, the raised angular 3D strands can physically interlock, damaging finishes during container unloading. To prevent this, our specialized export logistics department implements an engineered multi-layered interlocking suppression layout. We place high-density fibrous slip-sheets between panel tiers and mount the heavy stack onto structural solid-channel steel skids reinforced for heavy multi-directional crane operations. The entire structure is wrapped in thick heavy-gauge anti-oxidation poly shrink film and secured using heavy-duty high-tension pneumatic steel banding strips. This rigid packaging guarantees that your warehouse crews can effortlessly unpack each individual 3/4″ panel safely with zero edge-warping or material locking issues.
Frequently Asked Questions (FAQ)
Q1: Why is the actual measured SWO opening sometimes different from the “3/4 inch” product description?
A1: In international expanded metal terminology, “3/4 Inch” represents a nominal market category designation rather than a literal diamond aperture dimension. For standard 3/4″ #9 raised steel sheets, the actual physical Short Way of Opening (SWO) from strand-center to strand-center usually ranges between 0.92 inches to 1.00 inch. If your specific layout or sorting machine requires an exact physical clear opening of precisely 0.75″ inside the diamond, please notify our engineers so we can switch to our micro-precision CNC expanding tooling matrices.
Q2: Does the mechanical cold-flattening process reduce the overall physical load capacity of a 3/4″ sheet?
A2: Yes, cold-rolling a standard raised 3/4″ sheet into a flattened sheet reduces its effective structural beam load resistance by roughly 15% to 20%. This happens because flattening forces the angled 3D structural strands back into a single flat plane, removing the structural corrugation stiffness effect. Flattened 3/4″ mesh is ideal for sliding doors, shelving, and grilles, but for heavy walkways or multi-ton structural load applications, we always recommend utilizing our standard raised 3/4″ #9 profiles.
Q3: What standard zinc coating density do you enforce for hot-dip galvanized 3/4″ carbon steel grids?
A3: Our hot-dip galvanizing lines are fully certified under the strict global ASTM A123 specification. For heavy #9 gauge steel sheets, we enforce a premium average zinc coating thickness of no less than 85 microns (equivalent to roughly 610 g/m² of zinc surface density). This dense industrial zinc coating creates an iron-zinc alloy bond that prevents rust formation even in highly corrosive industrial wastewater zones or brackish coastal areas.
Q4: What is your factory’s production capability for manufacturing custom 3/4″ patterns in aluminum or stainless alloys?
A4: Our facility is fully equipped with dual-track high-precision machinery that handles diverse high-performance alloys easily. For stainless steel, we process premium SUS 304, 316, and high-temp 321 grades. For aluminum, we stock structural 5052-H32 and architectural 6061-T6 alloys. Because raw material hardness and elasticity properties change across alloys, our automated CNC presses adaptively calibrate stroke pressure parameters to keep your 3/4″ diamond apertures perfectly consistent across entire production volumes.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your 3/4 inch diamond expanded metal procurement costs? Partner with us to enjoy premium heavy-duty, uniform-mesh, and perfectly flat quality compliant with ASTM F1267 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, precise 3/4″ diamond opening accuracy, and material thickness testing samples available for your local engineering project or distribution verification.
- Guaranteed Fast Lead Time:High-speed automated expanding presses and precise sheet leveling/shearing lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade anti-deformation dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets to prevent transit damage and panel bending.
