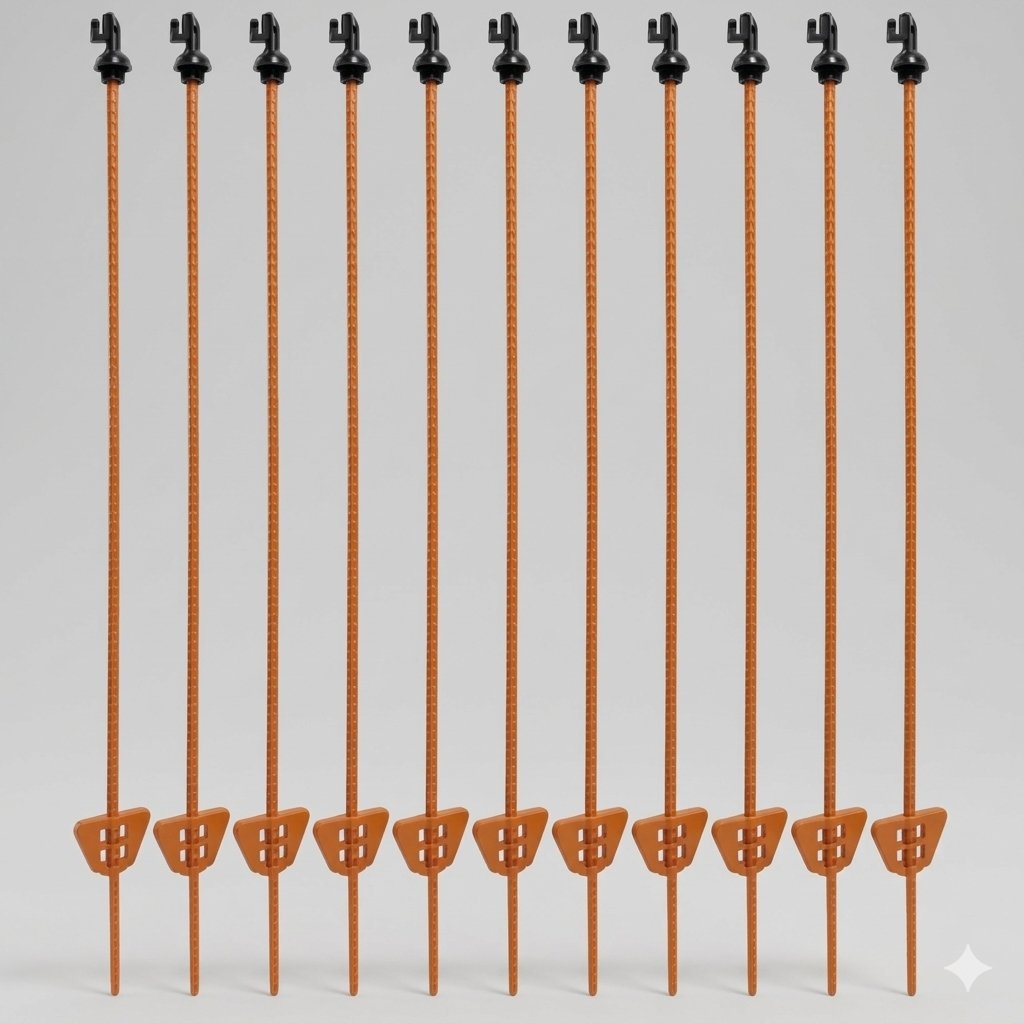

Commercial Electric Fence Oval Spring Steel Post with UV-Stabilized Insulator
As a leading global manufacturer and B2B supplier of agricultural wire fencing components, we present our premium-grade Electric Fence Oval Spring Steel Post with Insulator. Engineered using advanced high-carbon alloy steel matrices, these posts serve as the skeletal foundation for heavy-duty permanent or temporary electric perimeter setups. Designed to withstand the rigorous demands of large-scale cattle, horse, and livestock containment, this product features an optimized flat-oval architectural profile that distributes kinetic stress efficiently while prioritizing animal safety and current preservation.
Why Choose Oval Spring Steel for Electric Fencing?
Key Performance Advantages for B2B Procurement:
- High-Tensile Memory: Absorbs massive physical impacts from rushing cattle or horses, instantly snapping back to perfect vertical alignment.
- Zero Current Leakage: Formulated with industrial-grade virgin polymers, the pre-fitted or molded insulators guarantee zero arcing even under 15kV pulse conditions.
- Enhanced Lateral Load Resistance: The asymmetric geometry of the oval post provides over 40% more resistance to lateral bending compared to standard round wire posts of equal weight.
- Rapid Field Deployment: Designed with heavily welded, anti-rotation ground steps for clean, tool-free foot insertion into diverse soil matrices.
Advanced Engineering and Structural Highlights
Every batch of our spring steel fence posts undergoes stringent structural stress metrics and metallurgical testing to ensure total compliance with international farming and security grid parameters. Below are the key manufacturing standards we enforce:
- Premium Metallurgical Composition: Fabricated using premium carbon-manganese spring steel (65Mn standard) that undergoes a precise hardening and oil-tempering process to guarantee supreme elasticity and structural memory.
- Superior Anti-Corrosion Armor: Available in high-micron hot-dipped galvanization (conforming to ASTM A123 / EN ISO 1461 standards) or premium thermosetting UV-resistant architectural powder coatings to fully combat atmospheric rust, acidic soils, and sea-salt spray.
- Dielectric Polymer Insulator Caps: The integrated insulators are injection-molded under high pressure using virgin High-Density Polyethylene (HDPE) or Polypropylene (PP) compounds, fortified with premium carbon black and Hindered Amine Light Stabilizers (HALS) to eliminate brittle failures caused by harsh solar UV exposure.
- Robust Structural Welding & Stabilization: The heavy-gauge steel foot plate is robotically welded via multi-point CO2 shielding to prevent mechanical shearing during intense manual step-in applications into rocky, baked clay, or muddy topsoils.
Technical Specifications & Ordering Matrix
| Parameter / Specification | Standard Metric Values | Heavy-Duty Variant Options |
|---|---|---|
| Core Steel Material | High-Tensile Spring Steel (65Mn) | Supreme Grade Carbon Steel Alloy |
| Cross Section Profile | Flat Oval: 10 mm x 5 mm | Maxi Oval: 12 mm x 6 mm / Custom |
| Total Length Variants | 1000mm / 1150mm / 1200mm | 1400mm / 1500mm / 1650mm |
| Zinc Coating Mass | ≥ 275 g/m² (Hot-Dipped) | Premium Heavy Zinc ≥ 500 g/m² |
| Insulator Insulation Rating | Up to 15,000 Volts (No Arcing) | Heavy-Duty up to 22,000 Volts |
| Insulator Configuration | Pigtail Top / Fixed Mid-Insulator | Multi-Stage Adjustable Snap-on Clips |
| Foot Step Design | Single Welded Flat Plate Step | Double-Spike Extended Anti-Twist Foot |
| Tensile Strength Range | 1100 – 1300 MPa | ≥ 1450 MPa Extra High Strength |
Global B2B Supply Chain & Logistics Packaging
We understand that logistics cost optimization is paramount for global fence distributors, agricultural wholesalers, and government procurement agencies. Our specialized packaging protocol features reinforced modular steel crates and high-strength shrink-wrapping to block saltwater oxidation during transit. We maximize container volumetric space, cutting oceanic freight costs by up to 15% per shipment. Customized brand tagging, barcodes, and private-label retail packaging options are fully supported for bulk orders exceeding 5,000 units.
Frequently Asked Questions (FAQ)
Q1: What makes the oval profile superior to round or T-post options for electric fence lines?
A: The flat oval cross-section acts as a geometric structural beam. It provides immense directional resistance against the pushing forces of livestock and crosswinds along the fence line, while utilizing less mass than a standard heavy T-post. This allows for lighter weight per post without compromising structural strength, lowering both product cost and shipping expenses.
Q2: How long will the insulators last under extreme UV sunlight and freezing temperatures?
A: Our electric fence insulators are injection-molded using 100% virgin high-grade polyethylene infused with premium carbon black and weatherproofing masterbatches. They are certified to resist degradation under intensive UV exposure (up to 500kLy radiation levels) and maintain flexible mechanical properties without cracking from -40°C up to +70°C.
Q3: Can your factory handle custom post lengths and multi-insulator spacing adjustments?
A: Yes, as a direct manufacturing plant, we offer complete OEM/ODM solutions. We can manufacture oval spring steel posts in custom lengths from 800mm up to 1800mm, and we can pre-fit adjustable multi-stage wire clips or pigtail insulation rings at custom heights according to your market’s regional livestock needs (e.g., specific setups for sheep vs. tall horses).
Q4: What is the typical service lifespan of your hot-dipped galvanized oval fence posts?
A: With a hot-dipped zinc coating exceeding 275g/m², our spring steel posts offer an expected service lifespan of 15 to 20 years in typical inland agricultural environments. For high-corrosion zones like coastal areas or marshy soils, we recommend our premium 500g/m² zinc heavy-armor line or duplex powder coatings.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Electric Fence Oval Spring Steel Post procurement costs? Partner with us to enjoy premium high-tensile oval spring steel, superior UV-stabilized insulation accessories, and exceptional flex-back memory quality compliant with international livestock rotational grazing, temporary farm electric fencing, and intensive pasture management standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP) or bulk wholesale shipments.
- 100% Free Samples: Quality, oval steel cross-section dimensions, tensile strength accuracy, insulation clip/coating durability, and bending elasticity testing samples available for your local rural hardware retail, farm supply distribution, or contractor verification.
- Guaranteed Fast Lead Time: Advanced automated heavy-duty wire drawing, oval-profile rolling, continuous injection molding, and premium corrosion-resistant coating lines ensure prompt manufacturing and on-time shipment of your Electric Fence Oval Spring Steel Post.
- Customized Packaging: Marine-grade rust-proof dual packing (reinforced heavy-duty bundles or master cartons + PE shrink film outside) with heavy-duty pallets to prevent transit tip blunting, coating scratching, and post deformation during bulk ocean transit.
