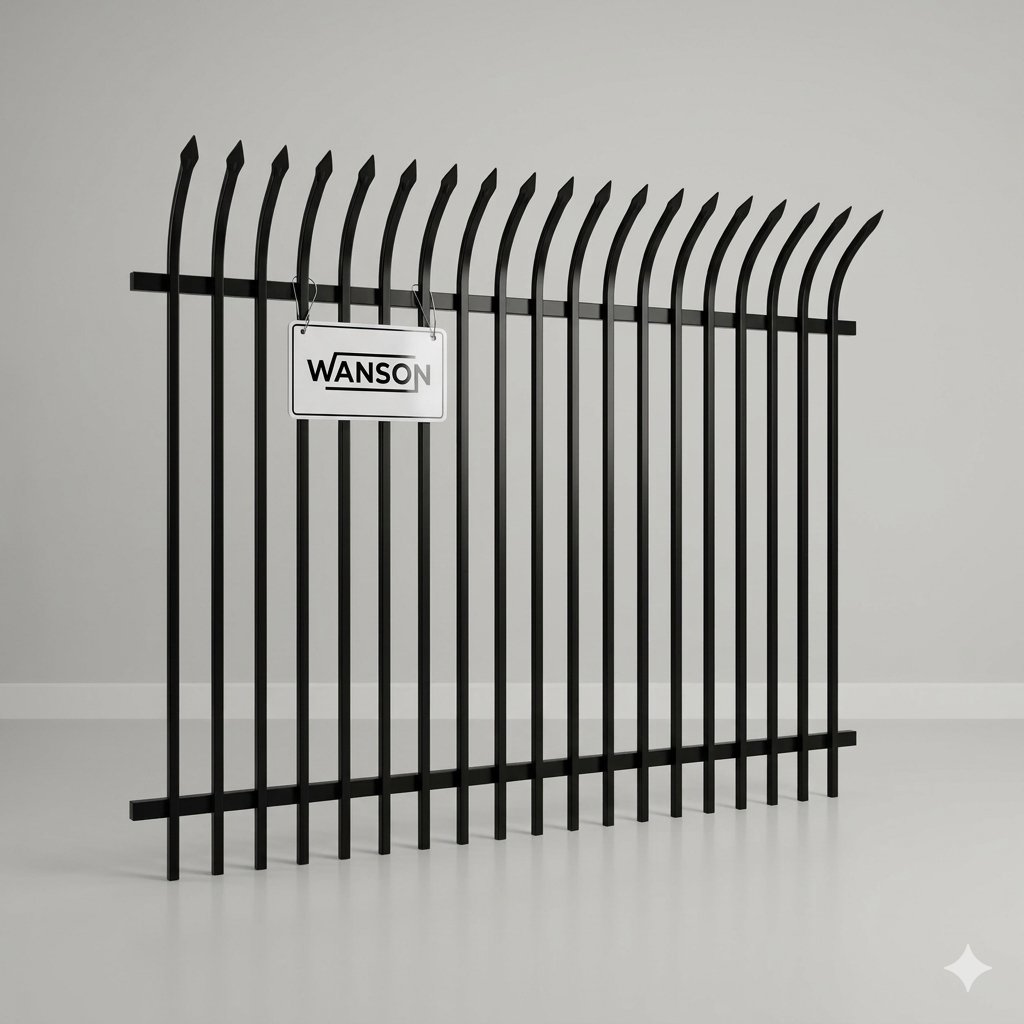

Industrial Grade Curved Top Metal Fence for Elegant Perimeter Protection
The elite curved top fence stands as the international benchmark for elegant, high-visibility perimeter protection. Also historically designated across global architectural markets as bow top steel barriers or loop-rail security grids, these panels provide heavy-duty structural security. By passing the upright square pickets completely through the horizontal rails before undergoing advanced automated robotic welding, our engineering matrix creates a rigid frame capable of bearing substantial static and dynamic loads. This eliminates the vulnerability of exposed weld beads and ensures long-term security performance for public parks, community recreation hubs, and prestige corporate properties.
Advanced Technical Merits of Our Curved Top Steel Security Panels
1. Impalement-Proof Loop Top Perimeter Fortification
The top of each individual steel vertical bar is bent into a continuous, smooth arc or looping configuration. This geometry serves as an effective boundary while completely eradicating the risk of accidental injuries or impalement. This child-friendly and anti-entrapment design helps shield facility managers from external liabilities and minimizes compliance risks around public properties.
2. AkzoNobel Interpon Multi-Stage Powder Encapsulation
To combat long-term rust issues caused by chemical rain and atmospheric moisture, every panel goes through an exhaustive 6-stage surface preparation line. This includes shot-blasting, hot zinc-phosphate immersion, and an architectural-grade AkzoNobel thermosetting powder finish. This specialized finish withstands up to 3,000 hours of continuous salt spray testing, ensuring it won’t chalk, fade, or blister.
3. Punch-Through Anti-Sagging Engineering Matrix
Unlike low-cost fences where pickets are simply face-welded to the exterior of the cross rails, our heavy-duty horizontal steel tubes are fully punched using precision CNC machines. The vertical pickets slide through the center of the rails and are welded securely inside. This design evenly distributes physical impacts across the entire frame, eliminating panel sagging and preventing structural loosening over time.
Technical Specifications & Architectural Standard Matrices
| Engineering Metric | Standard Commercial Grade | High Security Heavy Duty | B2B Customizable Limits |
|---|---|---|---|
| Panel Size (H x L) | 1200mm x 2400mm (4ft x 8ft) | 1800mm x 2400mm (6ft x 8ft) | Heights available up to 2400mm |
| Vertical Picket Size | 19 mm x 19 mm Square | 25 mm x 25 mm Square | Thickness: 1.0mm to 2.5mm |
| Horizontal Rail Size | 40 mm x 40 mm Punched | 45 mm x 45 mm Punched | 2, 3, or 4 rail designs customizable |
| Picket Spacing (C/C) | 110 mm (Inner gap: ~91mm) | 115 mm (Inner gap: ~90mm) | Compliant with global anti-entrapment codes |
| Post Dimensions | 60 mm x 60 mm Square | 80 mm x 80 mm / 100 mm Square | Wall thickness up to 3.0mm heavy wall |
| Post Base Interlock | Direct Core Drill / In-ground 500mm | Bolt-down Welded Flange Plate | 4-hole anchor pattern heavy gusset plates |
| Coating Specification | Pre-Galvanized (120g/m²) + Powder | Hot-Dipped HDG (300g/m²) + Powder | Fully certified cross-hatch adhesion testing |
Elite Application Environments for Curved Top Metal Fencing
Combining classical aesthetic lines with exceptional structural rigidity, our powder-coated curved top panels are widely specified across a variety of high-profile industries:
- Municipal Public Parks & Playgrounds: The loop design provides an impalement-proof perimeter, making it highly requested for areas with heavy child and pedestrian traffic.
- Residential Housing Developments & Subdivisions: Offers a charming traditional aesthetic reminiscent of historic wrought iron, significantly boosting the curb appeal of real estate assets.
- Schools, Daycares & Educational Facilities: Guarantees structural perimeter isolation while perfectly satisfying anti-climb and anti-entrapment regulatory parameters.
- Commercial Real Estate & Garden Centers: Delivers a highly professional look that defines property lines securely without looking uninviting.
Palletized Transport & Global Export Quality Control
Frequently Asked Questions (FAQ)
Q1: Does the steel tube thinning during the top curving process make it prone to rust or cracking?
A1: Not at all. We utilize heavy-duty pre-galvanized high-tensile steel pipe combined with a precise digital CNC cold-bending system. This process ensures uniform wall thickness and prevents structural micro-cracking along the radius of the arch. Additionally, our multi-stage powder coat seals any minor surface variations, providing complete rust protection inside and out.
Q2: Does your curved top fence design satisfy child anti-entrapment safety regulations?
A2: Yes, our standard vertical picket spacing features a strict 110mm center-to-center layout, which creates an inner gap of roughly 91mm across both the straight runs and inside the top loops. This setup perfectly satisfies standard child-safety anti-entrapment and public playground barrier codes worldwide (such as BS EN 1176), preventing toddlers from getting stuck.
Q3: Can your curved top metal fence panels adapt to sloped or uneven project boundaries?
A3: For sloping terrain, we offer two professional solutions: stepped installation and custom racked panels. Racked panels use specialized internal pinned pivoting joints that allow the pickets to follow the slope of the hill while keeping the upright bars perfectly vertical. Alternatively, our heavy-duty aluminum universal brackets allow for stepped adjustment on post connections, accommodating standard grade changes smoothly.
Q4: What is the wholesale MOQ and do you supply matching pedestrian and vehicle access gates?
A4: Our commercial production line wholesale MOQ is 1x20GP container (approx. 200-250 full panels with posts and mounting hardware depending on specifications). We operate a full architectural fabrication shop and can supply matching single pedestrian swing gates, double vehicle entry gates, and automated track sliding gates that align with your specified bow-top or loop-top profile.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Curved Top Fence procurement costs? Partner with us to enjoy premium heavy-duty, smooth curve-top safety, and elegant perimeter protection quality compliant with international security, public park boundary, and residential landscaping standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ).
- 100% Free Samples: Quality, steel picket/rail wall thickness, curve bending precision, welding/punching strength, and multi-layer powder coating thickness testing samples available for your local residential estate, public school, or municipal landscaping project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated tube cutting, high-precision CNC curve bending, robotized multi-point welding, and premium outdoor-grade powder coating lines ensure prompt manufacturing and on-time shipment of your Curved Top Fence.
- Customized Packaging: Marine-grade rust-proof dual packing (protective foam/bubble wrap sheets inside + PE shrink film outside) with heavy-duty reinforced iron or wooden pallets to prevent transit scratching, panel distortion, and curved picket deformation.
