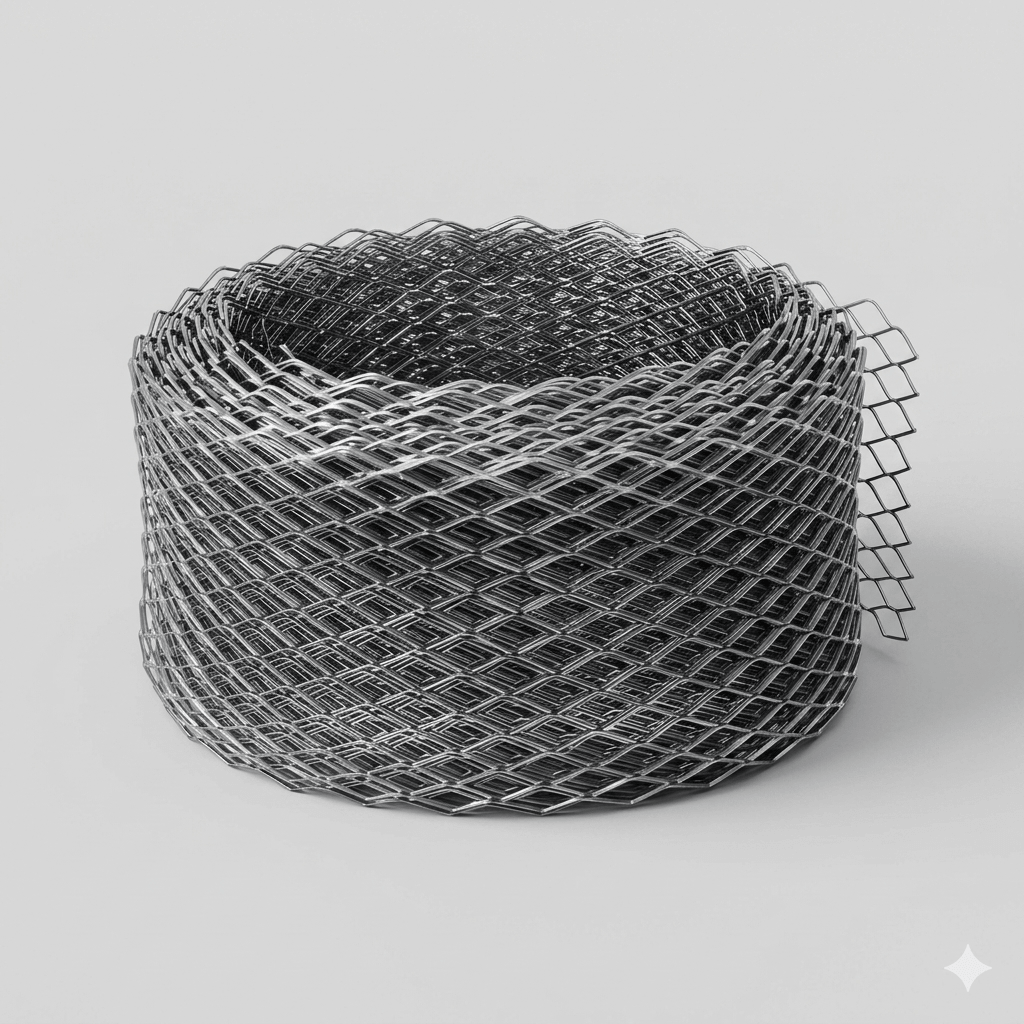

Premium Brick Reinforcement Mesh for Heavy-Duty Masonry Construction
In modern masonry construction, structural shifting, thermal expansion, and foundational settlement often lead to unsightly and structurally hazardous cracks in brick or block walls. Our heavy-duty Brick Reinforcement Mesh provides an effective, high-tensile countermeasure. By embedding this continuous wire or expanded metal coil mesh within normal mortar bedding layers, it transforms brittle masonry units into a monolithic composite structure capable of resisting heavy lateral loads and shear forces.
As a leading global manufacturer of building materials, we utilize high-precision automated expanding machinery to produce coil mesh with precise mesh geometry. This geometry ensures maximum mechanical interlock with standard mortars. Whether you are building low-rise residential units, coastal retaining walls, or high-rise commercial structures, our mesh guarantees superior long-term durability and structural safety.
Why Choose Our Expanded Coil Mesh Reinforcement?
1. Superior Mechanical Bond & Keying Action
The unique expanded diamond aperture of our brick mesh allows concrete mortar to completely envelop the metal strands. This continuous keying action offers significantly higher pull-out resistance compared to traditional smooth wire parallel reinforcement systems.
2. Industrial-Grade Corrosion Resistance
Our products are available in heavy-duty Hot-Dip Galvanized Steel and Marine-Grade Stainless Steel (SS316). The zinc coating thickness is strictly controlled to withstand the highly alkaline environment of wet cement mortars without degraded performance over decades of service.
3. Flexibility Combined with Ultimate High Tensile Yield
While the mesh possesses high tensile strength across its longitudinal axis to restrain structural shifts, it remains flexible enough horizontally to be rolled out effortlessly around tight corner joints, pilasters, and complex architectural brick curves.
Technical Specifications & Standard Dimensions
| Product Code | Material Type | Standard Width (mm) | Sheet Thickness (mm) | Aperture/Mesh Size (mm) | Roll Length (m) |
|---|---|---|---|---|---|
| BRM-GI-063 | Hot-Dip Galvanized | 63 mm | 0.35 mm | 12 x 25 mm | 20 / 50 / 100 |
| BRM-GI-100 | Hot-Dip Galvanized | 100 mm | 0.40 mm | 15 x 30 mm | 20 / 50 |
| BRM-GI-150 | Hot-Dip Galvanized | 150 mm | 0.45 mm | 15 x 30 mm | 20 / 50 |
| BRM-GI-200 | Hot-Dip Galvanized | 200 mm | 0.50 mm | 15 x 30 mm | 20 / 30 |
| BRM-SS-150 | Stainless Steel 304 | 150 mm | 0.40 mm | 12 x 25 mm | 20 / 50 |
| BRM-SS-300 | Stainless Steel 316 | 300 mm | 0.50 mm | 16 x 38 mm | 20 / 30 |
Primary Applications in Modern Architecture
Our coil mesh reinforcement is exceptionally versatile and serves critical stabilizing functions across multiple construction formats:
- Structural Joint Overlay: Laid between block courses to disperse high local stress concentrations caused by building movement.
- Window and Door Openings: Placed above lintels and beneath sills to neutralise the diagonal cracking forces prevalent around geometric framework voids.
- Dissimilar Material Junctions: Acts as an anchor bridge between concrete columns and clay brick walls, accommodating differing thermal expansion coefficients perfectly.
- Retaining Walls & Parapets: Provides vital horizontal reinforcement against heavy wind loading or hydrostatic pressure exerted on exterior wall surfaces.
Professional Installation Best Practices
For optimal results, ensure the brick mesh is integrated according to professional engineering masonry standards:
Spread an initial thin layer of cement or lime mortar matrix onto the targeted block course.
Unroll the brick reinforcement mesh directly over the mortar paste bed, making sure it sits roughly 25mm inwards from the exterior finished face of the masonry wall.
When joining two separate coil lengths, ensure a minimum overlapping distance of 75mm to preserve tensile load transfer consistency.
Apply the final top layer of mortar compound, embedding the mesh completely before laying the next course of heavy structural building blocks.
Global Logistics, Bulk Supply & Quality Control
Operating a sprawling, state-of-the-art metal manufacturing facility, we understand that supply chain consistency is absolutely crucial for mega infrastructure projects. Every batch of expanded brick mesh undergoes automated tension testing, zinc-coating weight verification, and flawless edge shearing checks to eliminate on-site handling safety risks.
For shipping, each individual coil roll is securely strapped, wrapped in durable moisture-proof paper or shrink film, and packed into reinforced corrugated cartons. Cartons are loaded onto ISPM-15 compliant sea-freight wooden pallets wrapped in multi-layer stretch film. This robust protective barrier guarantees your cargo arrives at your warehouse or construction site totally free of oxidation, rust, distortion, or edge crushing, even after traversing global marine channels.
Frequently Asked Questions (FAQ)
Q1: How do I choose between Galvanized and Stainless Steel Brick Reinforcement Mesh?
A1: Galvanized mesh is ideal for dry internal walls or general external blockwork sheltered from heavy weather. For highly corrosive environments, coastal developments with high salt spray exposure, or wet-room engineering designs, Stainless Steel (SS304 or SS316) is highly recommended due to its superior acid and alkali chemical resistance profile.
Q2: Does your mesh shape affect mortar bonding performance compared to traditional ladder or truss wire?
A2: Yes, our expanded metal mesh features unique diamond structural keys. Unlike standard wire structures that rely on smooth friction surfaces, mortar flows seamlessly through the diamond apertures, creating a mechanical interlock that holds up to 35% more shear stress than smooth structural wires.
Q3: Can your factory manufacture custom coil widths for non-standard wall designs?
A3: Absolutely. Our precision slitting lines can adjust manufacturing cuts to any specific width between 50mm and 400mm. Simply share your masonry thickness blueprint, and we will calculate the exact mesh width required to maintain proper perimeter structural mortar coverage zones.
Q4: What compliance, testing reports, and international certificates do you provide for large bidding projects?
A4: We provide complete standard Mill Test Certificates (MTC), raw steel raw material tracking analysis sheets, hot-dip zinc coating density reports (g/m²), and third-party inspection certifications (SGS/BV). All production lines align strictly with CE markings and ASTM structural masonry specifications.
