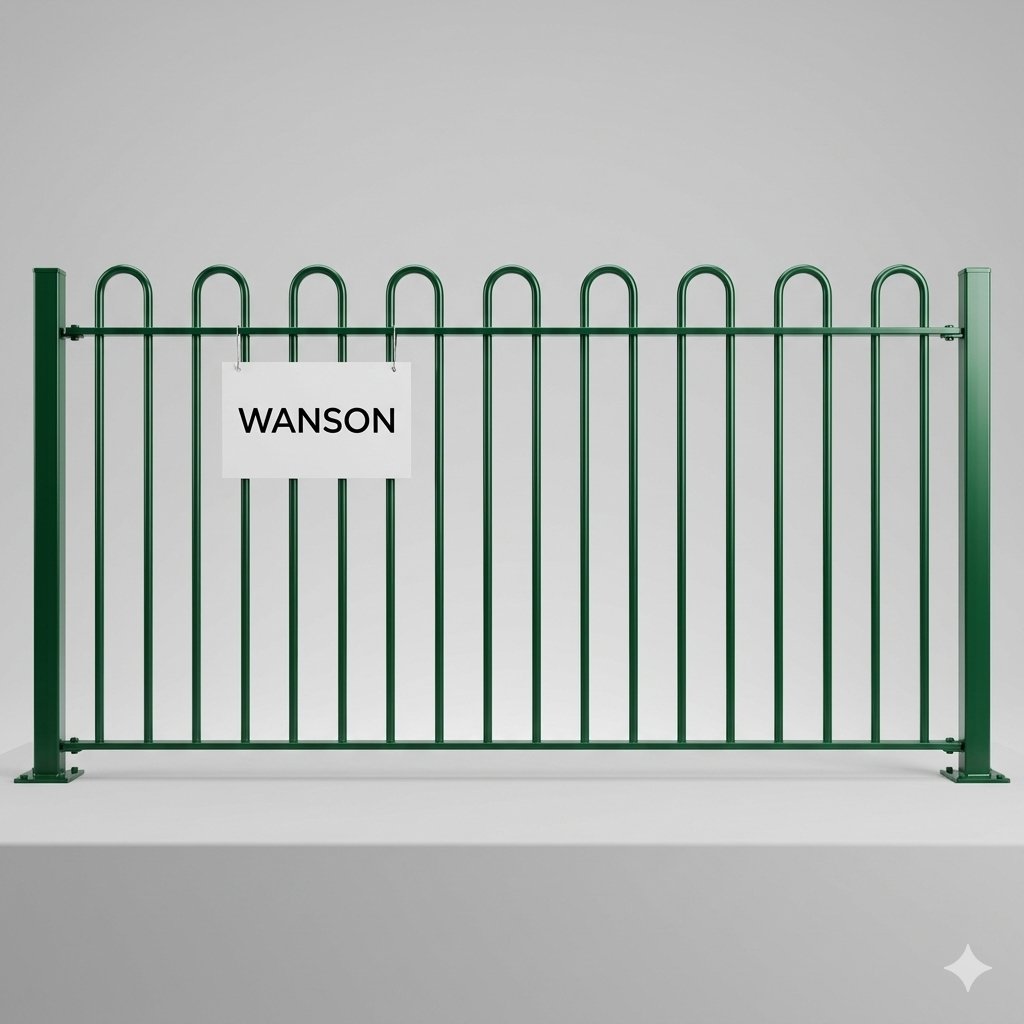

Premium Bow Top Fence Panels for Commercial & Municipal Projects
The elite bow top fence system sets the premium global standard for public safety infrastructure and high-aesthetic perimeter isolation. Often architecturally designated as bow top fences, loop top barriers, or roll top grids, these panels provide heavy-duty structural security. By passing the upright steel pickets completely through the horizontal rails before undergoing advanced automated robotic welding, our engineering matrix creates a rigid frame capable of bearing substantial static and dynamic loads. This eliminates the vulnerability of exposed weld beads and ensures long-term security performance for public parks, kindergarten playgrounds, and high-end commercial corporate hubs.
Advanced Technical Merits of Our Bow Top Steel Security Panels
1. Injury-Free Bow Top Structural Safety Fortification
The top of each individual steel picket is bent into a continuous structural loop, leaving no open vertical pipe ends or sharp points. This geometric design completely eradicates the risk of clothing snags or impalement injuries. This safety-first configuration helps shield facility managers from external liabilities and minimizes the risk of climbing accidents around high-traffic municipal zones.
2. AkzoNobel Interpon Multi-Stage Powder Encapsulation
To combat long-term rust issues caused by chemical rain and atmospheric moisture, every panel goes through an exhaustive 6-stage surface preparation line. This includes shot-blasting, hot zinc-phosphate immersion, and an architectural-grade AkzoNobel thermosetting powder finish. This specialized finish withstands up to 3,000 hours of continuous salt spray testing, ensuring it won’t chalk, fade, or blister.
3. Punch-Through Anti-Sagging Engineering Matrix
Unlike low-cost fences where pickets are simply face-welded to the exterior of the cross rails, our heavy-duty horizontal steel tubes are fully punched using precision CNC machines. The vertical pickets slide through the center of the rails and are welded securely inside. This design evenly distributes physical impacts across the entire frame, eliminating panel sagging and preventing structural loosening over time.
Technical Specifications & Architectural Standard Matrices
| Engineering Metric | Standard Commercial Grade | High Security Heavy Duty | B2B Customizable Limits |
|---|---|---|---|
| Panel Size (H x L) | 1200mm x 2400mm (4ft x 8ft) | 1800mm x 2400mm (6ft x 8ft) | Heights available up to 2400mm |
| Vertical Picket Size | 19 mm Round or Square | 25 mm Heavy Profile | Thickness: 1.0mm to 2.5mm |
| Horizontal Rail Size | 40 mm x 40 mm Punched | 45 mm x 45 mm Punched | 2, 3, or 4 rail designs customizable |
| Picket Spacing (C/C) | 110 mm (Inner gap: ~91mm) | 115 mm (Inner gap: ~90mm) | Compliant with global anti-entrapment codes |
| Post Dimensions | 60 mm x 60 mm Square | 80 mm x 80 mm / 100 mm Square | Wall thickness up to 3.0mm heavy wall |
| Post Base Interlock | Direct Core Drill / In-ground 500mm | Bolt-down Welded Flange Plate | 4-hole anchor pattern heavy gusset plates |
| Coating Specification | Pre-Galvanized (120g/m²) + Powder | Hot-Dipped HDG (300g/m²) + Powder | Fully certified cross-hatch adhesion testing |
Elite Application Environments for Bow Top Metal Fencing
Combining elegant design lines with exceptional structural rigidity, our powder-coated bow top panels are widely specified across a variety of high-profile industries:
- Municipal Parks, Botanical Gardens & Playgrounds: Provides excellent property line containment while maintaining a friendly appearance with zero impalement liabilities.
- Schools, Childcare Centers & Public Recreational Zones: Ensures full child safety compliance (no sharp edges, no dangerous gaps) while remaining incredibly durable against impacts.
- High-End Residential Estates & Secure Courtyards: Delivers sophisticated European charm that pairs beautifully with both modern and historical landscape designs.
- Corporate Office Parks & Hospital Perimeters: Establishes clear property boundaries and secure walkways with a professional, inviting aesthetic.
Palletized Transport & Global Export Quality Control
Transporting rigid security fence panels across maritime trade lanes requires specialized packaging management. Our facility follows a strict loading protocol. Every welded metal panel is layered with soft expanded polyethylene (EPE) foam sheeting to prevent friction between powder coatings. Post elements are individually wrapped in high-micron bubble sleeves to prevent scuffing. The entire assembly is then secured onto heavy-duty steel pallet frames with heavy-tension strapping bands. The pallet is wrapped in multi-layer water-resistant stretch film to block moisture during oceanic travel. This structure optimizes container space usage, maximizing packing counts per container and allowing your logistics team to safely unload standard shipments with standard forklifts.
Frequently Asked Questions (FAQ)
Q1: Does the cold-bending process of the bow top make the steel tubes prone to internal rust?
A1: Absolutely not. We utilize high-grade pre-galvanized heavy steel pipes running through advanced multi-mandrel digital CNC cold-bending systems. This premium technique guarantees uniform wall thickness along the radius of the curve and prevents micro-fractures. Because the inner zinc coating remains fully intact during the bend, the tube retains complete resistance against internal oxidation.
Q2: Does your bow top fence layout strictly satisfy standard anti-entrapment building codes?
A2: Yes, our panels are engineered to satisfy the strict anti-entrapment and child safety guidelines globally (such as the British BS EN 1176 standard for playground environments). The gaps between pickets and the space inside the continuous loops are held tightly to a maximum of 100mm, completely preventing toddlers from trapping their heads or getting limbs caught between the rails.
Q3: Can your bow top fencing panels handle sloped terrain or grading changes smoothly?
A3: For sloping terrain, we offer two professional engineering solutions: stepped installation and custom racked panels. Racked panels use specialized internal pinned pivoting joints that allow the pickets to follow the slope of the hill while keeping the upright bars perfectly vertical. Alternatively, our heavy-duty aluminum universal brackets allow for stepped adjustment on post connections, accommodating standard grade changes smoothly.
Q4: What is the wholesale Minimum Order Quantity (MOQ) and can you produce interlaced bow variants?
A4: Our commercial line wholesale MOQ is 1x20GP container (approx. 200-250 complete panels with posts and specialized mounting brackets). We are a full OEM architectural fabrication plant, meaning we can customize specialized variants including interlaced bow tops, bow-over-bow configurations, or custom powder-coated colors matching your commercial brand.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Bow Top Fence procurement costs? Partner with us to enjoy premium heavy-duty, smooth bow-top hazard-free, and anti-trap security quality compliant with international public safety, school playground, and park landscaping standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP/40HQ).
- 100% Free Samples: Quality, steel tube/bar wall thickness, bow bending precision, welding strength, anti-trap picket spacing, and hot-dipped galvanized or powder coating thickness testing samples available for your local municipal estate, school campus, or recreational park project and distribution verification.
- Guaranteed Fast Lead Time: Advanced automated precision tube bending, multi-point welding, and premium outdoor-grade powder coating/galvanizing lines ensure prompt manufacturing and on-time shipment of your Bow Top Fence.
- Customized Packaging: Marine-grade rust-proof dual packing (protective foam/bubble wrap sheets inside + PE shrink film outside) with heavy-duty reinforced iron or wooden pallets to prevent transit scratching, panel distortion, and bow-shape deformation.
