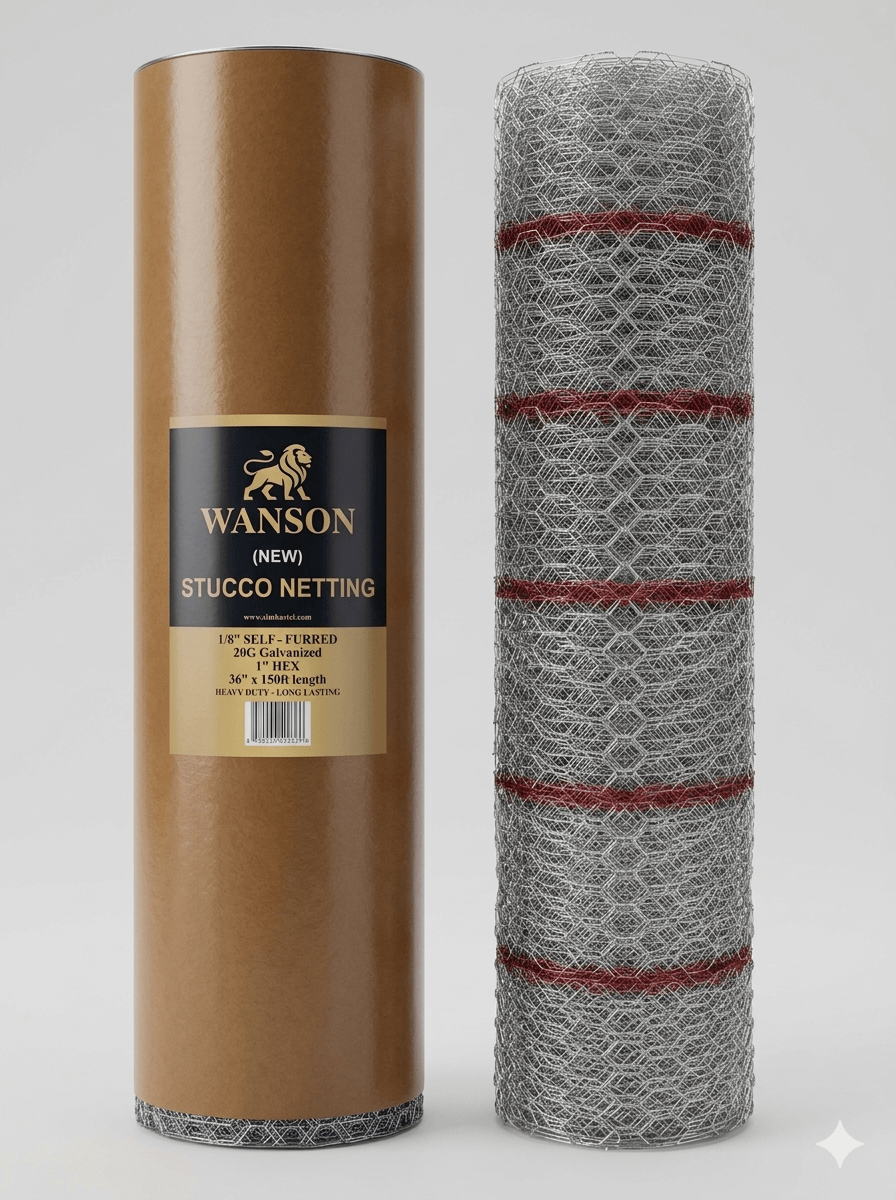

Industrial Galvanized Stucco Wire Mesh for External Plaster Reinforcement
As an internationally certified manufacturer and direct B2B exporter of structural building materials, we supply premium-grade Stucco Wire Mesh engineered specifically for heavy-duty commercial wall plastering, exterior insulation finish systems (EIFS), and high-volume hardware distribution networks. Exterior walls are subjected to constant thermal contraction and expansion cycles, structural shifts, and environmental moisture exposure, which can cause unreinforced plaster or cement skins to develop macro-cracking, sagging, or catastrophic material delamination. Our specialized galvanized wall plaster netting solves this critical engineering challenge by creating a high-tensile structural backbone within the cement matrix, distributing multi-directional load stress uniformly across the entire wall panel, and keeping your architectural surfaces perfectly structurally flat for decades.
Critical Technical Innovations of Our Stucco Reinforcement Mesh System:
• Exceptional Alkaline Chemistry Resistance: Heavy zinc coating resists chemical degradation from high-pH Portland cement slurry, preventing internal metal breakdown.
• Stress-Free Flat Deployment: Advanced reverse-twist weaving eliminates mechanical wire torque, keeping the roll completely flat against the wall during mounting.
• Optimal Plaster Embedding: Uniform hexagonal mesh dimensions create deep, secure mechanical keys that lock wet mortar tightly into place.
• Strict Global Construction Compliance: Manufactured in compliance with ASTM guidelines, making it fully ready for strict municipal engineering inspections.
Advanced Metallurgical Galvanization: Standing Up to High-Alkali Mortar Chemistry
The core structural reliability of our Stucco Wire Mesh relies heavily on our advanced metallurgical coating standards. When raw carbon steel wire comes into direct contact with wet, un-cured mortar mixtures, it faces an aggressive chemical challenge due to the highly alkaline environment of traditional lime and cement formulas. To guarantee long-term protection against failure, our factory implements an intensive **Hot-Dipped Galvanized After Weaving (GAW)** protocol. After weaving the wire rolls, the entire interlocking hexagonal structure is completely submerged into a molten zinc bath. This creates an unbroken metallurgical layer over every wire twist, corner crevice, and raw edge, effectively isolating the underlying steel from internal concrete moisture and preventing subsurface rust that could cause plaster cracking.
Furthermore, we incorporate reinforced integrated double selvedge structural wire strands along both top and bottom edges. This provides essential support when stretching and nailing the wire mesh across timber studs or metal framing channels. The added boundary reinforcement ensures the mesh maintains a straight vertical alignment under the heavy dead load of freshly applied wet plaster, avoiding any buckling or center-line sagging.
Technical Specifications Table
| Mesh Size (Aperture) | Wire Gauge (BWG) | Wire Diameter (mm) | Standard Dimensions | Zinc Weight (g/m²) | Compliance Standard |
|---|---|---|---|---|---|
| 1″ (approx. 25mm) | 20 BWG (Standard Stucco) | 0.85mm – 0.90mm | 36″ x 150ft / 0.914m x 45m | 60g – 240g / m² | ASTM A641 / ASTM C1063 |
| 1″ (approx. 25mm) | 18 BWG (Heavy Duty) | 1.20mm | 36″ x 150ft / 0.914m x 45m | 80g – 260g / m² | ASTM A641 / EN 10244 |
| 1.5″ (approx. 38mm) | 18, 19, 20 BWG | 0.90mm – 1.20mm | 48″ x 150ft / 1.22m x 45m | 60g – 240g / m² | ASTM / European Standard |
| 2″ (approx. 50mm) | 16, 18, 19 BWG | 1.00mm – 1.60mm | 1.0m x 50m / 1.5m x 50m | 80g – 300g / m² | EN 10223 Industrial Code |
Critical Engineering & Drywall Architecture Applications
Our galvanized stucco wire mesh rolls are widely trusted across global infrastructure projects, modern multi-family commercial drywalls, and heavy-duty building envelope fabrications:
- Exterior Three-Coat Stucco System Reinforcement: Provides an ideal anchoring structure for scratch and brown coat applications on commercial facades.
- EIFS Thermal Wall Insulation Mounting: Securely locks structural rockwool or expanded polystyrene (EPS) boards against brick or concrete backings.
- Historic Facade Restoration & Plaster Overhaul: Installed over damaged, aging brick walls or historic surfaces to support a fresh, long-lasting plaster coat.
- Tile Backing and Ceramic Veneer Support: Serves as a high-strength subgrade mesh to support heavy natural stone tiles or external brick veneer layouts.
Seaworthy Marine Packaging & Standard Container Load Optimization
To guard high-density building material cargo against high marine humidity levels, salt fog exposure, and intense physical shifting during cross-border maritime shipping, our factory maintains strict packaging standards. Each individual stucco mesh roll is wound under precise tension onto an anti-crush core, wrapped inside thick waterproof asphalt-treated kraft sleeves, and sealed with a heavy layer of poly stretch film. To streamline warehouse forklift operations at destination ports, we offer structural vertical palletizing configurations bound with high-tensile steel straps. This careful layout alignment lets us safely load to maximum container weight weight thresholds, driving down transcontinental ocean freight costs per unit roll for global B2B building material distributors.
Frequently Asked Questions (FAQ)
Q1: Why is reverse-twist hexagonal wire mesh preferred over standard straight-twist mesh for stucco applications?
A1: Reverse-twist hexagonal wire mesh alternates twisting directions, which neutralizes the internal torsional stress of the metal wire. This ensures that when the roll is unrolled on-site, it lays completely flat against the substrate instead of curling or bowing, saving valuable labor time and reducing installation costs for framing teams.
Q2: Does your factory supply self-furring stucco wire netting with dimple embossing options?
A2: Yes. We operate specialized self-furring machinery that stamps continuous mechanical dimples (typically spaced at 6-inch or 8-inch intervals) into the mesh surface. These custom indentations automatically maintain a precise 1/4-inch offset from the sheathing board, allowing plaster to flow smoothly behind the wire matrix for complete wire encapsulation without manually applying individual spacers.
Q3: How does your stucco netting satisfy regional North American building codes such as ASTM C1063?
A3: Our architectural wire lines adhere strictly to ASTM standard guidelines. We maintain a precise wire gauge threshold of 20 BWG (0.0348 inch core diameter) and apply hot-dipped zinc coatings that comply with ASTM A641 specifications, ensuring your shipments easily pass structural testing evaluations during official commercial construction audits.
Q4: What is your manufacturing timeline and minimum order quantity (MOQ) for 36-inch standard export rolls?
A4: For standard 36-inch and 48-inch widths in 20 BWG mesh, we maintain a rolling factory inventory with a flexible trial MOQ of 200 rolls. For custom dimensions, non-standard weights, or specific private label packaging configurations, our production lead time is typically 14 to 21 days for a full 20-foot container shipment.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your Stucco Wire Mesh procurement costs? Partner with us to enjoy premium bright, smooth-finish, and perfectly flat quality compliant with ASTM C1063 / BS EN 10223 standards and seamless global supply chain service.
- Flexible Tiered Pricing: Massive discounts and competitive FOB/CIF/CFR quotes for full container loads (20GP).
- 100% Free Samples: Quality, dimensional flatness, and embedment-strength testing samples available for your local construction project or distribution verification.
- Guaranteed Fast Lead Time: Advanced automated multi-spot welding or weaving looms and precise panel/roll finishing lines ensure prompt manufacturing and on-time shipment.
- Customized Packaging: Marine-grade rust-proof dual packing (waterproof paper inside + PE shrink film outside) with heavy-duty reinforced pallets or tight rolls to prevent transit deformation and edge damage.
