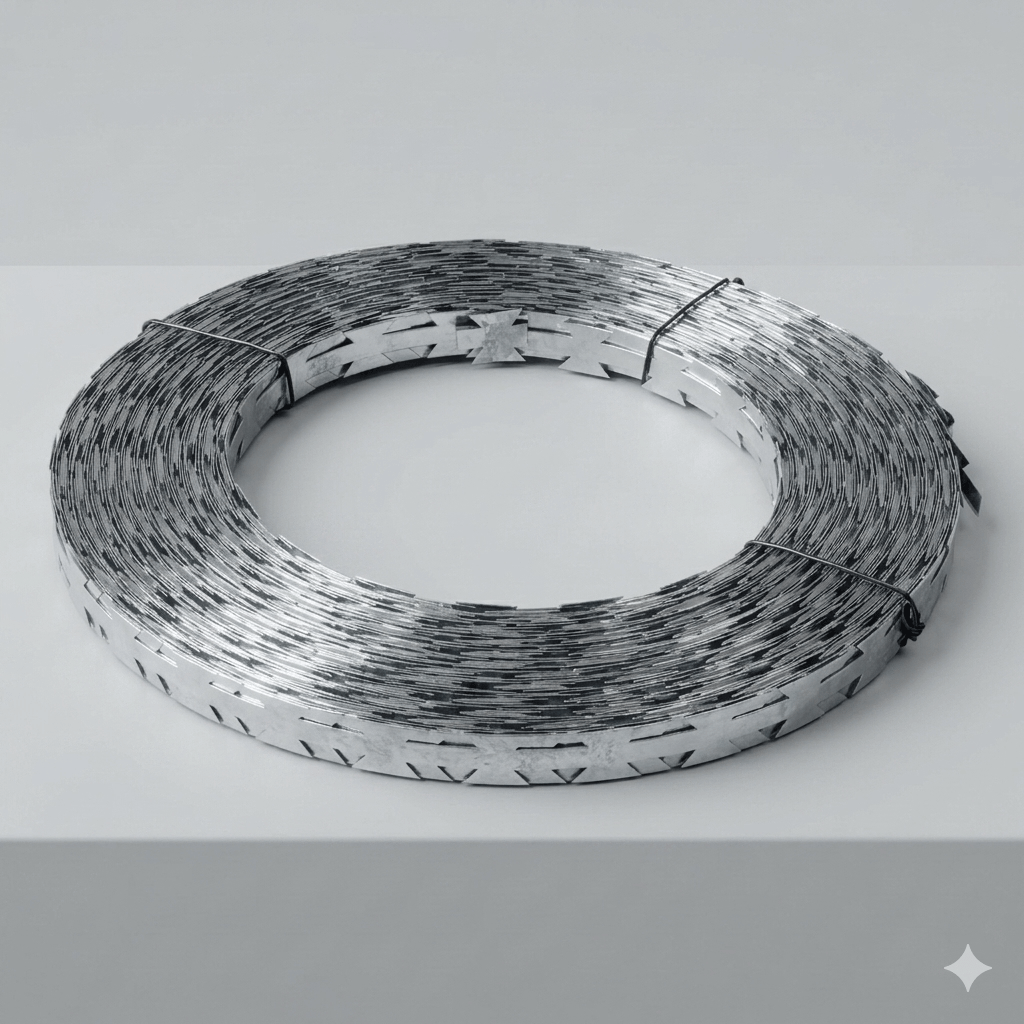

Premium Unreinforced Razor Ribbon – Pure Steel Coreless Barbed Tape
Our heavy-duty Unreinforced Razor Ribbon represents a highly flexible, cost-efficient breakthrough in modern perimeter security engineering. Manufactured entirely by precision stamping high-quality galvanized or stainless steel sheets into an aggressive barbed profile, this coreless razor tape eliminates the rigid central wire. The resulting pure steel ribbon delivers exceptional tensile flexibility, allowing it to be easily draped, wrapped, or linearly tensioned along uneven structures, residential gates, and industrial facility boundaries.
Key Engineering Advantages of Coreless Razor Ribbon
- Pure Coreless Flexibility: Without a stiff interior wire, this steel ribbon can be seamlessly manipulated and fitted into narrow gaps, moving gates, and custom architectural perimeters.
- Aggressive Stamped Barb Pattern: Delivers continuous, razor-sharp barbs (available in BTO-22, CBT-65) that create an intensive visual deterrent and an immediate physical barrier.
- Superior Environmental Resistance: Fabricated using up to 275g/m² hot-dipped zinc coatings or marine-grade SS304/SS316 alloys to guarantee long-term defense against heavy rain and salt mist.
- Freight-Saving Flat Profile: Compresses flawlessly into ultra-flat, compact discs that maximize maritime container weight-to-volume ratios for premium B2B cost control.
Technical Specifications & Blade Sheet Profiles
| Specification Property | BTO-10 Profile | BTO-22 Standard | CBT-65 Heavy Duty |
|---|---|---|---|
| Interior Wire Core | None (Coreless) | None (Coreless) | None (Coreless) |
| Sheet Plate Thickness | 0.50 mm ± 0.03 | 0.50 mm ± 0.03 | 0.60 mm ± 0.03 |
| Barb Length (mm) | 10.0 mm ± 1.0 | 22.0 mm ± 1.0 | 65.0 mm ± 2.0 |
| Barb Width (mm) | 13.0 mm ± 1.0 | 15.0 mm ± 1.0 | 21.0 mm ± 1.0 |
| Barb Spacing (mm) | 26.0 mm ± 1.0 | 34.0 mm ± 1.0 | 100.0 mm ± 2.0 |
| Zinc Density Tier | 60g – 275g / m² | 60g – 275g / m² | 120g – 275g / m² |
Advanced Coreless Stamping & Metallurgical Options
Our dedicated manufacturing line utilizes state-of-the-art continuous rotational stamping technology. High-pressure dies punch out precise, razor-sharp barbs from continuous coils of steel sheet without causing micro-fissures in the anti-rust treatment layer. International enterprise buyers can select from three core B2B raw material classes:
- Standard Industrial Galvanized Sheet: Coated with an economical 60-80g/m² zinc barrier, providing durable protection for general commercial warehouses, storage yards, and dry climates.
- Heavy-Duty High-Zinc Galvanized Sheet: Up to 275g/m² heavy zinc density, engineered specifically for critical infrastructure projects, military zones, and long-term outdoor field deployment.
- Marine-Grade Stainless Steel Sheet (SS304/SS316): Yields ultimate chemical immunity to ocean salt spray, coastal moisture, and acidic chemical plant fumes, ensuring decades of performance.
Ultra-Compact Packaging & Container Freight Logistics Optimization
Because unreinforced razor ribbon lacks a rigid central core wire, it boasts an incredible advantage in logistics footprint optimization. Our factory export division leverages high-pressure hydraulic bundling machines to compress these rolls into completely flat, ultra-dense concentric discs. This coreless compression dramatically reduces wasted volumetric space inside sea freight shipping containers, allowing bulk B2B clients to import far more meters per container. Every palletized stack is tightly wrapped in dual layers of waterproof woven polypropylene textile and secured with heavy-duty steel bands to ensure optimal safety and swift forklift handling at destination ports.
Frequently Asked Questions (FAQ)
Q1: What is the main operational difference between Unreinforced Razor Ribbon and standard reinforced razor wire?
A: Standard razor wire features a 2.5mm high-tensile spring steel wire core inside the stamped ribbon to provide rigid structural support. Unreinforced razor ribbon consists solely of the stamped and folded steel sheet with no central core wire. This makes the unreinforced version highly flexible, lighter, and much more cost-effective. It is primarily used as an overlay deterrent woven or clipped onto existing chain link fences, gates, or walls rather than as a standalone barrier.
Q2: How is coreless barbed tape typically installed on a security perimeter?
A: Due to its high flexibility, it is exceptionally easy to handle. Installers typically tension a standard support guide wire along the fence or wall top, then loop, wrap, or clip the unreinforced razor tape directly to that guide mesh. It can also be flatwrapped or cross-clipped together using clips to form flat profile networks that hug fence surfaces without projecting into walkways.
Q3: What are the primary cost benefits of importing unreinforced razor ribbon for B2B buyers?
A: There are two main financial advantages. First, manufacturing costs are lower because it uses less material (no central core wire). Second, it packs extremely flat. The flat nesting capability allows us to load significantly more linear meters of product into a single 20ft or 40ft container compared to bulky helical concertina wire, drastically reducing your ocean freight cost per meter.
Q4: What is your standard factory lead time for bulk container orders?
A: Our modern manufacturing facility operates multiple high-capacity automated stamping lines. For standard galvanized steel sheets (such as the standard BTO-22 profile), our daily output exceeds 20 tons. We can efficiently complete production, quality inspection, and export packaging for a full 20ft container order within 10 to 14 business days from deposit confirmation.
