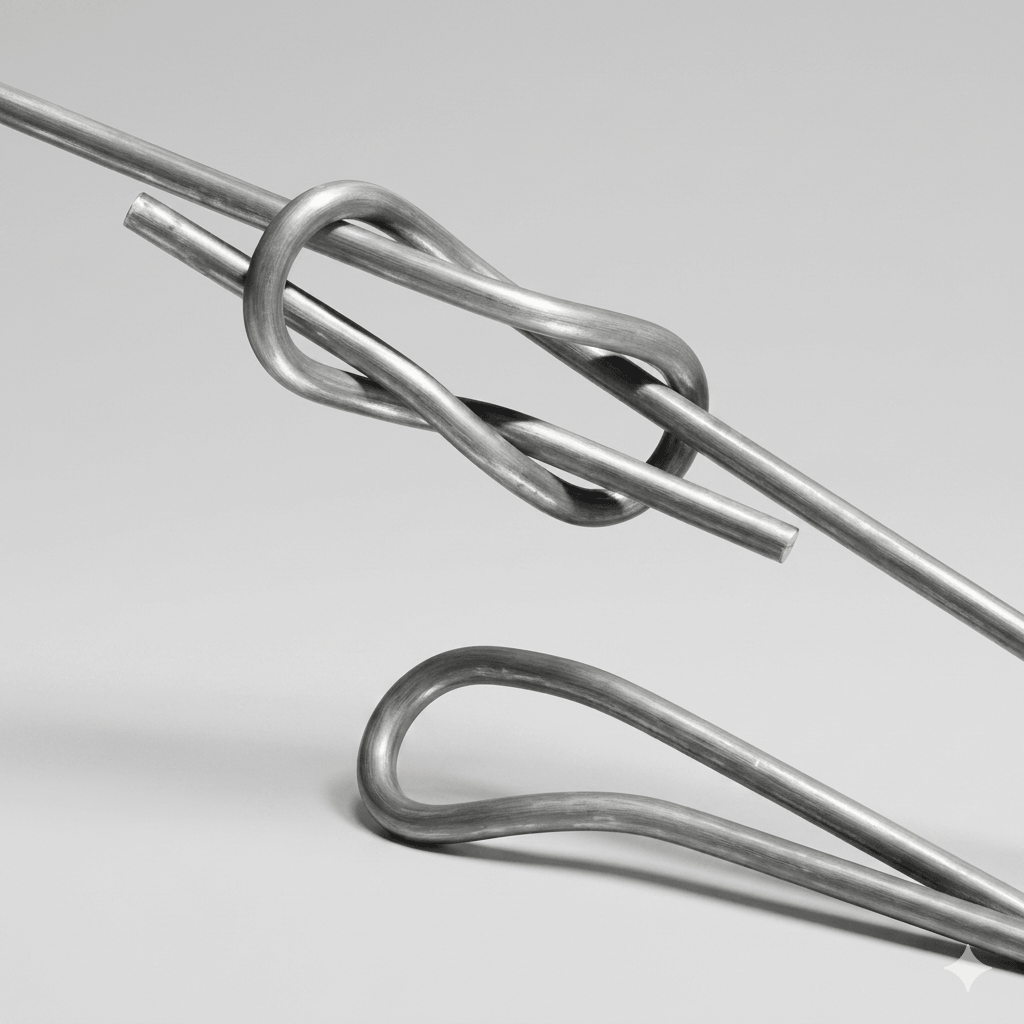

High Tensile Quick Link Bale Ties for Heavy-Duty Recycling Balers
Our industrial-grade Quick Link Bale Ties represent the most advanced and time-efficient baling wire technology available in the global waste management, recycling, and commodity export sectors. Fabricated using heavy-duty, high-carbon structural steel rods, these ties are mechanically engineered with a precise interlocking loop profile at both ends. This specialized design allows waste management operators and agricultural packers to feed, snap, and secure bundles under immense pressure without requiring manual wire twisting tools or automated tier nodes.
Known universally as Quick Link Bale Wire, this premium product line is optimized to work smoothly with vertical and horizontal heavy-duty compressing balers. Because expanding compressed materials like waste paperboards, plastics, rags, and agricultural foam exert tremendous outward pressure, our wire is carefully formulated with low-elongation metrics. This ensures that your bales maintain a perfectly compact cubic dimension for maximum space utilization inside shipping containers and warehouses.
Why Choose Our High Tensile Quick Link Bale Wire?
1. Rapid Hook Interlocking & Labor Saving
The precision-formed end loops glide together and snap lock instantly during compression. By switching from standard tie wire to quick link profiles, recycling hubs can decrease manual tying times by up to 50%, optimizing processing capacity and heavily trimming down labor expenditures.
2. High Breaking Strength (Up to 1450 N/mm²)
To resist the punishing force of dense hydraulic rams, our baling wire features a specialized drawing process that scales up its internal tensile capability. The loops are structurally engineered to handle massive tension without snapping at the bend zone, guaranteeing extreme containment safety.
3. Uniform Gauges & Accurate Length Cutting
We implement multi-stage computerized straightening and shear cutters to ensure every bundle perfectly adheres to requested measurements. Whether you utilize standard 11 Gauge, 12 Gauge, or 13 Gauge wires, the lengths remain consistent to the millimeter for error-free operations.
4. Premium Surface Coatings (Galvanized & Phosphated)
Available in both heavily hot-dipped galvanized structures for long-term outdoor outdoor rust protection or sleek black phosphated / bright oiled variants for immediate indoor industrial applications, allowing you to tailor inventory based on client budgetary preferences.
Complete Technical Specifications Table
| Wire Gauge (US Standard) | Diameter (mm) | Standard Length Range (ft / m) | Tensile Strength Range | Standard Bundle Packing | Surface Finishes Available |
|---|---|---|---|---|---|
| Gauge 11 (Heavy Duty) | 3.05 mm | 11ft – 22ft (3.35m – 6.70m) | 1200 – 1450 N/mm² | 100 / 250 pcs per bundle | Hot-Dipped Galvanized / Phosphated |
| Gauge 12 (Recycling Standard) | 2.67 mm | 10ft – 18ft (3.05m – 5.48m) | 1150 – 1400 N/mm² | 125 / 250 pcs per bundle | Hot-Dipped Galvanized / Oiled Bright |
| Gauge 13 (Medium Density) | 2.32 mm | 8ft – 15ft (2.43m – 4.57m) | 1100 – 1350 N/mm² | 250 pcs per bundle | Galvanized Standard / Black |
| Gauge 14 (Light Commercial) | 2.03 mm | 7ft – 14ft (2.13m – 4.26m) | 1100 – 1300 N/mm² | 250 / 500 pcs per bundle | Electro-Galvanized / Bright |
Diverse Material Baling & Industrial Integration
Our loop technology bale links are highly adaptable and excel within critical corporate sorting centers and packing plants:
- OCC and Cardboard Recycling Plants: Safely wraps giant blocks of compressed corrugated boxes at metropolitan waste collection yards, keeping dense waste structurally secure for heavy intermodal transport.
- High-Elasticity Plastic and PET Bottle Processing: Resists the enormous expanding memory forces of crushed plastic soda bottles, aluminum beverage cans, and scrap plastics.
- Textile and Used Clothing Balers: Extensively chosen by international used clothes exporters to form compact, clean, uniform bales that load smoothly into ocean freight containers.
- Agricultural Raw Cotton & Hay Shipping: Provides pure rust-free bundling matrices for natural fibers and raw agricultural products, preventing raw stock staining.
Frequently Asked Questions (FAQ)
Q1: How does the interlocking quick link loop mechanism function during compression?
A: During hydraulic compaction inside a baler, the machine channels guide the wire around the bale. The worker or feeding arm simply takes the pre-formed hooks on both ends, inserts one hook loop into the other, and shifts them to slide into place. Once the hydraulic ram retracts, the natural expanding force of the bale locks the hooks together under absolute constant tension, creating an inseparable connection.
Q2: Which wire gauge should we select for aggressive expanding materials like PET bottles or tires?
A: For materials with extreme rebound elasticity like compressed scrap tires or high-memory plastic bottles, we strongly suggest our thickest standard options: Gauge 11 (3.05mm) or Gauge 12 (2.67mm). For standard cardboard box OCC recycling or used clothing, a Gauge 13 (2.32mm) provides an ideal cost-to-performance equilibrium.
Q3: What are the main commercial differences between galvanized and black phosphated bale ties?
A: Hot-dipped galvanized quick link ties offer premium zinc sacrificial protection, preventing corrosion even when bales are stacked outdoors in rain and snow for months. Black phosphated or bright oiled bale wire is highly economical and has a smooth surface friction coefficient, making it perfect for rapid indoor baling where cargo is immediately loaded into ocean containers.
Q4: What is your factory’s production MOQ, and can we order custom lengths for unique European/US balers?
A: Our standard production MOQ is 10 Metric Tons. We fully support custom engineering setups and can manufacture specialized non-standard lengths (e.g., specific 13.5ft or 21ft requirements). B2B distributors are welcome to combine multiple lengths and wire gauges into a single 20ft freight container to satisfy varied market requests.
Get Factory-Direct Wholesale Price & Free Samples
Are you searching for a stable, high-capacity Chinese manufacturer to optimize your recycling operations or industrial packaging distribution procurement costs? Partner with us to enjoy premium quality, precision-formed Quick Link Bale Ties and seamless global supply chain service that maximizes your operational reliability.
- Flexible Tiered Pricing: Massive volume-based discounts and highly competitive FOB/CIF/CFR quotes for full container loads (20GP) to significantly boost your local industrial distribution or recycling service re-selling margins.
- 100% Free Samples: Physical quick link loop wire testing samples are available immediately for your local laboratory wire gauge verification, zinc coating density thickness audits, or loop joint tensile strength testing.
- Guaranteed Fast Lead Time: Our advanced continuous automated loop-forming machineries and precision wire straightening systems, backed by a stable raw carbon steel rod inventory, guarantee prompt manufacturing and on-time shipping schedules.
- Customized Packaging: Heavy-duty marine-grade dual packing (100 or 250 straight wire pieces tightly bound and wrapped with high-density protective material + rugged extra-long structural wood pallets or special steel metal carrier frames outside) to thoroughly protect against salty sea air, loop bending, and uncoiling abrasions during transit. One 20ft container comfortably load up to 25 Metric Tons of palletized bale ties.
